Very Low Profile PCB Jack(Side Entry)
Materials
Housing: PBT+30% glass-fiber UL94V-0 Black
Contacts: 0.35mm thickness alloy, gold plating over nickel in contact area
Tin Plating over nickel in solder area
|
|
RIA Connect offers high quality, competitively priced RJ45 jacks and Ethernet connectors. Our product line includes shielded and unshielded RJ45 jacks, thru hole jacks with top or side entry and surface mount RJ45 jacks. We can meet the needs of your data transfer and communications equipment with Cat 5, Cat 5e and Cat 6 compliant jacks, in addition to single port or multi port jacks, LED jacks, USB jacks, Keystone jacks, Industrial Ethernet IP 67 connectors and magnetic jacks.
New this year is X|Synergy. X|Synergy is a product line which facilitates an IP-67 level connection system between the network cable and the PC board. X|Synergy is a robust, tool-less, self-aligning interface which reins supreme in harsh environments. X|Synergy achieves all this while meeting CAT 6A compliance standards, and easily supporting 10Gb/s transmission.
|
|

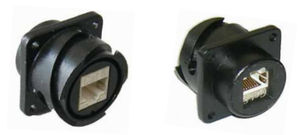

- IP65 / IP67 degree of protection (EN 60529)
- insert RJ45, Cat. 5 Ethernet
- rated current: 2.1A at 70 °C
- rated voltage: 50V cc / 35V ca
- insulation piercing terminal: for data conductors 0.22 mm2 ÷ 0.24 mm2 (AWG for power conductors 0.34 mm2 ÷ 0.38 mm2 (AW 24) G 22)
- temperature limit: -20 °C, +120 °C
- nickel-plated brass screening
- crimping tool: CJPZ Y
- screened cable stripping tool: CJST
- insert code pin: CR KC
- self-extinguishing: UL 94V-0
- metal enclosures in die-cast zinc alloy
- insulating enclosures in black self-extinguishing
thermoplastic material
- mobile enclosures with cable gland
- female insert with two connected entries
- more information on catalogue RJ45
|
|
Connetori modular liabilities RJ45.
Single or to module.
Vericali, horizontals and to angle.
Shielded and not shielded.
_ Category 5e
_ Category 6
_ Category 6a
_ Category 7
_ Category 7a
Available accessories.
|
|
|
Modular jack connectors, a cornerstone of communications technology, have been used in the telecommunications and ethernet industry for many years. The main reasons for this are the simplicity and reliability of these products. Whether integrated in a simple telephone system, or in a gigabit application, “mod. jacks” represent the standard for network connections. Mod. jacks can be obtained in many different versions. Increasing data rates and space-saving requirements are driving increasing requests for these connectors with integrated filter components.
|
|
|
|
