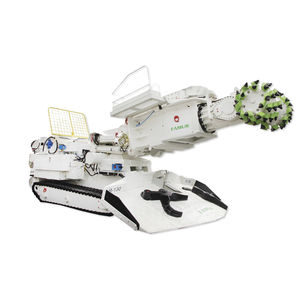

AQM 50
The Antraquip model AQM 50 is a roadheader in the 13 ton weight class, with the worlds narrowest roadheader. It is ideally suited for tunneling and mining where only a very narrow machine fits.
Technical Data
Weight: approx. 13 t
Height: 1550 mm
Length: 6890 mm
Width Load Apron: 1600/2000/2500 mm
Cutter Motor: 30 kW / 41 kW
|
|
AQM 100
The Antraquip model AQM 100 is a roadheader in the 25 ton weight class, which can be used in various applications within the tunneling and mining industries. They are commonly used for excavation of tunnels and in various underground mining applications.
Technical Data
Weight: approx. 27 t
Height: 1830 mm
Length: 8950 mm
Length (with belt conveyor): 13500 mm
Width Load Apron: 2000/2500/3000 mm
Cutter Motor: 110/132 kW
Hydraulic Power Pack Motor: 22 kW
Chain Conveyor/Loader Motors: 2x18 kW
Crawler Track Motors: 2x15 kW
Cutting Profile (with Standard extension):
Max Cutting Height: 4420 mm
Max Cutting Width: 5200 mm
Max Undercut: 180 mm
|
|
AQM 200
The heavy duty AQM 200 roadheader is designed for applications with semi-hard to hard rock excavation. It is ideally suited for tunnel excavation as well as mining applications in coal, potash, phosphate, salt, gypsum, uranium and other minerals.
Technical Data
Weight: approx. 55-58 t
Height: 2500 mm
Length: 11700 mm
Width Load Apron: 5500 mm
Cutter Motor: 200 kW
Hydraulic Power Pack Motor: 70 kW
Loader Motors: 2x36 kW
Cutting Profile (with Standard extension):
Max Cutting Height: 5300 mm
Max Cutting Width: 7600 mm
|
|
AQM 150
The AQM 150 is a powerful mid sized roadheader with a rugged compact design. It is designed for excavation of semi hard rock in tunnels and under ground mining applications.
Technical Data
Weight: approx. 35 t
Height: 1800 mm
Length: 8113 mm
Width Load Apron: 2000/2500/3000 mm
Cutter Motor: 150/175 kW
Hydraulic Power Pack Motor: 45 kW
Loader Motors: 2x22 kW
Crawler Track Motors: Hydraulic
Cutting Profile (with Standard extension):
Max Cutting Height: 4085 mm
Max Cutting Width: 5005 mm
Max Undercut: 180 mm
|
|
|
|
|
|
As a hybrid of the well proven MK2B and LH1300 series of machines with a combined fleet numbering 245 (102 Mk2B and 143 LH1300 produced to-date) the Dosco MK2BP Roadheader is a medium duty, track mounted, single boom Roadheading machine and has been specifically designed with an ultra low ground pressure of 1.13 kg/cm2. Capable of carrying out mechanised preparatory excavation work in extremely soft floor conditions for both mining and civil engineering applications. Such a low ground pressure will prevent the machine from sinking whilst providing excellent manoeuvrability.
The Mk 2BP incorporates the latest technology available for road-heading machinery.
Designed for development or production work, this powerful two speed boom machine is ideal for
operating in adverse floor conditions. This machine has been purposely designed with an ultra low
ground pressure of 1.11 kg/cm². Such a low ground pressure will prevent the machine from sinking
whilst still providing acceptable manoeuvrability.
High efficiency cutting including an ability to economically excavate hard rock is achieved through:
High cutting power, high arcing and lifting forces plus two speed cutter head design.
|
|
The Dosco MD1100 Roadheader is a general duty, track mounted, single boom roadheading machine designed to carry out mechanised preparatory excavation work in both mining and civil engineering applications.
With options of Axial or Transverse Cutting Booms the 35 tonne MD1100 is a robust reliable machine capable of ecomonic excavations in strata up to 80Mpa strength strata.
|
|
The Dosco Roadheader MK4 is a heavy duty, track mounted, single boom Roadheading machine designed to carry out mechanised preparatory excavation work in both mining and civil engineering applications.
The 96 tonne machine is designed to give greater strength and power to the well proven cutting boom principle. A powerful boom assembly with high arcing and lifting forces enables the machine to cut harder strata’s in roadways up to 5,300 mm high.
The machine is of sectionalised design and bolted construction for ease of maintenance and on-site dismantling and transportation.
|
|
Designed for development or production work, this powerful single boom 60 tonne machine is ideal for operating in areas of restricted height.
The LH1400 series has developed from the original LH1300H model and in-corporates greater cutting forces from a single or two speed boom assembly
Alternative axial or transverse cutting options can be specified to suit roadheading and production operations in medium to hard strata.
|
|
|
WIRTH supplies a range of roadheaders in different classes. All machines can be adapted to specific conditions. Standard options include roofbolting equipment, flameproof versions, transformers, remote control, dust control, airconditioned cabins, ventilation, and material transport. All roadheaders are standard equipped with a longitudinal cutterhead, but alternatively we can supply transversal cutterheads.
|
|
|
LH1300H a 58 tonne low height medium duty machine. Axial, transverse, telescopic single and two speed options
|
|
SM100
High performance lowest weight class tunnelling machine for rockhardness up to 65 MPa. The smallest IBS solution for highest demands.
|
|
SM110
High performance small weight class tunnelling machine for rockharness up to 75 MPa. Basis for this development served the concept of the well known IBS roadheader SM130
|
|
SM130
High performance medium weight class tunnelling machine for rockhardness up to 80 MPa. With modular constructed system demands for reliable and efficient machine will be fullfilled.
|
|
