With the hydraulic stamp devices and PLC computer controlling systemCthe tile roof machine is of high quality and very convenient to operate the step-tiles of beautiful and shining appearance. It is widely used for making metal ceiling and outdoor decoration.
PLEASE WRITE ALL ENQUIRIES ONLY IN ENGLISH!
|
|
The P3 series has a eminant reputation among DREISTERN customers. The five models in the P3 series offer outstanding cost-effectiveness. Thanks to the numerous equipment variations, the right solution can be found for each requirement. According to the tooling changeover frequency, a suitable quick changeover system is put into action.
Equipped with computer driven pre- and post-punching units, these rollforming machines can manufacture finished profiles. Contoured tubes are also possible by means of additional HF welding equipment.
It is no wonder that hardly any profile producer today wishes to do without this multi-talented machine.
|
|
The P3 series has a eminant reputation among DREISTERN customers. The five models in the P3 series offer outstanding cost-effectiveness. Thanks to the numerous equipment variations, the right solution can be found for each requirement. According to the tooling changeover frequency, a suitable quick changeover system is put into action.
Equipped with computer driven pre- and post-punching units, these rollforming machines can manufacture finished profiles. Contoured tubes are also possible by means of additional HF welding equipment.
It is no wonder that hardly any profile producer today wishes to do without this multi-talented machine.
|
|
Frequent profile changeovers while maintaining the same high profile quality?
This is no problem for a P60/90. Thanks to a compact quick-change stand system, a tooling change can be carried out quickly. A precisely adjusted tooling stand is available for each particular profile. The advantage: No adjustments need to be carried out after tooling change. This type of machine is particularly popular with foam-filled roller shutter manufacturers, who appreciate the same high quality offered by this machine - even for difficult profile forms.
Additional foam-filling, punching or welding are easily integrated in the P60/90. Manufacturers have availed of these characteristics for many different and unforeseeable applications.
|
|
|
|
|
|

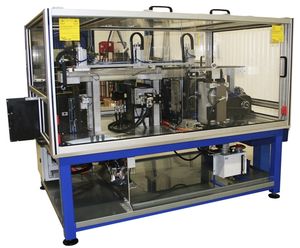

ShellRoller for Catalytic Converter Solutions
AddisonMckee is pleased to announce the introduction of its very first shell rolling machine for forming the round and oval shapes that make up the outer bodies of catalytic converters and mufflers.
Each machine cell consists of a feed system that lifts metal sheets from an incoming stack and loads them into the machine rollers for forming.
The forming process is then completed by 4 precision rollers that work in sequence to create the desired shell shape.
Key range/feature information for the ShellRoller for Catalytic Converter Solutions:
* Vacuum pick up system
* Fanning magnets to prevent multiple sheet loading
* Servo-gear drive precision rollers
* Electronic synchronization to prevent sheet slippage
* Electro-mechanical linear actuators for precise, clean, quiet operation
* Shell range 75 mm 350 mm (3" 13.8") length
* Cross sections of up to 180 mm (7.1")
* Minimum achievable radius 65 mm (2.5")
* Also available as part of a complete muffler or converter assembly system
|
|
- Complete and integrate production systems, combining rollforming
and punching systems, to obtain a complete operated and finished
product
- Wide range of models for all requirements
- Productivity: starting from 30 m/min up to 120 m/min
- Guaranteed quality and reliability
- Possibility to complete rollforming lines with profile coupling and
stacking profile systems
|
|
Conical and parallel sheet metal profiles formed precisely where you need them.
Ready for immediate productionanywhere.
Economic and flexible in everyday use!
The Mck rolling former is delivered in a 40-foot shipping container as a complete ready-to-run plant, with its own power supply. Under stored program control, the entire plant is easily operated by one person, producing conical and parallel profiles with extreme precision.
|
|
- Combined rollforming and punching lines, ideal to produce complex
profiles requiring various processes.
- Possibility to rollform and process up to 2 mm thickness.
- Each system is studied and designed in accordance with specific
Cutomer's requirements.
- Possibility to integrate the lines with ancillary systems for packing and
welding.
- Maximum safety and user friendliness make Monobloc rollformers
suitable to be used by unskilled personnel too.
|
|
- The ideal system for the integrated production of the internal
(or external) linear ceiling panels and the relevant carrier profiles.
- The combination of rollforming with notching and punching
operations made with the in-line press group allows to make all the
required operations on the profiles.
- Possibility to add further tooling to make perforated or curved
ceiling panels.
- Maximum flexibility and easy to use.
|
|
|
|
|
|
Arch and curing roll forming machine
This is developed for fulfilling the diversified demands of customers.
The feature of product (standing seam panel) from this roll forming machine ? It is possible to construct the interior of building without special substructure as a truss and convenient to adjust the height of building, so that constructor realize a high level of economic efficiency, saving assembly cost. Nowadays, this panel is extending the range of application as a construction material, for example, animals moving path through mountains.
Features of Siding Panel
Facility of building site
Movable to any building sites because this machine can be fitted into a 40 ft container on a truck
Efficiency at working time
Previous machine required the additional device to make the arched panel, but this machine can do roll forming and arch at same roll forming line. It have effected on saving for working time.
The high quality of profile
The bending (arch) is done by the last two step rolls of the roll forming line. It is effective in avoiding the damage of profile, in keeping the clean of profile surface, and in improving its durability
Convenience of construction
It is effective in saving the construction time because it is no necessary to do
Dual Featuring
Flat profile and arch profile can be produced in on line together
|
|

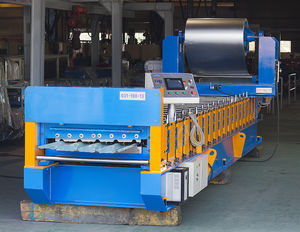

Roof tile roll forming machine
Cold roll forming is to form (profile) metal sheet (coil) by means of roller of roll forming machine step by step to get required final product (panel). The roller of machine line is most important part which decide the quality of product.
According to profile & capacity required, the type of roll forming can be decided such as cassette type of roll forming machine, double deck roll forming machine, rail type roll forming machine etc.
Designed to change the existing routine roof style for new style. It is getting popular in builders which specially care about the exterior of a building. There are two kinds of tile roof. The first is western type having excellent strength and the second is eastern type having curvaceous beauty
|
|
Roll forming machine for roof and wall
"Cold roll forming" is to form (profile) metal sheet (coil) by means of roller of roll forming machine step by step to get required final product (panel). The roller of machine line is most important part which decide the quality of product.
According to profile & capacity required, the type of roll forming can be decided such as cassette type of roll forming machine, double deck roll forming machine, rail type roll forming machine etc..
There kinds of cutting methods, First is Post cut after forming and Second is Pre cut before forming.
|
|
Cold roll forming machine for siding panel
Being against the monotonousness of the ordinary exterior panels, this new machine is able to product as many as 6 different profile panels, which have strong durability & anti-corrosion, in one line with automatic width and length adjusting system.
Due to being used as an exterior material, the coil thickness should be from 0.7mm ~ 1.0mm
When to be designed, it is focused on increasing strength to prevent fluctuation and noise against wind and also designed as an innovative material which has no subsidence, no change in quality according to temperature variation after construction.
When to use siding panels, customers can save the time on the spot due to the easiness of assembling materials.
|
|
| ... products without technical information |
| |
- Combi Monoblocco rollformers suitable to produce seamed pipes in
various dimensions and shapes.
- Systems suitable to produce round, octagonal and/or shaped pipes,
with or without perforations.
- The COMBI system allows the use of several tooling on the same line,
in order to produce pipes having different diameters, reducing a lot
set-up changing time.
- Maximum safety and user friendliness make Monobloc rollformers
suitable to be used by unskilled personnel too.
|
|
