ACE's expanded line of compact rotary dampers promotes smooth mechanical motion that enhances functionality and provides that touch of quality. Additional benefits include increased operational safety and component life, as well as noise reduction.

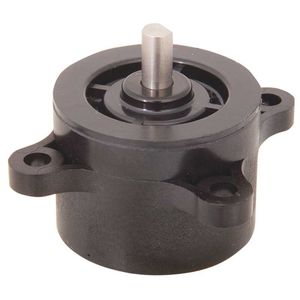

Rotary dampers minimize kinetic energy by controlling velocity. Designs are available utilizing viscous shear, vane with orifice or piston types, in addition to a locking damper. Models are available as single or bidirectional, continuously rotating or single rotating. Other options include: with or without gears, latching or unlatching, and fixed or adjustable.
Selected applications for rotary dampers include: computer hardware, flip top cell phones, compact disc units, video cameras, tape players, automotive compartment panels, seats, aerospace and medical equipment, furniture, safety covers and machine guards.
|
|
|

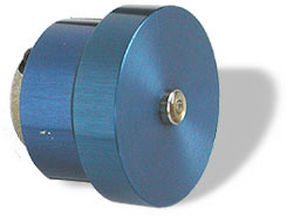

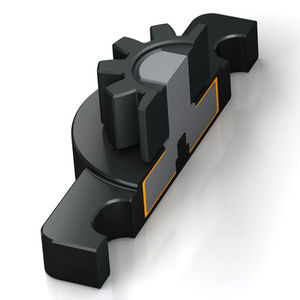

Enidine's Rotary Viscous Dampers (RVD) provide smooth control in applications that require continuous or intermittent positioning, forward, reverse and fixed path motion. The RVD design combines low breakout friction with viscous damping to control bi-directional rotary motion in applications such as door hinges, rollers and access panels. Each RVD contains a solid, rotating element called a "rotor". This rotor is surrounded by a thick film of silicone fluid and sealed inside a stationary housing. The RVD's rotor provides resistance by shearing the silicone fluid, controlling the desired motion.
|
|
|
This high torque damper, axial and bidirectional can be used for medium and high weight application like armrest or glove boxes.
|
|
|

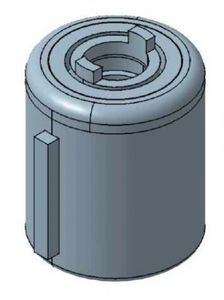

This axial damper many application is for teh grab handles damping but can also be used in small moving mechanims where the torque requested is lower 11 Ncm or lower.
|
|
This axial damper is high torque, 15 or 20 Ncm and can be used to make soft the movement of a rotating cover or bin dugin the opening or close.
the small dimension and the high torque allows the use in compact application.
application is small and medium weight
|
|
|
This dirirectional rotary damper is used for medium and heavy applications like glove boxes, storage bin, armrest.
|
|
These imaginative and practical units ensure a controlled opening and closing of small lids, trays and drawers with braking torques of 0.05 Ncm to
40 Nm.
The Rotary dampers are often used to protect delicate parts e.g. in CD-player-inserts, copiers, furniture, toilet lids, return valves and a multitude of other applications.
Maintenance free, self-contained rotary dampers are provided with outer bodies made of metal or plastic. They are available with fixed or adjustable
damping rates. The damping can be clockwise, anticlockwise or in both directions.

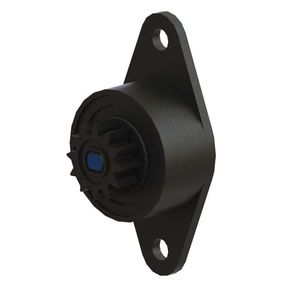

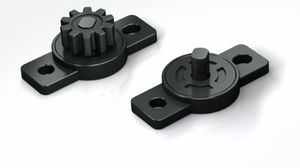

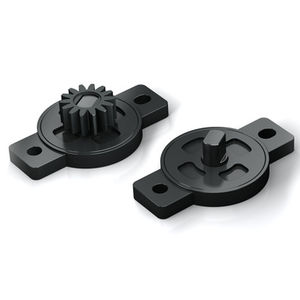

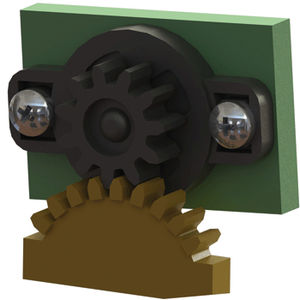

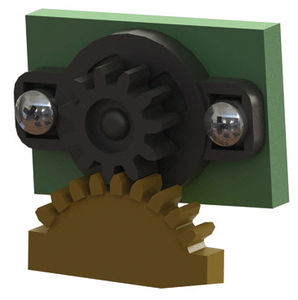

The output connection can be directly onto the shaft or via a gear. Rotary dampers with gears are available with 4 standard modules and we can deliver plastic racks to suit, as accessories.
|
|

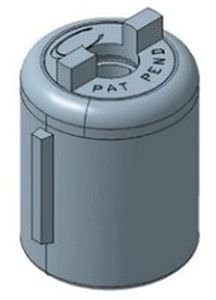

This unique damper has a push push system integrated into itself.
this feature allows to save to design, buy, install an extenral push push sysmte to keep the system closed (or open)
|
|
|
A complete set of slicone oil damper widely used to smooth any small or medium movement. automtotive interiors, cupholders, storage bins but also electronics controls, covers can be moved softly giving high perseption of quality
|
|
This monodirectional rotary damper is used for medium and heavy applications like glove boxes, storage bin, armrest.
the monodirectional damper is used to keep a free movement in on direction.
|
|

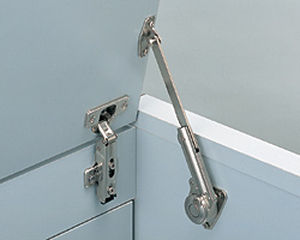

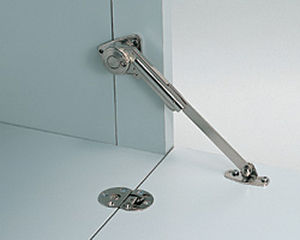

UDH TORQUE DAMPER & UDH-16 MINI TORQUE DAMPER
Keeps lid from slamming shut.
High torque within compact cartridge.
Operating angle: 115 degrees / dead angle 5 degrees
Operating temperature: 0 to 40 degrees C (32 to 104 degrees F)
Parts: Stainless steel and PBT plastic
Application: Soft close of box/container lids, toilet lids and toilet seats, etc.
Clockwise and Counterclockwise dampening directions available.
Please see our PDG catalogues here (Catalog #152, page 93) for further information or please visit our websites.
sugatsune.co.jp sugatsune.com sugatsune.net (Industrial)
|
|
|
|
|
|
Motion Control/Bumpers/Feet
Richco’s range of rotary and axis dampers provide the white goods, audio & video entertainment, automotive and general electronics industries with a solution to dampening and providing controlled movement to give added value and functionality to the end user. Richco’s rotary and axis dampers are available in different torques and mounting methods such as screw or snap-in mount.
Richco also provides door latches that act as a ‘push/pull’ locking and unlocking device enabling the door/compartment of your application to be securely closed and opened. Our door latch range also consists of a spring-assisted version.

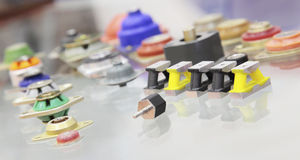

Richco also supplies a number of molded rubber bumpers and rivet-fastened push-on feet for dampening or for taking light shock absorption on moving parts. Richco’s bumpers and feet also secure and resist movement of your application when it is at rest. They also prevent surface damage with their anti-skid, scratch and stain/mark resistance properties. Richco’s bumpers and feet come in different shapes, sizes, colours, hardness ratings and materials. If you cannot find a specific product in this section or require further technical details, please contact your local Richco office.
|
|
