Principle: rotary actuator after helical gear switch prinziple
combined with a linear cylinder
Size: 40 bis 125 [mm]
Max. allowable operating pressure: 160 [bar], higher on request
Torque: till 2.050 [Nm], higher on request
Angle of rotation: 90°, 180°, 270°, 360°, and any intermediate angle, even above 360°
Stroke: 0 to 1200 [mm], higher on request
Temperature range: -25°C to 70°C
Options: end cushioning, longe-range adjustable end stop, control switch assembly, locating pin, etc..
Special on request.
|
|
| ... products without technical information |
| |

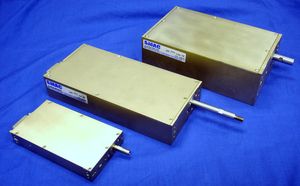

A comprehensive selection of combined linear rotary actuators with either direct drive or gearbox equipped rotary units. Standard linear resolution on all SMAC actuators is 5micron with 1micron and half micron options available. Fully programmable in force/torque, velocity and position with 100% data capture and feed back facility. The rotary resolution varies between 4864 counts for gearbox units and 20,000 counts for the direct drive. This makes them ideal for a wide range of positioning, measuring, inspection and pick & place applications. Particularly where 100% verification is required.
The SMAC unique “Softland” routine within the actuator allows the rod to approach at high speed then land on the surface of a component with a low programmable force. This unique feature is extremely useful whenever delicate or high value components are being handled.
SMAC electric actuators are used widely in packaging, labelling, automotive, SMT, robotics, pharmaceutical, medical assembly, laser cutting, high speed scanning, glass cutting, dispensing, switch testing, spot welding, soldering & measuring applications to name but a few.
|
|
|
SKF rotary actuators are designed to provide rotary motion. Fast or slow. Heavy or light duty. Complex or simple arrangements. You can chose from a wide variety of application areas. You will find a solution with both technical and economic advantages. Since the gearing is produced in one stage, through the use of a ball screw, you can also rely on a high degree of efficiency. Select the zero-backlash versions for maximum precision.
|
|
Multi Act’s integrated motion actuators have an output shaft which produces both linear and rotary motions may be operated independently and simultaneously. Multi-act is available in three family sizes.
MAO series – Miniature series
Linear: Strokes 1, 2 and 4 inches, Force 100 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 25 to 50 inch pounds at 100 psi
MA-1 Series – Heavy duty series
Linear: Strokes 2,4,6,9 and 12 inches
Force 440 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 150 to 600 inch pounds at 100 psi
MA2 Series - Brute Force Series
Linear: Strokes 4 and 8 inches
Force 1900 pounds at 100 psi
Rotary: Rotations 0 deg to 110 deg and 0 deg to 290 deg
Torques 1800 to 3600 inch pounds at 100 psi
|
|
|
|
