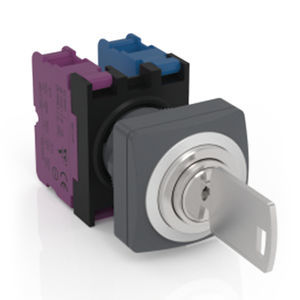

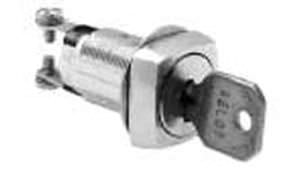

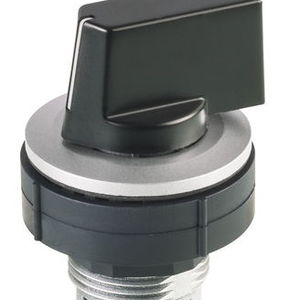

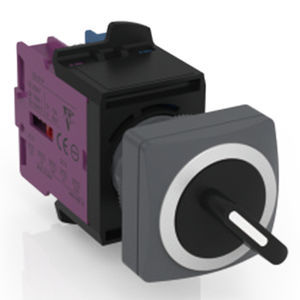

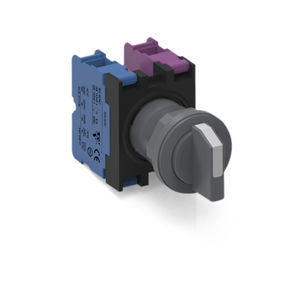

A rotary switch is a manual control with multiple positions. It can turn on, direct and turn off electric current. Its internal mechanical arrangement and wiring configuration determine the complexity of its functional combinations.
These switches are used as function or range selectors on a variety of devices, such as a multimeter. They are used as emergency on-off switches in industry. In addition, they are found on machines and different installations to select among several operational modes. Another use is to shift between star and delta connections, as in changing the speed of a Dahlander motor.
Switch position determines which of several circuits is closed. There may be several input poles, each with the same number of outputs. For example, the abbreviation 2P6T indicates a two-pole, six-throw (contact) switch. The number of possible poles is increased in a multi-deck switch by stacking several rotary elements in layers on a central shaft. The permanent contacts generally will not cause a short circuit. Nylon cams are used to ensure mechanical stability on modern rotary switches. They are sturdy and able to withstand harsh environments.
Choice will depend on contact configuration, current and voltage capabilities.
- Reliable connection
- Multiple wiring possibilities
- Subject to mechanical wear
|
|

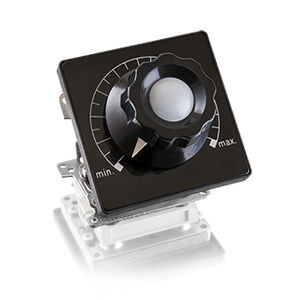

Rotary selector switch 6 Ncm | 01 Elma Electronic
Compact 12 positions selector switch, 25,000 switching cycles with up to...
|
|
Rotary power switch max. 315 A | T Eaton Moeller
T Rotary Switches up to 315 A – Flexible for All Switching Functions Rotary Switches/Switch-Disconnectors The modular system is particularly flexible and enables...
|
|
Rotary switch 12 - 120 V | RW200 series Eaton Commercial Controls
The RW200 series Rotary Wiper has four wiper control positions via a rotating knob: Off, Intermittent, Continuous Low Speed and Continuous High Speed. The...
|
|
Rotary power switch COMMAND series Sobem Scame
SCAME's range of switchgear includes two series which comply in design and construction with national and international standards that govern: Rotary control and disconnecting switches The...
|
|
Rotary power switch max. 440 V, 100 A | LW30 GREEGOO ELECTRIC CO LTD
LW30 series rotary switches applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A. LW30 is suitable to control:air-conditioner,water...
|
|
Rotary power switch Phoenix GIOVENZANA International
Cam switches Phoenix Current rating of cam switches is from...
|
|
Rotary power switch 100 - 1 200 A, IP65 | CAM series Palazzoli SpA
CAM SERIES High performance watertight distribution board...
|
|
Rotary coded switch CR36/P36 series APEM
Distinctive features Ultra-compact size with 10 or 16 positions available...
|
|
Rotary switch 10 - 160 A | LW26 series Yueqing Hean Electrical Co., Ltd.
LW26 series rotary switches are suitable for on-off of an electrical circuit, changeover of electrical...
|
|

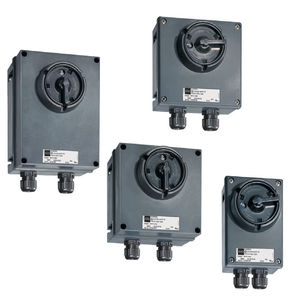

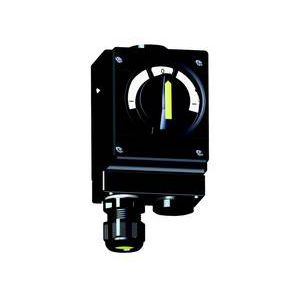

Rotary power switch 10 A, 250 V, IP 56 | 75212 series WISKA
Protection class to EN 60 529: IP 56 Voltage: 250 V Kind of current: AC Current intensity:...
|
|

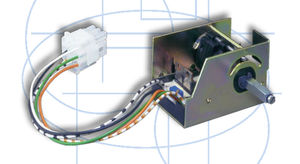

Rotary switch 0 - 5 V | ET series Curtis Instruments
Electronic Throttle Assemblies The Curtis throttle assembly provides an analog 0-5V...
|
|
Rotary switch 1 mA, 10 V | ANM series Zippy Technology Corp
Operating Force.....Push - Max.300 gf Operating Frequency (electrical).....Push-120...
|
|

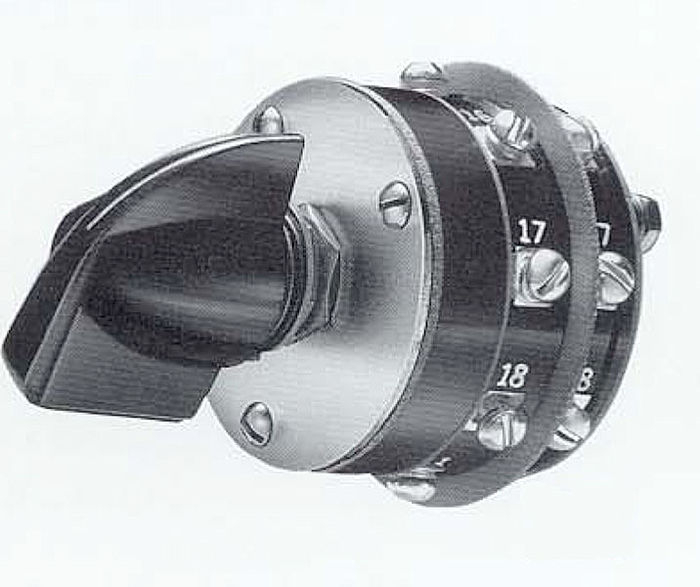

Rotary power switch 10 A, 120 V | 16 series Shallco
All Series 16 rotary power switches utilize detent action for positive positioning of the spring-loaded dual wiper blades, a feature that ensures continuity in applications...
|
|
Ohmite power Tap Switches (high power rotary switches) are constructed to provide dependable, convenient operation. All Ohmite...
|
|
Rotary coded switch PHOENIX MECANO
A rotary code switch switches input signals from the common C-contact to the different output contacts. The code defines which output...
|
|

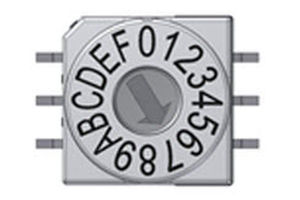

Rotary coded switch 2.5x7x7 mm | P25SMT Hartmann Codier
SMT Gull Wing Surface Mount Technology 2.5mm height 7.0mm length lateral C-contact contacts with abrasion resistant hard...
|
|
Rotary coded switch FR series Nihon Kaiheiki Industry
Ultra-Thin DIP Rotary Switches Environmentally friendly components and packaging materials meet RoHS directive restricting use of hazardous substances. Suited to lead-free solder processing applications because of heat resistant resin materials. Slim .150" (3.8mm) body has the lowest profile in the industry...
|
|

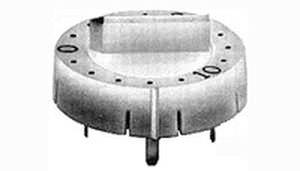

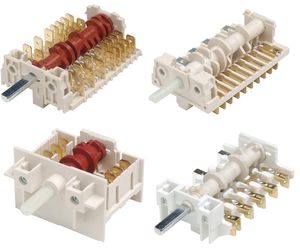

These small, easy to fit switches are designed specifically for the gas ignition industry, to fit on taps or thermostats on gas hobs, ovens or combinations,...
|
|
Rotary switch Avago Technologies
Rotary switches are rotary pulse generators that replace the analog function of conventional resistive potentiometers. These rotary switches are often used as human-machine interface (HMI) devices for front panel instruments and audio-visual boards. Avago's rotary switches utilize quadrature optical encoders, which are pure digital devices acting as analog potentiometers. These rotary...
|
|
SIQ Series Slide and Rotary Encoder Switches [FEATURES] 1. Minimized mounting area (11.1x10mm square). 2. 15 detent are available. 3. Can be operated with a rotary encoder and slide...
|
|
Miniature rotary coded switch 24 - 50 V DC, 25 - 100 mA | DR / SM Series KNITTER SWITCH
Specifications: Contact rating: 50 V DC, 100 mA, non switching 15 V DC, 30 mA, switching Contact resistance: < 100 mΩ Insulation resistance: > 1000 MΩ...
|
|

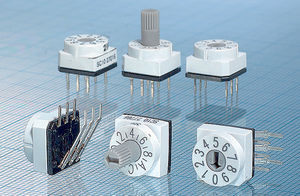

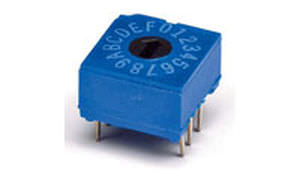

Miniature rotary coded switch SC10 EBE
Watertight miniature code switch for direct soldering to printed circuits. Pins in grid 3 + 3. BCD- or hexadecimal code, 10 or 16 switching positions. Shaft parallel...
|
|
8 position rotary switch 030 series ITW switches America
SERIES 030 SUB-MINIATURE T-05 SPACE SAVER ROTARY SWITCHES. This sub-miniature rotary switch has up to 8 positions in a T-05 can. Gold contacts...
|
|

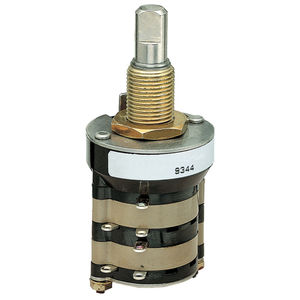

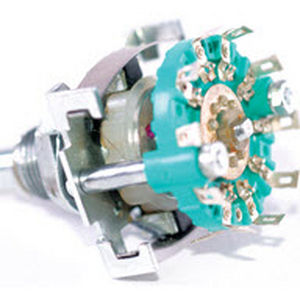

Multi-position rotary selector switch NSF Controls
NSF is known for the flexibility and application development of its Rotary Wafer Switches, being market leaders for over 70 years. These robust, time proven products are versatile as well as...
|
|
Miniature rotary switch 250 mA, 0.4 VA | MR series NKK Switches
Series MR Miniature Rotary Switches Positive detent mechanism for distinct feel and audible feedback. Metal bushing and housing construction increases...
|
|
Sealed DIP rotary switch 150 - 200 mA, 42 V | RDT series E-SWITCH
RDT Series Rotary DIP Switch The RDT series Rotary DIP switch offers convenience in a small package size. It is sealed to IP67 ratings,...
|
|
High current rotary switch 2 - 450 kV, 1 - 200 A | R series Ross Engineering
Ross Engineering Corporation R series multi-pole, multi-position high voltage rotary switches are manually operated hand-wheel or lever types which operate at 2kV to 450kV, 1mA to over 200A continuous to 2,500A momentary...
|
|
Rotary power switch H C&K Components
Power ROTA-SLIDE® Rotary Switches H, Rotary Features/Benefits * Multi-pole...
|
|

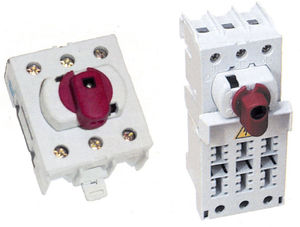

Low-voltage rotary power switch 16 - 160 A | SM, SMB series GHISALBA
