Twin-Outlet Diverting Rotary Valve combines the function of a rotary feeder/airlock and diverter valve in one simple mechanism. Select left or right discharge by changing rotor direction via motor and reversing switch. Only one moving part. Very compact. Exclusive tapered rotor allows rotor gap to be easily adjusted. Heavy cast aluminum, iron or stainless steel valve body. Adjustable packing gland shaft seals -- purge available. Heavy duty permanently sealed outboard roller bearings. Ideal for vacuum or pressure conveying systems. Available in five sizes with capacities up to 2,500 cubic feet per hour.
|
|
The product range of Gericke rotary valves includes high quality valves including fall through valves, blow through valves for pneumatic conveying, fast cleanign valves with retractable endplate and rotor, autoguided by rails. Small leackage and full certification as flame containment equipment and pressure reistant units, the valves can be used in hazardous areas for explosion prevention and containment.
Hypergienic valves for isolator or glove box applications are developped for Pharma processes.
|
|
|
Integrate a Donaldson Torit Rotary Valve into your collector to create a complete system that automatically and continuously transfers dust from the hopper to the conveying system or collection container. Rotary valves are designed with a precision seal that keeps air out of the hopper and safeguards the performance of the collector. Donaldson Torit Rotary Valves are available in either AN, CI or F-Series
|
|
* Heavy duty construction
*Large inlet and outlet in relation to the rotor volume
* Outboard bearings
* Packing gland type seals
* Versions in accordance with ATEX 94/9/EC
Application: Discharge airlock valves for dust collector filters and cyclones.
Designed for a wide range of products, systems and operating conditions, they are also used as discharger and metering valves below silos and hoppers.
|
|
Airlock
- High filling efficiency
- Sheared angle inlet
- Minimum air leakage
- Explosion proof models available up to 10 bar g
- Customised solutions
- Bored flanges in accordance with PN 10, ANSI 150 lbs and JIS
|
|
Description:
The CO.RA. SANITARY ROTARY VALVE is characterized by a double rotor. The big rotor is used to transfer large quantities of product while the smaller rotor is used to obtain the pre-regulated quantity of product required. The SANITARY ROTARY VALVE is easy to disassemble and clean.
|
|

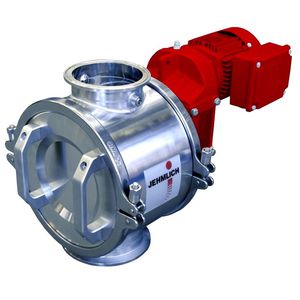

Hygienic Dairy rotary valve / USDA approved
- USDA approved
- Easy removal of rotor for fast and efficient cleaning
- Smooth product contact surfaces in food grade material
- Rotor pockets radiused and polished to Ra = 0.8 µm (150 grit)
- Rotor vanes chamfered on ail edges
- Flame proof and explosion shock resistant versions available
|
|
If controlled feeding from or into silos and hoppers in a very confined space is required Rotary Valves are the ideal solution.
The sealing of negative pressure cyclone and dust filter outlets is the other classic application.

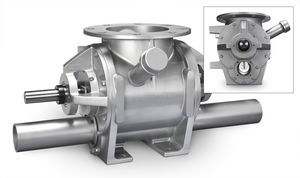

RVS-type Blow-Through Rotary Valves have been developed in accordance with the criterion of maximum scope in application.
They have been designed for the controlled discharging of powders or granular materials from silos, bins, hoppers, cyclones or dust collectors into low- and medium-pressure pneumatic conveying lines.
|
|
Rotary Airlocks - Standard Rotary Valves
The prime function of a rotary valve is to regulate the flow from one chamber to another while maintaining a good airlock condition. The product is mainly in dry powder or granular form.
In the dust filtration field good airlocks are essential on cyclone and bag filter application in order that the manufactures quoted high dust collection efficiencies can be maintained. Airlocks are also important in the pneumatic conveying industry, where product is regulated into a high pressure conveying line while minimising air leakage.
With Rotolok there are no double standards, all our standard valves are precision machined for close tolerances and minimal eccentricities Pressure differentials to 20psi and temperatures to 400°C.
Extreme Pressures and Temperatures can be accommodated with special designs, if your application requires such considerations contact Rotolok Engineering team.
|
|

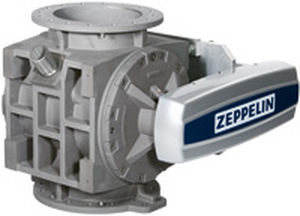

High pressure rotary feeders are mainly used for the discharge (dosing) of pellets and powders from silos. Furthermore they are used as a feeding device in pneumatic dense phase and dilute phase conveying systems with a differential pressure up to 4 bar (g).
High Pressure Rotary Feeder Type HDS

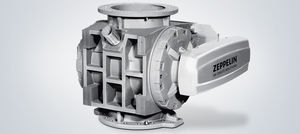

The HDS rotary feeders are mainly used for the discharge (dosing) of pellets and powders from silos. Furthermore they are used as a feeding device in pneumatic dense phase and dilute phase conveying systems with a differential pressure up to 3.5 bar (g).
|
|
|
The medium pressure rotary feeders are mainly used for the discharge (dosing) of pellets and powders from silos and hoppers. Furthermore, they serve as feeding devices in pneumatic dilute phase conveying systems with a differential pressure up to 2.0 bar (g).
|
|
Buttweld S1
* No flange tightness problems
* DN80 - 1500
* PN10 - 100
* 3" - 60"
* ANSI 150 - 600
|
|
Double Flange
ANSI B16.10
* Gate valve replacement
* 3" - 30"
* ANSI 150 - 600
* Data sheet (PDF)
|
|
Double Flange
ISO 5752/F16
* World-Wide standard
* DN50 - 1800
* PN10 - 100
* 2" - 72"
* ANSI 150 - 900
|
|
Double Flange
DIN EN 558/F4
* Simple mounting
for large Diameter
* DN80 - 1600
* PN10 - 100
* 3" - 64"
|
|
Lugged Type
API 609 T2
DIN EN 558-16
* Compact design
* DN50 - 1000
* PN10 - 100
* 2" - 40"
* ANSI 150 - 900
* Data sheet (PDF)
|
|
For feeding bulk materials into pneumatic conveying systems and discharging out of hoppers and silos.
Coperion Waeschle has worldwide the largest product range. We are able to fulfil all requirements of a modern bulk handling plant in all sizes and pressure ranges.
|
|
Bush & Wilton's IF "U" Rotary Airlocks are very cost-effective valves designed for use under gravity, pressure and vacuum conditions.They are suitable for metering a wide range of dry solids, granular, pelleted and powdered type materials from the outlets of silos, hoppers, cyclones, mixers, weighers, etc.
- HEAVY DUTY BODY
- END COVERS WITH SEALED FOR LIFE BEARINGS MOUNTED OUTBOARD
- GLANDS STUFFING BOX TYPE WITH PURGE FACILITY OPTIONS
- ROTORS ADJUSTABLE BLADED OPEN TYPE FABRICATED (CLOSED TIP OPTIONS)
- VARIED OPTIONS OF TIPS TO SUIT PRODUCT NEEDS
- BODY VENTS
- ABRASIVE DUTY TYPES (TUNGSTEN CARBIDE TYPE WITH ABRASIVE RESISTANT ADJUSTABLE TIPS)
- COMPLETE DRIVE OPTIONS
|
|
Features:
- Anti shearing device (patented) for gentle product handling
- Integrated leakage air vent for improved filling efficiency
- Heavy duty housing and bearing support for minimized rotor tolerance
- Closed end rotor
Applications
- For use with granular products and pellets
- For gravity discharge and metering
- For feeding pneumatic conveying systems
- Suitable for differential pressure up to 15 psi (1bar)
|
|
Drop-thru DIN PN10 - 1bar
* Minimum gas leakage
* Heavy duty construction
* Sheared angle inlet
* Large inlet and outlet without hindrance
* Flanges in accordance with
DIN PN10 or ANSI 150
* Versions in accordance with ATEX 94/9/EC
Application: Volumetric feeders for powders in pneumatic conveying systems or discharger and metering valves below silos and hoppers.
|
|
|
MSRT (tapered bore rotary valves) are designed for use under gravity, pressure and vacuum conditions. They are suitable for metering a wide range of dry solids, granular, pelleted and powdered type materials from the outlets of silos, hopper, cyclones, mixers, weighers etc.
|
|
|
Twin-Outlet Diverting Rotary Valve combines the function of a rotary feeder/airlock and diverter valve in one simple mechanism. Select left or right discharge by changing rotor direction via motor and reversing switch. Only one moving part. Very compact. Exclusive tapered rotor allows rotor gap to be easily adjusted. Heavy cast aluminum, iron or stainless steel valve body. Adjustable packing gland shaft seals -- purge available. Heavy duty permanently sealed outboard roller bearings. Ideal for vacuum or pressure conveying systems. Available in five sizes with capacities up to 2,500 cubic feet per hour.
|
|
Rotary Airlocks - Dust Collector Valve
Rotolok introduced a low cost solution to dust collector valve needs. The Dust Collector Valve is a lighter duty option for standard dust collection applications.
Constructed with a robust cast iron body and cast iron end covers. Bearings are inboard and shafts are sealed with lip seals. All valves are direct driven with a right angle gearbox and motor.
These valves have been engineered and designed solely as a low cost alternative for applications with pressure differentials of 3 psi or less. Available in 150mm, 200mm, 250mm, and 300mm round and square inlet sizes.
|
|
Ball valve according to B16-34 – API 6D (Floating & trunnion supported)
Ball valve for Navy application
Transflow type ball valve
Cryogenic ball valves
Multi-way ball valves : 3-way, 8-way,…
Custom made ball valves
Design: B16-34 – API 6D
Dominal sizes range: DN15 (1/2”) to DN600 (24”)
Pressure rating range: PN10/PN16 – Class 150 to Class 2500
End connections: flanges, socket welding, hub ends,…
The Materials : Aluminium-Bronze, Duplex and Super Duplex , stainless steel
904L , Monel , Incolloy 625, Alloy 800 & 825, Hastelloy, Stainless steel: A351 CF8M, A351 CF3M,..., Carbon steels: A216 WCB, A217 C5, A217 WC9...
|
|
Tap with ball
Spherical plug valves 2 vertical ways
Safi Valves develops ranges of anti-corrosion thermoplastic taps, especially dedicated to the industrial applications.
|
|
31000 Series
Masoneilan's 31000 Series control valve is a PFA lined assembly designed for corrosive applications. It features an eccentric rotary plug design that provides tight shut off and low dynamic forces.
35002 Series Camflex®
Masoneilan's 35002 Series is the original "universal" control valve, featuring a low friction eccentric plug design, providing excellent throttling control within an extremely compact assembly. The standard design includes an integral bonnet, a direct mounted actuator, and fully enclosed positioner linkage.
|
|
|
|
