CNC routers by MultiCam are legendary for their ease-of-use and versatility. Successful companies around the world rely on MultiCam routers to automate production in countless different industries. Whether being used to create intricate 3D architectural moldings and furniture, large-scale outdoor lighted signage or premier-quality acoustic guitars, MultiCam routers work hard to create high-quality and consistent results. To learn more about MultiCam's CNC Router systems click the navigation to the left or an image below.
|
|
The F Series, articulating five axes Machiníng Centres, are designed and built with rigidity, agility and flexibility in mind.
F Series specially feature an extra rigid construction with opposing slide ways on the Z axis and the reinforced cross beam to ensure straightness and squareness precision is maintained even with its extra long Y-V-axes.
|
|
Item No. : NC-0503
Product Name : CNC Router
1) PC based CNC Control.
2) Graphic conversational input function.
3) Powerful vacuum suction table.
4) Variable spindle speed controlled by frequency inverter.
5) Air cylinder counter-balance on z-axis for high machining accuracy.
6) Heavy gauge steel frame of machine is tempered for deformation-free.
7) Linear guide ways on 3 axes.
8) 3 Axes traverses are transmitted by high precision ball screws, and driven by servo motors.
9) The spindle accommodates router bit and shaper cutter.
10) 20,000 rpm high spindle speed.
11) AIR COOLING FOR SPINDLE.
|
|
The B Series is the most robust, precise and productive machine in the complete Muitiax line of CNC Routers.
Designed and built to run 24/7 for the most demanding CNC users in the wood, N/F metals, plastics and composites industries.
The B Series features a heavy duty construction, oversized, to deliver long-iife reliability and consistent high precision.
|
|
|
|
|
|
|
Flexibility and customisation are the key elements in the Arrow routing centres. The machine can be used to process solid wood furniture, kitchen units, office and bedroom furniture, and is mainly destined for use by large and medium industries. Specialisation in specific machining operations, reliability when working with single, large, thick pieces and in nesting operations, these are the main characteristics of the Arrow processing centre. Thanks to its high level of customisation and its versatility the Arrow router machine is suitable to carry out the widest possible range of machining operations, from solid wood door and window frames to all those operations requiring fast panel feed-through rates. Arrow is available with a flat table or with a bar table, interchangeable with two working units and two different types of tool change device. The structure is extremely rigid, comprising a monolithic base and a beam designed to deal with the highest levels of strain and dynamic stress imposed by the machining operations. The machine is offered with a doubled table so as to carry out loading operations during masked time, without slowing down the manufacturing process. The Arrow line uses extremely powerful electrospindles, up to 13.5 kW if air-cooled and 15 kW if liquid-cooled.
|
|
|
|
|
|
We have designed the water slot routers mod. DR_3 & DR_4 to offer you units able to machine a broad range of profiles. Both the DR_3 and the DR_4, in fact, can mill up to a maximum height of 180 mm, and on all three sides involved (featuring motors positioned at the front, vertically and at the rear). The length of the slots that can be made can be set, as can all the motor position adjustments. The latter are in fact controlled by means of a revolver, thus enabling you to have 6 different adjustments for each registration.
A major feature consists in the positioning of the 0 point in the inner part of the profile. This way, in a same series, the position of the 45° (adjustable angle) front motor remains unvaried, thereby allowing high machining speed. Furthermore, thanks to the conceived profile positioning, if you have profiles of different heights, by regulating the machine on the higher series and fitting compensation shims for the lower ones, the position of the motors need not be changed.
Finally, the front motors are positioned with a fixed centre distance with respect to the rear and vertical ones. This way, you have a constant reference value for inner/front milling. This will enable you to make one less manual movement of the profile to be machined.
The DR_4 differs from the DR_3 in that it has an automatic work cycle with adjustable speed of movement of the worktable: This way, you can work with 3 motors at the same time, thus saving a good deal of time. And if you fit the 2 front motors, you can machine a bar with just one single manual movement. Finally, to ensure the quick angular adjustment of the parallel front heads, indexed references are fitted.
|
|
The water slot drainage machines 142.LM/A - 143.LM/A are fully auto mated; they differ in the number of milling units: 2 for the first model and 3 for the second.
Drilling operations are carried out automatically at the same time as milling, thanks to longitudinal pneumatic translation.
All machining stages are to mechanically pre-established parameters, such as the dimensions of the slot, depth, distance between internal and external holes of the PVC profiles.
During machining the piece is held on the work surface by means of a vertical pneumatic device.
The operator only needs to position the piece and start the work cycle.
The milling units are adjustable in depth and height, while the vertical head can be moved from 0° up to 45°.
The machines come complete with a set of wrenches and a tool set.
|
|
| ... products without technical information |
| |
PCB Depaneling Desktop Robot JR2000NERT Series
Easy teaching and the router cutting method help you minimize defective items.
The router cutting method minimized stress on populated PCBs.
The double-check system, which consists of the position error detection function of the robot and the router bit sharpness checking function, minimizes defective items.
Hassle-free, step-by-step interactive teaching.
Teaching can be done simply by entering the preset items.
|
|
User friendly, desktop size, hight-precision separator specifically for small boards.
Allows accurate, dust free and clean cut processing.
A cutting method using an electric router that places minimal stress on mounted PWBs.
The spindle motor load indicator unit included as standard.
A unique vacuum suction unit to pick up cutting residue.
Compact size that can be easily incorporated into the workplace.
|
|

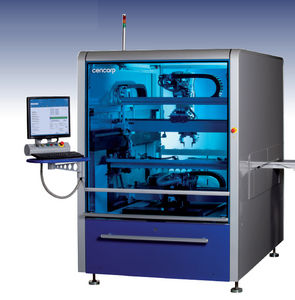

Inline Depanelizing Cell for Separating PCB Panels with Router or Disc Cutting
Scalable System – from semiautomatic to fully automatic system
Routing and disc cutting technology
90° panel rotation for rectangular cuts
Low dust and low stress technology
Low cost fixtures, short setup times
Flexible output modules: Transport conveyor or shuttle system
|
|
Function
The ARS 03 is an lnspection system which utilizes the new innovative Adomo inspectlon technology (patent pending) (rom the cornpany MODI. Unlike most inspection systems, the
movement of the camera or the product does not rely on the more traditional axis based technology. Instead, the Adomo technology is based on a stepper motor driven moving mirror. Within lOOms, the mirror deflects the cameras
field of vision from one position to another on the board and with an accuracy of 1 µm. This system makes it possible to take
extremely high resolution pictures in an area of up to 460mm x 460mm.
The process is controlled via a microprocessor which not only enables exact positioning of the mirror but also controls the
camera synchronisation.
Depending on the application, the system can be equipped with cameras with resolutions of 0.5 - 4.0 Megapixels.
|
|
Abundant applications for slit, spot-facing, small-piece process, etc. Shorter set-up time for pin insert and high accuracy by Auto Pin Insert function
QIC function: Bit costs reduction by 30%
|
|
Abundant applications for slit, spot-facing, small-piece process, etc. Shorter set-up time for pin insert and high accuracy by Auto Pin Insert function
QIC function: Bit costs reduction by 30%
|
|
Abundant applications for slit, spot-facing, small-piece process, etc.
Slit routing cost reduction by QIC function for NR
|
|
|
|
|
|
Function and Feature:
•Adopted high-precision 3 Phase stepper motor and drive system, retardation transmission of 3:1, transmission design of 3M Arc-shaped, which make the steady running, higher speed and stable function.
•Imported optical system, the optical lenses using high-strength silicon-gold plate and non-spherical lens.
•Imported HIWIN or AMT Linear guide way make the operating of high-speed, stable and high precision.
•Adopted the advanced DSP Control system and modularization design make the high-speed and high-precision engraving and cutting.
•Adopted the honeycomb working platform and the movable cutting platform of high-strength aluminum alloy is suitable for process the special-shaped non-metal materials.
•The laser adopts forced water-cooled mode and water alarm function, which ensure the stable operation.
•Support software of CorelDraw and AutoCAD, post-process of Photoshop. No need for format conversion, easy operation.
•Laser machine of Optimize Opto-electro-mechanical combination exert the laser energy completely, which can cut organic glass up to 20mm one time and 100W-200W laser generator can cut Acrylic sheet up to 30-40mm one time.
Parameters
Model Magic Laser Router
Laser type DC Sealed excited CO2 Laser generator
Laser-power 100W(Optional 150W or 200W)
Engraving area 1300×2500mm
Whole machine size 1600mm×3000mm×990mm
Engraving speed 0-18000mm/min
Reset positioning accuracy ±0.1mm
Working voltage AC110V-220V±10%,50-60HZ
Cooling mode water-cooling and protection system
Controlling software DSP control system
Compatible software AutoCAD,CorelDraw,Photoshop
Net weight 550KG
|
|
