The new generation of the multipurpose system for interior outfitting and renovation is here: The new FEIN MULTIMASTER has developed from the unique experience that FEIN has acquired in over 40 years in oscillation Technology. With the oscillating movement and particularly user-friendly accessories, the FEIN MULTIMASTER is an unbeatably versatile, high-precision specialist tool – perfect for all professional outfitting, renovation and repair work.
|
|
- Fein sanders paired with a Fein dust extractor can help you protect the environment, keep the workplace clean, and make EPA compliance automatic.
- Dust-free sanding is faster and creates a better finish because the sandpaper rides directly on the work instead of
on a bed of dust.
- Fein Sanders are powerful and durable with a metal gear head and fiberglass reinforced polyamide motor housing.
- Dust-free sanding means quicker job preparation and eliminates 90% of clean up.
|
|
Sanders
The sanders are available in various models, suitable for metal finishing and woodworking applications.
Belt sanders
The Red Rooster belt sanders are suitable for nearly all materials, e.g. steel, aluminium, plastics and wood and for use as a de-burring method
in difficult access fettling applications. All belt sanders are executed with safety handle and adjustable silencer.
|
|
2FSM 2" Sander Multi-position vertical or horizontal
2" x 48" belt, Vertical or Horizontal Position.
1/2 HP motor, 3450 RPM, direct drive, 5" contact wheel
Tilt work table, removeable platen
Full hinged OSHA guard for quick belt change.
Pre-set belt tension, one knob belt tracking.
4500 SFPM belt speed, WT. 48 lbs.
Model: 2FSM
Other products available:
|
|
S6MS, 6" belt sander
Industry standard. 3 HP !! Real workhorse !! Every shop needs one !! Also available in 5 HP and in 6" x 60" belt!
6" x 48" belt, variable positons, direct drive, 1 lever quick belt release !!!
Cast iron frame, Full OSHA safety guard, Heavy duty steel stand.
3 HP motor 3450 RPM, 1 phase or 3 phase, manual switch, 3500 SFPM
Reversible platen 6 1/2" x 14"
Cast iron work table 6" x 10" with 1/2" x 1/8" slot
Option: JIC controls
Model: S6 sander head only, less motor
Model: S6M-1 3hp, 1 phase, 220, LESS stand.
Model: S6M-3 sander, 3 hp, 3 phase, LESS stand
Model: S6MS-1 , 3 hp, 1 phase, 220 volt, w/Stand ( 110 volts @34amps)Model: S6MS-3, 3 hp, 3 phase, 220/440 volt, w/Stand
Model: S6MS-5 5 HP, 3 PH other features same as above.
Model: S660MS 6" x 60", 3 hp, other features same as above.
Other products available:
|
|

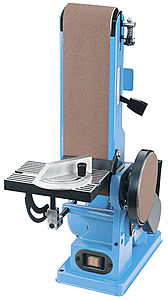

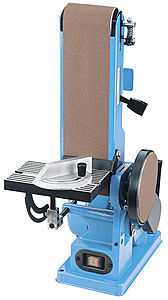

S612 & S612V Combination Sander With Vacuum !! 3 HP !!! Made in USA!!! 6" x 48" belt, 12" Disc, Vacuum Base
Available with OR without dust collector. 3HP 1PH 220 OR 3HP 3PH 220/440 volt. ( Specify voltage) Manual switch with overload protection.
Built in 100 CFM dust colletor base with cartridge filter.
Quick change belt, pre-tensioned one lever belt change...FAST !!
Models:
- S612-1 No vacuum, 1 phase/220 volt
- S612-3 No vacuum, 3 phase 220 or 440 volt
- S612V-1 Vacuum base, 1 phase/220 volt
- S612V-3 Vacuum base, 3 phase 220 /440 volt
Dimensions: L12" x W14" x H60", Weight: 500 lbs.
Specifications:
Belt Sander
Work Table- Cast iron 6" x 10" with 1/2" x 1/8" slot
Platen- Steel 6-1/2" x 14"
Belt- 6" x 48" - 2800 SFPM
Disc Sander
Work table- Cast Iron 8" x 14"
Disc- 12" aluminum disc, 5/8" arbor Speed- 2500 RPM
Other products available:
|
|
DS10 10" disc sander
Heavy-duty, all steel
Tilt table, 45 degrees down - 15 degrees up
Optional: MG10 mitre gauge
10" aluminum disc
5/8" arbor
6" x 11" table
1/2 HP (110/220V), 1 PH TEFC motor
48 lbs.
Model: DS10
Other products available:
|
|
- Disc Sander and Random Orbital Sander Combination
- 12,000 RPM Dynalocke® is truly "two tools in one", easily changing from a rotary Disc Sander to Random Orbital Sander with the flip of a switch
- Includes low profile, premium urethane sanding pad
- Very lightweight with ultra-smooth sanding performance
- Ideal for paint stripping and blending
|
|
S14HW, 14" Wet Horizontal Belt Sander
Also available DRY !
Great for getting parts FLAT !!
14" x 103" belt
3400 SFPM
Steel platen 14-1/2" x 36"
Work surface 14" x 32"
Air tension on belt, 0-55 PSI reqd.
20 HP, 3 PH TEFC
Mag controls with jog, 24 volts at pushbutton
L 64" x W 31" x H 35"
Wt: 1900 lbs
Model: S14HW, 14"x 103", 20 hp.,220/440/60hz 3 ph. 24 volt at switch.
10 gal. coolant tank & pump.
Model: S14HD, as above, less coolant tank & pump.
Other products available:
|
|

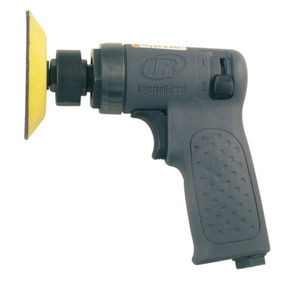

Right Angle Mini-Orbital Sander
- Ideal for spot repair on gelcoat and clearcoat paint systems, plus finesse sanding of small areas
- 3 mm (1/8") orbital action minimizes swirl-marks. Tool can be used for both dry and wet applications
- Tool includes a 32mm (1-1/2") diametre rubber sanding pad. Optional 19 mm (3/4") diametre rubber pad
- Uses a powerful 0.4HP (298W) air motor for efficient and quick removal of dust nibs and defects
- Lightweight and easy to use, the perfect combination between power and comfort
- Front exhaust allows continuous cooling of gear box which extends the life of the tool
- Also includes 95848 Gear oil and 95541 Push-Type Gun, for lubrification through unique "dual wick" system
|
|
|
|
|
|

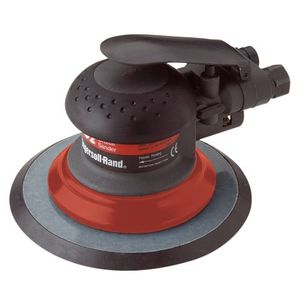

Maintenance / Automotive: 4151 Series
All of the latest advances have been designed into Ingersoll Rand's random orbital and orbital series sanders. Every detail is shaped to fit your hand perfectly and the lever throttle takes pressure off of your palm.You get the power and precision you need so you can do your best, most sophisticated work.
Industrial Production: ARO Elite / Classic Line
The originator of random orbital finishing has just raised the standards of performance. The Ingersoll Rand and ARO line of random orbital finishing tools is now the most comprehensive in the industry, providing a choice of traditional aluminum housings...or the ultimate in lightweight, composite packaging for improved productivity.
The Ingersoll Rand Cyclone Series features the ultimate in lightweight, efficient design with improved performance to match. Available in vacuum and non-vacuum models.
The ARO Classic Line and Elite Series incorporate new moisture-resistant composite rotors, fully machined counterweights, and larger counterweight bearings for superior reliability. Both continue the ARO advantage of operating with totally dry air power for a cleaner work environment.
|
|
NEW DYNORBITAL® SUPREME RANDOM ORBITAL SANDERS
- Ideal for intensive sanding in high production workplaces!
- Unique rotor utilises 5 blades and produces more useable power
- The 0.28 hp air motor is suspended by vibration-absorbing rubber rings to minimise vibration
- Includes NEW low-profile, premium urethane, weight-mated hook-face Dynabrade sanding pad
- Triple-sealed balancer bearing and Anti-clog vacuum design
- Different Vacuum Styles: Non-Vacuum, Central Vacuum or Self-Generated Vacuum
- Choice of Pad Diameters: 89 mm (3-1/2"), 127 mm (5") or 152 mm (6")
- 3 Random Orbits: 2.5 mm, 5 mm or 10 mm
|
|
NEW DYNORBITAL-SPIRIT® RANDOM ORBITAL SANDERS
- Ideal for achieving a swirl-free finish on metal, wood, fibreglass and other surfaces!
- Powerful (0.25hp) & lightweight (0.60 kg) - ideal for vertical applications
- Includes NEW low-profile, premium urethane, weight-mated hook-face Dynabrade sanding pad
- Innovative "V-seal" protects balancer shaft bearing from sanding residue for longer life
- Different Vacuum Styles available: Non-Vacuum, Central Vacuum or Self-Generated Vacuum
- Choice of Pad Diameters: 76 mm (3"), 89 mm (3-1/2"), 127 mm (5") or 152 mm (6")
- 3 Random Orbits: 2.5 mm, 5 mm or 10 mm
|
|
NEW DYNORBITAL® SILVER SUPREME RANDOM ORBITAL SANDERS
- Ideal for achieving a swirl-free finish on metal, wood, fibreglass and other surfaces!
- More powerful than the Dynorbital-Spirit® range (0.26 hp), less weight than the Dynorbital® Supreme(0.8 kg)
- The perfect combination of strength and smoothness in sanding
- Includes NEW low-profile, premium urethane, weight-mated hook-face Dynabrade sanding pad
- Innovative "V-seal" bearing seal protects balancer shaft bearing from sanding residue for longer life
- Different Vacuum Style: Non-Vacuum, Central Vacuum or Self-Generated Vacuum
- Different Pad Diameters: 76 mm (3"), 89 mm (3-1/2"), 127 mm (5") or 152 mm (6")
- 3 Random Orbits: 2.5 mm, 5 mm or 10 mm
|
|
- Compact size and lightweight. Unique pad has curved edges for sanding rounded areas, and pointed tip for reaching into tight corners.
- Powerful, efficient air motor has low vibration levels to reduce hand and arm fatigue.
- Central Vacuum Style: Includes 56323 "Delta Style" Vacuum Sanding Pad, 99mm wide (at wider end) x 143 mm long, with seven vacuum holes.
|
|
150mm(6") Disc Sander
- Hitachi powerful motor (900 W max. output) and 2.0kg lightweight
- Completely novel design and comfortable grip handle covered with elastomer and rubber side handle
- Thanks to the adoption of the bearing bushing, the ball bearing chamber of the commutator side is durable
equipped with spindle lock for easy tool replacement
- Soft air cover which can easily attached and detached for comfortable operation
- Wear-resistance tail cover
- Double insulation
|
|

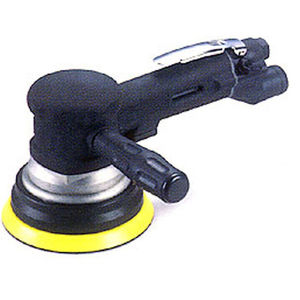

The Dotco 12-18 Series random orbital and orbital
sanders have a low profile design for better sanding
control which improves finish quality. They are lightweight
with low vibration to reduce operator fatique and improve
production levels.
You can choose between models with either 3/16” (black
lever) or 3/32” (chrome lever) random orbital pattern to
best fit your application. All models are shipped with 3
interchangeable grips to comfortably fit any hand in your
plant. Vacuum models are extremely efficient and are
equipped with super vac for increased efficiency.
|
|
Random orbital sander with one hand grip.
TECHNICAL CHARACTERISTICS
Model C 125/3
Air pressure Atm 6
Air consumption lt/min. 360
Orbit diameter mm. 3 (C 125/3)
Turn minute 10.000
Dust hose mm. Ø 29
Noise dB(A) 72
Weight gr. 700
Sanding pad mm. Ø 125
|
|
300 RSE
Product features
- Powerful integrated extraction through holes in sanding plate
- Hook and loop or clamp strap attachment system for abrasive sheet
- Ergonomically-shaped controls for optimum handling
- 4 m rubber mains cable with patented quick-lock system
- 4 m and 6 m cables can be delivered as accessories
|
|
Orbital Sander
- All new design for more improved operativity
- Trangle pad (base) for optimal finishing in narrow area such as corners and clearances
- Powerful motor with an input of 200W and class-top sanding amount
- Class-top dust collecting performance
- The large soft grip comfortably fits in the palm of a hand for ease of operation
|
|
|
|
|
|

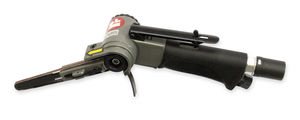

Pneumatic Belt Grinders:
BSR 10 A
Technical Data:
Output: 185 Watt
Belt speed: 17 m/s
Band width: 10 mm
Band length: 330 mm
BSR 20 A
Technical Data:
Output: 295 Watt
Belt speed: 25 m/s
Band width: 20 mm
Band length: 330 mm
BS 6 N
Technical Data:
Output: 185 Watt
Belt speed: 18 m/s
Band width: 6 mm
Band length: 330 mm
BS 10 N
Technical Data:
Output: 185 Watt
Belt speed: 18 m/s
Band width: 10 mm
Band length: 330 mm
BS 20 N
Technical Data:
Output: 295 Watt
Belt speed: 42 m/s
Band width: 20 mm
Band length: 520 mm
BS 30 N
Technical Data:
Output: 515 Watt
Belt speed: 36 m/s
Band width: 30 mm
Band length: 540 mm
Benefits:
- Reversible (clockwise / counter-clockwise operation)
- Slight heat development and excellent grinding performance because the grinding belt is cooled during rotation
- High removal rate in a short period of time
- Fast and easy change of grinding belts without additional tools
- 3-point grinding belt support
- The grinding arm rotate through 360°
- Ergonomic design
- High grinding performance since the abrasive belt is cooled during rotation
- Abrasive belt can be exchanged within seconds
Areas of Application
For grinding and deburring jobs in mould making, container and machine building, foundries, metal and plastics processing industry, etc.
|
|
|

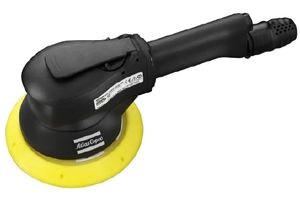

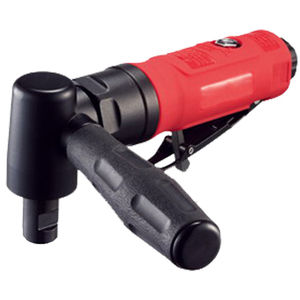

Atlas Copco provides a wide range of angle sanders with rotational speeds. Productivity and Ergonomics in a small and light package!
|
|
CP Industrial sanders:
These tools are suitable for high production rates such as those on production/ assembly lines, where high durability is required and the tools are used frequently. Our industrial tools combine the best of quality, durability and ergonomics for your most demanding applications.
CP RediPower sanders:
RediPower tools are suitable where the tool is used intermittently for industrial maintenance or non-intensive production
|
|
300 EXE
Product features
- 3-point grinder plate suspension for precise rotation
- Integrated extraction function through holes in grinder plate
- Hook and loop system for attaching sanding sheet
- 4 m rubber mains cable with patented quick-lock system
- 4 m and 6 m cables can be delivered as accessories
|
|
FEATURES
- Freestyle sanding
Ergonomically contoured grip with non-skid elastomer covered surface.
- Fits your palm perfectly.
Also provides more control and comfort while minimizing hand fatigue and pain when gripping the tool from the side.
- Low vibration
Dual counterweight balancing system for reduced vibration.
The vibration level is less than half of viblation level of our previous model.(loaded)
- Low noise
By aluminum foot and counterweight
The noise level is less than that of our previous model.(loaded)
- Rigid aluminum foot
With dust-proof sponge for longer tool life enhanced foot
- High dust extraction
Dust is extracted through 6-hole under pad and collected into dust bag.
Also, instead of dust bag, makita vacuum cleaner can be connected to the tool using adapter.
|
|
180mm(7") Sander-Polisher
(Electronic Control/Valiable Speed)
- Powerful motor with an input of 1,250W / 120V- 11A
- Soft start and Constant speed control for optimum sanding / polishing efficiency
- Two ways of changing speed: Trigger and dial
- Compact and light weight
- More durable bearing design
- Loop side handle
- Spindle Lock
|
|
Model: HBS 1000 E
• Powerful 1010 watt motor
• Electronic speed for control and optimum results
• Clamping lever for easy, tool free changing of sanding belt
• Externally accessible brushes for easy replacement
• Control wheel for precise adjustment of sanding belt
• Compact design, ideal for sanding close to edges
• Die-cast construction for high strength and durability
• Dust extraction, with dust bag or absorption system
|
|
Model: EX 150 E
• Dual orbits for control of material removal
• Variable speed for optimum control
• Soft start and pad brake for a gouge free workpiece
• Through-body sealed slide switch for reliability and ease of use
• Convenient hook and loop paper fastening
• Dust extraction, with dust bag or absorption system
• Diecast construction for strength and durability
|
|
|
|
