FIXATOR® suspended scaffolding on mast
The FIXEO® suspended scaffolding on mast enables to use suspended platforms even when the roof of the building does not allow for any attachment. FIXEO® is an alternative solution to the tubular scaffolding.
Its patented principle provides working comfort (adjustment of the working level by electrical control), safety (built-in anti-sway safety and fall-prevention system).
|
|

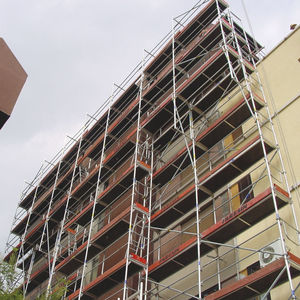

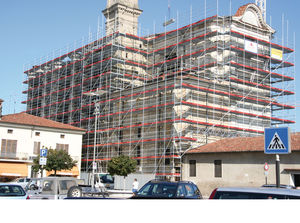

The welded scaffold frame is the core of this type of façade scaffold. The frames are assembled on top of each other. They support working platforms as well as access decks, side protection and bracing. The design enables maximal speed to assemble and disassemble the scaffolding. Reference to assembly guides has to be made. Approvals are required to used these scaffolds in Germany.
Various frame scaffolds are continuously available and updated by new inventions.
Façade scaffold plettac SL70/100
Façade scaffold assco quadro 70/100
Facade scaffold plettac connect 70/100
Approvals are available for most of these ALTRAD plettac assco frame system scaffolds.
|
|
|
|
|
|
ALTRAD plettac assco GmbH offers two complete sets of mobile scaffolds which again provide unique variability.
Both the plettac and the assco mobile scaffolds are made of aluminium. The light-weight components are small in number and flexible in application. They can be quickly assembled and disassembled and stand safe at any height as has been proven. Due to their robust design they have a long work-life.
plettac mobile aluminium safety scaffolds
The latest generation of plettac aluminium mobile safety scaffolds is based on the one-man-principle. This means, one person must be able to assemble and disassemble the mobile scaffold. We would like to especially recommend to you our best-selling models alu quick 80 and alu star 80.
assco rapido mobile aluminium scaffolds
The product line assco rapido consists of 5 different types of mobile aluminium scaffolds. All types use 11.9 kN wheels of 200 mm in diameter for any scaffold height. The most variable of the assco rapido mobile scaffolds is our assco rapido 4601.
|
|
KLIK HIGH CLEARANCE UNIT
DIMENSIONS
Available Lengths: 2m, 2.5m and 3m
Width 0.70m
Platform Level 1.5m
Unit Height 2.6m
(From bottom of castor to top of frame)
MANUFACTURED TO AND CERTIFIED TO A TUV ISO 9001:2008 QUALITY SYSTEM
This new unit is specifically designed by Euro Towers to be constructed over non movable objects such as desks, hedges, conveyers etc.
FEATURES
• 5” Castors for easy mobility
• Multi adjustable legs for use on an uneven surface.
• Plywood platform with a non-slip mesh phenol finish.
• 5 Rung Ladder for easy access to the platform.
• Guardrail that is incorporated into the existing frame so no
need for any extra components.
• Braces which are compatible with the ladder frame tower so can be interchanged.
OPTIONAL EXTRAS
• Toeboard Assembly (Softwood or Plywood)
• Base plates for a fixed unit
ANOTHER ACCESS PROBLEM SOLVED BY EURO TOWERS LTD
|
|
KLIK 232 TOWER
The Euro Towers 232 tower conforms to TUV DIN BS EN 1004 European standard.
It is available in two widths: SINGLE WIDTH 0.7M WIDE and DOUBLE WIDTH 1.35M WIDE
TOWER FEATURES:
• Multi-start Square threaded adjustable legs, incorporating full nut for maximum security.
• The heavy duty splined spigot designed for maximum strength and rigidity and ease of tower assembly.
• The unique ten-impression crimped joint, specially designed to improve resistance to abuse, and reduce repair costs.
• Brace hook assembly, incorporating double torsion stainless steel spring for durable and reliable use.
• Platforms incorporating bolted hook extrusion for easy low cost repairability and platform profile designed to provide minimum deflection and improved strength.
• Increased trapdoor opening for ease of access.
• A range of trail/ non trail castors and base plates available.
|
|
|
|
|
|
KLIK LADDER FRAME TOWER
The Euro Towers Ladder frame tower is approved to TUV BSEN 1004 European standard.
It is available in two widths: SINGLE WIDTH 0.7M WIDE and DOUBLE WIDTH 1.35M WIDE
Both single and double width ladder frames are available in three, four and five rung sizes to provide maximum platform options.
The tower comprises the minimum possible multi-purpose components, no separate ladders or guardrail frames are necessary.
All frames can be used as uppers or lowers simply brace your platform on the third rung below the top of the tower and the correct guardrail height is achieved.
LADDER FRAME TOWER FEATURES:
• Multi-start Square threaded adjustable legs, incorporating full nut for maximum security.
• The heavy duty splined spigot designed for maximum strength and rigidity and ease of tower assembly.
• The unique ten-impression crimped joint, specially designed to improve resistance to abuse, and reduce repair costs.
• Brace hook assembly, incorporating double torsion stainless steel spring for durable and reliable use.
• Platforms incorporating bolted hook extrusion for easy low cost repairability and platform profile designed to provide minimum deflection and improved strength.
• Increased trapdoor opening for ease of access.
• A range of trail/ non trail castors and base plates available.
|
|
The junction between standards, legers, transoms and braces is the core of ALTRAD plettac assco multidirectional system scaffolds. The junction enables quick and easy connection of load bearing items as well as reinforcing parts to each other with an enormous rigidity.
Flat disks are welded to the standards in equal distances of 50 cm. Ledgers/transoms and braces are connected to these disks by a system of casted heads and wedges.
Modular system scaffolds are suitable for industrial scaffold purposes where a bigger variety and larger capacities are required for birdcage scaffolds or special constructions.
ALTRAD plettac assco is supplying two different modular scaffolding systems:
Modular scaffold plettac contur
Modular scaffold assco futuro
Both systems are fully approved in Europe as well as in Germany.
|
|
"Suspended scaffolding - suspended platform"
The MODULECO® suspended platform is used to carry out temporary façade work (high pressure cleaning, refacing, exterior insulation, etc.).
MODULECO® is designed in aluminium and does not spoil over time. Light-weight, the suspended platform is also very flexible: from 2 to 16 metres long.
It can be used with different suspension systems: Parapet clamps, suspension beams and the FIXEO® suspension system on mast.
|
|
|
|
|
|
The KT-Module scaffolding system
... is economical optimized through reduction of investment expenses, working hours, logistics, material, warehousing and transport.
... complies exceptionless to the requirements of the BetrSichV, DIN EN 12810 and DIN EN 12811.
... owns the unique german approval for façade scaffolds of class 4 with 3m fieldwidth.
... enables the practicable use of leading railing without additional parts.
... has no restrictions in choosing a point to fix the protective equipment against fall
Advantages and use:
The KT - Module "ONE FOR ALL" scaffolding system is suitable for every application.
No more investment in different scaffolding systems (for instance support and frame scaffolding).
Fewer parts and higher material durability signifies increased productivity.
Low start up investment costs with the possibility of system free plank use.
Decreased weight and assembly costs with fewer components.
The performance data of the KT-Module translates into higher load capacity, giving in addition potential material savings.
In façade scaffolding on the basis of higher knot rigidity a notable increase in load capacity on diagonal braces.
Feasible replacement of diagonal brace in facade scaffolding.
There are no "loose parts" on robust ledger, meaning less repairs.
Simple compulsion adjustments of the standard with one wedge strike.
Optional placement of inexpensive translucent PVC roof protection sheets and holders.
Technical safety optimized: "through placement of pure pipe ledgers" in conjunction with "self-securing plank system", "leading railing", and "dissolved frame construction".
|
|
|
|
|
|
KLIK STAIRWELL UNIT
MANUFACTURED TO A TUV ISO 9001:2008 QUALITY CONTROL SYSTEM
• The need for safe access on both industrial and domestic stairwells has long been a problem for the hire industry.
• EuroTowers offer the Stairwell Access unit.
• The basic stairwell pack provides platform levels of 1.5m and 2.7m, 0.7m wide, and features special narrow base plates, and non-slip platform boards.
• Easy access from both sides of the stairwell unit to the platform is provided by a ‘walk through ladder frame’. Simply walk through the frame and climb up the ladder.
This frame is design solves the access problems experienced on narrow and domestic staircases.
• Features 4 adjustable base plates designed for a fixed unit and can be adjusted if not on level ground
• Integrated access frame so access on the staircase can still be obtained.
OPTIONAL EXTRAS AVAILABLE…
• Extension pack to raise the platform level from 2.7m to 4.20m from the lowest step
• Aluminium Toeboard assembly
• Additional side props for extra support on narrow applications
MAX SAFE WORKING LOAD 250KG
UNIT WEIGHT 51.0KGS
ANOTHER ANSWER TO YOUR ACCESS QUESTIONS FROM EUROTOWERS LTD
|
|
|
|
|
|
EZ TOWER
MANUFACTURED TO A TUV ISO 9001:2008 QUALITY CONTROL SYSTEM
Euro Towers introduces the new EZ Tower which is available in both Single (0.80m) and Double width (1.40m)
AVAILABLE PLATFORM HEIGHTS…
Single Width
2m, 3m, 4m, 5m, 6m, 7m and 8m
Double Width
2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10, 11m and 12m
The EZ tower conforms to EN BS EN 1004 and national safety standards.
And can be erected using the 3T Method.
• Multi-start Square threaded adjustable legs, incorporating full nut for maximum security.
• The spigot is designed for maximum strength and rigidity and ease of tower assembly.
• The unique ten-impression crimped joint, specially designed to improve resistance to abuse, and reduce repair costs.
• Brace hook assembly, incorporating double torsion stainless steel spring for durable and reliable use.
• Platforms incorporating bolted hook extrusion for easy low cost repairability and platform profile designed to provide minimum deflection and improved strength.
• Increased trapdoor opening for ease of access.
• A range of trail/ non trail castors and base plates available.
|
|
|
|
|
|
KLIKFOLD UNIT
MANUFACTURED AND CERTIFIED TO A TUV ISO 9001:2008 QUALITY SYSTEM
For all those tight corners where height and space is limited, gain speedy, easy access with the EuroTowers Klik Fold Unit.
• Ideal for one man use, unfold the unit, fit the board and start work.
• Easily portable and manoeuvrable, either open or closed, the unit passes easily through standard doorways.
• Both lightweight and robust.
• Provides a working platform 0.7m wide and 2m long.
• Six optional platform levels between 0.2m and 1.7m will suit most requirements.
• Fitted with lockable 5” castors and non-slip platform boards.
• Captive folding bracing system means minimum components. When closed the board will hook onto the unit for compact storage.
• Easily transportable, folds flat to fit in a small van, or on a roof rack.
• Larger castors, adjustable legs, guardrails and toeboards are all available as optional extras.
OPTIONAL EXTRAS AVAILABLE…
• Toeboard assembly – Soft wood and Aluminium
• Guardrail set comprising of 2 frames and 4 braces for the unit to be used at its maximum platform level
ANOTHER ANSWER TO YOUR ACCESS QUESTIONS FROM EUROTOWERS LTD
|
|
|
|
|
|
KLIK MINIFOLD UNIT
MANUFACTURED TO A TUV ISO 9001:2008 QUALITY CONTROL SYSTEM
For all those tight corners where height and space is limited, gain speedy, easy access with the Euro Towers Klik Minifold Unit.
• Ideal for one man use, unfold the unit, fit the board and start work.
• Easily portable and manoeuvrable, either open or closed, the unit passes easily through standard doorways.
• Both lightweight and robust.
• Provides a working platform 0.7m wide and 1.5m long.
• Six optional platform levels between 0.2m and 1.7m will suit most requirements.
• Fitted with lockable 5” castors and non-slip platform boards.
• Captive folding bracing system means minimum components. When closed the board will hook onto the unit for compact storage.
• Easily transportable, folds flat to fit in a small van, or on a roof rack.
• Larger castors, adjustable legs, guardrails and toeboards are all available as optional extras.
OPTIONAL EXTRAS AVAILABLE…
• Toeboard assembly – soft wood and aluminium
• Guardrail Pack comprising of 4 braces and 2 frames – designed for when the unit is being used at its maximum platform level of 1.8m
ANOTHER ANSWER TO YOUR ACCESS QUESTIONS FROM EUROTOWERS LTD
|
|
|
|
|
|
KLIK MICROFOLD 1000
MANUFACTURED TO A TUV ISO 9001:2008 QUALITY CONTROL SYSTEM
• In response to the exacting demand of the hire industry EuroTowers Ltd have introduced their latest folding unit, the MICROFOLD 1000 podium step.
• The unit has been designed to provide a safer way of working at low levels and offers four platform levels of:
• Platform size – 600mm square
• 250mm
• 500mm
• 750mm
• 1m
UNIQUE FEATURES:
• And has a platform area of 600mm square, an ideal size for the one man and tools.
• With a telescopic handrail section, the correct guardrail height is achieved at each of the four levels, to ensure user safety.
• The unit is fitted with lockable castors and has a non-slip platform board
• Folding construction ensures a minimum of components, when not in use the board will fit on to the side of the unit for convenient storage.
• When open or closed the unit will pass through the doors and corridors with ease.
OPTIONAL EXTRAS AVAILABLE…
• Extension pack that can raise the existing platform level to 1.5m, this includes the base unit and 2 stabilizers for extra stability.
• Folding Toeboard assembly, in softwood or aluminium.
• Step platform for easier access to the main board, again with a non-slip mesh phenol finish
KLIK INTO A SAFER WAY OF WORKING WITH THE MICROFOLD 1000 FROM EUROTOWERS LTD
|
|

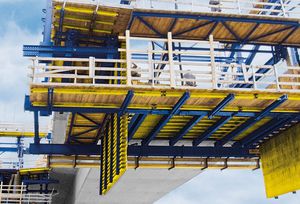

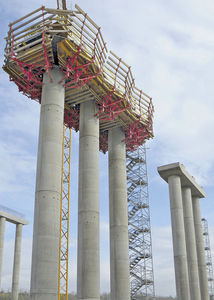

CS 240
Climbing scaffold
CS 240 is a modular climbing scaffold system for a variety of building situations. It can be employed both as a suspended scaffold as well as climbing formwork for handling single-face concrete pressures and/or concrete surcharges. The accessory parts such as placing and trailing platforms are identical on both versions.
|
|
BOSTA 70
Whatever the project – modernization, building construction, roofs, walls, painting or façade cladding, outdoors or indoors – with our BOSTA 70 façade scaffold you’re well equipped for the job. Because BOSTA 70 offers the perfect scaffold solution for every task. It is quickly erected and dismantled, absolutely stable and safe all round. BOSTA 70 is by far the best-selling scaffold system of our company and one of the best in its category. Countless contractors, craftsmen and scaffold erectors rely on its dependability and efficiency – day in, day out.
|
|
Mobile Work Scaffolds
Dimension: 46”H x 39”L x 21-1/2”W
Features:
Multi-level working area, and adjustable to various height.
Skid proof platforms.
Fits through doorways.
Folds down easily for compact storage.
500lbs capacity.
Weight: 53lbs (24kg)
|
|
Mobile aluminium towers
In all low level applications our mobile towers can provide a safe working platform. Mobile towers are stable frames mounted on castors, which can be quickly pushed from one location to the next and thus offer the ideal platform for maintenance and installation work. Our mobile aluminium towers are available in different basic versions. They are easy to transport and erect and have all the necessary safety features.
|
|
|
|
|
|
The KT-Module scaffolding system
... is economical optimized through reduction of investment expenses, working hours, logistics, material, warehousing and transport.
... complies exceptionless to the requirements of the BetrSichV, DIN EN 12810 and DIN EN 12811.
... owns the unique german approval for façade scaffolds of class 4 with 3m fieldwidth.
... enables the practicable use of leading railing without additional parts.
... has no restrictions in choosing a point to fix the protective equipment against fall
Advantages and use:
The KT - Module "ONE FOR ALL" scaffolding system is suitable for every application.
No more investment in different scaffolding systems (for instance support and frame scaffolding).
Fewer parts and higher material durability signifies increased productivity.
Low start up investment costs with the possibility of system free plank use.
Decreased weight and assembly costs with fewer components.
The performance data of the KT-Module translates into higher load capacity, giving in addition potential material savings.
In façade scaffolding on the basis of higher knot rigidity a notable increase in load capacity on diagonal braces.
Feasible replacement of diagonal brace in facade scaffolding.
There are no "loose parts" on robust ledger, meaning less repairs.
Simple compulsion adjustments of the standard with one wedge strike.
Optional placement of inexpensive translucent PVC roof protection sheets and holders.
Technical safety optimized: "through placement of pure pipe ledgers" in conjunction with "self-securing plank system", "leading railing", and "dissolved frame construction".
|
|
MODEX

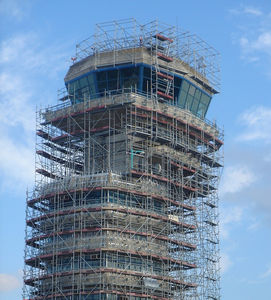

To be honest, there’s hardly anything that cannot be quickly and safely scaffolded with MODEX – large tanks as well as tall spires, mighty vaulted ceilings and intricate façades. Thanks to its versatile junction, MODEX adapts effortlessly to any shape, any ground plan and any height – and not only where façade scaffolds are required. For the construction of support structures, room scaffolds, grandstands, stages and stairways as well, MODEX has all the prerequisites.
|
|
|
We manufacture all prevalent types and styles of frame scaffoldings. Quality is strictly secured based on ISO9001 systems and OEM requirements. With a quality workforce, all scaffold frames are manufactured of high strength alloyed tubes, supplied by premium steel mills, to meet or exceed ANSI, OSHA and CSA standards.
|
|
|

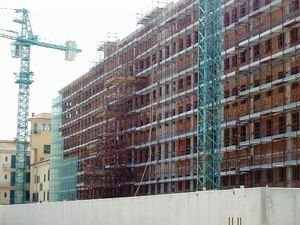

Pilosio Scaffolding are built to be adapted to any type of worksite, thanks to the modularity of the elements, its easy assembly and handling and the strength of materials.
|
|
* Four different applications with the same bracket:
1. Working scaffold with an overall width of 2.30 m - high load-bearing capacity, only few anchoring points and excellent adaptation to the building structure
2. Working scaffold plus shoe adapter for the fast attachment of the formwork with assembly locks
3. Climbing scaffold with firmly attached, tiltable formwork - can be transported as a unit
4. Climbing formwork on carriage: climbing scaffold and formwork are connected by the carriage and can be lifted and transported as a unit.
|
|

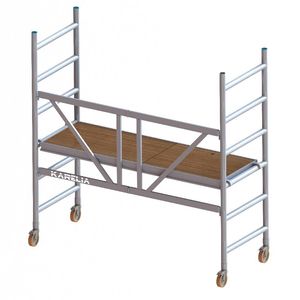

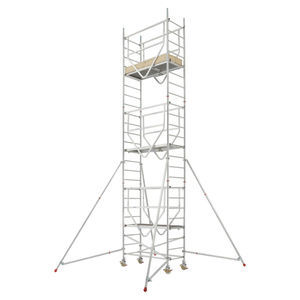

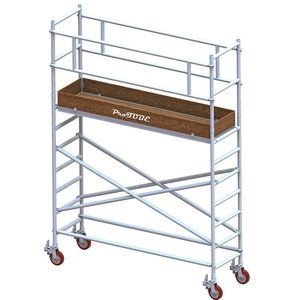

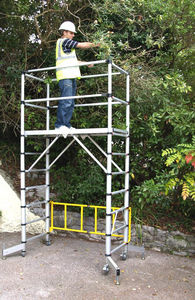

Aluminium mobile scaffold
for a great variety of applications. The scaffold weighs only 40 kg and allows for a working load of 1 kN/m². It can be extended by 1.00 m with a height extension. Any works in heights up to 4.00 m can thus be carried out safely.
|
|
Integrated system safety
Standard assembly of PERI UP takes place from a safe position through the guardrail in advance. Without the need of any additional components, the guardrail for the next level can be mounted or dismantled by one person from a safe position below. When entering the next level, the erector is protected against falling by this guardrail.
PERI scaffolding thus fulfils all requirements of the EU Directive concerning the minimum safety and health requirements for the use of work equipment by workers at work – attaching a safety harness as demanded in numerous countries is not necessary with PERI UP.
Our customers receive a scaffold system which fully complies with required proof of stability and working safety. The assembly instructions, which have been translated into many languages, contain the results that are clearly represented throughout.
For the European sector, PERI UP fulfils the requirements placed on a scaffold system according to EN 12810 and EN 12811.
|
|
|
|
|
|

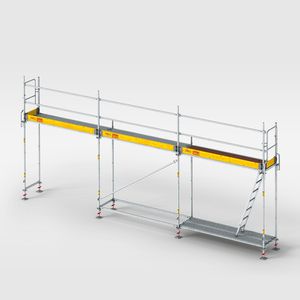

PERI Modular Scaffolding – The system for difficult building structures
Scaffolding with standard components replaces tubes and couplers. The PERI UP Rosett node at a distance of 50 cm offers connection possibilities in all directions. Thus complex geometrical structures such as on historic buildings with bays and cantilevers, or towers and spire roofs, scaffolds can be erected economically.
The following versions are available:
PERI UP Rosett 70
PERI UP Rosett 100
PERI UP Rosett 150
Identical system and component dimensions make sure that you can combine T-frames and Rosett components in one structure. Because of the high load capacities of both versions, a simple rule for combining was enough to gain the approval from the site supervisors: Each part system is to be erected and anchored to the instructions on erection and use, no matter how they are combined.
Our customers are provided with a scaffold system whose supporting documents fully conform to structural stability and safe working regulations. In our instructions for assembly and use, which have been translated into numerous languages, the information is cleary presented.
PERI UP is a modular scaffold system which conforms to the European Standards EN 12810 and EN 12811.
|
|
Debris Netting
It is made of polyethylene yarn.
Mesh diameter: 1/8”
Shade: 40%, 144g/m²
Burst strength: 138PSI
|
|
Debris Netting
Protects traffic and pedestrians from falling debris, but also considerably reduces rain and wind penetration, whilst allowing air circulation to improve the working environment for construction personnel.
• Construction: light weight high density polyethylene Monofilament
• Fixings: Buttonholes
• Material: High Density Polythene
• Durability: UV Inhibited
• Colour: blue, red, green, Black and White
• Weight: Gms/m2 80g
• Roll width: 2m x 50m or 3m x 50m
This debris netting has standard eyelets to enable easy installation with cable Ties
|
|
 see the results for the following category : Winches |
|
|
