secondary switchgear / low-voltage
secondary switchgear

Current: 0.1 A - 210 A

Main mini contactor relay, 4-pole Three basic units can be combined with different additional auxiliary contacts. 4-pole, 6-pole and 8-pole versions in different configurations are possible as well as different coil voltages (AC and DC). ...

secondary switchgear / medium-voltage / vacuum / modular
secondary switchgear
SVS

Current: 800 A - 1,250 A
VAC: 24, 12 kV

... than seven panels is supplied in sections of up to six panels. Modular design SF6 free Epoxy resin insulated switchgear in sheet steel enclosure with vacuum interrupters Total reliability in switching, ...

secondary switchgear / medium-voltage / vacuum / modular
secondary switchgear
Xiria E

Current: 630 A
VAC: 3.6 kV - 24 kV

... the name of Eaton’s new medium voltage switchgear for smart grid applications. The system is characterised by its high level of operational safety and is suitable for applications up to 24 kV. The Xiria E switchgear ...

secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
CI

CI insulated distribution boards come with a greater degree of protection when compared to the IP 65 and therefore it is used for all applications. They provide a greater level of protection for personnel as well as operational reliability. ...

primary switchgear / secondary / 4-pole / 3-pole
primary switchgear
Ri4Power series

Current: 0 A - 5,500 A

This individual system was created for the configuration of low-voltage switchgear tested with inner form separation and is called the Form 1-4 Ri4Power. It supports optimum configuration for a vast array of types cations. ...

secondary switchgear / medium-voltage / compact / industrial
secondary switchgear
CGM.3

Current: 21,000 A
VAC: 36 kV

The cgm.3 system consists of a range of compact (RMU) and modular cubicles with SF6 insulation, for Medium Voltage networks up to 36 kV. This system has evolved from the CGM-CGC system, and follows the same philosophy developed by Ormazabal ...

See the other products
Ormazabal
secondary switchgear / medium-voltage / SF6 gas-insulated / compact
secondary switchgear
CGM.3

Current: 25,000 A
VAC: 36 kV

The cgm.3 system consists of a range of compact (RMU) and modular cubicles with SF6 insulation, for Medium Voltage networks up to 36 kV. This system has evolved from the CGM-CGC system, and follows the same philosophy developed by Ormazabal ...

See the other products
Ormazabal
secondary switchgear / medium-voltage / SF6 gas-insulated / compact
secondary switchgear
CGM.3

Current: 25,000 A
VAC: 40.5 kV

The cgm.3 system consists of a range of compact (RMU) and modular cubicles with SF6 insulation, for Medium Voltage networks up to 40.5 kV. This system has evolved from the CGM-CGC system, and follows the same philosophy developed by Ormazabal ...

See the other products
Ormazabal
secondary switchgear / medium-voltage / SF6 gas-insulated / compact
secondary switchgear
CGM.3

Current: 25,000 A
VAC: 38 V

The CGM.3 system consists of a range of compact (RMU) and modular cubicles with SF6 insulation, for Medium Voltage networks up to 38 kV (IEEE ANSI). This system has evolved from the CGM-CGC system, and follows the same philosophy developed ...

See the other products
Ormazabal
secondary switchgear / 4-pole / low-voltage / air-insulated
secondary switchgear
CBTO series

Current: 0 A
VAC: 440 V

Designed for use in interior installations for distribution networks, their function is to receive the main Low Voltage circuit coming from the MV/LV transformer and distribute it to a given number of individual circuits. The cbto family ...

See the other products
Ormazabal
secondary switchgear / AC / compact / gas-insulated
secondary switchgear
XGN75-12

Current: 5 A - 2,500 A
VAC: 12 kV

... Metal-clad Switchgear (hereafter referred to as “GIS”) is a new generation switchgear, main switch does not only use in permanent magnetic mechanism vacuum breaker but also use in a spring mechanism vacuum ...

secondary switchgear / three-phase / AC / power distribution
secondary switchgear
GXGT1-12

Current: 125 A - 1,250 A
VAC: 12 kV

... insulation busbar is used to connect two neighbor switchgears. Whole switchgear is not influenced with external environment. GXGT1-12 solid insulation switchgear consists of vacuum ...

secondary switchgear / low-voltage / air-insulated / metal-clad
secondary switchgear
PCC&MCC Dismod

Current: 5,000 A
VAC: 690 V

Our own concept switchboard, the DISMOD T3N was completed based on the principles of modularity, currently offering what we think is the best quality and technical performance for a wide range of applications in low voltage networks. In ...

secondary switchgear / medium-voltage / air-insulated / power distribution
secondary switchgear

Current: max 630.0 A
VAC: max 24000.0 V

... medium voltage switchgear with double bar system is an indoor electrical equipment, in metallic compartments cabinet, with insulation in the air, being formed of a vacuum breaker and air bar separator. Electroalfa produces ...

secondary switchgear / medium-voltage / air-insulated / power distribution
secondary switchgear
12 - 36 kV | EK series

The Driescher insulators contain switchpanels that are of medium-voltage designs. These apparatuses are designed and manufactured to comply with a wide array of customer and application requirements. They can be availed with the withdrawable ...

See the other products
Fritz Driescher & Söhne GmbH
secondary switchgear / medium-voltage / air-insulated / compact
secondary switchgear

Current: 630 A
VAC: 12 kV - 24 kV

The new air-insulated DRIESCHER mediumvoltage compact switchgears are ideal for application in secondary substations without control aisles. They meet the user's specific requirements to the full and ...

See the other products
Fritz Driescher & Söhne GmbH
secondary switchgear / medium-voltage / air-insulated / power distribution
secondary switchgear
36 kV, 630 - 1 250 A | W 36 series

The air-insulated medium-voltage switchgears from DRIESCHER are created to meet the demands in terms of flexibility, maximum operating convenience, high level quality and safety. It consist of two types: the type W 36 ...

See the other products
Fritz Driescher & Söhne GmbH
secondary switchgear / medium-voltage / air-insulated / power distribution
secondary switchgear
max. 24 kV, 630 A

This device engineered by Driescher, is a medium-voltage air insulated secondary distribution switchgear that operates on a 630 A rated current and on a 12 kV to 24 kV rated voltage. In addition, it features ...

See the other products
Fritz Driescher & Söhne GmbH
secondary switchgear / medium-voltage / air-insulated / power distribution
secondary switchgear
W 12 series

Current: 630 A
VAC: 12 kV

The W 12 Series, manufactured by Driesher, is an air insulated medium voltage switch gear integrated with a rated voltage of 12 kV and a maximum rated current of 630 amperes. The medium voltage switch gear is used to cut off the power ...

See the other products
Fritz Driescher & Söhne GmbH
secondary switchgear / low-voltage / for motors / power distribution
secondary switchgear
MNS Low Voltage Switchgear

MNS is ABB's low voltage switchgear and controlgear assembly for power distribution and motor control. The MNS design is verified in accordance with the IEC 61439 series and IEC 61641 standards. MNS is of a modular design, ...

See the other products
ABB
secondary switchgear / low-voltage / for motors / power distribution
secondary switchgear
MNS UMC

MNS provides solutions for intelligent switchgear systems across a broad spectrum. Intelligent systems use standalone protection and control relays engineered into the switchgear modules, in lieu of traditional ...

See the other products
ABB
secondary switchgear / medium-voltage / air-insulated / power distribution
secondary switchgear
ASCO 7000 series

Current: 600 A - 4,000 A
VAC: 600 V

Emerson ASCO 7000 Series SYNCHROPOWER® medium voltage paralleling switchgear products are custom designed for starting, synchronizing and paralleling power sources with two or more sources for engine generation. The ...

secondary switchgear / low-voltage / air-insulated / commercial
secondary switchgear
Magnum DS

VDC: 0 V - 600 V

... equipment and circuits in industrial, commercial, and utility installations.EATON'S 2009 product of the year,Low Voltage Switchgear serves a multitude of application from generators,motors,feeder circuits,to transmission ...

secondary switchgear / 4-pole / 3-pole / low-voltage
secondary switchgear
max. 250 kA | SIVACON 8PV

The SIVACON 8PV is a successful series because it is centrally manufactured at Siemens. This control gear and switchgear assembly is type-tested to provide low turnaround and high quality of a series-manufactured, time-proven ...

See the other products
SIEMENS Low-Voltage & Products
secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
max. 375 kA | SIVACON 8PT

... and motor control centers, offering maximum individuality, are primarily used in infrastructure applications. SIVACON 8PT switchgear and controlgear assembly using reliable Siemens components provides integrated type-tested, ...

See the other products
SIEMENS Low-Voltage & Products
secondary switchgear / medium-voltage / air-insulated / metal-clad
secondary switchgear
max. 24 kV, 1.25 kA | SIMOSEC

... Metal-enclosed Single busbar Air-insulated technology combined with a gas-insulated switching function Factory-assembled, type-tested switchgear according to IEC 62271-200 Customer Benefit: - Compactness - Personal ...

See the other products
SIEMENS Medium Voltage & Systems
secondary switchgear / medium-voltage / gas-insulated / power distribution
secondary switchgear
17.5 - 24 kV, 0.63 kA | 8DJ10

Switchgear in block-type construction, non-extendable Gas-insulated Sealed Factory-assembled, type-tested switchgear according IEC 62 271-200 Customer's Benefit: - Environmental Independence - Compactness ...

See the other products
SIEMENS Medium Voltage & Systems
secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
max. 6 300 A |Blokset

This distribution and motor control switchboard up to 6300A, IEC60439-1 compliant features a flexible modular system that provides maximum reliability and safety. It has been tested and designed exclusively with Schneider Electric components ...

secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
max. 3 200 A | Prisma Plus

The Prisma - LV Switchboards is the definite solution for the Low Voltage Switchboards up to 3200A. The Prisma Plus G is wall-mounted and has free-standing enclosures for electrical switchboards up to 630A with wall-mounted 25kA rms/1s ...

secondary switchgear / insulated / metal-clad / modular
secondary switchgear
ENSIS

Current: 630 A
VAC: 25.8 kV

Entec's Secondary Switchgear (ENSIS) is designed for distribution automation system with the combination of different panels such as Circuit Breaker(CB) , Load Break Switch(SW), MOF, and PT, etc. The ...

secondary switchgear / medium-voltage / SF6 gas-insulated / compact
secondary switchgear
max. 630 A, 24 kV | Susol RMU

Current: 630 A

Susol Ring Main Unit is a compact and comprehensive solution for secondary power distribution networks up to 24kV which leads numerous applications for wind power plants, small industries, buildings, mining, airports ...

See the other products
LS Industrial Systems
secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
LBA series

Current: 630 A - 5,000 A

... distribution system, LS Industrial Systems' GL Type Power Center can be applied to various industrial uses by adopting low voltage switchgear standards, JEM-1265 or IEC 60439.

See the other products
LS Industrial Systems
secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
Elastimold® series

... EPDM, the switchgear is maintenance free and environmentally friendly. Field Upgradable: As changes are required by Smart Grid and other innovations, relax Elastimold switchgear is field upgradable. ...

secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear

Our low-voltage control equipment operates motors and special consumers in potentially explosive mine openings in the area of mining and heading. They can be supplied for the following voltage levels: 500V and 1000V. They are characterized ...

secondary switchgear / medium-voltage / oil-insulated / power distribution
secondary switchgear
TRIDENT series

Current: 0 A - 630 A
VAC: 0 kV - 15 kV

The Trident Range of Oil RMU has started the service for over 35 years with trouble free operations. The Trident Range from CG is designed for both indoor and outdoor applications. The device is made from rugged construction with ...

See the other products
CG Power Systems
secondary switchgear / medium-voltage / vacuum / power distribution
secondary switchgear

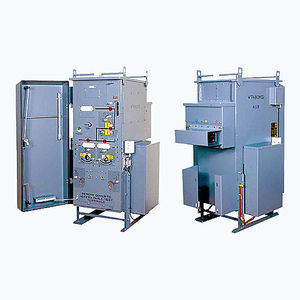

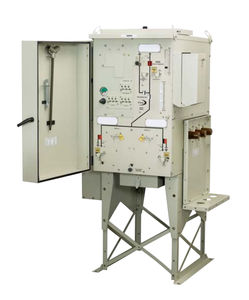

SABRE series

Current: 0 A - 630 A
VAC: 0 V - 24,000 V

The SABRE range is made of stainless steel enclosed and fabricated by means of automatic welding. It unites the most advanced vacuum and SF6 technology to cope up with the latest requirements today. The range comes with a circuit ...

See the other products
CG Power Systems
secondary switchgear / medium-voltage / air-insulated / power distribution
secondary switchgear
17 500 V, 630 - 1 250 A | INEBLOCK

... and security are some of the advantages of Panel INEBLOCK. They are destined to switching and protection of circuits of secondary distribution in medium-voltage.

secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
690 V, 800 - 4 000 A | INEPOWER-BT

General characteristics The AC low-voltage Load Centers type INEPOWER-LV are standardized units developed in accordance with IEC 60439-1, which is classify as type-tested assemblies (TTA). They are destined to realize the centralized ...

secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear
MS22

The MS22 is a system for stably and efficiently supplying energy to all onboard systems and equipment. As a product, the MS22 has acquired Type Approval and CE Marking, and is designed and built for compactness, environmental friendliness ...

secondary switchgear / low-voltage / air-insulated / power distribution
secondary switchgear

Electrical power distribution systems The systems supply electrical power efficiently and safely to electrical facilities within a building or power plant.

How to choose this product

secondary-switchgear

Secondary switchgear or secondary distribution switchgear is used to control, protect and isolate electrical equipment in distribution substations. It is mostly used to de-energize medium-voltage equipment for proper network function or for safety reasons.

Applications

Secondary switchgear is found in:
- compact substations
- compact transformer substations such as on a wind farm
- underground substations
- commercial buildings
It can be installed in both indoor and outdoor environments and can be protected from wet or dusty conditions.

Technologies

Secondary switchgear comprises an electrical disconnect switch, a series of fuses or circuit breakers and an enclosure. In order to isolate the conductors, the switchgear can be insulated by oil, gas or air.

How to choose

When selecting secondary switchgear, be sure to include information such as:
- current rating
- voltage class (low, medium or high voltage)
- the type of isolating medium (gas, oil, air)
- the environmental conditions (outdoor, indoor, marine, underground, etc.)
- AC or DC current
