These 4x4 concrete mixers feature high stability, even with a full load and on difficult and rough stretches. High-tensile electrowelded steel frame, articulated with oscillating bridge for greater stability, and double soft-system jack. Even though small, the concrete mixers of the DB 110 and DB 180 series confirm the high standard of the equipment designed to assist the operator. Stan-dard production includes automatic mechanical closing of the loading shovel to prevent material spillage during loading into the drum. Water tank positioned at the front for better weight distribution in order to always operate in safety conditions. FIORI makes enormous and continuous efforts to improve the safety of the concrete mixers. Unique in its 1 cu m category the DB 110 is fitted standard with 3 windows and driving reversibility. The DB 180 can also have a closed cabin.
|
|
|
|
|
|
|
The cabin is mounted on a silent block to prevent vibrations inside the cabin. Both water tanks are also mounted on a silent block.Radiator in alluminium. Thanks to the patented system the drum turns until the unloading mouth is directly at the front near the driver’s seat. In this way, the material can be unloaded keeping an eye on the casting area while driving. This is particularly useful when unloading on the wrong side. In addition, again for the safety and convenience of the operator, the texture of the concrete can be checked directly from the driver’s seat without having to get out of the cabin. Easy accessibility for maintenance on the engine and the components of the hydraulic circuit. Thanks to the particular design, studied to reduce manoeuvres during loading with the shovel, the Zeta kinematic mechanism makes the self-loading system look like a sort of “wheel-loader” shovel with enormous advantages and time saving. Lifting system with double-acting return and soft-stop braking system.
|
|
CARMIX ONE
Drum Capacity: 1400 liters
Real concrete output: 1 m3 per batch
Articulated chassis
Hydrostatic transmission. 4 wheel driving
Engine: Diesel Cummins, A1700 water-cooled, 37 HP
Reversible seat with automatic inversion of hydraulic steering circuit. ROPS-FOPS Canopy
|
|
CARMIX 25FX
Drum capacity: 3450 liters
Concrete output: 2,5 m3 per batch
Productivity: 4 cycles/hour
Transmission: Bosch Rexroth. 4 wheel driving
Engine: Turbo diesel JCB 444TC, water cooled, 4 cylinders. Power 63 KW (85HP) set at 2200 r.p.m.
Reversible driving seat with automatic inversion of hydraulic steering circuit and ROPS/FOPS canopy
|
|
CARMIX 2.5
Drum capacity: 3400 liters
Concrete output: 2,5 m3 per batch
Productivity: 4 cycles/hour
Transmission: Bosch Rexroth. 4 wheel driving
Engine: Diesel PERKINS 1104 C-44 water-cooled, 4 cylinders, 85 HP
The mixing unit is slewing hydraulically through 300° for high discharge at 1,9 m to the four sides of the vehicle
Front cab on side of loading shovel. ROPS-FOPS type complete of double closing door
Electronic weighing system (on request)
|
|

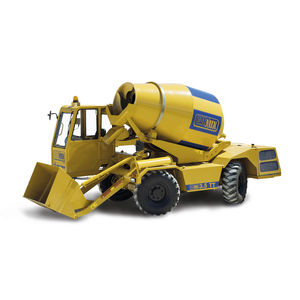

CARMIX 3.5T4
Drum Capacity 4.750 l
Concrete output: 3,5 m3 per batch
Productivity: 4 cycles/hour
Transmission: Bosch Rexroth. 4 wheel driving
Engine Diesel PERKINS 1104C-44TA Turbo, water-cooled, 4 cylinders
The mixing unit is slewing hydraulically through 300° for high discharge over 2 m to the four sides of the vehicle
Front cab on side of loading shovel. ROPS-FOPS type complete of double closing door
4 wheel steering
Electronic weighing system (on request)
|
|
CARMIX 5.5 XL
Drum Capacity: 7.600 liters
Concrete output: 5,5 m3 per batch
Maximum speed: 33 km/h
Road transfer from 0 to 30 km/h
Transmission: Hydrostatic, Hydromatic-Rexroth. 4 wheel driving
Engine: Cummins Turbo-Diesel B5.9 TAA, 150 HP
4 wheel steering
ROPS-FOPS driving seat complete with double closing door
Weighing: Electronic System. “Load Cells” acting on the drum, display and printer in the cab (on request)
|
|
AUTO CONCRETE MIXER. MAX. WORKING LOAD: 1.000 LITRES. ENGINE: 50 H.P. TRANSMISION: HYDROSTATIC. SWIVEL CABIN.
Auto concrete mixer. Single drive. Hydrostatic transmisión. Perkins diesel engine, model 404 C, four cylinders. 50 H.P. Water cooled. Hydraulic steering. Hydraulic brakes. Electrical start and stop. Mixing drum volume: 1000 L. Front and loading. Swivel cabin. Water self-supplying (300 litres) by automatic suction pump and litres meter (200 l/m). Aceleration level. Cleaning equipment. High pressure pump with pistol. Flashing beacon. Conductor’s protective ceiling. Hour meter. Audible reverse warning signal. Safety belt.
|
|
IVECO NEF - TC - Diesel 4 cil. 102 HP - Direct inyection, water cooled, turbo + aftercooler. With antipollution norms PERFORMANCE Drum capacity 4700 Litres Mix production 3500 Litres Loading shovel 600 Litres
Weight of empty machine 6400 Kg.
|
|
Merlo self-loading concrete mixers: all the benefits of a tried and tested technology that is both economical and efficient for concrete preparation, transportation and casting.
Merlo has forty years of experience behind it in the design and manufacture of self-loading concrete mixers, and offers a complete range to meet every kind of operational requirement. The DBM range permits the rapid preparation of various types of concrete mixes, from the most fluid mortar to low slump concrete, in the precise quantities required and just when needed, the advantages being clear as compared to the traditional pre-prepared concrete.
|
|
|
|
|
|
Stetter Light Line
An optimised drum geometry and arrangement of the mixing spirals as well as additional weightreduced
equipment are the reason for an extremely light mixer body. A payload of up to 8 m3 concrete
can be reached in combination with “low-weight” 4-axle vehicles.
The new mixing spirals which a patent was applied for enable the application of the higheststrength
wear resistant steels available in the market.
Beside a higher payload, this does also mean a substantially longer lifetime compared to all
known light-weight versions. For economic transport of concrete over many years.
■ Drum walls made of high-strength wear resistant steel with a hardness of approx.
300 HB (Brinell)
■ Mixing spirals made of hardened high-strength wear resistant steel with a hardness of approx.
500 HB (Brinell)
■ Wear protection (5/6 mm) made of hardened high-strength wear resistant steel with a
hardness of approx. 550 HB (Brinell)
The result:
■ Approx. 10 % more payload
■ Extremely extended drum lifetime
■ Most economic transport of concrete
|
|
|
|
