Semi-automatic labeling machines to apply self adhesive labels onto cylindrical items any kind. These machines, very multivalent, allow the labelling of bottles as well as jars, pots, tubes, cartridges, tin cans, however : a large range of products !
Also, these machines may integrate several options :
- For applications with diverse types of detection cells in order to position.
- the labels on the items to be labeled.
- To apply labels up to 30 cm high.
- To apply labels onto items that have prominences ( cans, caps on jars ).
- To apply labels onto cans with handle.
- To apply labels on light or small items
|
|
Semi-automatic labeling machines to apply self adhesive labels onto cylindrical items any kind. These machines, very multivalent, allow the labelling of bottles as well as jars, pots, tubes, cartridges, tin cans, however : a large range of products !
Also, these machines may integrate several options :
- For applications with diverse types of detection cells in order to position.
- the labels on the items to be labeled.
- To apply labels up to 30 cm high.
- To apply labels onto items that have prominences ( cans, caps on jars ).
- To apply labels onto cans with handle.
- To apply labels on light or small items
|
|
|
|
|
|

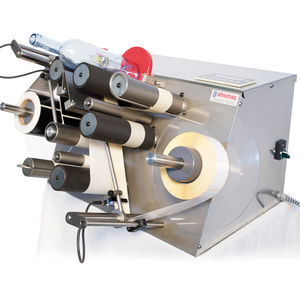

ALmatic is a semiautomatic applicator of self-adhesive labels for cylindrical products. Its easy functioning provides for the manual loads of the product in the labelling position by the operator who activates the control lever. So ALmatic provides to the rotation of the product and to the application of the label till a completely happened adhesion. Thanks to the ergonomics of the system and to the presence of templates of comparison ALmatic allows an exact labelling, making easier the manual operations of the placing of the product. The speed of the label supply, 12 mt/min, allows effecting its application in a very short time.
ALmatic semi automatic labeller can apply labels till 200 mm width on products with variable diameter from a minimum of 25 mm to a maximum of 110 mm.The format change is made in a fast and intuitive way through some simple sliding levers with block pommels. The industrial structure of the system, characterised from a unwind unit of 280 mm diameter with a tensioning arm,a paper traction group and silicon rewinder, guarantee a big reliability, continuous precision at the beginning and the end of roll and high autonomy. In the end, ALmatic semi automatic label applicator can be supplied of some optional devices like the transparent labels sensor or the hot foil printing unit for lots numbers and/or expiry date,that increase the versatility of the system.
|
|
- Tabletop large diameter wrap labeling system
- Applies up to 30 ppm with +/-1/32" accuracy
- Labels a wide variety of cylindrical products from 2" to 6" diameter
- Products are manually loaded into a product fixture. The operator activates a foot switch, which lifts the "cradle" up to the impresser roller. When the impresser roller contacts the product, a label is dispensed and wrapped around the product.
- Optional lot/date coders
- Product samples may include beverage containers, automotive parts and wine bottles
|
|
Features:
- Roll-on labeling from ampoules to gallons.
- Fast changeover from one size to another.
- The "roaming peeler", adjustment to support smaller diameter products like vials, markers and lip balms.
- Foot switch activation.
- So compact it fits virtually any tabletop.
|
|
|
|
|
|

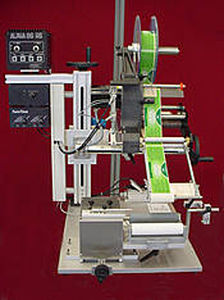

The ST400 Semi-Automatic Label Applicator is capable of applying die cut pressure sensitive labels at speeds of up to 400 linear inches per minute. Depending on product size and operator efficiency, 30-40 products per minute can be realized. Heavy duty construction specifically designed for industrial applications.
Microprocessor controller gives flexible and accurate label placement. Stainless steel and anodized aluminum provide protection from corrosive environments. Solid drive construction ensures even pressure to the label web resulting in extremely accurate label placement. Handles a full assortment of label shapes and sizes.
The ST400 encapsulates a table top design, a photo-electric product and label sensor, microprocessor control, a standard 4.5-inch web width, and a variable speed direct drive stepper motor. The wrap assembly is fully adjustable and capable of handling products ranging in size from 1/2-inch to 6-inches in
diameter with a 10-inch label length capacity. The tamp module is capable of placing 4.5-inch by 6-inch labels on any size product. Standard label placement accuracy is ± 1/32 of an inch.
|
|
The product range of Semi-Automatic Labellers MR143 has been specially designed for simple and precise label application at table-top workstations. Depending on the label material, additional printers such as stamp printer or hot-foil printer can be used to print production or sell by dates.
Application:
- Wrap-around labelling with the MR143 RU
- Top and bottom labelling with the MR143 PA
Your benefit:
- Economical solution for small production runs
- Flexibility
- Easy handling
|
|
|
|
|
|
Model HSC350K-S is a line of Weigh-price Labeler with manual application of the label on single confection. The unit allows to create personalized labels, in black and white or with colors, and to fix an amount-price relationship for various product
Printer from 4" able of 300 mm/s, possibility to install until to 2 printing, with choose of the same ones in a range from 120 to 300 mm/s, with width of press between 2" and 4".
Customized label
With the labeler HSC350K-S you can satisfy requirement of the customer,now and in future. The label can be designed fastly and simply in order to be assigned to the labeling unit. Until 250 different customized form can be stored in the control unit and until 100 print field can be inserted in every label.
Versatile
The labeler HSC350K-S is usable in every field, from the agro-industrial to the pharmaceutical one. Its innovative system of print and the technology of weighing render it an optimal product for the manual operations.
The personal characteristics and the high speed of print allow to have in a small time a label with many information, ideal in order to label shipments or products of warehouse.
|
|
Art. LXT001 – LXE001
SEMI-AUTOMATIC LABELLING MACHINES
Semi-automatic table top labelling machines for self adhesive labels application, fitted with label dispenser. Professional unit, ideal for a medium daily production.
These machines can apply label and/or back label (on the same spool) on:
- cylindrical glass or plastic containers
- conical containers with a conicity smaller than 1°30’
- square containers (with the right accessory) like oil bottles, jars or plastic bottles.
These machines can be equipped with the following optional items:
- Accessory for back label application on cylindrical bottles
- Accessory for square bottles labelling
- Pneumatic printer suitable to stamp serial number and expiration date during the labelling operation
- Accessories for labelling demijohns, mignon bottles and jars
- Label positioning accuracy: ± 2 mm.
|
|
With a belt-fed labeller, paper or film labels can be applied within a short transport distance onto packages of all shapes and materials.
MR300 Conveyor Belt Labeller
The labelling system was specially designed for industrial use in lower and medium speed ranges. Its outstanding features are a compact design, increased stability and an optimum price/perfomance ratio. This was achieved by an integrated control unit and an enclosure machined from solid aluminium
Products:
- Angular and cylindrical products, e.g.: cups, cans, boxes, cartons, thermoformed packs, trays
Applications:
- Top labelling
- Side labelling
|
|
HERMA 211 - semi-automatic labelling machine for wrap-around labelling
These semi-automatic wrap-around labelling machines offer effective and flexible solutions for even the most demanding of requirements. The system is especially suitable for small batch production of cylindrical product such as tubes, glass bottles and ampoules etc. The versatile application unit is capable of accepting a wide range of product diameters and can easily be adapted for special requirements, making the HERMA 211 the ideal semi-automatic wrap round labelling system.
|
|
|
|
