SW2L-16PW4CF
Platform diameter 1.650 mm (Height from the ground 75mm)
Max pallet height 2.100 mm
Max loading weight 2.000Kg
Turntable with front and rear opening to load & move with fork lift
Carriage belt driven with PW Pre-Stretch Carriage 150-200-250%
Manual and automatic working cycle with 4 wrapping programmes
- Carriage only up
- Carriage up + down
- Both above with stop for manual insertion of top sheet
Wrapping cycle with reinforcement
Inverter for Turntable Control:
Adjustable speed - Soft Start - Fix Stop
Photoelectric cell to read the pallet height
Possibility to memorize up to 9 wrapping programmes & retrofit automatic film cut at the end of the cycle
Hinged column to facilitate machine installation
Hot painting with epoxy system
Standard power supply 400 Volt – 50 Hz – 3Phases
|
|
Neleo 50
Semiautomatic orbital wrapping machine
Designed to warp (mouldings, aluminium profiles, tubs, blinds, shelves, kit furniture...etc.)
|
|

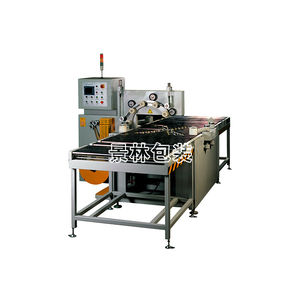

Artemis 50
Semiautomatic machine for horizontal packaging with stretchfilm.square and round products
APPLICATIONS:
Packaging and protection of square products such as frames, structures and windows without glass.
Also for round products such as hose rolls, wire rolls, wheels and rings.
ADVANTAGES:
It wraps the product by its thickness and in its entire perimeter instead of wrapping by width leaving the inner space of the product free to put other products inside.
It saves stretchfilm because it uses less quantity of consumable for wrapping the thickness instead of the width.
|
|
|
|
|
|
FV205 31.1115 Product Information
Semi-automatic vertical stretch wrapping systems with mechanical brake system.
Vertikal system because the film is applied in an vertical way. The product movement is made horizontal.
The FROMM FV series stretch wrapping machines are particularly suitable for customers who need to wrap a range of long products, like profiles, wood, alimunium, steel, stainless steel etc.
FROMM offers you a wide range of Semi Automatic machines starting with diameter Ø400 folowed by Ø600 - Ø1.000 and Ø1.400mm
Our machines have been proven to be reliable and multifunctional.
With a mechanical film brake
Film brake adjustment, by means of a hand wheel.
A brief list of the benefits FV205
- Attractive and competitive price level
- Minimum of maintenance required
- Inside ring diagonal 390mm
- Easy to operate control panel
- Automatic cutting device for the film
- Automatic stop in zero position
- Adjustable vertical guide unit
- Acceleration and the deceleration speeds are controlled by inverter
- Working height 870-960 mm
- Supply complete with CE-declaration of conformity.
Options
- Conveyors in various lengths
Standard technical specifications
Maximum diameter goods Ø390mm
Min dimensions:
30 x 30mm (WxH)
Max dimensions:
250 x 200mm (WxH)
Max weight 25kg per meter
Power supply 230V - 50/60 Hz
automatic program
|
|
- MECATENS brake
- Turntable start/stop
- Without soft start nor exact stop
- Variable turntable speed and fixed carriage speed
- Carriage film control by joystick.
- Pallet height detection microrruptor ( manually adjustable)
- 1.650 mm diam. turntable
- Max. weight to handle 2.000 kgs
- Standard erlectrics in 220 or 380 V TRIPHASE
|
|
525 Semiautomatic :
- Wraps up to 35 loads per hour
- No weight limits-loads are wrapped on the floor
- Freestanding or column mounted designs
- Heavy duty construction
- Pre-stretches fi lm up to 300%
- Positive, non-slip V-belt rotation drive
- PLC control
- Octo-Thread carriage allows easy film threading
- Strain gauge fi lm delivery control
|
|
Machine with turntable system for compact loads
- Low cost machine
- Easy operation
- Up to 30 pallets per hour
- Machine, strap and after-sales service as a total package
|
|
In order to meet the most different demands of this specific market,Comarme offers a wide range of palletwrappers. Built according to heavy-duty construction concepts ,which distinguish Comarme from its competitors, the performance of the new Ronda machines are extremely reliable, functional and adaptable to any need. This specific series of Ronda pallet wrappers is characterized by an open turntable, which allows to load and unload the pallets by forklift very easily. The forklift access in the open turntable may be requested at 90°, 180° or 270° according to the specific need.
The effective protection of the product against dust and humidity, the
reduced quantity of film used, as well as the quick cycle times are
just a few advantages of the Ronda System pallet wrappers.
|
|
FP 15/ES stretch-wrapping machine with electronic board, photocell for automatic reading of the pallet height, inverter to control the progressive start and turntable rotation speed, manual film hook up / cutting, and automatic wrapping cycle (CE-regulation machine).
Technical data:
- Max load weight: 1500 Kg
- Turntable diameter: mm. 1500
- Max load size: mm. 1200 x 1200 x 2100 h
- Film roll size: ext. diam. 300 mm . - height 500 mm - int. diam. 75 mm
- Mechanical clutch for film tension adjustement
- Photocell for automatic reading of the pallet height
- Turntable rotating speed: 7-15 rpm
- Turntable height: mm. 75
- Electrical supply: 380 V 50 Hz. + T + N
- Installed power: 0.6 kW
- Machine size: mm. 1500 x 2500 x 2560
- Weight: 500 Kg
|
|
FS210 and FS230
FROMM stretch wrappers are extremely user-friendly and can be used in every situation. The FS210 and FS 230, in particular, are highly suited to use by smaller-scale film users. Extra emphasis was placed during the design stage on safety and reliability. All the machines are designed to cope with a high workload. The use of carefully selected components keeps maintenance to a minimum.
|
|
* 525 Semiautomatic :
- Wraps up to 35 loads per hour
- 4,000 pound capacity
- Lift truck portable from front and rear
- Heavy duty construction
- Pre-stretches fi lm up to 300%
- Positive, non-slip chain drive
- PLC control
- Octo-Thread carriage allows easy film threading
- Strain gauge fi lm delivery control
|
|
- Number of revolutions adjustable since the control boards de with slopes d acceleration and desacceleration controlled thanks to a variator of frequency. - - Stop by phase (+ 20mm.). ·Reading height of the loading thanks to a photocell.
- speed of rise/descent of the reel of reel synchronized with the number of revolutions of the gyratory table para to permitir a solapado LED film LED 20%.
|
|
|
|
|
|

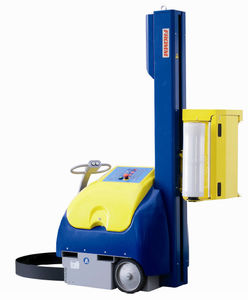

UNIQUE of its kind, this robotic pallet wrapper equipped with innovative high-technology patented devices solves successfully any requirements of wrapping loads of any weight and area with stretch film and still more. Its working area is 100% smaller than most robots. A little great genius: LITTLE thanks to restricted working area, compact overall dimensions and reduced weight, maintenance free; GREAT thanks to high quality standards, high functionality, high performances. INCREDIBLE because of its price/quality ratio.
* ELECTRIC MANOEUVRING SYSTEM PAT that reduces the working area even more in comparison with most robots
* TELESCOPIC MAST PAT that makes handling and transport easier inside the operating areas
* 100% POWER PRE-STRETCH SYSTEM PAT fitted as standard that allows to work also using film of not high quality
* MICROPROCESSOR LOGIC BOARD PAT with 6 different pre-programmable memorized settings
* MAINTENANCE FREE and SEALED BATTERIES that need no fill and can be recharged from standard 220 V power supply in any place
* REDUCED OVERALL DIMENSIONS and WEIGHT , approximately 50% less than most robots
* EASY SHIPPING as no parts have to be assembled and it is ready to work.
Available also a MODEL with FIXED MAST, MECHANICAL BRAKE and CONTROL PANEL integrated IN THE DRIVING DEVICE: LEONARDO2000. Visit our website for more information about it.
Machine made according to CE rules.
|
|
New design rotating table for wrapping palletized loads of any shape and weight with stretch film including stretch net. Synthesi is characterised by the use and application of already pre-stretch film and its simplified function.
Technical features
- Total installed power 0,75 kw
- Standard voltage 230 V - 50/60 Hz - 1 Ph
- Electric plant and motors protection degree IP 54
- Turntable diameter 1500 mm
- Max. pallet dimensions 800x1200 mm
- Standard Wrapping height 2100 mm
- Max. Load weight 1500 Kg
- Rotation speed adjustable by frequency changer from 3 to 12 rpm
- Spool carriage upwards/downwards speed adjustable by frequency changer
- Acceleration/deceleration ramps adjustable by frequency changer
- Precise phase stopping at cycle end
|
|
|
Semiautomatic pallet wrapping machine with stretch film for the stabilisation and securing of palletised loads. The model illustrated can be operated with or without an operator.
|
|

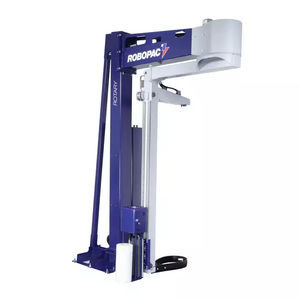

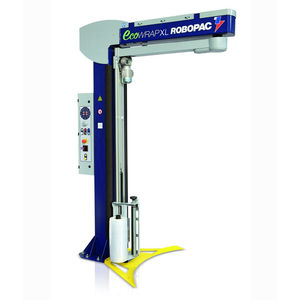

Semiautomatic rotating arm stretch-wrapper, with wheel-driven and bridge feame. Specially-designed for wrapping light, unstable and voluminous products, because the load is positioned on the ground and the pallet does not move during wrapping, with stabilizer press and powered pre-stretch.
TECHNICAL DATA
- Max load capacity: unlimited
- Max. load size: mm. 1400 x 1400 x 3000 h
- Inverter to control the arm rotation speed
- Inverter to adjust the carriage speed
- Pallet height-reading photocell
- Powered 200% pre-stretch
- Film reel size: ext. diam. max. 250 mm - int. diam. 75 mm - height 500 mm
- Stops of rotating arm: in programmed position
- Pneumatic stabilizer press
- Power supply: 400 V - 50 Hz
- Installed power: 1,0 Kw
- Machine size: mm. 3500 x 3500 x 4000 h.
- Weight: 600 Kg
|
|
SpiralGrip 310
Signode's SpiralGrip 310 semiautomatic overhead stretch wrapping system can be mounted to a wall, support beam or SpiralGrip floor stand to provide convenient overhead wrapping of light, very heavy, unstable or odd-shaped loads. The SpiralGrip 310 wraps up to 35 loads per hour.
310 FEATURES
Sensor-Stretch film carriage
Prestretches film up to 300% for maximum film economy and superior load stability.
Angled film carriage design
Wraps to within 2" of the floor, enabling the load to be wrapped to the pallet for added security.
Adjustable force-to-load film tension
Securely wraps loads ranging from heavy, unstable pallets to light, fragile loads.
Automatic load height sensing
Film carriage automatically stops ascent once the top of the load is detected.
No loading ramps
Loads sit directly on the floor, thereby simplifying pallet handling.
|
|
New design rotating table for wrapping palletized loads of any shape and weight with stretch film including stretch net.
Technical features
- Total installed power 1 Kw
- Standard voltage 230 V - 50/60 Hz - 1 PH
- Electric plant and motors protection degree IP 54
- Turntable diameter 1650 mm
- Standard Wrapping height 2200/2400 mm
- Option 2800 mm
- Max. Load weight 2000 Kg
- Rotation speed adjustable by frequency changer from 3 to 12 rpm
- Spool carriage upwards/downwards speed adjustable by frequency changer
- Acceleration / deceleration ramps adjustable by frequency changer
- Precise phase stopping at cycle end
- Exchangeable spool carriages:
- FM mechanic brake
- FE electromagnetic brake
- PRS fixed pre-stretch 150/200/250 %
- PS pre-stretch from 100 to 400
|
|
VORTEX E
Semi-automatic stretch wrapping machine, robust, suited for a great variety of applications.
VORTEX S
Semi-automatic stretch wrapping machine, equiped with power pre-stretch.
1 Meter stretchfilm = 4 meters
SENATOR: Modular semi-automatic stretch wrapping machine.
OPTIONS :
- Turntable diameter up to 2300 mm..
- Loading weight up to 2500 Kg.
- Wrapping height up to 3000 mm.
- Top pressure plate.
- Automatic wrapping programmes with specific requirements.
- Power pre-stretch
- Ramp
- Etc...
|
|
GL 75 / 85 the entry to partially automated stretch-wrap technology.
Advantages:
Equipped with a simple pre-stretch unit set at a fixed pre-stretch ratio of 30 %. It is possible to adjust the film tension manually during operation. The end of the film roll is fitted with a brake. Easy to operate with clearly visible controls. The film roll change is easy and fast. The base has been constructed so that it can be moved by fork-lift truck.
|
|
SPIRALGRIP PRO / PRO PLUS / PRO PLUS-H
Signode Spiralgrip pro plus automatic stretch wrapping machines are designed to deliver fast, economical wrapping with minimal film waste. They feature a pre-stretch system that elongates the film by 260% max, thus dramatically reducing film consumption and packaging costs. The Spiralgrip is available in three models, all offering a choice of wrapping programmes and functions to match the requirements of your packaging operation.
|
|
|
The AV180 wrapping machine satisfies the need of wrapping palletized loads at a low cost either using stretchable film or plastic mash. To better exploit the film's characteristics, the AV winding machines are equipped with a pretensing and stretch regulation group with which it is possible to enhance the film's stretching capability or to reach the ideal tension when using the mash. Through the winders' control panel it is possible to choose the most appropriate type of winding.
|
|
WTM1:
- Adjustable turntable speed with smooth start and stop
- Adjusted stop position of the turntable
- Constant carriage speed (20 % overlap) synchrony with turntable speed
- Electronic control panel with display
- Lift carriage with electro-magnetic brake at the deflection roller
- Lift carriage with safety stop by protection bracket
- Height measurement by photocell
- Programmable control
- Adjustable parameter at the control panel:
- Turntable speed
- Number of pallet food wrappings
- Number of pallet head wrappings
- Delay of the photocell (height measurement)
- Selectable programs:
- One way strapping (only down or only up)
- Cross wrapping (up and down)
- Top sheet wrapping program
- Wrapping in different heights
|
|
Rc is the ideal solution for wrapping pallets with special sizes, overall dimensions and shapes which cannot therefore be packed by machines requiring standard load features.
The Rc mobile robot can be guided by an operative wherever there is a pallet to be wrapped, thus avoiding moving more delicate or instable loads.
Highly versatile and easy to handle, Rc adapts perfectly to any type of need and working environment.
|
|

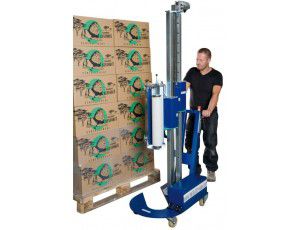

FROMM FR230 Series Robot Stretch Wrapping Machines
Semi-automatic Robot Stretch Wrapping Machines, with multiple wrapping programs and various pre-stretch systems.
The FROMM robot is a mobile, semi-automatic stretch wrapping machine. It is particularly suitable for customers who need to wrap a wide range of large pallets or for situations where stretch wrapping takes place in various locations. With the battery fully charged, it can wrap up to 220 Euro pallets.
FR230 with a mechanical film brake
Film brake adjustment, by means of a hand wheel.
A brief list of the benefits
- options: pallet height 2.500 and 2.800 mm
- machine functions adjustable on the easy to operate control panel, with
security blocking code feature
Standard technical specifications
Maximum pallet height 2.000 mm
Rechargeable traction battery 24V - 110A/h
Automatic high-frequency battery charger
Charging power supply 230V - 50/60 Hz
7 automatic programs
|
|
|
The SW1 series is designed to meet the most cost effective pallet wrapping applications. The function of themachine is to easily and effectively wrap pallets with palletised goods on them, secured enough for transportation. The machine is fitted with a Manual Mechanical Core Braking Film Stretching System and threading film is simple and quick. Used in all industries.
|
|
Lo Wrapper provides the unique benefit of machine pallet wrapping that is easily accessible by a hand pallet truck because of the low 26mm turntable height. This allows an operator to use either a hand pallet truck or a fork lift to place and remove pallets from the wrapper when a fork lift is not suitable or available for the task.
Lo-Wrapper is priced to suit workplaces with light to moderate stretch wrapping needs. Lo-Wrapper is efficient and highly effective at preventing back strain and injury, which are the most common of all workplace injuries (Worksafe Australia), because it is designed to eliminate the dangerous and time consuming practice of stretch wrapping by hand.
Lo Wrapper is available in both Manual and Semi Automatic versions.
POWER: 240 Volt single phase
ROTATION SPEED: 9 rpm
LOAD CAPACITY: 2000kg
SHIPPING WEIGHT: 350kg
|
|
Wrapping machines for pallets OW-1, OW-2
These machines are designed for stretch wrapping of all kinds of cargo placed on pallets. Stretch protects cargo from getting dirty, disadvantageous atmospheric conditions and damages. Simultaneously it allows easy visual control of the cargo and it’s identification.
OW-2 is more advanced, programmable version offering all possibilities of cargo wrapping.
For both machines we offer incursion and down run boards to be attached to the hook of body of the wrapping machine.
|
|
- Customised modular process
- Can be used for extremely high production rates
- Accurate system of production information
- Highly adaptable for light products or those at risk
of deformation
- Palettes up to 2.5m high
- Electronic adjustment of film tension
|
|
- Highly suited to unstable palettes and picking
- Integrated weighing system available as an option
- Rotating arm technology
- Mobile, with small ground dimensions
- Pre-stretched film for high performance and cost effectiveness
- Palettes up to 18m high
- Works with a simple push-button
|
|
|
|
