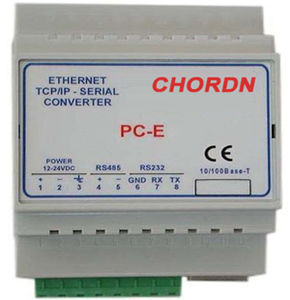

DESCRIPTION
This type of Ethernet converter / Gateway is capable to link any serial (RS-232 or RS485) devices to your computer network via Ethernet for access control or remote control and monitoring purposes.
The families of Networking products cover GSM controller, wireless Ethernet converter (also called wireless Ethernet adapter, wireless Ethernet bridge, wireless Ethernet), Ethernet converter, RS-485 to RS-232 converter, and USB converter.
FEATURES
Serial to Ethernet communication
DIN Rail/Panel Mount
COM1: RS232/RS485, RJ45 for Ethernet connectivity
Application: Connects IO modules, controllers, HMI with Ethernet Network
Function: Transparent data link or Gateway to convert Modbus RTU to Modbus TCP messages
Support Multiple sockets enables up to 4 Masters to communicate with slaves connected to PC-E converter
Web server for Configuration
SPECIFICATIONS
Power Supply: 90mA @ 10VDC / 40mA @ 26VDC
Ethernet: 10/100 Mbits, Connector RJ45
Serial: RS232, 3 Wire, TX, RX & GND
Power Supply: 90mA @ 10VDC / 40mA @ 26VDC
Ethernet: 10/100 Mbits, Connector RJ45
Serial: RS232, 3 Wire, TX, RX & GND
RS485, 2 Wire Multi drop twisted pair
Baud Rate 2400, 4800, 9600, 19200, 38400, 57600, 115200
Communication Settings:
Data Bits: 5, 6, 7, 8
Parity None, Even, Odd
Stop Bits 1, 2.
Operating Temperature: -10°C to + 50°C
Storage Temperature: -40°C to 85°C
Connectors: Power and Communication: 8 way screw connector
Protection class: IP20
Humidity: Up to 95% non-condensing
|
|
JetCon2401 is a Multi-serial to fiber media converter which adopts RS-232/RS-422/RS-485 triple mode circuits with auto baud rate and direction control. It extends the serial signal link distance to 5KM (JetCon2401-m Multi-mode Optical Fiber) or 40KM (JetCon2401-s Single-mode Optical Fiber) and also provides good immunity of EMI/EMS.
To ensure non-stop transmission in hazardous environment, JetCon2401 supports -20°~70°C wide operating temperature range.
Further more, JetCon2401 supports wide range power input (DC/AC) and DIN rail mount for quick and easy installation.
|
|
The fiber optic systems DL-232 connect systems with a RS232 interface via fiber optics. The DL-232 allows communication via software-handshake (Xon/Xoff).
This innovative system allows creating optical point to point and bus structures.
The ruggedness to electrical and magnetic interferences, the potential separation of transmitter and receiver as well as ranges up to 40km between two fiber optic systems are important performance features of the transmission with POF, HCS and multimode or singlemode fiber optics.
LEDs and potential free contacts of a differential relay signalize defective states
|
|
|
|
|
|
LDM80
Signal Powered Fiber Optic Modem
DESCRIPTION
The LDM80 is a small, inexpensive fiber optic transmitter/receiver completely powered by the host RS-232 port. The enclosure for the LDM80 is a conductive shell which greatly reduces RF radiation and susceptibility. The rugged metal enclosure is small enough to mount on the back panel of typical computer equipment saving valuable desk and floor space. A pair of these units allows most RS-232C cable links to be replaced and extended with a duplex fiber optic cable. The normal 50-foot (15m) RS-232 limit may be extended to 2.2 miles (3.5 km). Fiber optic data communications provide complete EMI/RFI rejection, isolation, elimination of ground loops, and reduced error rates. Data security is enhanced by almost nonexistent electromagnetic emissions. The RS-232 connection is through male or female EIA 25-pin connectors. The fiber optic connection is through ST connectors.
The LDM80 is equivalent to a 3-wire, full duplex, RS-232 circuit. Handshake signals are locally connected as in Figure 1. Indicating LEDs come on during a "SPACE" on transmit or receive data. A TD/RD reversing DIP switch is provided for connection to DTE (Data Terminal Equipment) or DCE (Data Communication Equipment) ports.
|
|
|
|
|
|
DESCRIPTION
The DCP485 is a compact RS-232 to RS-485 converter which features a complete electrical isolation barrier and heavy duty electrical surge protectors. These devices feature a DIN rail mountable enclosure for application to a junction box, a panel, a relay rack, the sides of computer equipment, or anywhere a DIN rail can be mounted. Isolation is provided by optical couplers and a transformer isolated DC-to-DC converter. The RS-232 connection is through male or female EIA 9-pin D-sub connectors, or a 3-wire RS-232 connection can be made through convenient pluggable screw terminals. The RS-485 connections are made through convenient pluggable solderless screw terminals.
The DCP485 series is designed for full duplex operation over two wire pairs. Outputs are tri-state, allowing multidropping of up to 32 units over one pair. Data rates are DC to 115.2K bits per second (baud). Four diagnostic LED indicators are provided for installation guidance and system troubleshooting. The RS-232 interface includes Request To Send (RTS) and Data Terminal Ready (DTR) either of which can be used via DIP switches to enable the RS-485 transmitter. Alternately, the DCP485 offers automatic line switching in which the RS-485 transmitter is enabled automatically by each character sent on the RS-232 Transmit Data (TD) line. Additionally, the RS-485 transmitter and receiver may be independently enabled continuously or under RS-232 control.
|
|
|
|
|
|
COMETH Range
Instant & direct serial connection over Ethernet TCP/IP network
Available in dongle, din rail & printed circuit format
Ultra small & compact size, COMETH-EMBD "System on a Chip" : 20x63 mm, RJ45 included
RS232, RS422, RS485, TTL interfaces depending to models, up to 250 Kb/s or 350 Kb/s (COMETH-FIELD) sustained data rate
Direct connection to any DTE serial device (e.g. PC computer) without adaptation cable (COMETH dongle only)
Support for TCP Client/Server, DHCP Client, TELNET RFC2217 extension, Telnet Server, COM port re-director (VIP), multipoint or point to point virtual link over UDP modes and MODBUS/TCP Client/Server, MODBUS/RTU & MODBUS/ASCII protocols
Scanning I/O for all PLC's running MODBUS/RTU & MODBUS/ASCII
Virtual COM port redirection software for Windows 2000, NT & XP (VIP)
Easy administration through the serial link or Ethernet (TELNET)
Multiple configuration tool for deployment in volume
Remote firmware download for easy upgrade operations
External power supply or remote-power supply depending to models
15 kV ESD protection (except COMETH-EMBD)
Metallic case (except COMETH-EMBD), CE industrial standards
Ethernet / RS 1500 Veff isolation (except COMETH-EMBD)
This new range of Serial over Ethernet TCP/IP servers is intended to connect to any serial equipments.
The high level of integration and its built-in protection make the COMETH range extremely reliable and the world's smallest module.
COMETH's technical characteristics make it a universal product at a very attractive price.
|
|
|
|
|
|
New! VESR Ethernet to Serial Servers
Solve most any Serial to Ethernet conversion challenge with the VESR Ethernet to Serial Server:
Connect RS-232, RS-422, or RS-485 Serial Devices to your LAN or WAN
Direct IP - IP applications communicate directly with Serial Devices
Virtual COM Port - PC's communicate with Serial Devices as if they were connected to a local COM port
Paired Mode or Serial Tunneling - Serial devices exchange data using your Ethernet network
Take control of your serial devices with VLINX ™ VESR Industrial Ethernet Serial Servers. If it has a Serial Port, it can be monitored and controlled from anywhere on your Ethernet LAN or WAN. Keep it at maximum productivity without leaving your office. Even troubleshoot it from outside your LAN via the Internet. The easy to use Vlinx™ Manager software puts access to your whole shop on your desk. Configure devices, upgrade firmware and monitor activity. Configuration changes can also be made using a web browser or TELNET.
Features
Slim, Industrial Enclosure
Complete Fiber Options
Web Server, Configuration Software Low Latency
High Throughput
Heartbeat Connection
Benefits
Save DIN rail space while maintaining industrial ratings
Connect to all fiber networks in your plant without converting to copper connections
Program through web browser or local port. Same user interface; no training required
Fast reliable communications
Detects communication failures and automatically reconnects to keep the system online
|
|
|
|
|
|
Introduction
The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters' reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature from 0 to 60˚C, and an extended operating temperature from -40 to 75˚C. All IMC-101 series converters are subjected to a 100% burn-in test.
Features
• 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
• Link Fault Pass-Through (LFP)
• Power failure, port break alarm by relay output
• Redundant power inputs
• -40 to 75°C operating temperature range (T models)
• Designed for hazardous locations (Class 1 Div. 2/Zone 2)
|
|
RD300-OF & RD320-OF series
Serial RS232/RS422/RS485 to multimode or single mode fiber optic media converter.
Our devices features a self configuration mechanism based on a CPLD component freed you from the tiresome operation which consist in the serial parameters setup, product is "Plug & Play".
Using fiber optic enables to use a higher communication bandwidth while offering a total immunity against EMI/RFI interferences and an increased security as well.
The optical fibre still offers other advantages : use without risk in an explosive environment, no EMC emission, no ground loops, immunity against lightning and high voltage environments, they are finally lighter, less cumbersome, inert and corrosion resistant ...
|
|
KODT2200/2200B
Multi-Serial to Optical Fiber Terminals
The KODT series is specially designed for industrial application by KYLAND. It comes as the combination of serial data transmission, Ethernet and optical technology and communication for industrial process control.
• Operating temperature: -40 to 75°C(-40 to 167°F)
• Dual redundant fiber technology, recovery time<20ms
• Serial ports: RS232/422/485
• Alarm output for fiber ports
• Dual master station backup
• 8 full duplex data channels, 8x8 digital cross-connection
• Bus control arbitration for the data conflict
• Level reversion and conversion for data interface
• Wall mounting and rack mounting
• Management software specially designed by KYLAND
|
|
RuggedMC™ RMC20
Serial Media Converter (Copper to Fiber)
Port Options :
Protocol independent RS485, RS422, or RS232
(user selectable) conversion to multimode fiber optics
(ST connector only)
RS232 to RS485/422 conversion mode
Fully EIA/TIA RS485, RS422, RS232 compliant communications
Built-in, defeatable, RS485/RS422 termination networks
Point-to-point, or optical loop configurations
Full or half duplex configurable
Support for high-speed serial baud rates from
300 to 115200 baud
Key Features :
Protocol independent (use for Modbus, DeviceNET, Profibus, DNP 3.0, proprietary, etc)
Extend lengths of serial connections (up to 5km/hop)
Media conversation is transparent to end devices
|
|
|
|
|
|
Introduction
The ICF-1150 series support 2 serial ports, with a D-sub connector for RS-232 communication and a removable terminal block for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent. When an ICF-1150 converter receives data from any one port, it will send the data out through the other 2 ports. For example, once the ICF-1150 converter receives a command from the remote master through the fiber port, it will convert the signal and send the command through the RS-232 and RS-422/485 ports at the same time. If the user is monitoring a system running on an RS-485 network, there is no need to use an additional RS-232 to RS-485 converter to connect the laptop computer’s serial port to the RS-485 bus.
Features
• RS-232, fiber, and RS-422/485 3-way communication
• Rotary switch to change the pull high/low resistor value
• Extend RS-232/422/485 transmission up to:
1. 40 km with single-mode
2. 5 km with multi-mode
• 3-way Galvanic Isolation (for "I" model only)
• -40 to 85°C wide temperature models available
• Class I, Div. II certification (Pending)
|
|
|
|
|
|
Fiber Optic Converters
Extend Communications Up to 9 Miles!
Any two pieces of asynchronous serial equipment can communicate at half or full duplex over two fibers at rates up to 460 kbps for RS-422/485 or 115.2 kbps for RS-232 with a pair of these converters. Fiber lines are inherently resistant to EMI/RFI and transient surges, so they are ideal for data communications near heavy electrical equipment and other electrical or radio interference.
Standards can be mixed and matched so RS-232 devices can be connected to RS-422/485 devices, replacing a converter and isolator. When working with RS-485 signals, B&B Electronics’ Automatic Send Data control eliminates the need for driver software. Serial connections are on terminal blocks; multimode fiber side has two ST connectors. Requires external power supply not included.
General Features
FOSTCDRi-SC extends communication up to 9 miles
Wide temperature ranges (-40 to 80º C)
Extend signal up to 2.5 miles
Modbus ASCII or RTU compatible
Automatic Send Data control
EMI/RFI and transient Immunity
DIN rail mount
CE approved
Premium model - FOSTCDRi - features include 10-48 VDC operation, triple isolation, 2000V input/output power supply, UL Class 1 Div 2 approval, CSA approval, CE approved.
Standard model - FOSTCDR - features include 10-30 VDC operation, 2-way isolation, 2000V input/output, CE approved
|
|
|
|
|
|
MI400E-RD
RS232 to RS422/RS485 fully isolated converter with self configuration & automatic line turn-around
• Self configurable serial link parameters
• Serial link speed : from 50 bps to 2 Mbps
• Automatic RS485 line turn-around, software independent
• MODBUS, JBUS, UNITELWAY, DF1 ... master/slave protocols compatible
• Less than 15uS turn-around delay for speed 48 Kbps
• Configurable polarization & terminating resistors (mini-switches)
• SUB D9 male connector RS232 side, pluggable solderless screw terminal field RS422/485 side
• Built-in 85-264 VAC power supply (47-440 Hz) and 100-370 VDC (MI400E-RD model) or isolated low voltage DC power supply from +9VDC to+36VDC (MI400E-RD-DC model)
• LEDs display for easy RS signals monitoring
• Din Rail, wall, case and rack mounting
• 3 KVeff line galvanic isolation
• Built-in continuous line surge protection (50 VCA), ESD protection (15 KVeff), and lightning protection (shock wave & residual effects)
• Robust metal housing, CE industrial standards conformity
|
|
AD400Ei
All-in-one robust and small factor isolated RS232 250 Kbps to RS422/485 converter
Its width does not exceed that of the RS232 DB9 side.
250 Kbps maximum speed.
Power supply from keyboard/mouse/USB cable or external source (+4.7VDC to +5.5VDC) or optional remote power supply.
Automatic line turn-around in RS485 mode.
MODBUS, JBUS, UNITELWAY, DF1 ... master/slave protocols compatible
Screw-in connecting terminal on RS422/485 side, female SUB D9 on RS232 side.
Metal housing, industrial CE safety.
Line polarization and terminating resistor selectable by DIP switches in RS422/485 mode.
M.T.B.F. > 300.000 POH.
TXD and RXD signal status LED.
Line isolation : 1500 Veff.
HF filtering and 15 KV ESD protection.
External power source cables (keyboard/mouse/USB) and screwdriver are included.
Designed to connect directly to PCs, this converter features a female SUB D9 connector for the RS232 port and a screw-in connecting terminal for the RS422/485 port.
|
|
Introduction
The TCC-100/100I series RS-232 to RS-422/485 converters increase networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I series converters are ideal solutions for converting RS-232 signals to RS-422/485 in critical industrial environments.
Features
• RS-232 to RS-422 conversion with RTS/CTS support
• RS-232 to 2-wire or 4-wire RS-485 conversion
• 2 KV isolation protection (TCC-100I)
• Wall and DIN-rail mounting
• Plug-in terminal block for easy RS-422/485 wiring
• LED indicators for power, Tx, Rx
• -20 to 60°C operating temperature
• Wide temperature model available (-40 to 85°C)
|
|
USB400
Industrial RS422/485 - USB gateway
The new range of serial to USB solution offers performance, simplicity of installation, security, robustness and high reliability at affordable prices.
USB400 is enclosed in a compact aluminum case (dongle format), it features an industrial 2-4 wire RS422 / RS485 serial interface with 5-point screw-in terminal block.
USB400 installation is quite simple as the product is instantly plug & play, it doesn't require any IRQ, DMA or I/O port resources.
Installed serial ports are considered by Windows 9x, Windows 2000, Windows XP & Linux operating systems as computer's standard COM ports.
|
|
|
|
|
|
Panel Mount - USB to Serial Converters, 2-4 Ports
Connect serial devices to your USB-only PCs
Benefits
Use legacy serial devices with USB PCs and laptops
Connect multiple devices with multi-port models
Features
New! Higher retention USB connector...
Meets Class 1 Div 2 withdrawal requirements (15N)
Add two or four COM ports to your USB PC
LEDs on transmit and receive lines
USB 1.0, 1.1, and 2.0 compatible (12 Mbps)
Automatic configuration on Windows 98, ME, 2000, XP and Vista
No power supply required (powered from USB bus)
Includes 1 meter USB cable
Get the extended range and multi-drop capability of RS-232 or RS-422/485 from the USB port of your PC. Windows automatically configures the serial outputs as additional COM ports, compatible with your Windows application.
RS-232 USB/serial converter unique features
Full handshake support (TD, RD, RTS, CTS, DTR, DSR, DCD, RI, GND)
DB9 male (DTE)
Baud rates up to 460 Kbps
RS-422/485 USB/serial converter unique features
Pluggable terminal blocks
Supports TDA, TDB, RDA, RDB, GND
Baud rates up to 921 Kbps
Use on RS-485 2-wire or RS-422/485 4-wire networks
Supports Send Data Control (SDC)
|
|
Instant Plug & Play
The UPort® 1110/1130/1130I/1150 USB-to-serial converters are the perfect accessory for laptop computers that don’t have a serial port. The UPort® 1110 converts from USB to RS-232, the UPort® 1130/1130I from USB to RS-422/485, and the UPort® 1150 from USB to RS-232/422/485. All three products are compatible with new and legacy serial devices, and can be used with mobile, instrumentation, and point-of-sale applications.
Features:
Compatible with USB 2.0
12 Mbps USB data rate
921.6 Kbps maximum baudrate for super fast data transmission
Drivers provided for Windows, WinCE, and Linux
Mini DB9 female to terminal block adaptor for easy wiring
LEDs for indicating USB and TxD/RxD activity
15 KV ESD protection for all serial ports
2 KV optical isolation protection (UPort® 1130I only)
|
|
Converter DCS770 is low cost unisolated USB to RS485 converter which powers itself from USB.
Converter RCS770 has 3-way galvanic isolation between USB, 232 and 485/422 and supports all conversions between these. If used with USB it powers itself with USB, otherwise it needs power supply.
It has it all.
See our website for more information.
|
|
|
The PocketPAD1 is a low cost single port serial to Ethernet converter. At the entry level, this serial device server was designed to be easy to use, as well as have a low latency for excellent performance in all applications. The PocketPAD 1 has one RS-232 port, and one Ethernet port which is 10/100 Auto-sensing, or manually configurable. A RS-232/422/485 version is also available. This product is well suited to retail, and commercial IT applications.
|
|
Description
The PocketPAD Multidrop Ethernet is an innovative low cost serial to Ethernet converter supporting multi-drop Ethernet. The embedded Ethernet switch allows one to daisy-chain the Ethernet cabling direct from one device to another.
Mounting options include a stand-alone desktop mount or a DIN-rail mount.
Features
Device network connectivity via UDP/IP, TCP/IP.
Device management via Telnet, DHCP/TFTP, Web Browser, SNMP (MIB II), Built-in Serial configuration interface, Windows configuration Utility.
Flash memory for convenient software updates.
Low cost and Compact size.
Lightweight.
DIN Rail mounting kit available.
One RS232 serial interface.
|
|
Description
The PocketPAD FX is a low cost single port serial to Fiber Ethernet converter. This serial device server is designed to connect your serial device to a Fiber Ethernet network. The light-weight PocketPAD can be used as a stand-alone desktop or mounted on a DIN-rail.
This product range includes the following hardware configuration:
- One RS232 serial to 100Base-FX
Features
Device network connectivity via UDP/IP, TCP/IP.
Device management via Telnet, DHCP/TFTP, Web Browser, SNMP (MIB II), Built-in Serial configuration interface, Windows configuration Utility.
Flash memory for convenient software updates.
Low cost and Compact size.
Lightweight.
Multiple Network connections allowed to the same Serial data stream.
DIN Rail mounting kit available.
|
|
The PocketPAD Java is a serial device server supporting an embedded Java Virtual Machine (JVM). This innovation is ideal for the user who wants to run custom Java applications directly on the device. The PocketPAD Java has four RS232 Serial ports and one Ethernet port which is 10/100 BaseT auto-sensing.
Mounting options include a stand-alone desktop mount or a DIN-rail mount.
Device network connectivity via UDP/IP, TCP/IP.
Device management via Telnet, DHCP/TFTP, Web Browser, SNMP (MIB II), Built-in Serial configuration interface, Windows configuration Utility.
Flash memory for convenient software updates.
Low cost and Compact size.
Lightweight.
DIN Rail mounting kit available.
Two RS232 serial interfaces.
Java Virtual Machine.
|
|
|
The EM1500 Serial-Ethernet Bridge is a device that converts multi-point serial communications to a TCP/IP network. The EM1500 connects to and network enables as many as 4 RS-232 serial devices simultaneously, while also acting as master on a multi-drop RS-485 network. In addition, the EM1500 provides an SPDT relay, 2 digital open collector outputs and 3 digital inputs suitable for interfacing to mechanical switches or logic level circuits.
|
|
APPLICATIONS
- Data transmission in a noisy environment
- Interface Insulation
- Remote equipment
- Interface adaptation
CONNECTIONS
RS232 :
- connector SUB D 9 pin femelle,
- connector block 3 pts TD, RD, 0V,
- Connector OF : SMA (ST in option),
- Power supply : connector block (2,5 mm2
AWG 12 max, length stripping = 8 mm)
RS232 INTERFACE
- Transmitted signals : transmit data and
receive data (TD, RD)
- Connection SUB-D 9 pin idem PC
- RTS looped to CTS and polarized to +V
- DSR looped to DTR and polarized to +V
- Signal DCD polarized to +V
- RS232 connection length : 15 to 20 m max
|
|
|
Connect and manage serial devices over IP. ESP multi-interface serial hubs allow serial devices to become IP-enabled using RS-232, RS-422 and RS-485 protocols for industrial/manufacturing environments and commercial applications. It's the ideal solution for reliable and cost-effective serial connectivity at the point of need.
|
|
Product specification:
- It converts a serial signal from RS232 to RS422 and viceversa
- Installation in 35mm DIN-rail
|
|

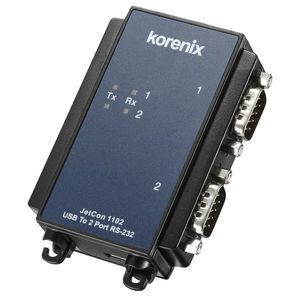

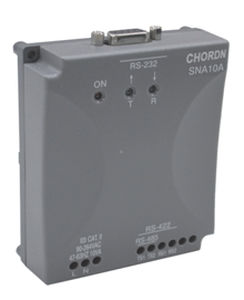

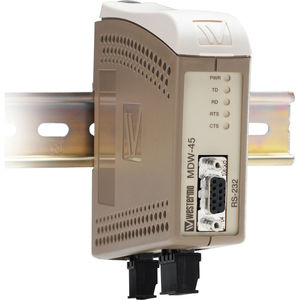

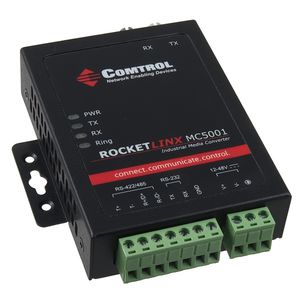

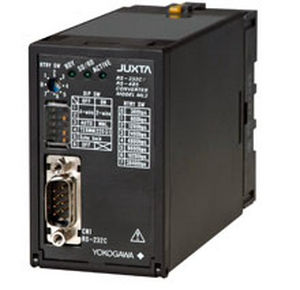

| ... products without technical information |
| |
|
|
