Atos servocylinders may be supplied with
potentiometric or magnetosonic built in transducer,
low friction seals & slide rings, with or without integral valves.
|
|

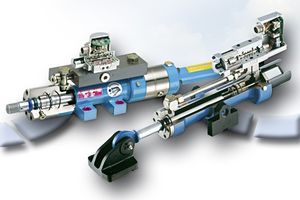

Moog has an extensive range of experience in hydraulic motion control solutions. One of our specialties in using the applications experience of our engineers to design and build high performance hardware that meets customer needs for performance, package size, and technical characteristics.
As leaders is both servohydraulic and servoelectric products and systems for industrial applications, Moog is uniquely positioned to help customers evaluate their long and short term needs to arrive at the best solution.
Application Experience
* Plastics Applications
* Simulation Applications
* Metal Forming and Presses Applications
|
|
Over 400 models of high performance actuators designed for servo-hydraulic contriolled applications :
Linear actuators
- HIFI-J composite bearings actuators
- HIFI-D hydrodynamic bearings actuators
- HIFI-S hydrostatic bearings actuators
- HIFI Aero : Ultra low friction and perfect thigtness for aeronautical full scale test installation.
Rotary actuators
- HIFI-R single and double vane
|
|
Servo Control Products - Servo Actuator
The hydraulic cylinders in the POS series are specially designed to withstand rough treatment. The front cap is bolted to the cylinder tube, simplefying service and replacement of seals. The piston seals are of low-friction type and are absolutely tight to static loads. The piston rod is roller-polished, hard-chromed (chromium layer min. 20µm) with surface finish of 0.3µm Ra. The cylinders are avaliable with different mounts, such as front flange mounts, mid-trunnion mounts or swivel-eye mounts. We also supply cylinders made to customer specifications.
|
|
| ... products without technical information |
| |
MDrive® Linear Actuator products combine leading all-in-one integrated step motor+driver technology with linear motion to deliver long life, high accuracy and unsurpassed repeatability, all in a package that is extremely compact and affordable.
MDrive Linear Actuator styles
Two (2) MDrive Linear Actuator styles are available:
* Non-captive shaft — a screw extends through the MDrive product and moves axially as the motor rotates
* External shaft — a rotating screw, integral to the MDrive motor, moves a screw-mounted nut axially
Precision rolled lead screws used with MDrive Linear Actuators are designed specifically for motion
control applications to deliver maximum life and quiet operation. Corrosion resistant and non-magnetic, screws are manufactured from premium grade stainless steel and available with optional teflon coating.
|
|
|
|
|
|
High Performance Electric Servoactuator – INDACT® – According to ISO 6431

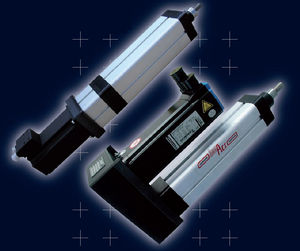

ISOMOVE (1-20KN)
• Electric servoactuator by the means of a precision Ball Screw, suitable for high performance applications, featuring overall dimensions and mounting style according to ISO 6431.
• 6 different sizes (IM032, IM040, IM050, IM063, IM080, IM100).
• Wide range of Ball Screw Pitch selection for each size.
• 3 different motor drive solutions (Stepper, Brushless, Custom).
• “D” version featuring axial / direct mounted motor drive with zero-backlash coupling.
• “R” version featuring reduced / parallel mounted motor drive with zero-backlash belt gear.
• 2 different reduction ratio (1:1, 2:1 – “R” version only).
• Max Nominal Thrust up to 20KN.
• Max Linear Speed up to 1600mm/sec.
• High Efficiency mechanical transmission.
• Duty Cycle 100%.
• Grease lubricated.
Modular design according to ISO 6431 allows for maximum adaptability to the widest range of industrial high performance applications.
Wide range of standard accessories/features to ISO 6431.
Special execution on request, please contact Setec Group Italy.
|
|
Linear Actuators
MORE SOLUTIONS FROM US EQUALS MORE SUCCESS FOR YOU!
At Cleveland Motion Controls, we have always believed in giving you more choices. After all, your application is unique, so the servomotor you choose for it should be unique, too.
While the competition stacks their shelves with motors and hardware, we pack ours with engineered solutions. The truth is, our shelf contains just about any type of solution you could require, from simple integration components such as brakes, encoders and tachometers, to elaborate breakthrough designs.
In addition to our high power density selection of clean operating, low maintenance servomotors, we also provide you with a range of standard integration and custom engineered options to round out your solution.
|
|

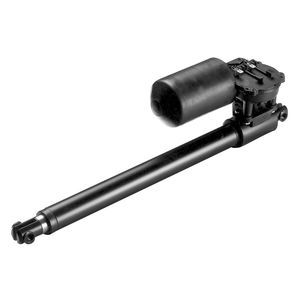

Linear Actuators offer best fits for a variety of applications. With both standard and customizable stroke extensions, these families can range up to 915mm (36 inches) in length and provide full load forces as high as 6800N (1500lbs). Available in both DC (12, 24, 36) and AC (115, 230, 400) voltage models, these actuators can also be packaged with a wide selection of controls and assessories.
Common applications would include:
NC Machines and other factory automation processes
aircraft landing gears, wing flap control, wing sweeps, thrust reversers
ergonomics of surface height adjustments for optimum work environments
medical and office equipment where quiet operation is mandatory
work-tables, conveyors, loaders/unloaders
squeegee lift on floor clearners, throttle controls on salt spreaders
automatice security gate positioning
raising/lowering of mower decks
jig positioning for flexible assembly operations
and many, many more
|
|
|
|
|
|
High performance integral linear actuators for "all electric" plastic injection molding machines
Thrust range 2,000 to 200,000 N
Speed up to 1 m/sec
High energy brushless permanent magnet servo motor
Integral high load ball lead screw, up to 80,000 N
Integral lead screw, high duty satellite roller type above 80,000 N
Built in absolute multiturn encoder
The range of integral linear actuators developed by Phase Motion Control for various linear positioning applications, and specifically to ease the replacement of hydraulic cylinders in plastic injection molding machines, delivers a complete functionality packaged in a single engineered unit.
The actuator consists of: A high performance, rare earth PM servo motor derived from the Ultract range, with a hollow shaft, which can take the fully retracted lead screw; A special front end with a high axial load bearing system (oblique contact ball bearing fin small units, barrel type conical roller bearings in the larger units) which houses the rotary nut of the lead screw, and which is driven by the motor part; In the back of the actuator, a multiturn absolute encoder which is used for electronic control of the electric piston across the stroke.
The actuators thus realized are endowed with exceptional stiffness and accuracy, travel speed up to 1 m/sec, can be controlled both in thrust and position, with repeatability better than 1/100 mm. All issues of screw lubrication, assembly, alignment, as well as the related drive train, are optimized and designed inside the unit.
|
|
ternary®
Linear and rotary actuators
For positioning applications where pneumatic exceeds the capabilities regarding:
* Flexibility/programmability
* Repeatability
* Integration with Motion Control systems
* Soft touch
* Force control
* Set up & installation time
* IP-protection
Highlights at a glance
* all in one: motor, controller, actuator/gearbox, fieldbus interface
* Force up to 1000 N
* Repeatability +/- 0,009mm (0.00035")
* Stroke up to 300 mm with ballscrew
* Ratios from 5 to 25 with planetary gearbox
* Speed up to 900 mm/sec
* Maintenance free
* Flange size 32 +46 mm available
* IP protection 65 (linear) / 64 (rotary)
Applications
High speed format changes in packaging & woodworking machines, assembly & dosing systems, semiconductor handling, robots, and many more.
Products
* via PC software
* with Teach pendant
* PLC controlled (parallel I/O)
* Serial field bus
* CANopen
* DeviceNet
* PROFIBUS
|
|
DSL 56 - Linear Actuator
With its two variants the DSL 56 ensures optimal linear motions. As a roller screw assembly for high forces and high velocities or as a ball screw assembly in simple applications for low-cost linear drives.
Compactness, dynamic response and high levels of torque, effectively implemented in a linear motion – these are the features of the DSL 56.
With its integrated screw assembly the DSL 56 converts rotary motion to linear motion. The link between Baumüller servo motors and an integrated screw assembly is ideally suited for applications with maximum demands in terms of force and dynamic response, in a compact design.
There are two models available: the roller screw assembly for high forces and high velocities or the lower-cost ball screw assembly for simpler applications.Consequently, the DSL 56 optimally meets the requirements of fields of application such as robotics, welding tongs and handling but also in the printing and plastics industries.
|
|
Frame Sizes 2-3.5 inches, 51 – 89 mm
Stroke Length 3-18 inches, 51 – 455 mm
Maximum Continuous Force Rating 1350 lbf, 6 kN
Maximum Continuous Torque Rating 37 lbf-in, 4 Nm
Maximum Velocity 22 in/sec, 559 mm/sec
Maximum Motor Speed 2500 rpm
|
|
RCA Series is a compact RoboCylinder with 24 VAC servo motor and optical encoder.
The product has widely been accepted not only as a compact, programmable, electro-mechanical alternative to air cylinders, but also its integrated PLC function and user-friendly SEL language have made RCA Series an absolute all-rounder in the factory automation.
|
|
RoboCylinder RCS is an electric actuator with ball screw, linear guide and 230 VAC servo motor. Using the know-how obtained from manufacturing 150 thousand axis robots, while retaining the features such as high rigidity, acc/decl, and speed control, the price has been lowered to match that of rod-less pneumatic cylinders.
RCS Series is the next generation electric actuator that employs a high-speed, constant thrust force motor, which maintains constant payload at speed ranging from low to high.
|
|
|
|
|
|
High Performance Electric Servoactuator – INDACT® – According to ISO 6431
ISOMOVE (1-20KN)
• Electric servoactuator by the means of a precision Ball Screw, suitable for high performance applications, featuring overall dimensions and mounting style according to ISO 6431.
• 6 different sizes (IM032, IM040, IM050, IM063, IM080, IM100).
• Wide range of Ball Screw Pitch selection for each size.
• 3 different motor drive solutions (Stepper, Brushless, Custom).
• “D” version featuring axial / direct mounted motor drive with zero-backlash coupling.
• “R” version featuring reduced / parallel mounted motor drive with zero-backlash belt gear.
• 2 different reduction ratio (1:1, 2:1 – “R” version only).
• Max Nominal Thrust up to 20KN.
• Max Linear Speed up to 1600mm/sec.
• High Efficiency mechanical transmission.
• Duty Cycle 100%.
• Grease lubricated.
Modular design according to ISO 6431 allows for maximum adaptability to the widest range of industrial high performance applications.
Wide range of standard accessories/features to ISO 6431.
Special execution on request, please contact Setec Group Italy.
|
|
| ... products without technical information |
| |
|
