| Pacific Bearing suppliers offers a variety of shafting, rails and accessories such as Feather Shaft™, Feather Rail™, RC60 Steel, 440 Stainless Shafting, and custom options. |
|
| Linear bushing professional guides can be put together from over 1,000 designs and variations to meet all demands and applications, which means that users can select exactly what they require for every task. |
|
Optimum Performance Greater Accuracy

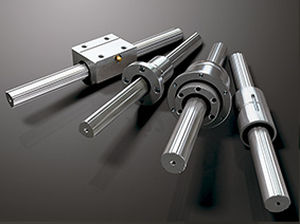

The NB Slide Shaft was developed to achieve greater accuracy in roundness, cylindricity, surface finishing, and linear travel. Heat treated in both axial and radial directions, NB Slide Shaft come in both high-carbon chromium bearing manufacturer steel or Martensite stainless steel for maximum performance quality. In addition, our precision machining capabilities offer you a variety of specially engineered custom shafts, such as manufacturer of spindle and roll shafts, to meet your special requirement.
Accuracy
NB Slide Shafts feature reliable, high precision roundness cylindicity, straightness, and surface finish. Fig. 1 and 2 show examples of measurement results for roundness and surface finish, respectively.
|
|
The Kerk Spline Shaft(SS) series spline shaft system has been designed for light to moderate load applications, where low cost, low friction, and long life are primary design considerations.
Kerk Spline shafts provide anti-rotation for one axis motion or a drive mechanism with rotation for two axes of motion. They are excellent alternatives for applications where hex shafts, square shafts and high cost ball splines are typically used.

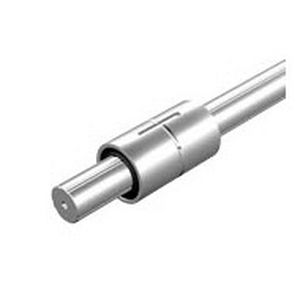

They assembly consists of a light weight, aluminum or corrosion resistant steel, spline shaft treated with Kerk's proprietary low friction Kerkote® TFE coating, mated with Kerkite® composite polymer bushing. The bushing is supplied with an integral brass collar to facilitate various mounting configurations without nut distortion.
Standard shaft straightness is .003" (.08mm/30cm) per foot. Typical radial and torsional clearance between shaft and bushing for a basic assembly (SSB) is .002" to .003" (.05-.08mm). An anti-backlash assembly (SSZ) is available for applicatins requiring minimum torsional play.
As with other Kerk assemblies, special bushing configurations and end machining configurations are available upon request.
|
|
Eliminates Backlash, Reduces Friction
The NB Ball Spline is designed for mechanical applications which require both linear motion and torque transmission. The rolling contact of the professional balls eliminates backlash and reduces friction, helping you to achieve super precision and reliability.
The spline shaft facilitates additional machining and high accuracy because of a round shaft shape. Since the spline shaft is also machined by cylindrical grinding, it has a high sealing performance and a well-balanced structure that reduces the vibration and noise during rotary motion. Moreover, it has great geometrical moment of inertia and high rigidity. This enables a long-term, high precision linear motion.
|
|
Our manufacture are composed of:

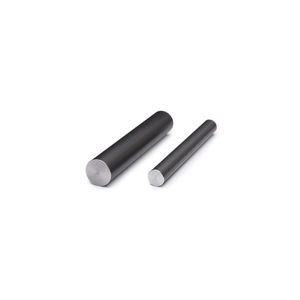

Standard trees of precision CK55 ISO h6 62 /- 2 HRc
Chrome trees of precision CK55 ISO h7 62 /- 2HRc
Hollow shafts of precision CK60 ISO h6 62 /- 2 HRc
Trees of precision stainless 18% X90CrMoV18 ISO h6 55 /- 2 HRc
Trees of precision stainless 13% X46Cr13 ISO h6 53 /- 2 HRc
Standard trees of precision Inch CK55 ISO h6 62 /- 2 HRc
Chrome bars CK45 ISO f7
Chrome bars stainless AISI 304 ISO f7
On request we can manufacture all types of diameters, nuances and tolerances on minimum quantities
|
|
Our manufacture are composed of:
Standard trees of precision CK55 ISO h6 62 /- 2 HRc
Chrome trees of precision CK55 ISO h7 62 /- 2HRc
Hollow shafts of precision CK60 ISO h6 62 /- 2 HRc
Trees of precision stainless 18% X90CrMoV18 ISO h6 55 /- 2 HRc
Trees of precision stainless 13% X46Cr13 ISO h6 53 /- 2 HRc
Standard trees of precision Inch CK55 ISO h6 62 /- 2 HRc
Chrome bars CK45 ISO f7
Chrome bars stainless AISI 304 ISO f7
On request we can manufacture all types of diameters, nuances and tolerances on minimum quantities
|
|
Machining
The grinding of the spline shafts has a maximum length of 1500 mm.
|
|
