MODUL
Modular sliding storage box system for storage of all kinds of long objects. After unlocking the system, the storage box is pulled out by hand for about 15% of its length, after which the storage box should supported on the sliding support (VS), to enable it to be pulled out to about 95%of its length. When pushed in, the box is automatically locked in place. The unit can also be fitted with an optional roof structure (mezzanine). It is possible to sub-divide the compartments in the cassettes using adjustable pins.
|
|
COMBI
A drawer system for the storage of plate material, tools and other products. The drawers can be easily opened (100%) and close manually. The unit is of robust welded and bolted construction, capable of dismantling and on which the load bearing guide rails, which are vertically adjustable in 47mm increments, are mounted. The unit can be supplied with folding side frames on one or both sides and which can be locked for security purposes. The drawers are fitted with permanently lubricated "sealed-for-life" INA roller bearings with an extra-thick external ring. The drawers are normally of open construction but they can also be decked with steel or wood. The system can also be provided with a static upper mezzanine.
|
|
continuous storage space optimises your space requirements
space-saving storage of different sizes in only one storage level
no disturbing connecting columns
suitable for long material with different sizes and arranging of different single components in one storage level
different accessories like arm-bridges and grids for an optimal exploitation of the storage level
Economic through less material requirements
|
|
effective usage of space
optimum filling degree
independent store-in and store-out; to be loaded from the front side and to be retrieved from the rear side
the goods advance through own weight, to the retrieval position
the ideal rack for commissioning tasks
|
|
Scaglia INDEVA offers the most complete range of industrial manipulator on the market, including both traditional pneumatic manipulators and state of the art electronic manipulators, better referred to as INDEVA.
Pneumatic manipulators are ideal to handle offset loads while Indeva are ideal anywhere speed, fluid movement and exact positioning of the load are required.
|
|

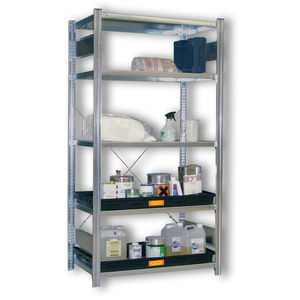

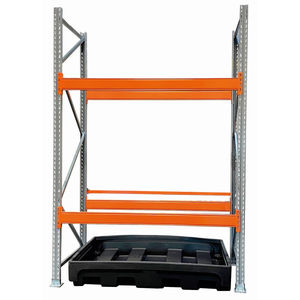

Containment shelving for aggressive chemicals, for flammable liquids or for water pollutants.
• In sumps made from galvanized steel
• In sumps made from polyethylene (PE)
• On grids made from galvanized steel
• On grids made from polyethylene (PE)
|
|
VERTO
Unit is for the vertical storage of plate material. It is fitted with bottom rollers to assist with the loading and retrieval of plates.
|
|
Steel frames bleu RAL 5019. Tubular shelves are adjustable every 40mm shelves - grey RAL 7035
Maxi load 175 kg/level. Starter and extension bays from 400 to 600mm deep. Plastic top carts.
|
|
COMPATTA is a system of mobile shelves on rails, that by reducing service aisles to a minimum allows up to twice as much space to be used with respect to normal shelving systems. Handling can occur using a pushing, hand wheel or electromechanically operated system, whilst the closure system favours the protection against dust and unauthorised entry. The use of mobile dividers, drawers and pull out shelves, supports for magnetic filing and other accessories allows the best use of available space. The quality and experience of the hundreds of systems provided by ICAM make COMPATTA the best product available on the market.
Advantages
Maximum exploitation of space
Facility closing system
Protection against dust
Future expandability of filing system
Equipable with various accessories
Electromechanical version can be connected to the operating SW
|
|
Shelving for live picking is made up of slightly inclined platforms of wheels and rollers on which the goods are deposited at one end. They then slide down on their own until the far end, positioned at the exit aisle.
This guarantees the perfect turnover of the product, avoids interference in replacement and pick-up tasks and speeds up order preparation.
Advantages
- Perfect turnover of products (FIFO system - first box in, is the first box out).
- Higher numbers of article types in the shelving units.
- Reduction in order preparation time.
- More storage space.
- This storage system is ideal for a wide range of sectors, from warehouses storing mass consumer goods, pharmaceuticals, cosmetics, computer goods, spare and parts for cars amongst others.
Pick-to-light system
This automated system is connected to the warehouse management system for the preparation of orders without the need to raise manual paperwork. This reduces errors and increases the speed of operations.
|
|
|
|
|
|
In order to increase the profitability of your warehouse, the optimal use of existing capacities is necessary. Therefore customized solutions are required which often complete the whole concept by a clever combination of the shelving systems.
META flow rack systems proved their value where flexibility, performance and profitability is necessary.
The frequency of use compared to conventional rack systems is at approx. 60% and the economy of space is up to 30%.
Essential advantages of the META MULTILINE® flow racks:
- Higher storage capacity
- Increase of the transshipping performance
- Self-conveyance of goods
- Higher access possibility
- Reduction of transit times and working hours and thus cost savings
- Separate loading and unloading paths
- Improvement of the work flow
- Supporting rack construction from the proven META MULTIPAL® system
Whether you use META MULTILINE® S as flow rack according to the FIFO principle (First In First Out) or as push back rack according to the LIFO principle (Last In First Out), the pallets are always at hand.
Two service passages are maximum required and the storage room is reduced by 30% of the room, which is necessary for a conventional pallet system.
In META MULTILINE® L racks your goods are compactly stocked in transport containers. They flow automatically into the picking area and can be taken from here ergonomically.
|
|
CARENAL is a system of simple, flexible and economic construction composed of elements adapted for these applications by always seeking the practical and advantageous versions of a rational system.
Applications: dynamic storage FIFO (fixed and mobile), storerooms, work station, auxiliaries of the services industrial, service roads of assembly, various
For these applications the systems Kan Ban proved to modernize the work conditions and also to rationalize the methods of logistics.
|
|
|
A dynamic "first in first out" system to aid order picking and simplify handling from cartons to pallets
|
|
|
|
|
|
The goal of live storage is to lower costs through the optimization of operational sequences. The flow beds can be adjusted to allow you to adapt the width and depth. Easy handling is ensured by angled flowbed chutes, guide rails and roller tracks.
Live Storage from SSI Schaefer
Live storage systems were conceived to fit in with the principle of "First in first out", so that it could provide a trouble free operational sequence on assembly lines. According to the kanban principle it is immediately recognizable what and when is needed.
The progressive frame system make it possible to shape the flow beds and the large range of accessories help solve a variety of storage problems.
Variable heights can be selected with the moveable cross beams and can be adjusted to fit the item being handled.
The KDR Live Storage System is charaterised by the quick and easy way it can be ergonomically adjusted to fit any indivudual requirement. The easy slot-in attachment of additional internal cross supports allows laod capacity to be increased at any time. For heavy industrial use, roller tracks with steel axles can be used.
|
|
ShelfTRACK carton flow is the original full-width-roller track that replaces existing plastic wheel tracks. "Drop-in" design for fast, easy installation in your flow rack shelves.
ShelfTRACK full-width rollers provide total carton support and superior flow. Rugged steel side channels and axles, and aluminum rollers withstand tough handling in any environment. Backed by a Seven Year Warranty.
Maintenance-Free: ShelfTRACK eliminates the high cost of replacing damaged plastic wheel tracks without altering your shelves or rack structure.
Track Length: ShelfTRACK sections are available in "to-the-inch" cut lengths from 3' to 12'. To determine track length required, measure the length of the plastic wheel lanes to be replaced or measure the clear distance between the inside of the shelf's back angle and the inside of the front angle. Sections can be spliced end-to-end to create longer runs.
|
|
Among order picking installations that work according to the operator-to-goods principle, live storage is on the increase.
Higher investment costs are more than compensated by improvements in efficiency.
The subdivision of the total order picking area in several picking zones, the utilisation of sophisticated loading and retrieval technology and computer monitoring by modern warehouse management software make this storage/order picking system an economic benefit.
Advantages of the system
storage according to the FIFO principle (first - first out)
easy control of production batches and sell-by dates
considerable reduction of travel times
excellent overview of all references on stock
increased productivity due to separate loading and order picking aisles
space savings of up to 30 %
loading and retrieval can be done by automatic stacker cranes
|
|
Span-Track Can be Added to Any New or Existing Pallet Rack. No Shelves or Intermediate Support Required!
Super Flexibility
Simply pick up track to easily rearrange/reslot Span-Track to match SKU's.
High Capacity, High Durability
Span-Track takes the abuse of active warehouses and assembly plants. Galvanized steel side channels, 3/4" diameter tempered aluminum full width rollers and full length 3/16" steel axles handle loads up to 50 lbs. per ft.
Unrivaled Flow
Full-width rollers for total carton support - 300% more product contact than plastic wheel - eliminate hang-ups, increase throughput.
Economical
Installs in 1/3 the time of wheel tracks Longer useful life No replacement cost
|
|
Force means for us competence - and we grow with the requirements of our customers. The development of new products and the continuous improvement of established products is always the result of interactions.
New and established products
The new upright profile combined with the proven META_MULTI_STABIL-shelves, are modules for the high bay shelving META HIGH-CLIP. Rack rows up to 12 m in height can therefore be realized - more storage space on the smallest area.
META HIGH-CLIP offers:
- Optimal utilization of the ceiling height - up to 12 m
- 100 % horizontal clear entry to shelf length
- Shelf lengths of 1000 or 1300 mm
- Shelf depths of 300 - 800 mm
- Shelf vertical adjustment at 25 mm centres
- Shelves are clipped
- Frames are delivered knocked down for ease of transport
- Bolted construction is also possible when appropriate
- Shelf load capacity from 80 - 400 kg
- Bay load capacity up to 7.5 tons
- Galvanized or powder coated finishes according to RAL possible if required
|
|

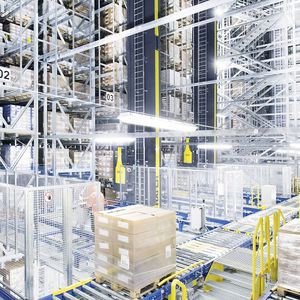

Racking for fully automatic installations.
For installation in warehouses or as structures to support roofs and walls. We build these for pallets or automated small parts mini-load® systems.
SSI SCHAEFER - worldwide quality
Specially systems in rack supported structures require shortest construction times an offer attractive depreciation possibilities.
Use our experience and ask for customized solutions to meet your specific storage needs.
Our list of recommendations are a testimony to our highest quality standard and decades of expertise. Hundreds of SSI SCHAEFER systems are installed word-wide in partnerships with logistics companies.
|
|
|
|
|
|
M3 Picking
M3 picking shelving is formed by vertical frames and horizontal shelves, and enables individual products to be stored in small boxes. Various accessories permit levels to be divided up and drawers to be fitted in order to classify single products, such as archives, folders, hanging items, etc.
Advantages:
- Basic manual storage and archiving system for medium or light loads.
- Easy to assemble.
- Multiple units that adapt to the most demanding requirements.
The ideal solution for offices, shops and spaces where a more attractive appearance is needed.
One or more gangways giving access to upper levels can be installed. The shelving can also be mounted on mobile bases.
Simplos shelving
An excellent storage solution for medium and light loads. A wide range of accessories is available to increase functionality: drawers, dividers, side panels, back panels, plinths. etc.
Advantages:
- Quick and easy to assemble, excellent loading capacity and stability.
- Smart and attractive design which blends in with any setting.
|
|
Shelf G3 galva
OF Professional SHELF
economic and general-purpose Shelf.
Resist corrosion thanks to the galvanized completion.
The amounts Heights standards: 2000 to 12000.
Cross-pieces 20, 30, 40, 50, 60, 70, and 80 cm of depth.
Each level consists of two cross-pieces.
It is the only shelf on the market with being evolutionary in time: flexible in its depth, its loads, its height.
|
|
PRORACK Longspan shelving.
For bulky and heavy hand loaded products
General industrial storage where dimensions vary between one product and another. PRORACK + solutions provide excellent adaptability and versatility.
|
|
The DataStack is a software controlled automated media storage and retrieval system that can hold thousands of files, videos, CD's , DVD, or a host of other types.
Its capacity is the equivalent of at least 16 four-drawer cabinets. Generically the system is known as a vertical carousel, housing shelves which rotate on a paternoster system bringing the requested shelf level to the operator at an easy to use height.
The DataStack can be operated in a stand alone mode or networked to your IT systems.
|
|
Where there is a shortage of storage bins or new area is to be gained, the mobile META MULTIBLOC® shelving system is ideal for an improvement concept.
In many logistics areas goods are rarely accessed as it is the case in archives or with the storage tyres and rims. Here very often storage bins are only limited.
In these cases you increase the profitability of your warehouse with META MULTIBLOC® shelving systems.
You could create 100% additional storage capacity in your existing warehouse. Alternatively the space for existing goods can be reduced up to 50% of the previous space.
|
|
|
Can save up to 80% of storage space. The shelving is mounted on bases which move on tracks eliminating the need for more 1 aisle greatly increasing your storage capacity.
|
|
The Meca Mobile rack system allows for optimal space utilization with in the warehouse area.
It allows direct access to all goods with the least amount of space used
The speed and smoothness of the system along with the quality of the design and engineered components will provide years of hassle free operation.
An additional cost between a mobile and static system will be soon forgotten with the added productivity provided by the mobile system.
|
|
With META Multibloc it is possible to use the aisles of a standard Pallet Racking as stocking areas!!
- Additional stocking areas
- Increasing of storage capacity
- Maximum using of the warehouse area
- Minimum operation costs in combination with FIFO principle
|
|
|
|
|
|
Benno Reichmuth, manager of the business division Dynamic Systems at SSI SCHÄFER Switzerland
The automated mobile racking was developed by SSI Schäfer and is exclusively marketed since autumn 2005.
Award for World Innovation – Automated mobile racking recognized as “Best Product 2006” of LogiMAT
Only a few months after the product launch SSI SCHÄFER won an award for their automated mobile racking system in the category “Procurement – Conveying – Storing”. The world innovation won recognition as “Best Product 2006” of LogiMAT 2006.
Benno Reichmuth, manager of the business division Dynamic Systems at SSI SCHÄFER Switzerland accepted the award at the celebration in the evening of the first day of the fair. Reichmuth had pushed the development of this system with his team in Switzerland. The product innovation has caught a lot of attention since its launch in the fall of last year.
Benno Reichmuth: “The system combines the compact storage of the mobile racking technology with the efficiency of an automated operation. We see big potential in this area, for example in the deep-freeze warehouse segment.”
SSI SCHÄFER is the exclusive producer of an automated mobile racking system combined with a laser-guided, unmanned VNA vehicle. The components of the system include the mobile racking, the VNA vehicle, vehicle guidance and material flow systems and conveyor technology.
On a conveyor system consisting of standard elements, pallets or skeleton containers to be stored are transported to the relevant opened rack aisle(s) of the mobile racking system and put onto transfer positions for automatic pick up by a VNA truck.
|
|
One shelving for several tiers
META multi-tier shelving systems, overbuild big spaces and can be used all-purpose due to a lot of accessories.
Furthermore strategically favorable circulation gangways could be arranged, circulation spaces be integrated
and therefore the logistic procedures are optimized. Thus META multi-tier shelving make short picking sequences possible!
|
|
|
|
