Magnetic Shield Corp.'s Lab Kits are highly effective in solving design problems of magnetic interference. (D.C. to 100 kilohertz). By adding MU METAL, CO-NETIC and NETIC layers until desired attenuation is achieved, minimum material requirements can be determined. This results in significant cost savings in the final design.
An important advantage of the "hands-on" shielding approach is that changes in a circuit layout, shield configuration, power levels and component orientation are easily evaluated. The Lab Kit permits magnetic shields to be designed and modified until required performance is obtained. The prototype then serves as a model for production.

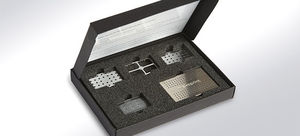

As a special offer to introduce you to the exceptional characteristics of our CONETIC and NETIC proprietary alloys, Magnetic Shield has assembled the LK110-IS Lab Kit with Gaussmeter. Containing all the same wide variety of CONECTIC and NETIC alloys as both the LK-120 and LK-110 Lab Kits, the Internet Special Lab Kit also contains a Gaussmeter, This combination of materials and meter is offered for a reduced cost of $199.95.
The EF-401 Gaussmeter is a cost effective, handheld, single-axis magnetic field meter that provides the user with a quick, reliable and easy way to measure electromagnetic field (EMF) radiation levels.
Purchase an LK-110-IS and save 10 per cent off the retail price of the Kit and the Gaussmeter.
|
|
|
|
|
|
Like an unseen virus, magnetic interference can infect the systems of any medical electronic product or equipment. When medical devices must render the clearest, sharpest "image" possible by translating magnetic fields into digital data, magnetic shielding concerns, and image clarity issues are magnified.
As "the preferred source" of magnetic shielding for more than 65 years, Magnetic Shield Corporation has provided custom shield design assistance to many engineers, designers, and manufacturers of medical imaging devices, as well as R&D for future medical apparatus.
Our foundation of EMI engineering and our reputation for quality dates back to the earliest days of medical imaging, when Magnetic Shield provided shields installed around the first Cathode Ray Tubes in early televisions and X-ray monitors. As electonics and imaging have progressed through the decades, so too, has Magnetic Shield. We have participated in many advancements, continually rising to challenges presented by technology advancements.
Our proprietary materials MU METAL®, CO-NETIC® and NETIC® have been designed specifically for magnetic shielding. All are stocked, in sheet and foil of various thicknesses and widths. We also stock a vast array of wire, cable, conduit and braided sleeves. We can provide these specialty materials, or custom manufacture simple and complex magnetic shield shapes for you.
Medical equipment and products are one of the largest channels within our business, which make us experts in this field. For over 67 years, Magnetic Shield Corporation has been "the preferred source."
|
|
|
|
|
|
Circuit Board Shields (CBS) Using Standard Modular “off-the-shelf” Fence and Covers.
EMI designers are demanding extremely tight circuit board shields to prevent EMI/RFI radiation and susceptibility. This CBS Circuit Board Shielding Design Guide features Leader Tech’s patented two-piece construction with a solderable fence and removable cover, considered by designers to have the strongest
cover retention in the industry. It provides protection for sensitive components while allowing your technician access to adjust and repair. Leader Tech provides EMI designers flexibility and cost-effective custom solutions. This is achieved by stocking a large variety of standard off-the-shelf fence options, which can be formed and combined with a cover to create a fully custom design. Additional features such as special cutouts, vent holes, insulating materials and other special requirements, can be added to create the right Circuit Board Shield for your application. Avoid long lead-times and expensive custom tooling by reviewing these EMI shielding innovations and selecting the right one for your next application. You will find that Leader Tech’s product diversity includes simple one-piece shields to more complicated multicavity shields using a variety of throughhole and surface mounting options.
|
|
TBA ECP’s new card cage shields are designed to provide contact between the
card cage and the I/O slot brackets for optimum EMI/ RFI shielding effectiveness.
Produced from 0.076mm stainless steel
19 contact fingers per slot
Contact fingers to static side, facing the card cage portion of the chassis allowing easy insertion of add-in cards without snagging.
Multiple slot confi guration. 1-10 slots without tooling
Available as standard items 1-10 slots
|
|

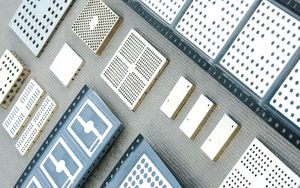

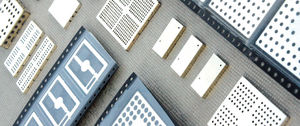

Laird Technologies one-piece shields, two-piece and EZ Peel™ shields, multi-compartmental shields and precision contacts are designed to maximize performance. Metal electronic components are packaged for surface mount or through-hole applications suitable for a variety of industries.
The board-level shields provide isolation of board-level components, are available in tape-and-reel for automated pick-and-place applications, and come in standard and custom shapes that can incorporate a removable lid for component access.
Products range from the traditional metal enclosures of two-piece, single-piece, EZ Peel™ and combination BLS to fully custom multi-compartmental applications and drawn shields. The combination shields can incorporate conductive elastomers, thermal pads, and RF absorber material; and are designed to meet the specific needs of any high-performance application.
|
|
Bulletproof glass with EMI performances, supplied for military or security use like banks or intelligence offices. We offer this composite materials or custom made solutions for all different levels of resistence to every bullets and crime attac. Thickness from 20 to 150mm and over. Indoor or exterior building, automotive and shelter applications.
Prototypes, custom made,little series supplied in short time at cheaper prices.
|
|
|
The EMCFIX system from PMA AG covers fittings for optimum connecting solutions for screened cables or screening braids. In combination with metal braids of the EMC product line, control and signal cables are shielded from external disturbances. Disturbance influences as electro magnetic fields and electrical impulses are conducted via the screening braids and the EMCFIX connectors to the housing. High screening effect and low coupling resistance characterise the system. The connectors offer excellent screening values to follow the EU guidelines.
|
|
|
Aaronia's high performance EMC panels Aaronia MagnoShield® magnetic field-shielding & screening. Aaronia's industry-grade EMC magnetic panel-shielding are made from special MuMetal composite panels and allow efficient shielding against virtually ALL radiation: LOW FREQUENCY MAGNETIC FIELDS as well as high frequency RF fields, electric fields and electrostatic fields.
|
|
A current-carrying twisted pair is superior to parallel conductors, but is of limited effectiveness in reducing electromagnetic radiation. Correspondingly, the twisted pair is limited in avoiding unwanted pickup of external H-fields (D.C. to 100 KHz).
Inter-8® Weave Cable substantially reduces magnetic field pickup and radiation compared with conventional twisted pair cable. Our cable involves four separate conductors braided into interlocking loops and is a patented design of Magnetic Shield Corporation. In application, adjacent conductors 90º apart are connected together, effectively providing a two conductor circuit.
Because the Inter-8® Weave Cable design incorporates parallel conductors, the cable provides double the current carrying capacity of a two wire cable of the same AWG size. In contrast to conventional twisted pair, INTER-8 WEAVE does not kink or untwist when left free.
|
|
|
Silicone or fluorosilicone elastomers filled with conductive particles. Available as extruded or moulded products. Conductive fillers include, silver plated aluminium, silver plated copper and nickel graphite.
|
|
|
|
|
|
MU METAL® offers important electromagnetic field shielding characteristics, including very high magnetic permeability - its ability to absorb magnetic energy. The unique properties of this family of alloys results in the highest possible attenuation, making these shielding alloys the materials of choice for reducing low-frequency electromagnetic interference (EMI).
MU METAL® is a trademarked brand of Magnetic Shield Corporation. MU METAL® meets MILSPEC 14411C, composition 1. When the specification or the application calls for a magnetically soft or high permeability material, MU METAL® can frequently be successfully applied.
MU METAL® magnetic shielding prevents magnetic fields from reaching areas where they would cause magnetic interference. Magnetic shielding is used around either the source of interference, to prevent electromagnetic radiation from leaving a device; or more typically, around a sensitive device, to prevent the electro magnetic interference (EMI) from disrupting normal operations.
|
|
Conductive EMI shielding coated polyester film silver based.
This combination of low surface resistance and high visible light transmission uniquely qualifies them for use in EMI shields of displays and other applications that require shield transparency.
When properly grounded, PeAg films can provide good attenuation over the frequency range 1-10 GHz.
The ability of Ag conductive coatings to attenuate the electromagnetic energy emitted by electronic devices depends entirely of the surface resistance of the coatings.
|
|
|
|
|
|
Laird Technologies is the world’s foremost designer of elastomeric compounds engineered to have advanced electrical and thermal performance. Using our own in-house material scientists, we design Form-in-Place compounds to achieve excellent EMI shielding in dispensable forms.
Gaskets can be dispensed onto any conductive painted, plated, or metallic surface of an electronics enclosure to protect it against internally and externally radiated interference and environmental elements.
The gaskets have a cost savings in the form of raw materials, labor, and assembly time. They are as small as 0.4mm can be applied on your product allowing more critical packaging space for board-level components. Room temperature cure gasketing materials eliminate the need for costly heat curing systems and single-component compounds eliminate ingredient mixing thus shortening production cycles. There is high shielding effectiveness of 70-100 dB to 18 GHz. The dispensing system supports high volume production schedules with excellent adhesion on a wide variety of metal and plastic substrates.
|
|
A complete range of heat shrinkable tubing, shielded or not,
with or without a track systems, sleeving to meet your protection needs...
Watch demonstration patented TRACK SYSTEM
On : http://www.sertim.com/en_zipper/index.php
|
|
Enclosure shielding :
GETELEC proposes, for the shielding of telecom base stations as well as all types of enclosures, a large range of isolating and conductive gaskets. These gaskets are proposed with adhesive film and vulcanized in the angles to allow rapid mounting. Sections are hollow to allow adequate compression of the gasket without deteriorating your enclosures. The materials proposed are nickel graphite, carbon and metallized fiber.
We can define and produce the adequatesection according to your enclosure specifications. Please contact us for availability of existing profiles.
|
|
Tech-Etch designs and manufactures both standard catalog and customized shielding products. Our complete line of shielding includes all sizes, shapes, compositions, mounting options and seal types. Products include BeCu EMI shielding strips, conductive elastomers, wire mesh, filters, honeycomb vents, board level, metalized fabric shielding, and conductive foam.
|
|
|
Carbon-plated conductive fabric can solve some appearance problems such as stains, spots, etc. It also makes the products more resistant to oxidation. Accordingly, the long-term service life of the products is guaranteed.
|
|
|
Abnormity EMI gasket manufactured in our company can offer high shielding effective with low resistivity ,our company developed molding machine which made the production efficiency of abnormity gasket improved more and more compare with some famous enterprises,Regarding to some products using inside body froth of affuse which need enormous quantities order to start products ,but our company can complete low batch of order accroding to adjust our molding machine .
|
|
|
Trademark EMI gasket is a registered trademark of our company ,It's manufactured by PU foam wrapped with conductive fabric which been exported from Japan high technology enterprise ,can offer high shielding effective with low resistivity.
|
|
|
I/O EMI shielding gasket been manufactured for the purpose of satisfy some non-frequency used equipments such as I/O of computers .it's also used in daily standard connector that not shear to input,foam can use nickel-plated (X,Y and Z axis conductivity) or ordinary PU foam.
|
|
|
Characteristics:Gold has excellent conductive performance and can guarantee the electrochemical compatibility and stability among base material in a very large range.can offering high shielding effective with low resistivity .fit for special environments.
|
|
|
Commonly used for enclosure doors, shielded room doors and architectural seams where wiping action and large compression distances are needed.
|
|
|
This style combines a high dynamics range of deflection , very low compression force and a long service life after repeated compressions . Provides a firm grip on the mounted panel section . Ideal for situations where adhesive attachment is not desired .Simple , quick clip –on assembly
|
|
|
Used where a concentration of high contact force is needed to assure strong electrical bond ; ie in a vibrating environment . Avalaible with optional conductive adhesive
|
|
|
Male rigs are formed with the curved contact surfaces on the OD for microwave cavities , tuning and shielding applications . Rings are sized in diameters as indicated by forming many of our standard shielding strips .
|
|
|
Specifically designed for large enclosure doors , or where compression of the gasket is achived by angular engagement of the mating surfaces such as with screen room doors or in joining groups of enclosures .Mounting holes of .142” diameter on .375” centers accommodate mechanical fastening with screws or rivets
|
|
|
For areas where small dynamics range is required , and where the shield in its compressed state will not extend beyond its uncompressed dimension “A”. Mounting is simple with standard instant Tac adhesive . Optional poron rubber enviroseal protects against moisture , dust and other contaiminants .Also available in continuous length rolls
|
|
Finger gasket is made of complete metal material and has the lowest electric resistance for EMI shielding.
The raw material, beryllium copper has great stability itself.
Finger gasket is produced by own special manufacturing method.
|
|
Beryllium Copper makes an ideal gasket material due to its high
conductivity giving good shielding effectiveness. Excellent spring
features and resistance to compression set make them ideal for
high cycle applications in both compression and in a wiping action.
Various profiles are available to meet design needs and gaps of
0.25 to 10.2mm can be accommodated.
|
|
Due to their outstanding material
and electrical characteristics,
beryllium copper finger of different
shapes and dimension are used in
the following industries:
Broadcasting, telecommunications
industrial control, measuring and
instrumentation, aerospace
technology, nuclear physics and
data processing. Contact fingers and
rings made of beryllium copper are
used at all ratio and microwave
frequencies, for instance as contacts
to valves and tuning components as
well as for shielding.
|
|
|
|
