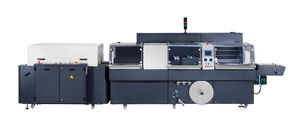

The versitile, efficient and dependable Conflex AdvantEDGE™ 160 Continuous Motion Side-Seal Wrapper with servo-drive technology delivers high speed and consistency with fewer working parts for unparalleled performance. A patented Micro-V belt drive holds film better to provide stronger seals; convenient tool-less changeover capability ensures ease of maintenance; and its simple yet ingenious design ensures that it will integrate seamlessly with your existing packaging operation.
|
|
|
Continuous motion side sealers for reliable and trouble free high-performance packaging. The innovative linkage of decentralized servo drives with a PC-based ELAU MAX 4 (Gen 3) control system results in high performance with an attractive pricing. Servo Jet 400 / 80 reaches a top performance of approx. 80 packs /min., Servo Jet 400 / 120 goes up to 120 packs /min., and the Servo Jet 400/170 peaks at approx. 170 packs /min. A colour Touchpanel with product data memory for various products allows quick changeovers by simply calling up the needed data from the database.
|
|
Compacta Konti
The inline machine, with continuous motion. For the highest requirements of speed and flexibility. Simple basic principles all other models in the Compacta family. Centre folded film sealed on the other three sides produces a fully seald pack. A travelling end seal system allows speeds up to 120 cycles per minute. Suitable for high speeds and continuous operation.
Technical Data
Approximate format: 350 mm
Sealing width: 500 mm
Passage height: 150 mm
Additionally possible: ------------
Film width: 550/550 mm
Speed: up to 130 T/Min.
|
|
For higher speed presentation shrink wrapping it is necessary to move to a continuous motion style of wrapping, the side sealing machine. Wraps UK offers the Flexo500s which is capable of speeds up to 60 products per minute. The complete system consists of the shrink wrapper and a high capacity shrink tunnel which ensures perfect shrinking at high speed.
The product is fed into the side sealing shrink wrapper in the same way as the automatic L-sealer. The machine measures the length of the product being wrapped and a single sealing bar cuts and seals the film across the width of the machine. Then, instead of using an L shape to form the other side of the seal, a continuous motion cutting and sealing blade system produces the lateral seal.
The advantage that this provides is that almost any length of product can be wrapped. Since the machine spends less time sealing the film than a conventional L sealer, the film is almost continuously moving resulting in higher wrapping speeds.
|
|
UNIQUE IN THE MARKET, THANKS TO THE COMBINATION OF THE FOLLOWING CHARACTERISTICS:
Rotary side sealer, for packing products of any length;
High performances with medium size products 50/60 mechanical cycles / minute;
The same rotary side sealer both for PO and PE films;
Adjustable heigth of the rotary side sealer group, for better packing performances;
Sealing line always in the middle of the product height;
Memorisation of the packaging parameters for 20 products and automatic size change over in 20 seconds;
Machine rotary side sealing, completly closed by CE safety guarDing;
Possible connections to a shrink tunnel, either with mesh or with roller conveyor.
ROTARY SIDE SEALING, HIGH QUALITY, ROBUST AND RELIABLE MACHINE.
|
|
|
|
|
|
* Machine for packaging in weldable material, continuous movement, with sealers, latest generation for medium and high production levels.
* Request speed : 120 packagings/min.
* Unique design features in this type of machine:
- no mechanical parts on operator side, thus giving great accessibility;
- mechanical parts grouped on opposite side to operator, thus making all routine and non-routine maintenance jobs simpler and faster.
* Great range of choice, both in formats and versions.
* Electronic film unwinding and cutting.
* Film cut with rotating blade.
* Usable film thickness from 40 µ to 80 µ.
* Possibility of using large reel size, giving maximum working autonomy.
* The whole machine functions are supervised and controlled by a Zambelli computer.
* Display for the signalling of alarm or anomaly states, service messages, etc.
* Machine complete with all safety guards, in accordance with current safety regulations.
* Vast range of optionals, including: computer for production data processing, etc.
* The computer is particularly useful in that it can also be used for the careful planning of the machine's preventive maintenance schedules.
* The controls are centrally grouped on an control panel.
* All the motors are protected with automatic magnetothermal switches.
* Special care has been taken in the design stage to ensure that the machine is simple to run, with easy access for maintenance work.
|
|
|
The fully automatic side sealer Universa 400 is the answer to (almost) all packaging requirements. Its name reveals the concept and objective for this universal film packaging machine. The encoder control by KALLFASS based on the Siemens S7 was realized for the first time in serial machine production. Complicated and time consuming fine tuning of timers with different product length or speeds are history. End users with constant product change-over appreciate the advantages of encoder controls. Manufacturing plants with a wide product range, as well as industrial service - and contract packagers, profit highly from a simplified production process.
|
|
Compacta EMS
The entry level model full overwrap machine for automatic wrapping. Working in line this photocell controlled machine can be fed either manually or automatically. Using cente folded film a pack having a seal on three sides is produced. Because of the constantly heated sealing system all heat sealabels films from Polyetylene to Polyolefin may be used.
Technical Data
Approximate format: 450 mm
Sealing width: 500 mm
Passage height: 150 mm
Additionally possible: up to 200 mm
Film width: 650 /650 mm
Speed: up to 60 T/min.
|
|
SC 200
Automatic side seal machine for shrink films as well as not shrink films. Medium-high performance level.
The automatic SC side seal machines have been designed to pack all type of products whatever may be the length, with shrink and non shrink films, for productions of up to 85 cycles / min.
Versatile machine with simple regulations, it is quickly adaptable to the different products to be wrapped.
Side sealed packs avoid seals over and under, giving clear products with or without shrinking.
The SC 200 has been specially designed to achieve high productions, even with frequent format changes, including devices that allow for fast and easy changes without the need of tools.
An industrial PC control system includes a simple and quick communication system through touch sensitive screen which provides constantly a complete diagnostics of the status machine and the control parameters.
|
|
| ... products without technical information |
| |
RECORD
Economical machine especially suited for strapping voluminous packs and pallets. The strapping head is placed on the side of the machine frame.
The sealing head guarantees high seal efficiency for PP or PET strap.
Admitted strap size : 9 - 12 or 16 mm width.
OPTION :
- Automatic sword permitting passage of the straps through the pallet beams.
- Sealing head movable
- Automatic roller conveyor.
|
|
JN-85YMA
Features:
- The machine utilizes a fixed rail for sealing head travel (200-300mm), ensuring close proximity of the sealing head to large packages, and a tight strapping effect. It is equipped with pneumatic cylinder to drive hydraulic movement system.
- This machine is designed for large packages that can align to the sealing head (area).
- Installation with conveyor and photocell is essential.
- This machine requires compressed air source to drive an oil cylinder and makes machine move stable.
- Equipped with warning alarm and buzzer to notice failures of feeding strap.
- P.E.T strapping system is available as an option.
|
|
