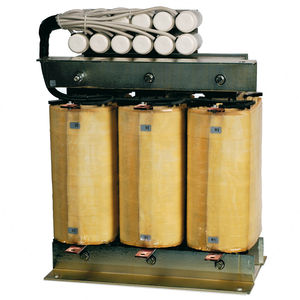

high-pass electronic filter / active / sine wave
high-pass electronic filter
SINUS series

Voltage: 380, 400 V
Frequency: 50, 60 Hz

Sinus filters have been specially designed to improve the wave form and avoid overvoltages in the motors. These filters are installed in inverters with PWM output, between the converter ...

band-pass electronic filter / active / sine wave / output
band-pass electronic filter
COMBILINE

Frequency: 100 Hz - 400 Hz

... insulation. COMBILINE sine wave filters limit loads to the admissible limit values and provide the necessary protection of enamel insulation and winding heads on long motor lines and ...

low-pass electronic filter / passive / EMI / screw-in
low-pass electronic filter
FN 5020, FN 5030

Current: 25 A - 120 A
Voltage: 288, 500 V
Frequency: 600 Hz

The Output Filter Series FN 5020 is manufactured by SCHAFFNER Group. The product has enhanced system reliability and the audible engine noise is lessened. This device has extended its service life and it has full harmonic ...

See the other products
SCHAFFNER Group
low-pass electronic filter / passive / EMI / power
low-pass electronic filter
FN 5040, FN 5045

Current: 4.5 A - 1,200 A
Voltage: 480 V
Frequency: 200 Hz

The FN 5040 and FN 5045 LC are output filters developed by SCHAFFNER Group specifically for frequency inverters. The filters provide smooth sine waves with no voltage ...

See the other products
SCHAFFNER Group
low-pass electronic filter / passive / EMI / power
low-pass electronic filter
FN 5040 HV

Current: 13 A - 1,320 A
Voltage: 690 V
Frequency: 200, 70 Hz

Features and benefits Converts the rectangular PWM output voltage of motor drives into a smooth sine wave with low residual ripple Elimination of premature motor damage caused by high dv/dt, overvoltages, ...

See the other products
SCHAFFNER Group
band-pass electronic filter / passive / sine wave
band-pass electronic filter
SKS-SWF-0016-ZC-4

Current: 16 A
Voltage: 400 V
Frequency: 50 Hz

SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon ...

See the other products
Shenzhen Sikes Electric Co., Ltd.
low-pass electronic filter / passive / sine wave / harmonic
low-pass electronic filter
SKS-RHF-0040-4C5/12V1

Current: 40 A
Voltage: 400 V
Frequency: 50 Hz

This is a special filter designed for railway system. Can control THDi <20% and THDv<10% at same time. A combination of sine wave filter and harmonic filter.

See the other products
Shenzhen Sikes Electric Co., Ltd.
low-pass electronic filter / passive / sine wave / harmonic
low-pass electronic filter
SKS-DVT-0048-4AS/V5

Current: 48 A
Voltage: 400 V
Frequency: 50 Hz

... of 200 kHz. The filters create less heat with smaller switching frequencies. The motor is not intended for utilizing with a variable speed drive to retrofit applications. Du/Dt filter is economical ...

See the other products
Shenzhen Sikes Electric Co., Ltd.
high-pass electronic filter / passive / EMC / three-phase
high-pass electronic filter
SFAF2-400 series

Current: 2 A - 600 A
Voltage: 690, 500, 400 V

... leakage currents Improves the EMC (reduced emissions of interference) UL approved insulation material Even 4-line sinusoidal filters available

high-pass electronic filter / passive / EMC / three-phase
high-pass electronic filter
SFAF2-500 series

Current: 200 A - 1,200 A
Voltage: 500 V

... leakage currents Improves the EMC (reduced emissions of interference) UL approved insulation material Even 4-line sinusoidal filters available

sine wave electronic filter / motor
sine wave electronic filter

Current: 10 A - 460 A
Voltage: 380 V - 500 V
Frequency: 1.5 kHz - 4 kHz

The Sine series is manufactured by Trafox, and are filters which eliminates the additional voltage stress from the drive output voltage. The filters help the to increase the lifetime ...

band-pass electronic filter / active / sine wave
band-pass electronic filter
VLT® MCC 101 series

The sine wave filters are suitable for various applications, especially those that require the provision of sinusoidal motor voltage, in a phase-to-phase manner, as well as the reduction ...

low-pass electronic filter / active / three-phase / sine wave
low-pass electronic filter
SFB series

Current: 4 A - 440 A
Voltage: 400 V
Frequency: 150 Hz

General Data Rated voltage 3 x 400 Vac Rated current 4 ‑ 440 A For motor rated output 1.5 ‑ 250 kW For clock frequencies of 4 to 8 kHz Rated frequency from 0 to 150 Hz Insulation class H Maximum ambient temperature 40 °C Degree of protection ...

See the other products
Block Transformatoren-Elektronik
active electronic filter / sine wave / harmonic
active electronic filter
200 - 690 V, 50 - 60 Hz | AHF

Voltage: 200 V - 690 V
Frequency: 50 Hz - 60 Hz

... at a premium, where shunt filter connection is preferred over a series connection, and where multiple loads require filtering. Type AHF Active Filters Arteche Type AHF Active Filters ...

low-pass electronic filter / active / sine wave
low-pass electronic filter

The purpose of a Sine filter is to prevent damage to the electric motors winding insulators. It enables the use of longer cable solutions and helps reduce noise levels. The Sine ...

low-pass electronic filter / passive / three-phase / sine wave
low-pass electronic filter
FIN905SF

Current: 8 A - 880 A
Voltage: 600 V
Frequency: 60 Hz

Three phase sinusoidal filter Rated current from 8 - 880A Nominal voltage 480 Vac dV/dt reduction Increases motor life

See the other products
ENERDOOR
low-pass electronic filter / active / sine wave
low-pass electronic filter
2 - 1500 A | CNW 933

Current: 2 A - 1,500 A

Sine wave creation of the output current on the output of a frequency drive. Longer lifetime of motor insulation, noise reduction. Advantages: - Low heat - Low noise - Easy installation - Adaption to ...
