The SPC-8520-LA and SPC-8521-LA are economical, PCI bus type and half-size embedded CPU boards that comply with Pentium M / Celeron M processor with high performance, but because of the onboard Intel 852GM chipset, these devices deliver lower prices compared to the current products that include 855GME chipset.
These two new CPU boards support memory capacity up to 1GB with PC2100 DDR SDRAM(non-ECC). In addition to the wide variety of interface including RS232C/422A/485, two USB2.0 ports and 100BASE-TX, these boards are equipped with CF slot (IDE connection, OS-boot support), making it ideal for system configuration without HDD. For video output, these products include the LVDS and analog RGB interface that provide the Dual View to display two different views.
The SPC-8521-LA includes onboard Celeron M processor 800MHz (cashless, BGA package) and the heatsink to make the device fan-less. The SPC-8520-LA contains Socket 478 and supports PGA type Pentium M processor 1.6G - 2.0GHz(FSB400MHz) or Celeron M processor 1.3G - 1.5GHz(FSB400MHz). CPU for SLC-8521-LA is available as an option depending on how users use it.
|
|

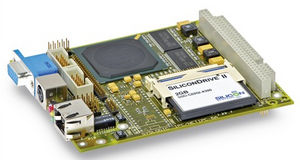

MOPS PC/104 CPU Modules
MOPS PC/104 family present the largest consistent single board family - full accessory re-use is a fact - making easiest up and downgrades very easy and extremely cost effective. Choose from lowest power up to Pentium M.
MOPS serve every performance class highly reliable - full featured.

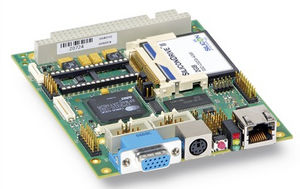

PC/104 SBC and Peripherals
Kontron Standalone Single Board Computers serve in every format,even with consistent product families that allow full accessory and chassis re-use. Kontron is your best choice for standalone boards - off-the-shelf - in all performance classes, in all formats. Time to market is zero - don't wait, start today!
|
|

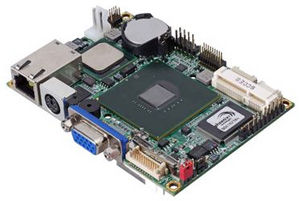

pITX-SP
2.5" SBC with Intel Atom processor up to 1.6 GHz on Pico-ITX.
* Pico-ITX Small Form Factor 100 x 72 mm
* Intel Atom Z510 / 530 processors
* Intel System Controller Hub US15W
* Dual SATA, PATA44 and microSD support
* And more...
|
|
|
|
|
|
The EM-9643 is a Mini-ITX industrial motherboard with onboard Celeron M, dual display, dual LAN, audio, PCI slot and optional GbE LAN.
Features
* Onboard ULV Intel Celeron M 600MHz/1GHz
* Intel 852GM + ICH4 chipset
* Dual-channel 36bit LVDS, VGA, DVI, TV-out
* 8.0 channel audio, onboard header
* Dual LAN, Power COM
* USB, IR, DIO, CF
* PCI expansion slots
Form Factor
Mini-ITX
Platform
Onboard Intel Celeron M ULV Processor (600MHz or 1GHz)
82852GM (MCH) + ICH4
AMI Flash BIOS
512KB (CPU integrated)
System Memory
DDR 200/266
1GB Max Capacity
200-pin SO-DIMM x 1
OS Support
Windows XP, Win CE, Linux
Storage Interface
44-pin header x 1, 40-pin x 1
CF slot x 1
Networking
10/100/1000 Mbps, 10/100Mbps
RJ-45 x 2
VIA VT 6122 and VIA VT 6107 controllers
Display
Intel 82852GM integrated graphics
Intel DVM up to 64MB
VGA x 1, Dual 36 bit LVDS, DVI and TV-out
Audio
VIA VT1618 with AC97 codec
Line-in, line-out, mic
I/O Interface
RS-232 x 3, RS-232/422/485 x 1, (all COM ports support +5/12V;by jumper)
6 USB 2.0 (2 via onboard header)
TTL input x 4, TTL output x 4
1 IR Interface
PS/2
PS/2
Hardware Monitoring
Voltage and temperature integrated in chipset
Watchdog timer with 256 level software programmable
Cooling
Heatsink and fan
Expansion
PCI x 1
Environmental Parameters
0~60C ambient operating temp.
neg 20~70C ambient storage temp.
0~90% ambient operating humidity
Physical Dimensions
6.7" x 6.7" (170mm x 170mm)
Power
+12V
20 pin ATX,power input connector
Compliance
CE, RoHS
http://www.lannerinc.com
|
|
|
|
|
|
New Industrial Half size Card from Protech is a powerhouse performer in a compact, energy-efficient package
The PCI-531LF comes with the Intel 945GM chipset for outstanding graphics and compatibility with VGA standards such as CRT, 18-bit LVDS and TV-Out. The Intel Socket 478 specification further ensures the speed and power needed for data-intensive usage, with compatibility for Intel Core Duo, Core 2 Duo, Solo and Duo LV processors. The presence of the CPU onboard also means that vibration is much less likely to interfere with performance or durability.
One of the PCI-531LFs most impressive design features is the presence of dual gigabit LAN ports with the Wake-on-LAN function and 10/100/1000BaseT Ethernet support. Together with two SATA ports, two serial ports and the high-resolution Realtek AC 97 audio standard, the PCI-531LF is ready for use in consumer PCs, industrial networks, game systems and other performance-critical applications. Moreover, with its small size and AT/ATX power support, the product can integrate with any market sector worldwide.
The PCI-531LF is an outstanding choice for high-volume manufacturers and business/industrial environments that employ computer networks for process tracking and data communication. The half-size, high-speed design of the PCI-531LF motherboard will ensure rapid diffusion in aviation, point-of-sale, kiosks, game systems and multimedia, medical systems, factory automation, telecommunications, aerospace and more.
|
|
Eurotech offers a comprehensive range of industrial PC104, embedded PC and single board computer products. These are supported by a wide selection of Development Kits for the leading embedded operating systems. The functionality of the processor boards can be expanded using PC/104 and/or PCI I/O and comms modules.
Products
GEMINI
5.25" Embedded Intel Core 2 Duo/Solo SBC
SBC-GX533
EBX AMD Geode GX 533 SBC
APOLLO
EBX format Intel Pentium M/Celeron M based SBC
PEGASUS
PC/104 format 133MHz AMD ELAN SC520 SBC
TITAN
PC/104 format 520MHz PXA270 XScale SBC
QUANTUM
PXA270 based SO-DIMM format SBC
ZEUS
EPIC format 520MHz Intel PXA270 XScale SBC
VIPER
PC/104 format 400MHz Intel PXA255 XScale SBC
VIPER-Lite
PC/104 format 200MHz Intel PXA255 XScale SBC
VULCAN
PC/104 format 533MHz Intel IXP425 XScale communications controller
VULCAN-Lite
PC/104 format 66MHz Intel IXP420 XScale communications controller
|
|
Protech's New PICMG Full Size PSB-511LF Low Power, High Performance Fanless Intel Pentium M/Celeron M Solution
Economical, high performance SBC solution with superior graphics for long life industrial applications
Taipei, Taiwan - Protech Systems Co., Ltd, a leading industrial PC maker, is releasing the PSB-511LF, a socket 478, full-size single board computer with Intel 915GM and ICH6M chipsets that support Intel Pentium M or Celeron M processors with clock frequencies up to 2.06GHz. With two high speed Gigabit LAN ports and two high-end SATA interfaces, this fanless, low-power solution delivers all the necessary I/O functionality and performance capabilities specifically geared for industrial computing. The PSB-511LF offers excellent graphics and audio support and the flexibility to run on Windows 98SE/2000/XP/ CE.NET/Linux Redhat 8.0/9.0 operating systems, making it a cost-effective yet powerful solution that can handle a range of demanding applications.
|
|
PC/104-SK-PLUS2, Starter-Kit for PC/104 incl. PC/104-PCI/ISA adapter.
Please use PC/104-SK-PLUS3 !
The basic single boards contain:
A PC/104, ISA and PCI-Bus slots electrically coupled, a plug for power supply and a keyboard connection.
3.5“ fl oppy drive interface
Mains adapter 110-230 V AC
|
|
|
• The CYBERBOARDTM is dedicated to the industrial or military embarked applications. It is personnalisable according to the application. • Especially conceived to answer the constraints of a severe environment (temperature, vibrations, shocks and CEM). • Resolutely directed real Time it functions under: O LINUX RT, Hardware Hat de Montavista TM O Windows 98, EC, NTE of Microsoft TM O DOS • Structured around ZFx86 of ZF Micro Devices TM O heart 32 bits standard x86 with 133 MHz O with instructions MX, O hides L1 of 8 KB, O floating calculating unit.
|
|
The SCS750 single board computer for space is Maxwell's answer to the space industry's need for high performance computing and on-board data processing. The SCS750's design was driven by our guarantee of the highest reliability and performance. Maxwell has implemented a comprehensive radiation mitigation strategy to provide total dose hardness, latch-up immunity and upset error mitigation for the SCS750. Being 1000x faster than current space-qualified single board computers, Maxwell's SCS750 has become the benchmark to which all future space processor boards will be measured.
|
|

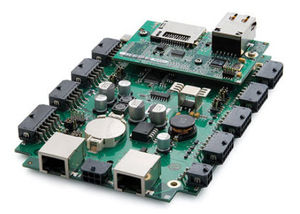

Rabbit's single-board computer are the low coast solution for robust OEM products and systems.
Design engineers worldwide use Rabbit board to control a board array of industrial and products applications.
|
|
|
|
|
|
PICMG 1.2 Single Board Computer
Model ROBO-8820VG2
Dual Intel Xeon processor based PICMG 1.2 (ePCI-X) SHB with VGA and dual Gigabit Ethernet
Intel E7501 chipset for optimizing system bus, memory and I/O bandwidth to deliver enhanced performance and scalability
Dual PICMG 1.2 compliant PCI-X bus for higher expandability
Intel 82546 dual port Gigabit Ethernet controller for the best network throughput
Reliable design for high processing performance dual Intel Xeon processor
High speed mainstream DDR SDRAM memory
ECC function for data sensitive application
ATI Rage XL graphics chip with 8MB memory provides the best 2D and 3D performance in entry-level class
Rich expansion capability through proprietary HL expansion connector
PICMG 1.0 Single Board Computer
Model ROBO-8777VG2A
Intel Core 2 Duo processor based PICMG SBC with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
Intel Core 2 Duo processor based PICMG SBC with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
Low profile processor cooler improve stability and reliability of whole system
More features such as EM64T, EIST, XD & VT can be easily applied to system by changing processor
Integrated Intel GMA X3000 graphics engine that built with high grade display capability
Lockable cable latched notches of SATA connector that secure connection in vibration condition
Support ISA expansion
|
|
|
|
|
|
Model ROBO-8920VG2
Dual-Core Intel Xeon processor LV 2.0 GHz based PICMG 1.3 SHB with DDR2 ECC SDRAM, VGA & Dual Gigabit Ethernet
Extreme power saving with Dual-Core Intel Xeon processor LV that only generates 31W and reliability increased with separated small cooler
Rich & powerful I/O expansion that covers dual PCI Express x 8, one PCI Express x 4 and four PCI devices
Up to 8GB, ECC registered memory assured the computer reliability and benefited the data swapping process
Dual PCI Express x 4 based Gigabit Ethernet supports IPv4, IPv6 offloading, VLAN, teaming & Wake-On-LAN functions
Relative high performance graphic engine, ATI RADEON 7000 provides solid 2D/3D/video acceleration among server market
Dual on-board SATA port and dual EIDE channel cover transition of high speed storage drivers
Model ROBO-8820VG2
Dual Intel Xeon processor based PICMG 1.2 (ePCI-X) SHB with VGA and dual Gigabit Ethernet
Intel E7501 chipset for optimizing system bus, memory and I/O bandwidth to deliver enhanced performance and scalability
Dual PICMG 1.2 compliant PCI-X bus for higher expandability
Intel 82546 dual port Gigabit Ethernet controller for the best network throughput
Reliable design for high processing performance dual Intel Xeon processor
High speed mainstream DDR SDRAM memory
ECC function for data sensitive application
ATI Rage XL graphics chip with 8MB memory provides the best 2D and 3D performance in entry-level class
Rich expansion capability through proprietary HL expansion connector
Model ROBO-8777VG2A
Intel Core 2 Duo processor based PICMG SBC with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
Intel Core 2 Duo processor based PICMG SBC with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
Low profile processor cooler improve stability and reliability of whole system
More features such as EM64T, EIST, XD & VT can be easily applied to system by changing processor
Integrated Intel GMA X3000 graphics engine that built with high grade display capability
Lockable cable latched notches of SATA connector that secure connection in vibration condition
Support ISA expansion
|
|
Processor Onboard Intel Atom N230
Chipset Intel 945GC + ICH7
Memory 1 x 240-Pin DDRII DIMM Slot, support DDRII 667/800 up to 2G
Display Intel GMA 950, VGA interface, support resolution up to 2048 x 1536
Ethernet 2 x Marwell 88E8055 Gigabit Ethernet controller
Audio Realtek ALC 888
I/O Interface 2 x RS-232
1 x Parallel Port, support SPP/EPP/ECP
8 x USB 2.0, 1 x PS/2, 4 x SATA, 1 x CF
Watchdog Timer 1-255 Seconds, programmable
Power Supply Support ATX Power Supply
Dimensions 185mm~121mmiL~Wj
Operating Temperature/Humidity 0|70, 10|90% Non-condensing
|
|
Single Board Computers
We offer a comprehensive portfolio of single board computers and CPUs designed to meet almost any application need. The products are available in a multitude of form factors, processor speeds, memory configurations, I/O options, and levels of ruggedization. We also provide an evolutionary path for our processors that allows them to grow and change with new technology.
|
|
Processor Support FSB 800/1066/1333Mhz LGA775 Intel Core 2 Duo/Core 2 Quad Processor
Chipset Intel Q35 + ICH9
Memory 2 x 240-Pin DDRII DIMM Slot, support DDRII 667/800 up to 4G
Display Intel GMA 3100, VGA interface, support resolution up to 2048 x 1536
Ethernet 2 x Marwell 88E8055 Gigabit Ethernet controller
Audio Realtek ALC 883
I/O Interface 1 x RS-232, 1 x RS-232/422/485 (Onboard header)
1 x Parallel Port, support SPP/EPP/ECP, DB25 Interface
12 x USB 2.0, 1 x FDD, 1 x PS/2, 4 x SATA
Watchdog Timer 1-255 Minutes or Seconds, 256-Level
Power Supply Support ATX Power Supply
Dimensions 338mm~126mmiL~Wj
Operating Temperature/Humidity -20|70, 5|95% Non-condensing
|
|
Processor Support FSB 800/1066Mhz LGA775 Intel Core 2 Duo/Core 2 Quad /Pentium D/Pentium 4 Processor
Chipset Intel 945G + ICH7R
Memory 2 x 240-Pin DDRII DIMM Slot, support DDRII 667/800 up to 4G
Display Intel GMA 950, VGA interface, support resolution up to 2048 x 1536
Ethernet 1 x Intel 82562GZ Gigabit Ethernet controller
Audio ACf 97
I/O Interface 1 x RS-232, 1 x RS-232/422/485
1 x Parallel Port, support SPP/EPP/ECP, DB25 Interface
4 x USB 2.0, 1 x FDD, 1 x PS/2, 4 x SATAII, 1 x IDE
Watchdog Timer 1-255 Minutes or Seconds, 256-Level
Power Supply Support ATX Power Supply
Dimensions 338mm~126mmiL~Wj
Operating Temperature/Humidity 0|60, 5|95% Non-condensing
|
|
|
|
|
|

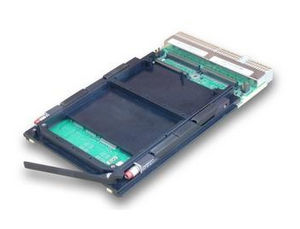

IPnexus CPC5564 64-Bit OpteronTM Single Board Computer
The CPC5564 is the first 64-bit single slot CompactPCI single board computer designed for high-performance embedded applications and features the AMD OpteronTM 940 single core at 1.8 GHz or 2.2 GHz or dual core 1.8 GHz processor.
The AMD Opteron processor provides a highly scalable x86 architecture that delivers nextgeneration performance and a flexible upgrade path from 32- to 64-bit computing. Its multi-core architecture offers advanced processing speed while addressing the power and heat constraints for a CompactPCI form factor. Designed to run Linux, SolarisTM and Windows applications, the CPC5564 is the ideal processor for high-end packet processing or multi-threaded software applications found in IMS, wireless, softswitch, defense or any other compute-intensive application. Memory is directly accessed by the CPU without passing through a separate northbridge, dramatically improving performance.
Paired with the CPC5910 storage expansion module, the CPC5564 can support full RAID arrays, disk hot-swap and over 800GB of high-performance SATA storage, making it an ideal embedded database server.
Highlights
64-bit single or dual core processor support
Single slot high density compute blade
High-performance computing solution for PICMG 2.16 systems
128-bit memory addressability to 8GB, PC3200 DDR SDRAM with ECC
Onboard eight-port Gigabit switch
PMC expansion port with support for 2x1000 Mbps Ethernet, eight lane PCI Express and PCI-X 64/133
CompactPCI hot-swap and IPMI BMC controllers
Supports Both 32- and 64-Bit operating systems:
Linux x64
Windows XP x64
SolarisTM 9/10 x64
NexusWare Carrier Grade 3.2 Linux
Full compliance with PICMG 2.16 and 2.9 specifications
|
|

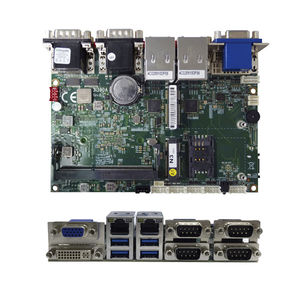

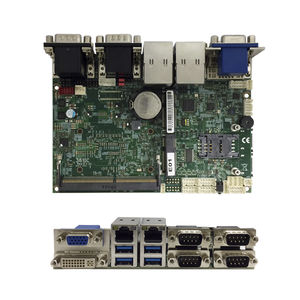

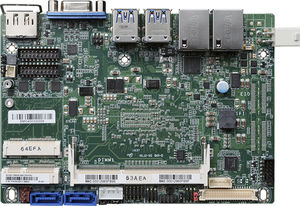

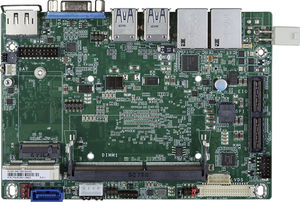

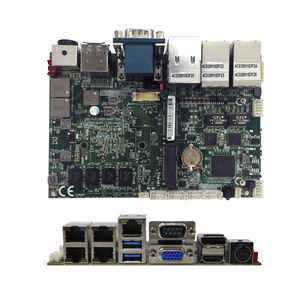

3.5" Embedded single board computers for industrial and commercial applications.
Lanner produces feature-rich, general purpose motherboards to be used in a variety of applications where space is a premium. We provide you with what you need to create the perfect solution for any given situation.
Lanner offers 3.5" SBCs built on Intel Atom, Intel Celeron, Intel Core 2, VIA and AMD processors.
http://www.lannerinc.com
|
|
Kontron Embedded Modules is a founding member of the ETX Industrial Group (ETX-IG) . ETX and ETXexpress are trademarks or registered trademarks of Kontron Embedded Modules GmbH.
ETXexpress is the COM Express solution from Kontron. Check back here regularly for more updates.
|
|
|
microETXexpress is a module concept like of the new ETXexpress modules. microETXexpress is plug-compatible to the ETXexpress products and to the COM Express standard (by PICMG). microETXexpress are 95 x 95 mm and therefore differ with regards to the mounting of the boards. The available PCI Express lanes depends on the board design.
|
|
ESM-910ETX
Intel 910GMLE Celeron M ETX Module
Features:
- Onboard Intel FC-PGA 478 Celeron M 600 MHz with 512K L2 Cache CPU
- Intel 910GMLE / ICH6-M Chipset
- One 200-pin SODIMM up to 1 GB DDR2 SDRAM
- Dual View, 2-CH LVDS
- AC97 Audio
- Realtek 8101L 10/100 Mbps LAN
- 2 SATA, 4 USB 2.0, 2 COM, 4 PCI, ISA Bus
- Fanless Possible Operation
- Power Requirement +5V
- Power Type AT / ATX
- Operation Temperature 0~60C (32~140F)
- Operating Humidity 0%~90% relative humidity, non-condensing
- Size ( L x W ) 4.5" x 3.7" (114 mm x 95 mm)
- Weight 0.22 lbs (0.1 kg)
|
|
Intel 945GME Core Duo / Core 2 Duo / Celeron M ETX Module
Features:
Supports 65nm Intel FC-PGA 478 / FC-BGA 479 Core 2 Duo / Core Duo CPU
Intel 945GME / ICH7-M Chipset
One 200-pin SODIMM up to 2 GB DDR2 SDRAM
Dual View, 2-CH LVDS
AC97 Audio
Realtek 8101E 10/100 Mbps LAN
2 SATA, 4 USB 2.0, 2 COM
4 PCI, 1 ISA Bus
|
|
ESM-GM965
Intel GME965 Core 2 Duo ETXexpress Module
Features:
- Supports 65nm Intel μFC-PGA 478 / μFC-BGA 479 Core 2 Duo CPU
- Intel GME965 / ICH8-M Chipset
- One SODIMM up to 2 GB DDR2 SDRAM
- 2-CH LVDS, Dual View
- Broadcom BCM5787 Gigabit LAN
- 4 PCI, 5 PCIe x 1, 1 PCIe x 16
- 3 SATA II, 8 USB 2.0, 8-bit GPIO
- Power Requirement +12V / VCC5SB
- Power Type ATX
- Operating Temperature 0~60C (32~140F)
- Operating Humidity 0%~90% relative humidity, non-condensing
- Size (L x W) 5" x 3.7" (125 mm x 95 mm)
- Weight 0.44 lbs (0.2 kg)
|
|
|
|
|
|
Embedded Boards

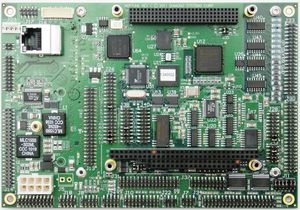

Eurotech design and manufacture a comprehensive range of industry standard x86 and XScale / RISC based PC/104, EPIC and EBX format embedded single board computers, PC/104 I/O modules and PCI-bus add-on I/O boards.
x86
Eurotech offer a comprehensive range of industry standard x86 PC/104, 5.25" and EBX format single board computers. These are supported by a wide selection of Development Kits for the leading embedded operating systems. The functionality of the processor boards can be expanded using PC/104 and/or PCI I/O and comms modules...
XScale
Eurotech offer a comprehensive range of industry standard XScale / RISC based PC/104 and EPIC format single board computers. These are supported by a wide selection of Development Kits for the leading embedded operating systems. The functionality of the processor boards can be expanded using PC/104 and/or PCI I/O and comms modules...
PC/104 Expansion

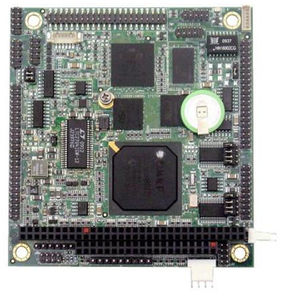

Our PC/104 I/O and Communication boards cover a range of interface requirements from simple bitmapped GPIO to multi-function isolated devices. A variety of industry standard bus formats mean that I/O expansion is available for all of our processors, embedded appliance and industrial PC products, as well as being compatible with third party products...
PCI-bus Expansion
Our range of PCI expansion boards are specifically designed for industrial control applications. These may be used in our 19" rack mounted industrial PCs. Based on PCI 2.1 specification, the PCI boards fully support plug and play configuration, and provide fast throughput for I/O intensive peripheral devices...
|
|
3.5 Intel 910GMLE Celeron M Micro Module
Features:
Onboard Intel Celeron M CPU
Intel 910GMLE / ICH6-M Chipset
One 200-pin SODIMM up to 1 GB DDR2 SDRAM
Dual View, Dual LVDS
2-CH Audio
Dual Atheros AR8121 GigaLAN
1 EIDE, 2 SATA, 1 Type I/II CF, 1 Mini PCI
8 USB 2.0, 16-bit GPIO
|
|
3.5" Intel 945GME Core Duo / Core 2 Duo / Celeron M Micro Module
Features:
Supports Intel Core Duo / Core 2 Duo / Celeron M CPU
Intel 945GME Chipset
One SODIMM up to 2 GB DDR2 SDRAM
2-CH LVDS, Dual View, HDTV
5.1-CH / 7.1-CH Audio with S/PDIF
Dual Realtek RTL 8111B GigaLAN
1 Mini PCI, 1 Type I/II CF
2 SATA, 2 COM, 4 USB 2.0, 8-bit GPIO
Jumperless Serial Port Configuration
ACPI S3 / S4 Supported
|
|

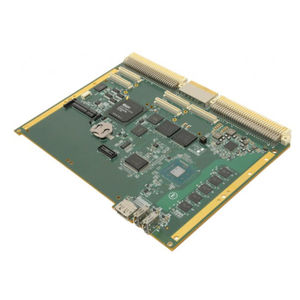

ETX-CD with soldered Intel Core™ 2 Duo Processor L7400 LV (1.5 GHz, 667 FSB, 4 MB L2) - A new dimension in embedded computing has arrived
Highest performance for Computer On Modules
With Intel Core™ 2 Duo processor
ETX 3.0 - Long Term Support
2x SerialATA for highspeed drives
|
|
|
|
|
|
Computer on Modules (COM) address the need for standardized small form factor computing platforms. COMs are the perfect solution for long-term applications where technology and performance upgrades are a must. COMs are without connectors for USB, LAN, VGA, etc. and must be attached to an I/O board to fullfil an application's I/O requirements. Upgrades are easily managed through an exchange of the existing Computer Module to one based on the latest technology, in effect extending the lifecycle of the application
bCOM2-L1000 is a COM Express basic, Type 2 COM Express module featuring choice of Intel processor with a wide range of processor options to deliver performance-per-watt improvements and meet low-power, high performance embedded applications requirements. With a SODIMM socket, the 2 GB of DDR2 memory can to be adjusted, on demand. One Gigabit Ethernet port is routed to the COM Express connector. It also supports transmissions of 10 and 100 Mbit/s. Additionally eight USB 2.0 ports are routed to the COM Express connector. The bCOM2-L1000 has four serial ATA Interfaces with RAID 0 and 1 support as well as an IDE interface for mass storage devices. Choose from the attached parallel hard disk drives or the new serial ATA drives. The SATA interfaces are ready for SATA II drives. For superior graphic performance, the bCOM2-L1000 features an integrated analog CRT and LVDS interfaces. I/O functionality is expandable with the PCI bus (up to 4 devices), five PCI Express x1 lanes and a wide PCI Express x16 port.
Supports up to 2x IDE devices
4x serial ATA interfaces
Multiple Intel processor choices
Compliance to PICMG COM Express R1.0 basic form factor, Type 2
|
|
| ... products without technical information |
| |
 see the results for the following category : Ball screws |
|
|
