Maximum Performance and Precise Control
Komatsu's smooth and precise hydraulic system lets the operator feel the performance of the machine. The threespool open center control valve is designed for both single and simultaneous movements to achieve excellent controllability in the positioning of the bucket.
Features and Benefits
Standard Universal Attachment Quick Coupler
Auxiliary Hydraulic Control
Long Wheel Base (1041 mm 41")
Automatic Power Control (APC)
Outstanding Visibility
Super Flow Hydraulics (Optional)

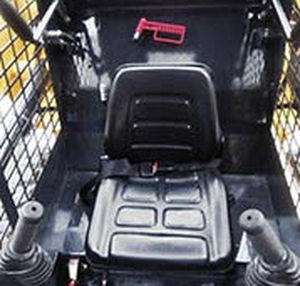

Intelligent Operator Controls
Two-Speed Travel (low impact shift-on-the-go 10.5 kph 6.5 MPH work range and 16 kph 10 MPH travel range)
|
|
The Volvo Skid Steer Loader family features 5 models; featuring 635 kg to 1089 kg in Rated operating capacity (SAE), and 2552 kg to 3394 kg in Operating weight.
For big performance from a compact machine packed with versatility to handle all types of jobs, look to Volvo Skid Steer Loaders. You need power. You got it. You want maneuverability, comfort and ease of service. Volvo’s got that too.
With an attachment for every job, Volvo B-Series Skid Steer Loaders will help you start and finish jobs of all sizes.
|
|

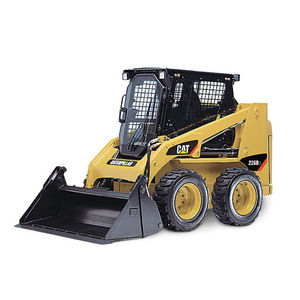

| The Cat Skid Steer Loaders deliver exceptional performance, versatility, ease of operation, serviceability and customer support. A wide range of Cat Work Tools are machine matched to Cat Skid Steer Loaders to meet all customer needs. |
|

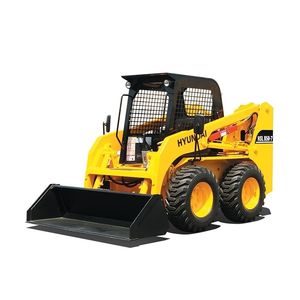

THE SKY IS THE LIMIT, WITH HYUNDAI
How far can you go? The Hyundai Skid Steer is a rugged, productive,
lean-and-mean working machine. Designed for the European market, it
delivers optimum productivity, reliability and comfort in a robust,
user-friendly package. You will be amazed because of its easy
operation; it will push the envelope on your productivity!
Its sturdy components, with a guaranteed long service life, and its wide
attachment range, will knock you off your feet. Hyundai’s use of
well-known and trusted engineering, ensures that you are in the hands
of an established market leader. With the Hyundai Skid Steer, there
truly is no limit to what you can do.
Hyundai Skid Steer Loaders:
HSL400T, HSL500T, HSL680T, HSL800T, HSL960T, HSL1200T, HSL1500T (Wheel) , HSL1500T (Track)
|
|
Compact and manoeuvrable design, with direction changes achievable within machine length for quicker, easier working in confined spaces.
|
|
780 skid steer loader
Specification:
Engine
- Type: China/Japan Engine
- Rated Power (Kw) 44
- Rotating Speed (rpm) 2500
Noise
- In Cab(dB) <92
- Out of Cab(dB) <106
Hydraulic System
- Max Pressure (MPa) 14.2
- Cycle Time (s): Raise 3.5-4.5, Dump 2-2.5, Lower 3-3.5
Performance
- Operating Capacity(kg) 750
- Bucket Capacity (m3) 0.55
- Tipping Load(kg) 1900
- Bucket Break-out Force(Kg) 1700
- Max Lifting force(Kg) 1500
- Speed (Km/h) 0-11.2
- Operating weight (Kg) 3600
Tyre 12.0-16.5
Dimensions:
H1.Max.height (mm) 3900
H2.High to bucket hinge pin (mm) 2970
H3.Dump height (mm) 2200
H.Height to top of cab (mm) 2260
L.Overall length with bucket (mm) 3500
L1.Dump distance (mm) 640
L2.Overall length without bucket (mm) 2600
L3.Wheelbase (mm) 1050
L4.Rear axle centerline to back bumper (mm) 1050
B.Bucket width (mm) 2020
B1.Tread (mm) 1660
B2.Overall length to outside of tyre (mm) 1980
D.Ground clearance (mm) 210
R.Clearance circuit (mm) 2050
alpha1Dump angle at max height(°) 37°
alpha2 Max attchment rollback when bucket on ground(°) 31°
alpha3 Angle of departure(°) 20°
|
|
650 skid steer loader
Specification:
Engine
- Type: China/Japan Engine
- Rated Power (Kw) 36.8
- Rotating Speed (rpm) 2650
Noise
- In Cab(dB) <92
- Out of Cab(dB) <106
Hydraulic System
- Max Pressure (MPa) 14.2
- Cycle Time (s): Raise 3.5-4.5, Dump 2-2.5, Lower 3-3.5
Performance
- Operating Capacity(kg) 650
- Bucket Capacity (m3) 0.47
- Tipping Load(kg) 1700
- Bucket Break-out Force(Kg) 1500
- Max Lifting force(Kg) 1300
- Speed (Km/h) 0-11.2
- Operating weight (Kg) 2580
Tyre 10.0/75-15.3
Dimensions:
H1.Max.height (mm) 3970
H2.High to bucket hinge pin (mm) 2960
H3.Dump height (mm) 2150
H.Height to top of cab (mm) 2030
L.Overall length with bucket (mm) 3450
L1.Dump distance (mm) 750
L2.Overall length without bucket (mm) 2420
L3.Wheelbase (mm) 991
L4.Rear axle centerline to back bumper (mm) 1050
B.Bucket width (mm) 1680
B1.Tread (mm) 1460
B2.Overall length to outside of tyre (mm) 1710
D.Ground clearance (mm) 210
R.Clearance circuit (mm) 2090
alpha1Dump angle at max height(°) 37°
alpha2 Max attchment rollback when bucket on ground(°) 31°
alpha3 Angle of departure(°) 23°
|
|

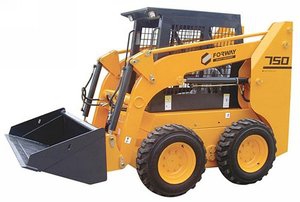

750 skid steer loader
Specification:
Engine
- Type: China/Japan Engine
- Rated Power (Kw) 44
- Rotating Speed (rpm) 2500
Noise
- In Cab(dB) <92
- Out of Cab(dB) <106
Hydraulic System
- Max Pressure (MPa) 14.2
- Cycle Time (s): Raise 3.5-4.5, Dump 2-2.5, Lower 3-3.5
Performance
- Operating Capacity(kg) 750
- Bucket Capacity (m3) 0.55
- Tipping Load(kg) 1900
- Bucket Break-out Force(Kg) 1700
- Max Lifting force(Kg) 1500
- Speed (Km/h) 0-11.2
- Operating weight (Kg) 3600
Tyre 12.0-16.5
Dimensions:
H1.Max.height (mm) 3900
H2.High to bucket hinge pin (mm) 2970
H3.Dump height (mm) 2200
H.Height to top of cab (mm) 2260
L.Overall length with bucket (mm) 3500
L1.Dump distance (mm) 640
L2.Overall length without bucket (mm) 2600
L3.Wheelbase (mm) 1050
L4.Rear axle centerline to back bumper (mm) 1050
B.Bucket width (mm) 2020
B1.Tread (mm) 1660
B2.Overall length to outside of tyre (mm) 1980
D.Ground clearance (mm) 210
R.Clearance circuit (mm) 2050
alpha1Dump angle at max height(°) 37°
alpha2 Max attchment rollback when bucket on ground(°) 31°
alpha3 Angle of departure(°) 20°
|
|
HSL610 (YANMAR E/G)
HSL610 (HMC E/G)
HSL810 (YANMAR E/G)
Description HSL610
Engine Yanmar 4TNE88
Engine output 30.9 kW / 41.4 HP
Operating weight 2,380 kg (5,250 lb)
Tipping load 1,225 kg (2,700 lb)
Travel speed 10.5 km/h(6.5 mph)
|
|
Crawler Skid Steer Loaders : CK35-1
The Komatsu CK25-1 and CK35-1 crawler skid steer loaders with vertical lift deliver the best of both worlds. They combine the compactness and manoeuvrability of the wheeled versions, with the exceptional weight distribution and traction of tracks. Moreover, the unique loader arm design improves performance in terms of lifting capacity and reach, making the machine perfect for operations like material handling.
Stability
Exceptional stability and traction force in all weather conditions and soil types.
Speed
Two speeds: one for maximum drawbar pull, the second for fast motion.
Performance
The unique loader arm design gives these machines greater maximum operating loads, handiness and safety.
Versatility
The optional Super Flow system enables the best use of any kind of attachment, widening the range of uses of the machines.
Comfort
A spacious operator environment, ergonomic controls and 360º visibility guarantee exceptional operator comfort.
Customization
The CK25-1 and CK35-1 offer several possibilities for customisation to get a 'made-to-measure' machine whatever your requirements. |
|
| ... products without technical information |
| |
... see all the products in the category
Loaders
|
Small and easy to manoeuvre, compact mini-loaders are increasingly used on construction, demolition and recycling sites. They are also used for various agricultural applications or the maintenance of parks and gardens. They are also present in materials handling.
The diversity of the machine's working conditions and configurations demands tires that are both robust and all-purpose.
MICHELIN's solution: the first radial tire engineered for this type of machine: the Stabil ‘XZSL
|
|
|
|
