SMC CAM SLIDE
Cam slide belongs to the group of “Linear cam handling system” applied for realizations of automations and motion in different industrial fields, in particular when repetitive, quick and precise movements are required.
These systems transform a rotary constant motion of the cam in a linear motion of the carriage, whose characteristics concerning acceleration, deceleration and speed are determined by cam profile. They can be used in the machine tool field as complementary units to handle the tool changer in order to free the machining area.
Cam slide type SMC are produced in 4 standard sizes : SMC 80, SMC 100, SMC 120, SMC 160; we also produce special slides, according to the customer’s request.
The main characteristics of the slide are:
Steel structure
Hardened slide ways with balls or roller re-cycle pads
Steel carriage
Polyurethane protection bellows
Alloy steel cam with induction hardened track.
Feeler roller with ‘long-life’ lubrication
Radial and radio-axial roller bearing with ‘long- life’ lubrication.
Worm reduction unit or square axis with torque limiter.
|
|
Offers a perfect solution for cage creeping probme by a built in rack + pinion mechanism with high accuracy.
Also you could use this product in vertical axis applications where you could not use the existing Crossed Roller Guies easily due to creeping when you stop the machines. Dimensions are compatible with commercially popular crossed roller guides. Recommended applications are measurement machines, inspection machines and wafer processing machines.
|
|
|

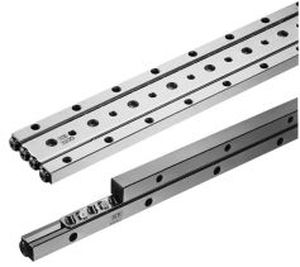

Crossed rollers add 6-8 times greater capacity than ball slides. Can withstand loads in any direction.
|
|
Recirculating ball slide guides offer unlimited travel in a compact mechanism. Available in lengths up to 1000 mm.
Stainless steel and sealed units also available
|
|
AR/HR Ball Type Linear Guide Series
cpc AR/HR Ball Type Linear Guide Series design incorporate four rows of re-circulation steel balls arranged in the O-type and 45º contact angle with the raceway. The rigidity of track rail under moment and torsion is very much increased by adopted the O-type design.
Although it is same in dimension constrain, devise larger diameter and more amount of steel balls, provide higher load capacities, moments and rigidity owing to its design.
|
|

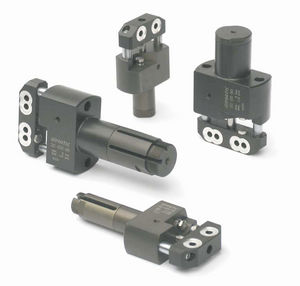

Cam units
Many different sizes of cam units with tapered, roller or independent hydraulic drives, for a wide variety of applications. Our hydraulic slide in particular is an ideal way to solve especially awkward problems.
2D/3D Standard Parts Catalog
In the FIBRO Electronic Standard Parts 3D catalogue you will find data on over 60,000 standard parts. The clear classification system ensures that the user can find individual patrs quickly. Individual assemblies can also be built up.
|
|
Track roller guidance systems are linear guidance systems that can be compiled according to a modular concept for a wide variety of applications. Due to their lightweight construction, they are highly suitable for use in handling systems. They are particularly characterised by quiet running, high traverse speeds, long displacement distances and the modular concept.
Carriages
Track roller guidance systems comprise one or more aluminium carriages, profiled track rollers and a straight or curved guideway. Carriages are available as hollow section carriages, open carriages, compact carriages and bogie type carriages for curved, oval and circular guidance systems.
Guideways
Guideways consist of an aluminium rail with shafts made from rolling bearing steel rolled into the sides. The guideways are available in many different designs, e.g. guideways with a solid profile, hollow section guideways, flat guideways, guideways with a slot etc. Selection depends on the puropse to which the track roller guidance system will be put.
|
|
INA monorail guidance systems are compact linear guidance systems with high rigidity and load carrying capacity, supplied in complete form as standard and based on either rollers or balls. These guidance systems can support loads from all directions – apart from the direction of motion – and moments about all axes. They are available in various accuracy and preload classes and are therefore suitable for applications with high guidance and positioning requirements.
Monorail guidance systems are part of a modular concept, i.e. within one size, guideways can be combined with all carriage types. This means more economical stockholding, simplified fitting and more rapid replacement parts sourcing.
In order to reduce maintenance costs, monorail guidance systems have a lubricant reservoir. All-round sealing of the carriages protects the rolling element systems from contamination even under demanding environmental conditions.
|
|
End-Supported Air Slides
New Way® end-supported air slides combine an accurate guide with an air slide ready-fit for installation. This provides engineers with the convenience of integrated guide-and-bearing systems.
These slides have a straightness of motion and dynamic response often an order-of-magnitude better than conventional rolling element bearings. New Way end-supported air slides provide a local straightness (in X and Z) of 250 nanometers (0.25 microns) per 25mm travel (10 micro inches per inch), maximum error (global) 2 microns per 1000mm travel (80 micro inches per yard).
The use of these ultra-precision components can add a significant competitive advantage to your equipment.
In addition to the standard slide product line (shown), custom end-supported air slide assemblies are also available. Just contact the New Way Sales Department.
|
|
Linear Guides:
Roller Guides on shafts secured to the profile groove
C-Rail Guides in special profiles
Ball Bearing Guide Bushes on free-standing guiding shafts
Linear Guide Systems on guide rails on profiles 8
|
|

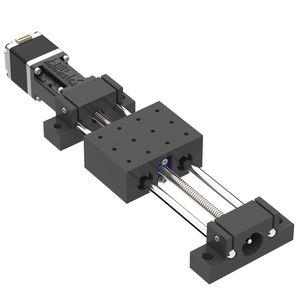

T-LLS Series Motorized Dovetail Slides
* 0.16 um resolution
* Built in controllers
* Several units daisy-chain to a single serial port
* Ideal for single axis use
For XY and XYZ configurations, we recommend T-LSR Motorized Linear Slides. T-LSR slides are designed for higher load, heavier duty, and can be mounted in XY or XYZ configuration without additional hardware.
RoHS Status (Click for more details): Compliant version available
|
|
Dovetail Air Slides
New Way® dovetail air slides combine an accurate guide with an air slide ready-fit for installation. This provides the user with the convenience of an integrated guide-and-bearing system.
These slides have a straightness of motion and dynamic response an order-of-magnitude better than conventional rolling element bearings. New Way dovetail air slides provide a local straightness (in X and Z) of 250 nanometers (0.25 microns) per 25mm travel (10 micro inches per inch), and a maximum error (global) of 2 microns per 1000mm travel (80 micro inches per yard).
The use of these ultra-precision components can add a significant competitive advantage to your equipment.
The dovetail guidebar can be end-supported, or continuously-supported. A continuously-supported dovetail will prevent guidebar sag that can occur with a long span end-supported configuration.
The dovetail also contains a space between the guidebar and stage where a linear motor or other driver can be mounted.
In addition to the standard dovetail product line (shown), custom continuously-supported air slide assemblies are also available. Just contact the New Way Sales Department.
|
|
Where linear locating or non-locating bearings with extremely high load carrying capacity and very smooth running are required for limited stroke lengths, flat cage guidance systems can be used. The guidance systems have extremely high rigidity, high accuracy and low friction and require significantly less space than other linear guidance systems.
Flat cage guidance systems comprise a guideway arrangement separated by flat cages containing needle rollers, cylindrical rollers or balls.
|
|
The recently upgraded Heavy Duty System now includes a whole family of slides and bearings for both high load and super high load applications. Available in both precision and commercial forms, the system now includes a range of slides, back plates and a construction beam which will save on the costly machining of structures and consequent mounting of slides.
Slides and flat tracks, hardened and precision ground, are available up to 4 metres in length.
• Rack cut versions and pinions for ease of driving
• Double edge slides for built-in parallelism
• Single edge slides for spacing apart
• Slide datums and keyways for quick and easy installation
• Versatile construction beam for unlimited design options
• Positive lubrication and effective sealing offering low maintenance
|
|
Pacific Bearing Company proudly introduces our new line of cost effective, easy to specify linear guide systems—Integral V Technology. A unique, patent pending process allows for tighter tolerances without additional cost. The design itself is capable of carrying heavy loads at high capacity, velocity, and acceleration while still excelling in wear resistance. Integral V Technology also has a growing number of configurations and a wide range of uses with custom orders available.
With the 20 different configurations already available—and more being developed each week—the Integral V Technology is truly versatile in its application. Products in Integral V Technology include snap-In, bolt-on, integrated and compact configurations. All of which allow for easy installation, and what really sets this product and company apart from others, is that Pacific Bearing is willing to work with companies to integrate the technology into their extrusions. PBC’s engineering team is fully prepared to adapt or modify the customer’s base design with the new Integral V technology to ensure success within the application.
The hardened steel V-raceway allows for a high load capacity, rigidity and wear resistance. Our rail is constructed of light-weight aluminum partnered with hardened steel V-raceways that are mechanically inserted to create high contact loads and wear resistance; thereby lowering production and replacement costs. One of the most important features is the dramatic increase in system accuracy. With measurements taken down the entire 20’ section of the rail, current studies show the rails to be capable of holding ±0.001” from lot to lot and ±0.0005” within each lot!
|
|
Simple to specify, simple to order
Hepco Simple-Select offers four useful sizes of spacer slides supplied in 24 hours or less complete with carriages assembled ready for installation. All units are fitted with double row bearings and cap seals to ensure a long and trouble-free life. Our general purpose spacer slide precision cold drawn and hardened on the Vee running surfaces provides good accuracy and long life, even in the most hostile environment. Specifying could not be easier. Check the load to be carried against the carriage load ratings and check that the physical size meets your requirements.
• Select standard range of 4 popular sizes ready for dispatch in 24 hours or sooner
• Utilizes proven Hepco Vee slide technology - Ideal for high speed / short stroke movements
• Low installation time simply bolt slide down
• Can be fitted to unmachined surfaces if required
• System compliance - ideal for fitting to aluminum profiles
• Accurate drawn slide allows smooth low friction movement
• Double row bearings for long and trouble free life
• Fitted cap seals prevent dirt ingress and ensure constant positive lubrication
• Induction hardened Vee slide - low wear characteristics
• Quiet in operation
|
|
The V-Guide Components are available with various features, sizes and lengths, which make them the ideal solution for linear motion applications. V-Guides provide an excellent alternative for medium accuracy requirements. The V-Guide is an industry standard for linear motion.
* Simple mounting and alignment
* Available in Inch or Metric
* Fully Interchangeable with BWC
* High speed capabilities
* Handles outstanding in harsh environments
* Low noise
The V-Guide Solutions offer flexibility and reliability for a wide range of linear motion environments. The V-Guide design sweeps aside debris and the track is ideal for virtually unlimited stroke lengths.
* Mounting versatility
* Smooth operation
* High load capacity in all directions
* Easily adjustable
* Shielded or sealed rollers prevent contamination
* Self Cleaning
V-Guide Wheel Solutions
* V-Guide wheels can be used with internal or external
90-degree ways, or used with round shafts
* Available in four sizes
* 52100 Bearing Steel or 440 Stainless Steel Construction
* Permanently grease lubricated
* Available with 304 Stainless Steel shields, or nitrile rubber seal
V-Guide Rail Solutions
* V-Guide Rails are available in four sizes, which are
designed for the corresponding size wheels
* The V-Ways are induction hardened and polished, while the
track body is left soft for easy drilling of mounting holes
* Available in 1045 Carbon Steel or 400 Stainless Steel
* Optional black oxide finish
* Choose predrilled rail from stock, or custom cut
and drilled to your specification
|
|
AirWay Linear Motion Guide System
The airway™ linear motion guide system is pre-engineered for simple swap-out with conventional rolling element bearing systems. This 'plug-and-play' solution effectively eliminates the need for engineers to acquire an in-depth knowledge of air bearing technology before application. With this new designed-to-order assembly, customers can simply remove the existing rolling element truck and rail, replace them with the New Way® airway lmg system, connect an air supply, and immediately experience the benefits of Frictionless Motion.™
|
|
The simple yet extremely versatile design of the rails in this family is the characteristic that defines their success. Made from cold-drawn steel with internal, hardened raceways like most of ROLLON’s products, these slides are made for repeated industrial use. With high load and moment capacities, EASY RAIL linear bearings are known for their high quality, affordability, ease of movement, and compactness.
|
|
A comprehensive linear solution designed to serve the majority of automation applications, GV3 follows the lead set by the renowned Hepco Generation II and CM systems. The best features from these systems are incorporated into a huge range with many new sizes, types, precision grades and options. The result is that the optimum linear solution can be specified to suit both application and budget.
• Twin, Double Row and Slimline Bearings to suit your application needs
• Flat Tracks and Track Rollers for mounting compliance, saving costly alignment time
• Flat and Spacer Slide profiles in single and double edge format for application flexibility
• All Slides and Flat Tracks available in 3 grades of precision
• Unground areas have an attractive black finish to inhibit corrosion
• Removable Carriages eliminate 'run-off' areas giving more compact machines
• Tamperproof Carriages are accurately set then locked in position - ideal for OEMs
• Integrated rack drive and belt drive reduce design time
• Mix and match between sizes, types and precisions gives the most suitable combination for every application
|
|
Glides instead of rolling!

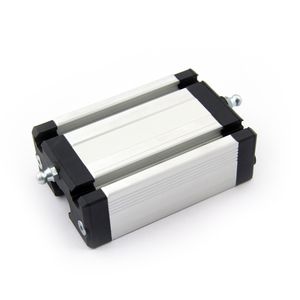

DryLin® - linear bearings operate on glide pads unlike the common recirculating ball bearing systems. Tests conducted over the years have shown that the used materials iglidur® J, J 200 and X are the ideal materials for most linear applications due to their positive properties in wear and friction.
DryLin® linear bearing systems are designed for the dry operation. Your applications are therewith protected against soiling by grease or oil. In contrast to recirculating ball bearings, the DryLin® bearings do not depend on the travel length and hence do not pose any conditions on the minimum stroke length.
|
|
Based on proven Simplicity® technology, Uni-Guides™ is a new class of slide that saves time and money during installation and maintenance. Its simple two-piece design is lightweight, easy to install, and uses self-lubricating FrelonGOLD® bearing material that allows the product to last for years.
With no metal to metal contact and RC70 ceramic coating, the Uni-guide is designed to endure the harshest of environments, not to mention the Uni-guide is corrosion resistant and is even compatible for clean room applications.
With dampened vibration and shock loads, 100% increase in load capacity, PV limits and speed, the Uni-Guide is a cost effective, durable, long-lasting linear motion product
Simplicity technology
No metal-to-metal contact
Dampens vibration and shock loads
RC70 ceramic coating withstands contamination
Plug and play controls
|
|
CURVILINE: ...the rail which goes “straight” to the solution!
ROLLON’s CURVILINE is the cost effective linear solution for applications with linear movement that isn’t always strictly linear. It is a custom solution made according to your application’s needs.
The system is composed of one or more sliders and a zinc-plated rail. The sliders have multiple radial ball bearings mounted to them providing the movement and carrying the load.
Two versions are available: one with a constant radius, and one with a variable radius which can be composed of both straight and curved sections.
Each version has its own specific slider which is designed to uniformly follow the rail without modification to its preload. All sliders have radial ball bearings which are lubricated for life and offer long life due to their hardened raceways.
|
|
Compact Rail has all of the characteristic that distinguishes Rollon’s entire product line:
compactnees, smooth movement, and ease of use. The “T + U” and “K + U” rail systems can be mounted on non-machine surfaces and can even compensate for mounting surface parallelism inconsistencies. This flexibility allows the design engineer to focus more time and energy on the application itself and not on the components while saving large amounts of mounting time and, therefore, money. All Compact Rail sliders have radial ball bearings rollers, which provide smooth and fast movement.
|
|

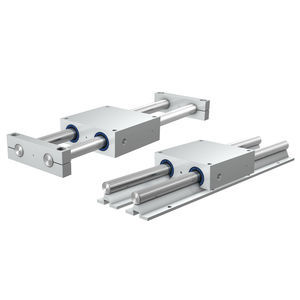

Shaft guidance systems or ball-based or plain linear guidance systems for various areas of use and applications. Linear ball bearings are available as a light range, compact range and heavy range. Mating tracks can be solid shafts, hollow shafts or supported shaft and rail units.
The range is rounded off by a large selection of linear ball bearing and housing units and linear plain bearing and housing units. In this case, the linear ball bearings or linear plain bearings are supplied already mounted in ready-to-fit housings.
A large number of shafts (with or without machined features), shaft and support rail units and comprehensive accessories allow a broad spectrum of applications.
|
|
Miniature linear guidance sets
Miniature linear guidance sets with cylindrical roller flat cages are corrosion-resistant, ready-to-fit locating bearings for limited stroke lengths and are preloaded once fitted. These linear guidance systems have high load carrying capacity, high rigidity and high accuracy whilst requiring very little space. Since the distance between the guidance elements can be varied in design, the elements can be easily matched to predetermined adjacent constructions. The sets are supplied in many different lengths for specific applications.
The sets are particularly suitable for short stroke lengths, low-friction movements, oscillating movements and high loads with high rigidity.
|
|
Miniature linear guidance sets
Miniature linear guidance sets with cylindrical roller flat cages are corrosion-resistant, ready-to-fit locating bearings for limited stroke lengths and are preloaded once fitted. These linear guidance systems have high load carrying capacity, high rigidity and high accuracy whilst requiring very little space. Since the distance between the guidance elements can be varied in design, the elements can be easily matched to predetermined adjacent constructions. The sets are supplied in many different lengths for specific applications.
|
|
Hepco's SL2 Corrosion Resistant System offers the user an extensive range of stainless steel slides and bearing assemblies plus specially treated aluminum components to give excellent performance in the most demanding conditions.
A wide range of applications, including food processing and scientific equipment will benefit from the SL2 system's combination of smooth, precision, low friction movement with long service life and a high level of corrosion resistance.
• Hardened and precision ground slideways for maximum reliability
• Quality bearings with Hepco's proven cap seals for long system life
• Self cleaning and maintenance-free - performs in arduous conditions or clean rooms
• Interchangeable with Hepco Generation II
• Dirt traps are removed by plastic plugs in all counterbores
• Supplied as a complete assembly or in part form
|
|
X RAIL, new linear bearing X RAIL in 2 versions: stainless steel or zinc plated steel.
X RAIL is a simple and cost effective linear bearing for applications where good load capacity and corrosion resistance are most important.
X RAIL is available in two different versions:
X RAIL in stainless steel version (TEX rail, CEX slider)
X RAIL in zinc plated version (TES rail, CES slider)
Both versions are in three different sizes: 20, 30 and 45mm base.
X RAIL in stainless steel version - This series is a simple and cost effective linear bearing for applications where corrosion resistance is most important. Advantages:
- Corrosion resistant even after scratching, etching, and chipping
- Can be used in washdowns
- Resistant to high temperatures and temperature changes
- No coatings that could flake or chip
- Low coefficient of friction
- Ecological and recyclable materials
The contoured rail is made of AISI316L stainless steel and comes in lengths up to 3 meters (9’10”). The raceways are internal for better protection and compactness.
The rails come with standard mounting holes with a hole pitch of 80 mm (3.15”).
|
|
Guideline aluminium profile roller guides provide smooth operation and high load carrying capacity for industrial automation.
By use of light weight aluminium components the moving masses are reduced, travel speeds are increased and actuation energy is saved.
The orientation of rollers enables the system to carry high loads in all directions, and the options of single or double rail versions provides flexibility to suit wide spread applications.
|
|
|
|
