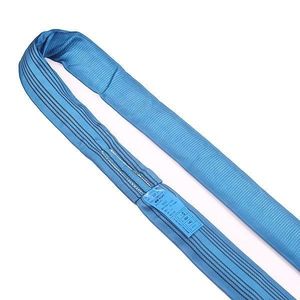

*Round sling According to EN 1492-2:2000
1.Color code, in according with international standard, to validate sling capacity.
2. Special thickness sleeves and special technical to add using life.
3. Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4. 100% polyester has less then 3% extension at rated capacity, and will return originally length, and 9-12% extension at break.
5. Change-bearing point to add using life.
6. Working temperature range: -40C-100C.
Round sling is an all-purpose lifting sling, which is both high strong and nondamaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted.
Round sling is a continuous loop made from polyester yaen encased in a sleeve of polyester or Nylon fabric. The sleeve is so constructed that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times.
The yarn fibre core is free to spread out into a flat shape where the Round sling is in contact with its load. This provides a broad support, which cushions the load against damage and reduces slipping. The low stretch characteristics of the polyester yarn also prevent 'load bounce' when hoisting very heavy weights.
Manufactured to EN 1942-2, conforming to the CE GS, ISO4878
|
|
| Polyester slings are a smart choice due to their light weight, durability and flexible construction. The sling is dense woven polyester yarn. Web slings provide a degree of protection for loads that require safe and easy handling. The lift weight, flexibility and stretch of synthetic slings reduce fatigue and strain on riggers. Synthetic slings also provide for ease of inspection as well |
|
VIP-Master link single strand VAK 1/2-4
Forged master link specially developed for the 4mm VIP lifting chain
Manufactured in compliance with DIN EN 1677-4.
Suitable for a single - leg central connection.
Can also be used as an end link (Remove the identification tag).
|
|
Grade 80 Chain Slings, Overhead Lifting System ,Chain Slings.
Single Chain Sling, Double Chain Sling, Triple Chain Sling, Quadruple Chain Sling.
Slings General information, Slings Introduction, Chain Sling Fitted with safety hook, sling hook, grab hook, foundry hook.
Coupling link is the main connecting link in the sling's system. |
|
VIP-Mini-lifter VML 2-4 with shortening device
Master link with an integrated shortening option specially developed for the 4mm VIP lifting chain.
Can also be used as a single leg (VIP - Endlink 7990215 assembled at the end of the chain sling as a stop device).
With the pressing of the locking bolt the chain crucifix is freed and the chain can be mounted and respectively be adjusted to the desired length.
Ideal for small loads up to 880 kg (in a 2- leg application).
|
|
Type of webbing sling:

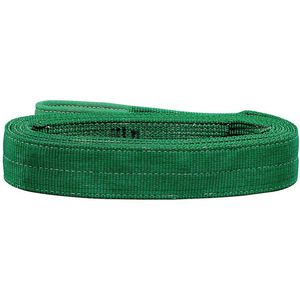

Eye-eye webbing sling (EE)
Flat eye, reversed eye, folded eye 1/2 width from side, folded eye 1/2 from two side, folded eye 1/3 width.

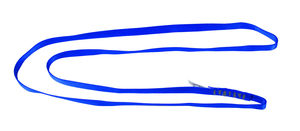

Endless webbing sling(EN)

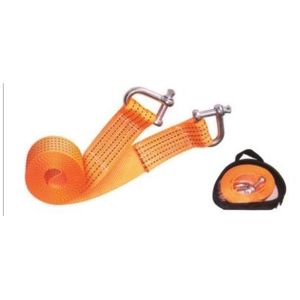

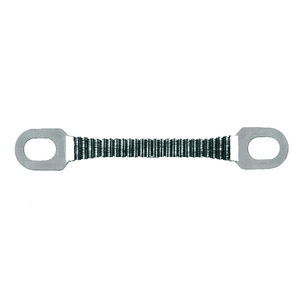

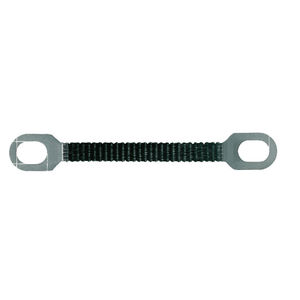

Fitting webbing sling with metal
triangel & triangel
Triangel & choker.

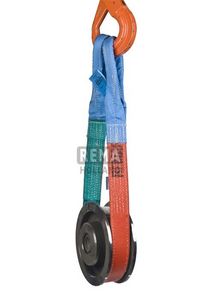

1. Flat web slings are generally constructed of Polyester, Nylon, and Polypropylene material and offer several attractive features, which promote their popularity among rigging products.
2. They are often selected when expensive, highly polished, fragile or delicate loads must be lifted.
3. The softness of the web will not mar, deface or scratch loads, while its flexibility assures a firm, secure grip around the item being lifted.
4. The lightweight of the material, combined with superb flexibility allows the slings to be quickly and safely handled by riggers.
5. Nylon slings may stretch 6-8% at rated capacity, while polyester slings limit stretch to approximately 3% under similar circumstances.
6. Long life cycles may be experienced since synthetic web is unaffected by moisture, mildew, rot and certain chemicals.
7. Slings can be fabricated from single or multiple plies, may include accessories such as edge guard, wear pads or sleeves, and are available in several configurations.
8. Synthetic web slings are manufactured from safety factor 5:1, 6:1, 7:1, 8:1.
www.rigginglifting.com
Toolee Group Inc. qingdao lifting and rigging corp.
|
|
~ Slings are available in many different styles
~ Sizes range from 7/32” through 3/4”
~ Working load limits available up to 91,700
~ Specialty slings built to order |
|
| By using THIELE sling-chains and forged components in quality grade 80 you ensure safety in production, transport and installation of technical facilities and heavy components. THIELE sling assembly system facilitates in addition to the simple self-mounting also a fast alteration when different transport demands are required. |
|
Product Description:
Endura 12 is manufactured from 100% HMPE fiber. The result is a rope that is extremely high strength, very lightweight, and very low stretch. The 12-strand single braid construction is supple, non-rotational, and easily spliced. Endura 12 is ideally suited for wire replacement and where weight is a primary design consideration.
Applications:
Replacement for steel cable
Winch lines
Helicopter lifting lines
Underground pulling lines
Slings
Tug boat tow lines
|
|
| ... products without technical information |
| |

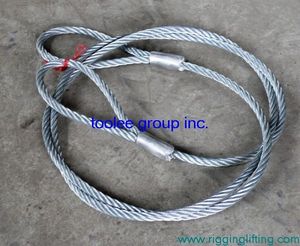

wire rope sling with pressed talurit
Wire rope slings are strong, efficient, and reliable accessories in the material handling industry. Wire rope functions as a excellent sling material in applications where a combination of strength and abrasion are necessary. Wire rope slings are available in an array of configurations to fit almost any application.
Available in standard lengths of 1,2,3,4,5,6,7,8,9,10 metres.
Longer lengths available on request.
Wire rope cable slings can be assembled with standard eyes, thimble eyes or with eye and hook. A wide variety of uses for a single sling.
Standard Carbon or Alloy Swivel Eye Hooks Self Locking Hooks
(Alloy Grade 80) Self Locking Swivel Hooks (Alloy Grade 80) Sorting Hooks (3/4" sling only. WLL applies when lifting at the bottom of the hooks)
The Use Of Wire Rope Slings
The use of steel wire rope slings for lifting in construction and engineering have several advantages. Great strength and minimum of weight combines with good flexibility. Over stress ropes with breaking of outer wire is a clear indication of warning to replace new rope.High reserve strength is provided in the inner wires which are protected by the outer wires.
We offer a complete line of wire rope slings and fittings and these are available to your specification or drawings.
End loop block grip for metal cable
VIDE
For more working load please view: http://www.rigginglifting.com/information/2007-08-05/2007080515.html
|
|
OSR and OSR+C Ring / Outside Swivel ring
Ready to use complement to the OFT and OFT+C
The ring forms an integral part of the ensemble
|
|
