Very High dV/dt for Snubber Applications
Type 943 oval, axial fi lm capacitors utilize ...
With a robust film/paper/extended foil construction,
Type SNU capacitors ...
Type SCRN capacitors are for SCR (silicon controlled
rectifier) commutating applications that ...

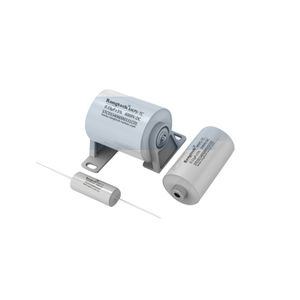

Snubber Capacitor – Axial Leads and direct PCB soldering
Film Dielectric :
Double metallized internal serial film + Metallized Polypropylene Film
Application :
- power supply, SMPS snubbering circuit and ...
Typical Application :
* handle high peak surge current, RMS current and surge voltage
* GTO and IGCT Snubber ...
IGBT Snubber Capacitor : SMKP2 series
Typical Application :
* For protection against voltage transients in low to medium current IGBT modules and applications ...
Technical Data
1. Dielectric: Polypropylene film.
2. Encapsulation: Flame-retardent plastic case, UL 94 V-0,
3. With epoxy resin seal: Black.
4. Temperature range: 25°C to 70°C
5. Capacitance range: 0.1 ~ 4.7µF.
6. Rated working voltage range: 1000V, 1200V, 1600V DC
7. Test category: ...
Specifications
1. Operating Temperature : -40°C ~ +90 °C
2. Capacitance Range : 1.0 ~ 80.0 µF
3. Capacitance Tolerance : J = ± 5%, U= 10 ~ - 5 % , K = ± 10%.
4. Rated Working Voltage Range : 250 ~ 500 Vac 50/60 Hz
5. Withstand Voltage Test : ( A ) ...
The new 926 Series IGBT Snubber
Capacitors were designed for AC and
pulse applications. A wide range of
rectangular epoxy case sizes are
available with tinned copper lugs.
Wrap and fill design ...
IGBT Snubber capacitors series
Metallized film, UL94V-0 resin end filled, ...
