TMC has offered custom acoustic enclosures for our equipment maker customers for many years. These enclosures are highly engineered and uniquely suited to the specific tool being isolated.
End-users, however, were placed in a position of having to design their own acoustic enclosures for their unique applications. Given the level of design involved, this was impractical. Demand arose for a standard, "off-the-shelf" TMC enclosure incorporating many of the features of our custom enclosures with the practicality of a single, multi-purpose design. The 83-500 Series Acoustic Enclosure was designed as this multi-purpose acoustic enclosure.
|
|
Series CR
-Transparent PVC cover in two halves.
-Made with painted or stainless steel.
-Other sizes on demand.
-Sizes A-B-C must be specified in the order.
Series CP
-Side PVC panels fixed with screws (hinged on demand).
-Upper Lexan panel fixed with hinges.
-Polyurethane internal coating on demand.
|
|
Technical specification

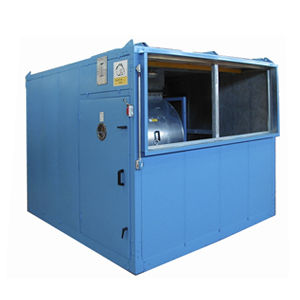

•sound-proofing enclosure with casing made of approx. 1.2 mm thick, sendzimir-galvanised steel sheeting
•self-supporting frame made from aluminium profile with a closely-fitting edge-protection seal
•non-imflammable mineral wool filling covered with perforated steel sheeting
•removable side panels
•wall thickness 45mm
•convection cooling or forced ventilation with silencer
•Insertion loss of the enclosure: approx.25 dB
|
|
Optimal characteristics of fonoisolamento and bi-absorption, with structure carrying in outlined of aluminum, completely smontabile, equipped of wheels in piroettanti nylons.

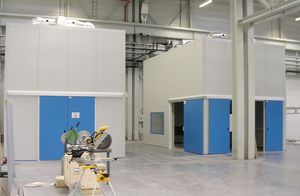

The used modular acoustic panel is the Ekokit 300/D.
The panel is realized in steel to elevated resistance, sturdy but light: this of it favors the movimentazione it puts down and it.
The technical characteristics, the lateral splice to joint and the series of profiles and accessories available allow a fast and effective installation.
|
|
