The panel-mount BD series stores 32 different sounds in one unit conveniently arranged for playback suitable in noisy factories.
* Size: 80mm square.
* 32 sounds are pre-recorded in one unit.
* 3 sound types are available.
* Maximum output level of 90dB at 1m is suitable for use in noisy factory.
* Sound volume and sound group can be selected by rotary switches stored behind the front cover for easier operation.
* Select one sound group from A to P to play back 4 pre-recorded sounds (bit input).
* Body color is available in ivory white and dark gray.
Available by Special Order
* Binary input controlled 15 sound playback type (C0090).
|
|
The panel-mount BK series stores 32 distinctive sounds in one unit, and 95dB high sound pressure is ideal for use in a noisy factory.
* Size: 120mm square with low profile body
* Available in 12-24V DC, 100V AC and 220V AC versions
* 32 sounds are pre-recorded in one unit
* 4 sound types are available
* Maximum output level of 95dB at 1 meter is suitable for use in a
noisy factory
* Sound volume and sound group can be changed by rotary switches
stored behind the front cover even after installation
* Select one sound group to play back 8 sounds by bit input or 32
sounds can be played back by binary input
* Body color is available in ivory white and dark gray
Available by Special Order
* PNP open collector transistor type
|
|
|
The STARLINE range of loudspeakers was designed not only for acoustic signalling and emergency communications but also for speech transmission under rugged environmental conditions in potentially explosive areas of group II. The protection degree allows the loudspeaker to be used in the hazardous areas of zones 1 and 2 or 21 and 22. Explosion protection is guaranteed, among other things, by the terminal box of the increased safety protection type. The transformer module is encapsulated by means of a sealing compound, making it gas-tight. The acoustic pressure chamber is isolated from the environment via a special filter (sinter metal). The housing is made entirely of thermoplastic, thereby ensuring a high level of protection against corrosion. An equipotential bonding is unnecessary.
|
|

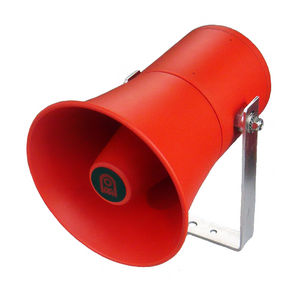

The BEx explosion proof alarm horns are available in two output levels, 117 dB(A) and 123 dB(A) @ 1m. They are designed for installation in Zone 1 & 2 (BExS110/BExS120) and Zone 21 & 22 (BExDS110/BExDS120). Both models are available in EEx d and EEx de versions.
Features:
- Suitable for Zone 1, 2, 21 & 22
- EEx d and EEx de versions
- ATEX, GOST-R, IECEx approved
- Dual M20 cable gland entries
- Large termination areas
- Ratchet adjustable mounting brackets
The BEx range also includes:
- 5, 10, 15 & 21 Joule Xenon beacons
- High output L.E.D beacons and status lamps
- 15 & 25W loudspeakers (100V, 70V line & 16R, 8R)
- 'Appello' speech and tone voice annunciation models
- Audio-visual combination units
|
|
|
The EEx Sounder dEV 21 is a signalling device that generates various signalling tones and signalling tone sequences and emits them at a high sound pressure level. The user may choose between 31 preset signalling tone groups and one programmable one. Every signalling tone group contains 4 different signalling tones. Wire the control inputs with floating contacts or jumpers in order to chose any one of these 4 signalling tones. The sounder has 8 volume levels. All outer fastening parts are made of non-corrosive materials. The stable, all-plastic housing conforms to protection degree IP 66, which means the sounder can be installed both indoors and outdoors. Explosion category II 2 G EEx dem IIC T6 allows the sounder to be operated in hazardous areas of zones 1 and 2.
|
|
Over the last 15 years the AlertAlarm and AlertAlight ranges from E2S have become the standard for industrial signalling. With outputs from 104dB(A) to 126dB(A), the ranges provide heavy duty signals which are ideal for fire, security and industrial process applications.

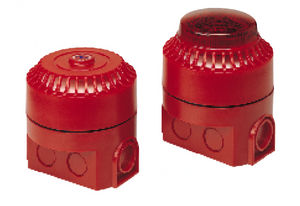

Combining the alarm sounder of the AlertAlarm range with the L101 series beacon, the AlertAlight range provides a versatile audible and visual signalling solution.
Features:
- 32 or 45 tones (meeting European Standards)
- Outputs from 104dB(A) to 126dB(A)
- EN54-3 tested CPD compliant
- 3 stage alarm option
- UL listed versions available
- ABS UL94V0 housings
- Sealed up to IP66
- Available with 5 Joule Xenon, filament bulb or L.E.D. beacon (AlertAlight range)
|
|
The SpectrAlarm range from E2S has been designed to offer high performance audible and visual signalling in a single unit. Sound outputs of up to 126dB can now be combined with a powerful beacon from a choice of rotating mirror, flashing xenon or LED technologies.
Features:
- Three sizes of sounders: 112db(A), 119dB(A) and 126dB(A) @ 1m
- Three types of beacons: 5J and 15J Xenon strobe, multifunction LED, 20/25W and 35/40W rotating halogen beacon
- 45 alarm tones (UKOOA/PFEER compliant)
- 3 stage alarm option
- Volume control
- Automatic sounder synchronisation on multi-unit systems
- Beacon manufactured from UV stabilised polycarbonate
- IP65
- The sounder and beacon can also be connected separately
|
|
The IS-mC1 combined alarm sounder & L.E.D. beacon has been designed for installation in intrinsically safe environments (Zone 0). The IS-mini range also includes stand alone intrinsically safe alarm sounders and L.E.D. beacons and is definitely the most effective method of signalling in Zone 0.
Features:
- Zone 0, 1 & 2
- EEx ia IIC T4 (Tamb.-40 to +60°C)
- Maximum 100dB(A) output
- 49 alarm tones, 3 alarm stages
- Array of 6 high intensity L.E.D's
- Sealed to IP65
- ATEX, FM, IECEx
|
|
Federal Signal introduces the Model LP4 low profile, electronic piezo sounder. The LP4 is a compact multi- tone sounder ideal for OEM and general alarm applications.
- Operates on 9- 28VDC
- Choice of 28 tones
- Produces 82- 100dBa @ 10' (92- 110dBa @ 1m)
- Compact size - 3" tall x 3.66" wide
- Panel or wall mount
- PLC compatible
- CE Compliant
- Type 4X, IP54 (IP65 with optional deep base)
|
|
For optional installation in signalling devices. Cabinet of aluminium.
- Load rating: 25W
- Impedance: 8 Ohm
- Sound pressure level (1W/1m): 105dB / 112dB @ 1500Hz
- max. Sound pressure level (1W/1m): 120dB
- Frequency range (-10dB): 620-12000Hz
- Transmission angle: 90° / 90°
- Dimensions (mm): 110x80
|
|

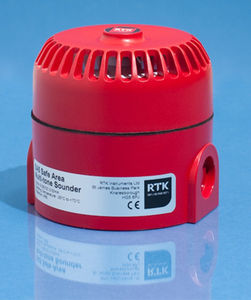

The DB5 intrinsically safe multitone sounder is ideally suited for use in areas of high ambient noise. Additionally, for extreme noise levels, they can be linked with the DA134 Xenon Beacons to combine audible and visual warnings. They are designed with a re-entrant configuration to combine compactness with maximum efficiency.
One of 26 tones can be selected using a 5-way DIL switch and by switching the incoming negative supply to a third terminal a second tone is sounded. The sounders have suitable low frequencies to conform to BS 5839: Part 1: 1988, making them ideal for fire alarm systems and other annunciator applications.
The IP65 enclosure enables the DB5 sounder to cope with the harsh environmental conditions found offshore as well as those of the onshore oil, gas and chemical industries. The tough construction enhances the reliability of the solid-state piezoelectric sounder.
|
|
|
|
|
|
Multi-Tone Sounder in Unique Design
The Multi-Tone Sounder 144 is an ideal complement to WERMA’s existing product range, impressing with its high sound output and simple mounting. During the development of this audible signal device special emphasis was placed on an elegant but nonetheless functional design suitable for an industrial setting.
114 dB sound output for a wide range of signalling
In operation the new Multi-Tone Sounder generates a sound output of 114 dB. A total of 32 different tones are available for a diverse range of applications. In addition to continuous and alternating tones in a range of frequencies, a large selection of defined, international signal tones are also available.
The tones can be quickly and simply set via DIP-switches, furthermore, 3 tones can be triggered externally via separate terminals.
Simplest possible mounting in 4 steps
WERMA consciously designed the Multi-Tone Sounder and the optical-audible combination in order to ensure quick and easy mounting in just 4 steps: Simply fix the base in the required position, insert the connection cable and attach. Finally, snap the upper part of the sounder into place and secure it to the base with the screws provided.
The different mounting options (wall, floor or ceiling mounting) guarantee optimal sound propagation for the Multi-Tone Sounder as well as the best possible visibility for the LED double flash.
|
|
|
|
|
|
Sonos Beacon (DC)
A general purpose beacon for fire, security and industrial applications.
- Simple 'First Fix' installation (no second fix wiring)
- Smooth flow cabling for faster installation
- Quick connect/disconnect
- No locking screw required
- Weatherproof to IP65 (deep base units)
- High efficiency LED beacon consumes less than 5mA
- Low current LED beacon as standard (xenon beaconavailable on request)
Overview
A general purpose beacon for fire, security and industrial applications.
With the TimeSaver base, connections are made to the base during the initial wiring phase which results in faster and more reliable installation. The beacon head 'twists and clicks' into the base on commissioning, avoiding the wiring and connection problems associated with traditional beacons.
Deep base units have weatherproof protection to IP65 and can be used in all locations both indoors
and outdoors.
The Sonos Beacon utilises a full faced, translucent case which provides a much larger lens area and a greater spread of light.
Sonos Beacon units have a red colour base as standard and are available with a red or amber lens.
|
|
|
|
|
|
Multi-Tone Sounder 139 and 141 and
Flash/ Multi-Tone Sounder Combination 439 and 441
Whether in automated equipment or building installations, across a diverse range of industrial and commercial settings, audible and optical-audible signals are indispensable in today’s world.
Loud multi-tone sounders 139 and 141 with 32 different tones
The multi-tone sounders 139 and 141 from WERMA Signaltechnik provide 32 different tones and frequencies for a diverse range of applications. In addition to continuous and alternating tones in a range of frequencies, the new multi-tone sounders also provide a large selection of defined international standard tones. The sound output can be adjusted in accordance with the ambient noise up to a level of 110 dB (Multi-Tone Sounder 141), or 105 dB (Multi-Tone Sounder 139).
Multi-tone sounders in combination with light intensive xenon flash
Many applications call for the reinforcement of the audible signal by an optical signal. WERMA’s optical-audible combinations 439 + 441 provide the optimum solution: A loud multi-tone sounder in combination with an intensive xenon flash.
These flash/multi-tone sounders, in addition to an innovative and attractive design, can also generate a flash energy of up to 2.5 Ws (Combination 441), or 1.6 Ws (Combination 139). In addition, 2 tones can be triggered externally and the optical and audible signals can also be triggered separately.
|
|
Sonos Sounder Beacon (DC)
A general purpose electronic sounder for fire, security and industrial applications; the Sonos Sounder Beacon is certified to EN54.
- Simple 'First Fix' installation (no second fix wiring)
- Smooth flow cabling for faster installation
- Quick connect/disconnect
- No locking screw required
- Tone and volume can be preset or adjusted off-base
- Weatherproof to IP65 (deep base units)
- Choice of lens colours
- Low current LED beacon as standard (xenon beacon available on request)
- Sounder and beacon can be controlled separately
|
|
|
|
|
|
The Nexus voice sounder combines normal sounder signals with clear, synchronised voice messages for a wide range of commercial and industrial applications.
- Choice of up to 4 messages from standard message library
- Clear and precise warning messages for various industrial and commercial applications.
- Individual messages preceded by dedicated selectable tones and or/ flashing beacon
- Automatic synchronisation
- IP66 rated
- 5J Xenon beacon option
- First-fix, wire to base technology
Nexus voice sounders combine normal sounder signals with a clear, synchronised voice message to help reduce confusion and distress during an active alarm.
Standard units are available with 4 pre-programmed messages, selected from an extensive message library covering almost any conceivable application. Bespoke messages are also available on request.
Combined with a xenon beacon the Nexus sounder is DDA compliant giving a clear voice message, powerful alarm tone and high output beacon for clear and effective warning.
All Nexus voice sounders have a USB interface that allows special messages in WAV format to be downloaded onto the sounder from any PC, providing users with the flexibility of adding/removing messages in-house.
|
|
For the past 50 years we have been active as a systems house offering mechatronic solutions. In close collaboration with our customer we have implemented many ideas into new products.
In the following areas we have found optimal economic solutions for our customers
- Input systems for machinery and plants
- Special controllers in cleansing and medical technology
- Electronic step switching movement of machinery control units
- Ergonomic handheld systems for customised applications
- Digital sound generator in rail traffic vehicles
|
|
The BDV series stores up to 15 voice message / sound data with 63.5 seconds of total recording time, and compact box design is ideal for use with control panels or production equipment.
* Size: 80mm square
* Available in 12-24V DC and 100/220V AC versions
* Total recording time of 63.5 seconds (64kbit/s) can be divided up to 4 channels by bit input or 15 channels by binary input
* Voice message / sound data is field-programmable with SD card (SD card is sold separately)
* Maximum output level of 87dB at 1m is suitable for use in noisy environments
* Sound volume and playback mode can be easily changed by rotary switches stored behind the front cover even after installation
* Front panel color is available in ivory white and dark gray
|
|
The BKV series stores up to 31 voice message / sound data with 63 seconds of total recording time, and high sound pressure of 95dB is ideal for use in noisy environments.
* Size: 120mm square
* Available in 12-24V DC, 100V AC and 220V AC versions
* Total recording time of 63 seconds (64kbit/s) can be divided up to 5 channels by bit input or 31 channels by binary input
* Voice messages or sound data is field-programmable with SD card (SD card is sold separately)
* Maximum output level of 95dB at 1m is suitable for use in noisy environments
* Sound volume and playback mode can be easily changed by rotary switches stored behind the front cover even after installation
* Front panel color is available in ivory white and dark gray
|
|
| ... products without technical information |
| |
The IS-mC1 combined alarm sounder & L.E.D. beacon has been designed for installation in intrinsically safe environments (Zone 0). The IS-mini range also includes stand alone intrinsically safe alarm sounders and L.E.D. beacons and is definitely the most effective method of signalling in Zone 0.
Features:
- Zone 0, 1 & 2
- EEx ia IIC T4 (Tamb.-40 to +60°C)
- Maximum 100dB(A) output
- 49 alarm tones, 3 alarm stages
- Array of 6 high intensity L.E.D's
- Sealed to IP65
- ATEX, FM, IECEx
|
|
Sonos Sounder Beacon (DC)
A general purpose electronic sounder for fire, security and industrial applications; the Sonos Sounder Beacon is certified to EN54.
- Simple 'First Fix' installation (no second fix wiring)
- Smooth flow cabling for faster installation
- Quick connect/disconnect
- No locking screw required
- Tone and volume can be preset or adjusted off-base
- Weatherproof to IP65 (deep base units)
- Choice of lens colours
- Low current LED beacon as standard (xenon beacon available on request)
- Sounder and beacon can be controlled separately
|
|
|
|
