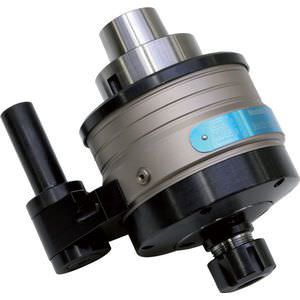

High Spindle speed increasers maximize the performance of your high efficiency cutting tools developed for advanced high speed machining by increasing their spindle speeds to higher levels. Continuous use of machine spindles at high revolutions results in shorter life span of the machine spindle due to excessive load to its motor and bearings. High Spindle Speed Increasers reduce this load and greatly extend the life of the expensive machine spindle.
|
|
MAXIMUM RPM 24,000
MAXIMUM TORQUE 10 Nm (15,000 RPM)
GEAR RATIO 1:1
WEIGHT Approx. 12 lbs.
TOOL OUTLET ER 16
Ideal for engraving applications which require a higher rotation speed than your spindle motor can deliver, this unit can be equipped with an increased gear ratio that is sure to fit your needs. For applications which require low output speeds, the use of this aggregate with a gear reduction system will not cause you to sacrifice torque and horse power as the spindle motor can still run in it's optimum operating range.
|
|
