Magito

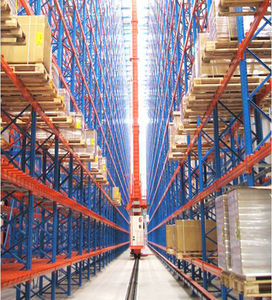

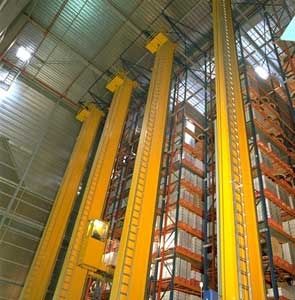

The single-mast stacker crane MAGITO now offers the familiar top performance of the Mustang for heights of up to 18 m. A new construction concept for the mast head provides for additional stability, which allows the device to optimally bear the high speed and accelerations. The MAGITO can be combined with all standard load handling devices and is thus suitable for all applications between 14 and 18 m.
|
|
Automated storage and retrieval systems (AS/RS, Stacker Cranes) are one of our core product lines. We have experience in this technology since 1962, when we realized the first high bay warehouse in Europe.
We deliver stacker cranes for pallets as well as for cartons and boxes - also for double deep storage.
|
|
ALSTEF is the French leader in automatic pallet storage with more than 1,000 storage and retrieval machines in service :
Single or double depth stacker-cranes
Mono or bi-pallet stacker-cranes
Curve stacker-crane (transferring, switching)
A complement to traditional storage functions, these technologies are perfectly suited to :
- Negative or controlled temperature warehouses,
- Bufferstock with rapid turnover,
- Supply of order preparation stations integrated in or exterior to storage,
- “Pick to pallet” or "pick to belt" order preparation: the MP@C concept.
|
|
|
|
|
|
Where massive storage of components, parts, tools, or spares is needed,
the SILO is the solution.

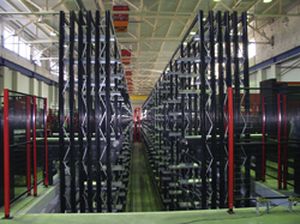

A compact, high density storage solution, the SILO is based upon two parallel racking structures that can be up to 10 metres high. The racks of the SILO are loaded with trays or drawers, adapted to fit the desired contents (with general purpose or bespoke dividers, slots, bins boxes...). The SILO offers a capacity that is quite substantial, to be measured often in hundreds of cubic metres. By making full use of available height, this solution makes much more efficient use of floor areas than traditional shelving systems.
The SILO is a robotic filing solution : a carriage on board a crane runs down the central corridor and retrieves the requested drawer and brings it to a workstation (there may be several). Picking thus is made much more efficient, and the number of operators required to do a given number of picks (or loads) a day is substantially lessened.
The SILO is a computerised solution: hence errors, missing items, and other incidents are sharply curtailed, and traceability of transactions can be made integral. This improves quality and productivity of warehousing or order preparation services.
The SILO is a securitised, environment-controlled solution: as imposed by a specification to be agreed upon with the user, it is possible to include humidity and temperature control, and obviously also a system to make storage fireproof.
|
|
ALSTEF is the French leader in automatic pallet storage with more than 1,000 storage and retrieval machines in service :
Single or double depth stacker-cranes
Mono or bi-pallet stacker-cranes
Curve stacker-crane (transferring, switching)
A complement to traditional storage functions, these technologies are perfectly suited to :
- Negative or controlled temperature warehouses,
- Bufferstock with rapid turnover,
- Supply of order preparation stations integrated in or exterior to storage,
- “Pick to pallet” or "pick to belt" order preparation: the MP@C concept.
|
|
High performance automated stores with static shelves or dynamic corridors for paperboards, vats, plates
- Provisioning of production lines
- Preparation of orders
- Scheduling, sequencing, regrouping
- Devices of gripping for all types of loads
- Specific Stations of picking
- Safety of the people and the products
- Integrated Management system
|
|
|
|
|
|
System Logistics designs and builds stacker cranes especially developed for any need of vertical automatic warehouse to store different types of loading units (UDC). The stacker cranes handle loading units inside the lanes among the racks, picking them from the suitable stations of the handling system and laying them in the storage units, and vice versa. They are equipped with one or more collecting parts suitable to the different features of the loading units.
The stacker cranes enable completely automatic, fast and safe handling movements.
System Logistics produces many versions inside two main families; all of them can be configured according to the needs of each individual project:

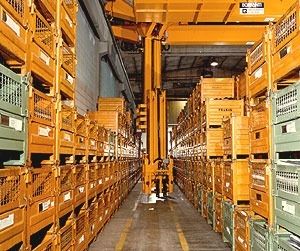

ROBOSTORE
They are high-performing stacker cranes (with single or double mast) suitable for handling medium and heavy loads in ambient, cooled or drilled conditions:
• Type of loading units that can be handled: pallets, metal or plastic cases, frames and other
• Maximum load capacity: from 600 to 3000 kg
• Max. height: up to 36 m
• Max. horizontal speed: up to 4 m/s
• Load collection devices: telescopic, single or double-depth forks, multi-depth satellite trucks
MINISTORE
They are top performing stacker cranes (with single or double mast) suitable for handling light loads:
• Type of loading units that can be handled: metal or plastic containers, boxes, trays and other
• Maximum load capacity: up to 500 kg
• Max. height: up to 22 m
• Max. horizontal speed: up to 5.5 m/s
• Load collection devices: telescopic forks, single bench,
grips or drives, etc...
|
|

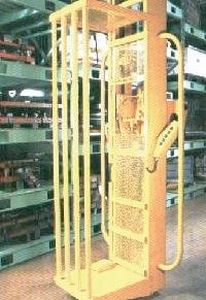

Stack-U-Rak rack supported stacking system with integral crane lets you make efficient use of valuable floor space.
It can be used to protect tools, dies and fixtures or to organize components, subassemblies and work-in-process.
It simplifies the handling of heavy items, speeds storage and retrieval, and ends long waits for lift trucks.
Integral pallets are vertically adjustable and feature a foolproof engagement design. They are available in a wide range of easily customized styles to meet your specific needs.
|
|

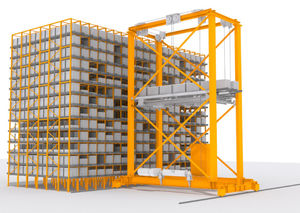

·Ideal space utilization with operating gantry crane traveling on top of superstructure
·Heights from 4 to 20 m
·Storage volume up to 8,000 tons
·Loads up to 5 tons/cassette
·Up to 32 picks/hour
·Cassette lengths from 3 to 12 m
·„Rack supporting building„ design available
·Integrated scales (optional)
·Integration with KASTO CNC-saws (optional)
·With undercarriage: Fast commissioning system
|
|
| ... products without technical information |
| |
|
|
|
|

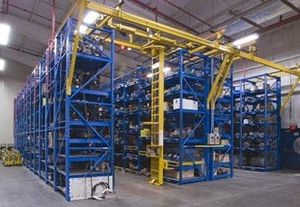

Storage and retrieval of heavy, bulky items has never been easier! With the Stanley® Vidmar® STAK System®, one operator can efficiently manage loads weighing up to 4,000 lbs.—all in less than 250 square feet.
Based on a system of removable, adjustable pallets (instead of fixed shelves) and a captive lifting and handling device, the STAK System® helps maximize storage density by minimizing the vertical space requirements of each stored load. Each stored load has its own special location, so you can store or retrieve it in less than 2-1/2 minutes—regardless of its size, shape, or weight!
Captive lifting and handling device that saves space, saves time, and boosts productivity

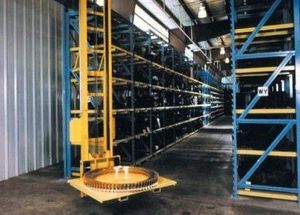

Ideal for work-in-process, maintenance, motor storage applications and tire storage
STAK System® rises 16 feet above the ground but has a small overall footprint, maximizing vertical space, saving valuable floor space, and getting large items off the floor
Aisle space requirements are narrower than those required by using a conventional forklift
Handling device maneuvers on four axes, creating total 360 degree flexibility
STAK System® can be easily expanded as your needs grow
Specific 2,000 or 4,000 pound systems
|
|
|
|
