What does it do?
- Our Row Stacker allows you to side-load a variety of packaged products in a single vertical row, directly into cases.
How does it work?
- Product is pre-staged then transferred into a holding cassette. The product accumulates in the cassette until a full case load has been reached. The empty case is tipped towards the cassette and product is side pushed into the pre-tipped case.
What can I pack?
- Ideal for pillow bags and gussetted pouches into one row formations, such as 1 x 12, 1 x 6, etc.
How productive is it?
- This system is proven itself in production, at rates up to 120 BPM.
|
|
Design Features:
G.N. stacking units can easily be attached to any G.N. thermoformer to create a completely automated and efficient high speed thermoforming production system.
G.N. stacking units accurately count, stack and deliver the formed parts onto the receiving table.
|
|
Products finally must be removed from the end of every automatic line; this can be done by hand or you can choose Bewo's automatic stacker.
The SCP stacker is an excellent solution.
|
|
High-Speed Case StackerHigh Speed Case Stacker from Westfalia Deam
Stacking speeds up to 30 cases per minute
* Variable stack heights
* Air powered with integral air reservoir
* Air values mounted in stainless steel enclosure
* Installs easily over existing case conveyors
* Options:
o Available in 16 and 24 quart versions
o Comes in left or right hand versions
|
|
- For empty or full small boats.
- Stacking multi layers
- Multi formats
OTHER SERVICES
- Elevator, chute to mount or descend one or more small boats on a different level.
|
|
| ... products without technical information |
| |
The GN Robotic Stacking unit is a complete product handling system designed to improve the performance of the GN thermoformer.
Vacuum cups attach themselves to the product prior to stripping from the web and places the parts in stacks.
Design Features
- Ensures consistent part separation from web
- Simple, inexpensive tool specific change parts
- 5 minute set-up
- User friendly operation
- Easily adapts to existing GN thermoformer
|
|

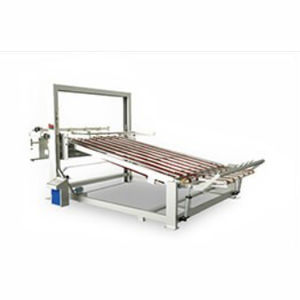

AUTOMATIC STACKER
* All sections framework.
* Length 2 to 6,5 m.
* 4 to 5 layers / min.
* In option : setting to length before stacking.
|
|
| ... products without technical information |
| |
CURTAINS CUTTING MACHINE
Used by wholesalers, textile companies and curtain manufacturers.
Useful width 3m500
Pull, measure and cut at programmed lenght
Rear craddle for the main roll
An inspection table top with optional back lighting screen
A digital progammable counter
A round knife cutting machine guided in a rail
Each sheet fall down into a bag in front of the machine
4 heavy wheels to move the machine
|
|
| ... products without technical information |
| |
Batch terminal
The batch terminal serves for the stacking of big packages for the laminated storage in trucks or journals and is offered as accessorie for conveyor belts,
weight categories up to 100kg per package
vertical lift up to 4 meters
dimension of the packages: from 400mm x 400mm x 400mm up to
1200mm x 1200mm x 1600mm
It is also possible to link it in manual workspaces.
|
|
Batch terminal
The batch terminal serves for the stacking of big packages for the laminated storage in trucks or journals and is offered as accessorie for conveyor belts,
weight categories up to 100kg per package
vertical lift up to 4 meters
dimension of the packages: from 400mm x 400mm x 400mm up to
1200mm x 1200mm x 1600mm
It is also possible to link it in manual workspaces.
|
|
|
|
|
|
RAVAS supplies a complete range of scales for mounting on forklift trucks.
RCS system
For simple check weighing, where a high accuracy is not required, there is the RCS hydraulic load indication system. With the RCS an oil pressure sensor is installed onto the hydraulic circuit of the forklift by means of a T-coupling. The indicator in the cabin translates the measurement into a weight indication of the load on the forks. The RCS has a limited accuracy, with a possible error of maximum 2% of the lifting capacity of the truck.
The system is meant for simple check weighing, such as the checking of incoming goods, and for avoiding the overloading of lorries, warehouse racking and the forklift truck itself.
RCS PLUS system
The RCS PLUS is an accurate hydraulic weighing system for forklift trucks. On a forklift truck with a capacity of 2.500 kg the weight graduation is displayed in steps of 2 kg, with a 5 kg tolerance (+/- 0.2%). The RCS PLUS weighs by measuring the pressure in the hydraulic lifting system of the forklift truck, via a temperature compensated sensor on a valve block.
During a controlled descent of the mast the pressure in the hydraulic system is measured repeatedly, the software translates these measurements into an accurate weight indication of the load on the forks.
|
|
RAVAS supplies a complete range of scales for mounting on forklift trucks. For simple check weighing, where a high accuracy is not required, there is the RCS hydraulic load indication system.
An oil pressure sensor is installed onto the hydraulic circuit of the forklift by means of a T-coupling. The indicator in the cabin translates the measurement into a weight indication of the load on the forks. The RCS has a limited accuracy, with a possible error of maximum 2% of the lifting capacity of the truck. The system is meant for simple check weighing, such as the checking of incoming goods , and for avoiding the overloading of lorries, warehouse racking and the forklift truck itself.
|
|
Bruss hydraulic weighing system - model MHW
The Bruss MHW system is an oil pressure based weighing system which gives a cost effective way to weigh all your loads on your forks. You lift the load to a designated level and manullly lower the forks to a referance point - the MHW software takes and calculates the right weight and shows it in the display you can also use the system for overload protection - an optional warning buzzer stops the operator from handling the heavy load. With Bruss weighing on wheels you are a weigh ahead !!
|
|
Hydraulic fork lift truck weighing system MHW+
The Bruss MHW+ is an oil-based weighing system for fork lift trucks with superior accuracy combined with extreme ease of use. With this instrument you will no longer recieve incorrect values in your warehouse and your people can accuratly inform the transport company about the weight of the goods.
Dangerous heavy loads are spotted directly and can be dealt with accoordingly. Safety First!
The Return on investment is unique in the branche - ask your Material handling dealer for a quote. The MHW+ lowers the forks for 4 seconds and weighs the goods while in motion.
This ensure an accurate measurement of the oil pressure which are converted into kilograms.
With a Bruss MHW+ any weight is the right weight.
Bruss Weighing on Wheels
|
|
The RCS-110-PLUS is an accurate hydraulic scale for counterbalanced trucks and reach trucks. On a forklift truck with a capacity of 5,000 lbs the weight is displayed in steps of 5 lbs, with a + 10 lbs tolerance. The RCS-110-PLUS weighs by measuring the pressure in the hydraulic lifting system of the forklift truck, via a temperature compensated sensor on a valve block.
During a controlled descent of the mast the pressure in the hydraulic system is measured repeatedly, the software translates these measurements into an accurate weight indication of the load on the forks.
The RCS-110-PLUS is an excellent tool for weight checks on a forklift truck, for example at goods reception, when determining shipping weights, preventing overloads on freight trucks, stocktaking, stock control etcetera.
|
|
RAVAS supplies a complete range of scales for mounting on forklift trucks. For simple check weighing, where a high accuracy is not required, there is the RCS hydraulic load indication system.
An oil pressure sensor is installed onto the hydraulic circuit of the forklift by means of a T-coupling. The indicator in the cabin translates the measurement into a weight indication of the load on the forks. The RCS has a limited accuracy, with a possible error of maximum 2% of the lifting capacity of the truck. The system is meant for simple check weighing, such as the checking of incoming goods, and for avoiding the overloading of lorries, warehouse racking and the forklift truck itself.
|
|
