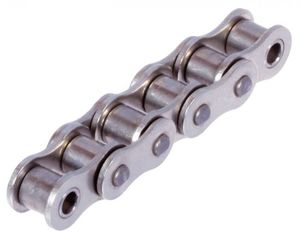

Stainless Steel Chain
Diamond produces a wide range of Single-Pitch Drive and Double-Pitch Conveyor chains manufactured in four combinations of stainless steel depending upon the specific application. AP Stainless Chain: This chain is assembled using 300 Series (austenitic stainless) link plates, bushings and rollers along with a precipitation-hardened stainless steel pin. This combination increases the wear life of this chain over those constructed entirely of 300 Series components. AP Stainless chains are well suited for food processing, and are approved by the Food and Drug Administration. Stainless steel chain comes in 3 different forms known as the 300, 400 and 600 series; contact Diamond Chain for further information.
|
|
Hangzhou Donghua Chain Group Co., Ltd is the biggest chain manufactory in China. This company is specialized in producing all kinds of standard chains and special chains, e.g. A or B series chains, automobile chains, stainless steel chains, combine harvester chains, heavy-duty cranked link transmission chains, stereo garage chains and maintenance-free chains etc.
If you are interested in our products please feel free to contact us by e-mail.
zhangxb@dhchain.com
|
|
The THIELE product range also consists of round steel chains and accessories of corrosion resistant high-grade steels. These are produced according to the following DIN-norms:
- DIN 763: round steel chains, long linked, certificated
- DIN 766: round steel chains, true to gauge, certificated
- DIN 5684-5: hoisting chains
- DIN 5688-5: sling chains grade 5, certificated
- various accessories
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
The FlexLink hygienic conveyor was designed to meet the requirements in the dairy, food, and personal products industries with regard to hygiene, safety, speed, and environment. The hygienic conveyor system uses the standard FlexLink plastic chain, traveling in stainless steel beams where the return chain runs in an enclosed bottom profile.
Main features:
- Easy to clean
- High capacity
- Low energy consumption
- Low noise level
|
|
|
|
|
|
7400 SERIES Straight Plastic Chain Specifications:
Belt widths: 152mm to 1524mm
Lengths: 914mm to 25.4m
Load: 90 kg / square meter of belt
Belt speed: 71 meters/min maximum
Frame material is 304 stainless steel
Bearing material is 400 stainless steel
Bearing lubricant is H1 type FDA lubricant
Wear Strip Material is solid UHMW
Welds are continuous TIG
7400 SERIES Curved Plastic Chain Specifications:
Belt widths: 152mm to 914mm
Total Lengths: 914mm – 30m
Load: up to 90 kg / square meter of belt
Belt speed: 45 meters/min maximum
Frame material is 304 stainless steel.
Degree of curves: 15º - 180º
Features & Benefits:
Frame is constructed of continuous TIG welded 304 stainless steel and is designed with no horizontal surfaces for optimum cleaning.
All bearings are 400 stainless steel, filled with H1 FDA lubricant and mounted in cast stainless steel housings for maximum performance in washdown environments.
Solid UHMW wear strips are easily lifted out of the frame without tools to minimize cleaning time.
Belt tracking mechanism is constructed of 304 stainless steel and is externally mounted to the frame with adequate clearances for cleaning. No external threads are used.
|
|
|
|
