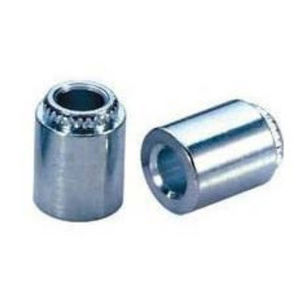

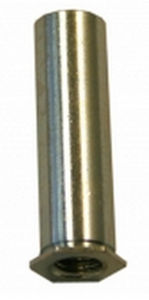

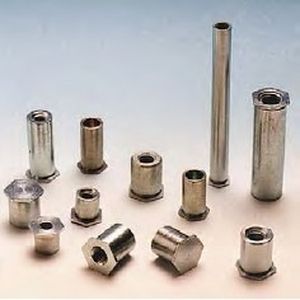

The SPACERFIX™ self-clinching standoff is the solution to obtaining a
spacer function.
SPACERFIX™ is a component that is press-clinched on thin metal sheet.
|
|
Description:
JSOA-3.5 M3-6
Materail: Aluminum
Thread Code: 3.5 M3
Min. sheet thickness: 1
Hole size in sheet: 5.4
Min. Dist Hole C/L To Edge:6.8
L 0.05 -0.13: 6
D Dimension - 0.25:3.5
pfc - 0.13: 3.2
C - 0.13: 5.38
H Nom: 6.4
other sizes are fully available:
440, 6440, 632, 8632, 832, 032, 4116, 6116, 6143, 8143, 8169,8194
M3, 3.5M3, M3.5, M4, M5
JBSO,JBSOS,JBSOA,JBS04,JSO4,JSO,JSOS,JTSO,JTSO,JTSOS,JTSOA.
Features:
1. Having blind end and throughout end two styles, they are used in case and circuit board so that to play the good role of separation and fastness.
2.Can be used on the stainless steel board thickness 0.04"/1mm.
3. Steel, stainless steel and aluminum material are available. "
|
|

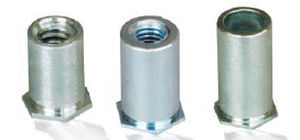

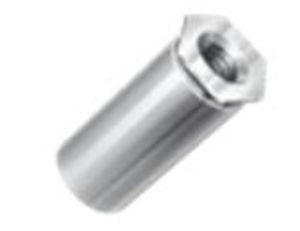

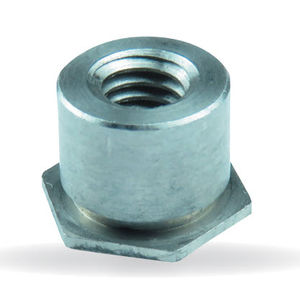

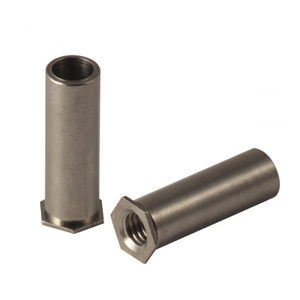

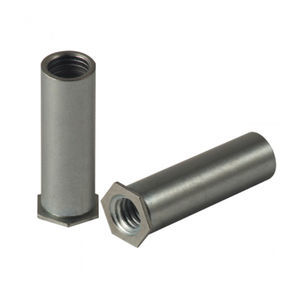

Through Threaded Standoff
EDM-SO,EDM-SON, EDM-SOA, EDM-SOS
Through Standoff for Thin Sheet
EDM-TSO,EDM-TSOS,EDM-TSOA
Standoff for Stainless Steel
EDM-SO4 THRU-HOLE THREADED STANDOFFS
Self Clinching Type Through Standoff
EDM-KFE, EDM-KFSE

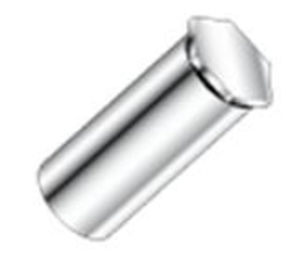

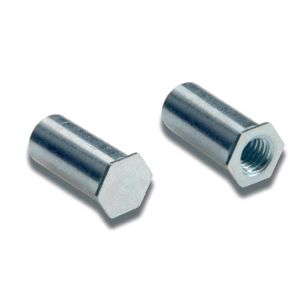

Blind Standoff
EDM-BSO, EDM-BSON, EDM-BSOA, EDM-BSOS
Blind Standoff for Stainless Steel
EDM-BSO4 BLIND THREADED STANDOFFS
Grounding Standoff/Broaching Nut
EDM-SOSG AND EDM-SOAG
Locking Standoff
EDN-CSS, EDM-CSOS
Keylock Standoff
EDM-SKC
Blind Fasteners
EDM-B, EDM-BS
Quick Release Standoff
EDM-SSA, EDM-SSS, EDM-SSC
|
|

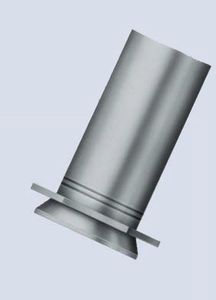

KFB3
For spacing or stacking P.C. boards. Special shank is flared to increase pushout resistance. Thread sizes #4, #6 and M3, M4.
KFE, KFSE
Standoffs available with or without threads for mounting into P.C. boards, for spacing or stacking.Thread sizes #4, #6 and M3.
|
|
