SGR 2/QE B 36-60, Cross Stapling
SGR 2/LE B 36-60, Longitudinal Stapling
Pedestal with 2 side arms for stapling carton blanks, carton trays, carton sleeves etc. made from solid or corrugated cardboard.
Minimum reloading by 2 stapling heads for each 5000 coiled staples.
Max. throat depth: 439 mm
Useful height: 1197 mm
Overall height: 1655 mm
Overall width: 600 mm
Clearance between stapling heads adjustable.
Pneumatic, air pressure 4 - 6 bars
With maintenance unit.
Stapling triggered by security two-handed valve.
|
|
Long-handle staplers are used to close the bottoms of oversized folding boxes and for nailing such boxes onto wooden pallets.
These mechanical staplers are easy to use independently of all energy sources. BL 535 used for strong double and triple-layered corrugated cardboard.
Technical Data:
Dimensions: 150 x 30 x 8 cm
Weight: 3.7 kg
Staples: Wire width 2.4 mm
Crown: 36 mm, leg lengths 30-35 mm
Bottom-stapling:MG® 530, MG® 535
Nailing: M 530, M 535
|
|
For one-handed operation.The operator has one hand free to shape the carton. Empty cartons can be bottom-stapled. Staple from inside to outside.
TOP staples will be automatically clinched within the corrugated section of the under board without clinching anvils, i.e. no damage to the contents and no additional stitching holes next to the staples.
For staples TOP SP 11 for single corrugated cardboard
For staples TOP SP 18 for double corrugated cardbaoard
Weight 2.4 kg, Loading capacity 120 staples
|
|
Blind stapling without clinching anvils, with silencer.
The operator has one hand free to shape the carton.
Empty cartons can be bottom-stapled. Staple from inside to outside.
TOP staples will be automatically clinched within the corrugated section of the under board without clinching anvils.
No damage to the contents, no additional stitching holes next to the staples.
Air pressure: 4 - 6 bars, Weight 2.9 kg,
Loading capacity 120 staples
Staples TOP SP 11 for single corrugated cardboard
Staples TOP SP 18 for double corrugated cardboard
|
|
MEROLOCK 3 soundproofed stapler with 1000 coiled staples is used for closing filled folding boxes made from corrugated cardboard.
Clinching anvils return automatically.
Adjustable penetration depth to match the type of cardboard.
Air pressure 4 - 6 bars. Weight 2.76 kg.
Loading capacity 1 coil CR 1/34 = 1000 staples
|
|
For closing filled folding boxes made of strong double
and triple corrugated cardboard.
King size staples are bent onto anvils. Stapler can be adjusted to different penetration depths.
Weight: 8 kg; dimensions: 34.5 x 46.5 x 19 cm
Air pressure: 4 - 7 bars. Loading capacity 100 staples
JUMBO 32 suitable for staples with 32 mm leg length
JUMBO 38 suitable for staples with 38 mm leg length.
|
|
Tabletop stapler TH 210 for stapling paper packs or thin paste-board (cardboard headers, blister packs) onto polythene bags.
Air pressure 4 - 6 bars. weight 5.2 kg.
Measurements 285 x 270 x 220.
Basic device TH 210/2 equipped with 2 staplers.
Automatic staple triggering at the touch of a contact.
Throat depth 100 mm. With manometer, water separator.
For closed and open clinch.
For staples 66/6 + 66/8 with 12,8 mm crown size,
6 + 8 mm leg length
|
|
Side Arm Stapling Machine ST Q 270 with stapling arm for mechanical or pneumatic stapling carton blanks, carton carrying handles, insert lids, cardboard blanks, trays etc..
Operates staples with 8 – 20 mm leg length and crown size 20 mm.
Staple arm throat depth: 345 mm. Special version ST Q 535 for 35 mm leg length. Staple release by footpedal or footvalve.
|
|
SGR 1 Pedestal with side arm and 1 stapling head for
stapling carton blanks, carton trays, carton sleeves etc.
made from solid or corrugated cardboard.
Staple capacity 5000 coiled staples per head.
Max. throat depth: 439 mm
Useful height: 1197 mm, Overall height: 1655 mm.
Pneumatic, air pressure 4 - 6 bars
With maintenance unit.
Staple release by foot valve.
|
|

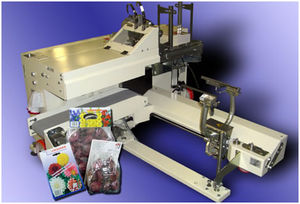

Stapling device as a table-top unit for stapling of cardboard headers onto polythene bags, paper-bags, blister packages and carton strips.
Stapling operations are triggered by contact or optionally by a pedal valve. Can be equipped with 1 up to 3 stapling heads for coiled staples C 13 or D 13.
With maintenance unit (pressure gauge, water separator). Loading capacity: 1 coil M C 30 with 5000 or M D 26 with 7.500 staples. Air pressure: 4 – 6 bars
|
|
For closing filled folding boxes by means of coiled staples designed as blind staples which means that the staples are automatically clinched without clinching anvils.
• Stapling head fires in any position
• No additional stitching holes next to the staple
• No damage to the contents, no risk of injury
• The staple is clinched within the section of the under
board without penetrating completely through
• High loading capacity due to 5000 staples per coil
• Lead sealing effect, i.e. highly theft-proof
|
|
L 323 Single head, foot operated
L 323 D Twin heads, foot operated (2 stapling operations simultan.)
Bottom-stapling folding boxes with joining flaps with stapling pillar for bottom stapling empty folding boxes made from solid or corrugated cardboard.
A rapidly adjustable carton guide stop permits precise stapling over the flap joint: L = length stapling.
Complete with finger protecting device. Depending upon the type of cardboard,different large sized staples can be inserted without adjustment: MG® 312, MG® 315, MG® 320, MG® 323 (for solid and corrugated cardboard with single or double flute).
For max. carton sizes: L 100 x W 68 x H 70 cm including one flap.
|
|
RECORD P 323 SP with 4 stapling heads. 2 staples automatically placed longitudinally, 2 (or more) at an angle of 45° exactly over the carton flap joint.
Pneumatic (4 - 6 bars), complete with maintenance unit.
For bottom-stapling large number of empty folding boxes made from solid or corrugated cardboard which have the same size.
The clinching table is adjustable both longitudinally and laterally and ensures firm support and a correct shape of the box.
Adjustable for box sizes of 30 - 50 cm length and 20 - 40 cm width.
Height max 70 cm including 1 flap.
Capacity: 400 - 500 boxes/hour.
Depending upon the type of cardboard, different large sized staples can be inserted without adjustment, for solid and corrugated cardboard with single or double flute.
Complete with finger protecting device.
Stapling is triggered by two-hand-safety control.
|
|
Stapling Heads for Coiled Staples,
basic versions A, B, C, D
Complete pneumatic stapling and nailing units with automatic feed travel for stationary applications in stapling devices and special purpose machines.
Different models for stapling (with clinching plate) all types of cardboard, paper, plastics, film, leather, etc. as well as for nailing these materials to wood, pressboard, etc.
Available as left or right-hand model (see ill.). Different models available according to staple size.
|
|
Versatile hand stapler for stapling each kind of box blanks, carton trays etc. of solid or corrugated cardboard.
Very strong stapling due to flat by-pass legs 10 - 16 mm.
Available in hand and pneumatic version. Special execution with 250 mm clinching support available.
130/1916 Hand version with 19 cm clinching support, weight 1500 gr.
130/1916 P Pneumatic version with 19 cm clinching support, 2050 gr.
130/1916 PU Pneumatic version with 19 cm clinching support,
Plier with reversed trigger = version PU.weight 2050 gr
Matching MG® Staples leg length according to thickness of cardboard type. MG® 130/10, 12 + 16 mm
|
|
Z 200 ZH 16 Plier
for strong cardboard up to a max. thickness of 30 mm.
For staple: crwon size: 23, leg length 19 - 38 mm.
Large stapling plier ergonomically balanced to staple
large carton trays, telecopic type of cartons, carton lids etc..
Soundproofed. Adjustable throat opening according to
thickness of cardboard.
Air consumption: 1.5 NL/staple.
Weight 3,98 kg, Throat depth: 240 mm.
|
|
forms and staples large carton trays in Semi- and Eurosize in different measurements.
As the output of the machine of 8 -12 trays per minute is four to six times higher than for manual or other mechanical methods the stapling machine can be used to be integrated in the packaging line to supply a particular line or centrally to supply several lines. Turning device for cartonlids optional.
Automatic function: >lifting >feeding >centering >shaping >stapling >ejecting.
|
|
Light Stapling Hammers A 11 for nailing thin materials such as foils, textiles, papers, thin cardboard etc. onto wood. With ergonomic handle. Loading capacity: 168 staples, weight: 960 gm. For staples with 11 mm crown and 6, 8 and 10 mm leg length.
Light Stapling Hammers A 140 for nailing thin materials such as foils, textiles, papers, thin cardboard etc. onto wood. With ergonomic handle. Loading capacity: 150 staples, weight: 1080 gm. For staples with 11 mm crown and 8, 10 and 14 mm leg length.
|
|

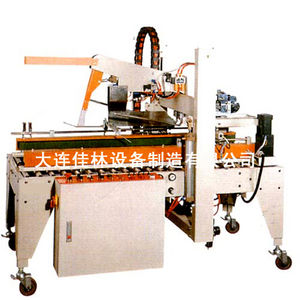

Automatic Stapling Machine SHM LRS-B 6/X for stapling carton bottoms and lids of filled folding boxes with overlapping flaps.
Coiled staples are firmly anchored in the carton by clinching anvils.
6 stapling heads LRS B 34 are mounted with a fixed distance to each other.
The carton flaps have been prefolded and are then entered horizontally on a roller conveyor into the stapling machine.
In the stapling station 6 stapling operations are triggered simultaneously in a distance of 200 mm and a height of 135 mm from the carton rim.
Stapling heads for 5000 coiled staples each
|
|
