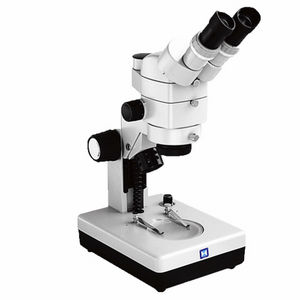

MICROS New Zoom Stereo Microscope Series
- GECKO, SPIDER, VIPER -
To gain the most possible information from your specimens!
The new infinitive zoom-stereo microscope series is ideal for biological and industrial applications. It features a binocular/trinocular head or alternatively ERGO head and offers parfocal and parcentered objectives. It comes with widefield eyepieces with a 22 mm field of view. Different objectives are available and delivering an accurate 3D reproduction of the original specimen.
The LED illumination system with variable light intensity can be switched on independently or simultaneously. For a maximum illumination efficiency, we recommend to use our LED ring light VENUS or the computerized SATURN.
The standard magnification of the three models is between 8x - 80x, the total magnification range between 4x - 320x.
There are many accessories like Iris diaphragm, darkfield and polarizing attachment, boom-stand etc. available.
|
|
New Mantis combines the viewing ease of bench magnifiers with the high resolution of a microscope. Bench magnifiers have magnification and resolution limitations, while conventional-eyepiece systems are inherently difficult to use.
The Mantis large viewing area promotes maximum comfort while producing razor sharp, three dimensional stereo images.
The Mantis Elite hosts x4 - x20 magnification options with quick change turret allowing users to switch between low magnification inspection and high magnification fine detail tasks. Bright white, true colour, LED illumination providing over 10,000 hours of shadow-free viewing.
|
|
Lynx VS8 is an advanced stereo zoom microscope for Printed Circuit Board inspection and is ideal for all electronics applications including fine pitch, surface mount, TAB and BGA technology.
The Lynx VS8 consists of a stable, high capacity scanning stage that provides free floating movement for all sizes of board, including double sided PCBs. Stage can be locked for precision inspection tasks (x-axis, y-axis, or both). Complete with earthing point for static safe inspection.
Lynx VS8 provides magnification from x7 - x40 within the standard zoom range. An oblique and direct viewer can also be added to the modular system allowing the operator to view a subject direct or from an angle of 34° from vertical, which can be rotated through 360°.
|
|
The SX45 is an affordable Stereo Zoom Microscope from Vision Engineering. With magnification from x4 to x200, a wide range of options and configurations, and long life true colour LED illumination the SX45 is a microscope with first class performance.
Precision optics deliver high resolution, flat field and high contrast images with long working distances and a large depth of field. The Greenhough stereo zoom microscope with a zoom ratio of 6.3:1 can be mounted on a variety of stand options including a bench stand with substage illumination; articulated arm for extended reach and a boom mount for larger specimens.
|
|
Carl Zeiss is expanding the borders of stereomicroscopy with increase depth of field, excellent color reproduction, high-contrast images and significantly more image information. New patented optics provide improved resolution and contrast. The innovative operating concept SyCoP (Systems Control Panel) combines all essential functions of a stereomicroscope in a single handy operating unit. The sum of these advantages result in increased comfort and efficiency in the laboratory. With impressive stability and exceptionally large specimen room.
|
|
AZ100M
The AZ100 Multizoom represents a new concept in zoom microscopes. It covers an extremely wide range of magnifications, from 5x to 400x, effectively combining the advantages provided by stereo zoom microscopes and compound microscopes. Thanks to a smooth zooming mechanism and a unique triple nosepiece, the AZ100 can continuously switch magnifications, extending from macro to micro observation of the same specimen.
|
|
|
The StereoMaster 3 is an economical stereo microscope with a range of three fixed magnifications, 10x, 20x and 35x. It has built in illumination and sits on an articulated boom style stand. There are two versions available with either straight (vertical) or angled eyepieces.
|
|
SM 22-AD 24
Description:
Magnification 20 - 40times
Stand:
Incident-/transmitted light 6V/10W halogen, separate, continuous light regulation
Method of contrast:
Incident-/transmitted light
Tube:
binocular, 30°
Eyepieces:
Widefield 10x
Objectives:
2 pairs of objectives 2x/4x in a rotating nosepiece
Magnification:
20 - 40times
Object stage:
Condenser:
Illumination:
6V/10W halogen
Accessoires:
Dust cover, eyeguards, mains cable
Order number:
008.0151.0
|
|
* 4.8:1 zoom ratio
* Standard magnification 6.3x - 30x
* Overall ergonomic design and comfortable 38° viewing angle
* Largest field of view of any instrument in its class - 36.5mm
* Working distance 110mm
* The only instrument in its class with 2 ergonomic objectives for optimized viewing height
* 6 achromatic supplemental objectives
* Eyepieces for spectacle wearers
* ZeroStat antistatic coating
* Unique integrated cold light illumination system
* Simple, space-saving OEM adaptation
* Flexible, modular design for easy customization
|
|
Leica M125
12.5 : 1 zoom range Apo corrected manual stereo microscope
Step Beyond Infinity
The M125 stereo microscope is a newly designed 12.5:1 zoom stereo microscope with spectacular optical performance. The standard magnification range from 8x to 100x provides a resolution of 432 lp/mm. Just think of the good old days with the MZ16 and its resolution of 420 lp/mm was dubbed the world best stereo microscope at that time. Supreme performance is not always the most important requirement: in many routine situations, you simply need a tough, reliable microscope that is compatible with a wide range of accessories. Of course one feature cannot be compromised: the best possible optical quality. The Leica M125 is ideal for many applications that may be useful to you: from presorting mechanical components to analyzing plastics and detailed inspection of printed circuit boards, the Leica M125 provides consistently high-quality, detailed images of your specimens.
|
|
Nikon zoom stereomicroscopes offer users the most extended zoom range of any such instrument, along with modularity, comfort and ultra-high-performance optics. The line covers a wide range of functionality, from sophisticated observation (SMZ1500) to the affordable and ergonomic (SMZ645/660).
SMZ1000
The SMZ1000, one of Nikon's most advanced stereomicroscopes, incorporates a powerful combination of advanced optical and ergonomic capabilities. With high NA objectives and exclusive Nikon illumination system, the SMZ1000 can handle some of the same advanced imaging techniques that compound instrument users have long enjoyed.
|
|
HORNET MZ1280
Infinitive Stereo Microscope
The first model of MICROS’ new infinitive stereo microscope series is ideal for education and industrial applications. This model delivers sharp and crystal clear erect 3D images at a modest price.
OPTICS
Head: Binocular tube, 45° inclined, 360° rotatable; Magnification: Standard 6 – 50x, zoom ratio 1 : 8.3; Optical System: Parfocal and parcentered objectives, infinitive optical light path; Eyepieces: WFH 10x/22 High Eyepoint
MECHANICS
Working Distance: Standard 95 mm; Illumination: Incident light 12V/3W LED, transmitted light 12V/4W LED, to be used simultaneously
OPTIONS
Photo/video port, auxiliary lenses, eyepieces, polarization, universal stands, aluminium case
|
|
The Alpha Stereo Binocular Microscope utilises Vision Engineering's patented ISIS Exit Pupil Expansion technology to provide up to 10x greater freedom of head position than conventional binocular eyepiece systems.
ISIS technology expands the available optical pupil by means of multilenticular optical surfaces, allowing the operator more than 38mm of head freedom from the eyepieces.
Alpha eliminates the need for users to precisely align their eye with the centre of each eyepiece. A small movement of the eye no longer means losing part of the field of vision, as the pupil easily stays within the latitude of the twelve-times-wider exit ray bundle.
Users can simply move their eyes to view the full image area, rather than repositioning their heads or the workpiece to operate within the constraints of a narrow conventional exit field.
Spectacles or contact lenses can thus be worn in comfort during use.
|
|
Vision Engineering’s new 14-point LED illuminator incorporates the latest LED technology to provide bright white, shadow-free illumination for up to 10,000 hours.
Designed specifically for the Lynx stereo dynascopic microscope*, the new LED illuminator offers improved performance and longer life, with a fraction of the running costs of conventional halogen systems. Key Benefits:
- Brighter, whiter 14-point shadow-free illumination
- Latest generation LEDs provide over 10,000 hours of continuous viewing
- Reduced consumable and maintenance costs
- Reduced heat and energy to the subject
Together with the patented ‘eyepieceless’ optics of Lynx, the LED illuminator provides unrivalled comfort and clarity for a wide range of precision inspection and rework tasks.
|
|
|
The ZoomMaster 65 is a highly versatile stereo zoom microscope offering magnifications between 3.5x and 225x depending on the eyepiece/objective lens configuration. A choice of three stands are available for the microscope meaning that practically any size or shape of specimen can be examined. Prior also manufacture a range of illumination options including cold light sources and fibre optic light guides.
|
|
GOLD MCXI700
Inverted Metallurgical Microscope
Inverted microscopes are used for inspection, analysis and testing of microstructure of materials. The special design is necessary for observing large and heavy objects, e.g. metallurgical or electronic parts which are integrated in a compact body without special and expensive sample preparation.
OPTICS:
Objectives: MET ICO PLAN 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.75; Eyepieces: EWF 10x/22 high eyepoint
MECHANICS
Body: stable, sturdy base, 360 x 280 mm; Head: ERGO head with variable inclination from 5° to 35°; Nosepiece: Quintuple ball-bearing nose-piece; Stage: Plain stage with glass insert plate; Illumination: 6V30W halogen for 100 - 240V / 50 - 60 Hz
OPTIONS
Photo/video port for ERGO head, binocular or trinocular head, objective MET ICO PLAN 100x/0.9, WD 0.7 mm, various eyepieces, attachable mechanical stage, auxiliary stages, photo/video adapters, digital cameras, aluminium carrying case
|
|
The SPIRIG portable microscopes are designed and manufactured as a compact
assembly of a lens case, containing the microscope itself, with a battery
compartment and a light source. Two models of the SPIRIG portable microscope
are available: SPIRIG 30X and SPIRIG 100X. Powered by two AA-size
alkaline batteries, the SPIRIG 30X and 100X microscopes provide their own
light source to illuminate whatever requires very close examination. The microscope
itself weighs 100 grams and its size measures 140 mm long, 45 mm
wide, and 20 mm deep. The SPIRIG 100X microscope also comes with its own
stand and object holder clips.
|
|
The MBL3200 is an inverted microscope for identification and analysis of biological substances and cultures.
Plano eyepieces (10X) and infinitve plano achromatic objectives (4X, 10X, 40X) as well as a phase contrast unit (20X) in combination with a photo tube to mount photo or video cameras allow a versatile use in quality assurance, raw material analysis or biological research.
Illumination: 6 V 30 W, with top-quality double-lens condenser. Power supply 90 - 240 V for worldwide use.
|
|
SUNDEW MCXI600
Inverted Biological Microscope for Routine Examinations
SUNDEW is a perfect microscope for routine examinations of cell and tissue cultures, as well as for sediments and different liquids. Easy observation of living cells. The large stage gives enough space for bulky culture flasks. Both transmitted and reflected light observations are possible.
OPTICS
Objectives: ICO PLAN Infinitive for brightfield or phase contrast observations, making the field of view flatter and brighter; Condenser: ELWD brightfield condenser, n.A. 0.3; Eyepieces: EW 10x/22 extra widefield, high-eyepoint
MECHANICS
Body: Sturdy high-tech cast aluminium base, 300 x 295 mm; Head: Binocular ERGO head; Nosepiece: Quintuple ball bearing nosepiece; Stage: Plain stage with glass insert plate and attachable mechanical stage; Illumination: 6V 30W (brightfield), HBO100W (fluorescence), adjustable for 110/220V
OPTIONS
Phase contrast, fluorescence, observation set for up to 3 people, photo/video
|
|
|
|
|
|
LILY MCX500
Laboratory Microscope for Professional Research
OPTICS
Objectives: ICO PLAN Infinitive 4x/0.10, 10x/0.25, 40x/0.65 spring loaded and 100x/1.25 oil, spring loaded; Condenser: Abbé brightfield swing-out condenser, n.A. 0.9/1.25; Eyepieces: EW 10x/22 extra widefield, high eyepoint
MECHANICS
Body: Sturdy high-tech cast aluminium base, 380,5 x 295 mm; Head: Binocular ERGO head, inclination from 5° to 35°; Nosepiece: 6-tuple, reverse-angle mechanism; Stage: Double layer specimen stage, 243 x 158 mm with exchangeable, ultra-hardened, flexible glass plate; Illumination: Koehler illumination, 12V 50W, adjustable for 110/220V
OPTIONS
100W halogen light source, illumination kit for glass stage, photo/video port, phase contrast, darkfield, fluorescence and polarisation, observation set for up to 5 people, aluminium case
FLEXIBLE / GLASS / STAGE
On standard tables after many working hours you see the signs of use.This sad fact can be changed easily. We offer a stage with an inserted ultra-hardened glass plate, which is flexible and resistent against chemical fluids. Because of the frosted screen, it is possible to make a pre selecting of specimens. The LILY MCX500 comes in the standard version with this stage.
The same stage with an inserted flexible hardened glass plate can be connected to a hightech light system. The integrated light disc, allows to make a fast macroscopical pre selecting of the specimen. Now it is easier to decide about and/or examine bad-dyed specimens or to mark very small samples. The gentle light is on/off-switch able and is not getting warm.
|
|
|
|
|
|
The measuring microscope is a multifunctional microscope measuring system which integrates optical, mechanical, electrical and video elements. It provides eye piece magnifying, visual display magnifying, input and output data processing functions. The observation system includes three types: single eyepiece, double eyepiece and CCD image.
The video toolmaker microscope is widely used for electronic components, precision mold, precision tool, spring, plastic rubber, oil seal valve, camera components, automobile components and PCB processing components, etc
With RS-232 communication interface connected with a computer, the microscope can input and output measuring results and save images. Special measuring software M2D-AT is used to automatically detect edges .You can measure work pieces just by clicking the mouse instead of programming, it is simple, convenient, easy to learn and suitable for needs of different users.It is mainly used to measure geometric elements such as length and angle, thread parameters, cam, gear and cutting tool (milling cutter, hobbing cutter and screw tap), cone and cylinder components, templates and hole pitch, etc. Eyepiece reticule can be used for compare measurement and coordinate measurement with magnification of the sizes and outline of the work pieces. In addition, it can be also used as a observation microscope in precision processing industry with non-contact measurement, e.g. to inspect the surface roughness via relative measuring methods.
|
|
A most advantageous alternative when measuring small components, maintaining the good quality of its optics and the cross-table.
Base with built-in transmitted illumination and transformer. Light intensity continuously regulable by two separate knobs for incident and transmitted light. Cylindrical pillar allowing additional height adjustment of the gear box.
|
|
|
Microscope objectives are ideal for use as focusing lenses for low power lasers such as HeNe and HeCd. We offer a selection of precision achromatic objectives covering a range of numerical apertures. They are housed in conventional microscope barrels and fitted with a standard RMS microscope thread. The lenses are Anti-Reflection coated.
|
|
High quality, Light weight, low cost and highly Flexible Video Microscope adaptable to different applications, which demand mobility, high resolution, and digital image recording & documentation. Crates high-resolution pictures at a large range of magnifications on your PC, CRT- TFT- or any TV Monitor.
Applications:
- Inspection of machined parts
- Inspection of plastic parts and injection molds
- Inspection of granulates in chemical indutry
- Inspection of micro cracks in engines, turbine blades
- Inspection of cutting edge tools in CNC machines
- Metaliurgical and Welding examination
- Inspection of tool wear-out
- Inspection of pollen, insects, stones etc.
- Digital Image Recording & Analysis
- Non-contact Dimentional Measurements
- Documentation
- Real time presentation
|
|
The KH-1300 digital microscope is revolutionary in that it achieves both the highest transfer speeds in its class and high-quality images at the same time.
An original CCD camera was developed exclusively to create the highest quality images.
As a result, high-resolution images can be transferred quickly allowing video to be observed on PC screens.
High quality imaging with cost effectiveness in mind.
|
|
Mantis Compact excels in the low magnification range for inspection or manipulation tasks where bench magnifiers have traditionally been used. Mantis Compact has a small footprint and low investment cost giving a superb price / performance ratio.
Patented optical technology allows operators freedom of head movement for superb ergonomics and hand-eye co-ordination, with the ability to wear glasses if required. Operators can increase productivity and improve quality, at an affordable price.
Mantis Compact offers: Superb hand-eye co-ordination for inspection and manipulation tasks; a choice of x4, x6 quick change objectives; Bright white, true colour, LED illumination providing over 10,000 hours of shadow-free viewing.
|
|
MicroInspector II with microscope optic and big TFT
Inspection system for optical inspection with rigid endoscopes and microscope optics
The modular design allows all types of inspection using one system. This includes a sophisticated XYZ manipulator with a special object mount system, a MegaPixel camera set-up and an innovative Xenon lamp illumination system. One system provides both overviews and microendoscopic details.
|
|
An inverted microscope that meets the demands of routine cell observation
The DX61 offers life science professionals convenience, performance and flexibility combining infinity corrected optics with innovative mechanical design and isparticularly suited to most tissue culture applications.
Outstanding optical performance
Infinity optical system
Ergonomically optimised and compact design
Optional ISIS Expanded-Pupil eyepieces increase eye-relief
Observation modes include brightfield, fluorescence and phase contrast, with a pre-centred phase contrast slider making operation straightforward.
|
|
As a system microscope, Vision Biomed’s DX41 is particularly well suited to clinical and research microscopy applications. A modular design adds to its versatility with optimised ergonomics making for a more efficient and comfortable microscopy experience, even during extended periods of use.
The DX41 utilises infinity plan achromat objectives up to x100 magnification.
A key feature of the DX41 is the multi-viewing attachment will can accommodate up to 5 observers simultaneously.
Other accessories include: a wide variety of condensers; High performance reflected light fluorescence illuminator; A range of camera adapters, for use with digital and video cameras.
|
|
MM400/800 Measuring Microscopes
The MM400/800 is a new series of innovative microscopes designed for industrial measuring and image analysis. They integrate key performance features delivering complete digital control for maximum measuring accuracy in demanding industrial environments. The systems support a host of new and expanded features including Nikon's electronic connection hub connection that provides total integration of microscope peripherals managed by Nikon's new EMAX2 metrology software.
|
|
|
|
