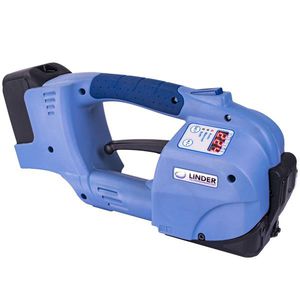

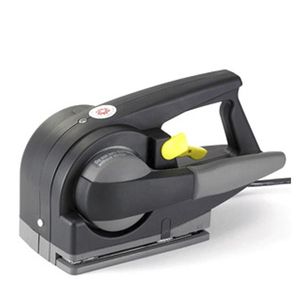

Battery-powered hand tool
- For general, medium-heavy goods
- Very easy operation (Touchpanel)
- For PP and PET strap, tensioning force 400-2000 N
- Additional hand tools: see „More information...“
- Hand tool, strap and after-sales service as a total package
- Brochure available under “More information…”
|
|

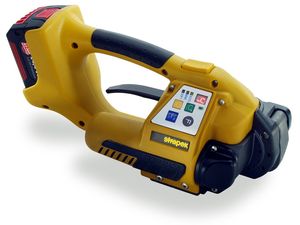

Battery-powered hand tool
- For general, medium-heavy goods
- Very easy operation (Touchpanel)
- For PP and PET strap, tensioning force 400-2500 N
- Additional hand tools: see "More information..."
- Hand tool, strap and after-sales service as a total package
- Brochure available under "More information..."
|
|

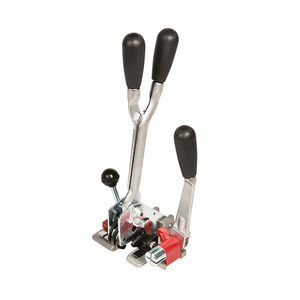

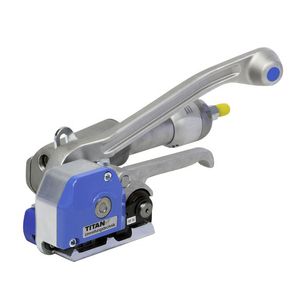

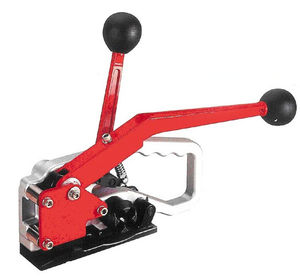

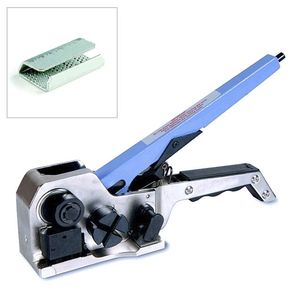

Single-lever combination tool - sealing with metal seals
- For occasional use with PP and PET strap
- Lightweight, portable, robust
- High tensioning capcity due to windlass tensioning system
- Additional hand tools: see „More information...“
- Hand tool, strap and after-sales service as a total package
- Brochure available under “More information…”
|
|

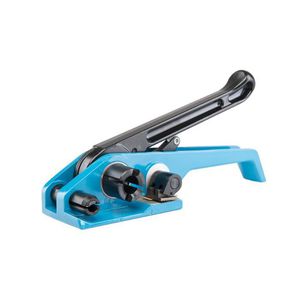

Manual, sealless tool for mobile applications
- The economical manual solution
- Easy, leightweight (only 3.5 kg), fast
- Flexible use: Medium to heavy packages
- Additional hand tools: see „More information...“
- Hand tool, strap and after-sales service as a total package
- Brochure available under “More information…”
|
|
|

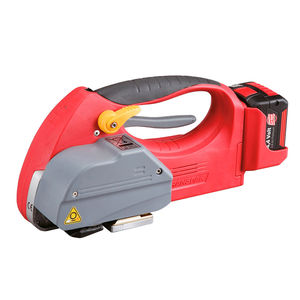

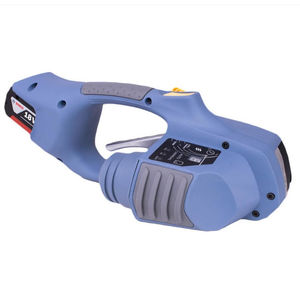

ZP22-6X: Battery ( Powered ) type. Auto tension & sealing. For 12-16mm PP & PET. Max tension 200kg. A handy tool for heavy duty packing requirement .
|
|
Battery-Operated Tools

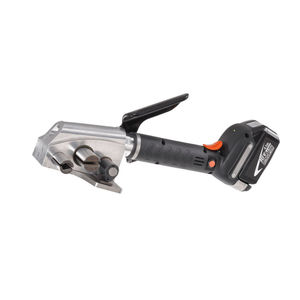

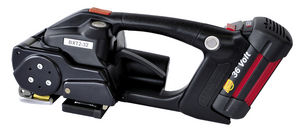

BXT2 Next Generation
With its high capacity, rapid charge Bosch Lithium-Ion battery power providing up to 400 reliable strap cycles per charge the all-new BXT2 hand tool is always ready to give fast and reliable operation anywhere with Signode Tenax polyester or Dylastic polypropylene strapping.In fully automatic mode this tool provides speedy and consistent operation. In semi-automatic or manual mode the operator has direct control. The future of strapping technology where ease of use and mobility are paramount.
|
|
|
ZP26-9X: Battery type. Auto tension & sealing. For 19 & 16mm PP & PET. Max tension 330kg. A powerful tool for high tension and super heavy duty packing requirement with strap in wider strap.
|
|

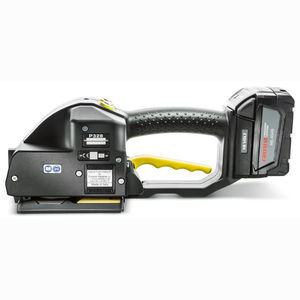

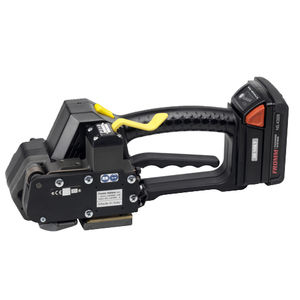

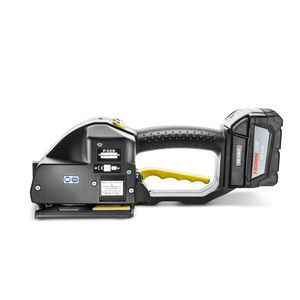

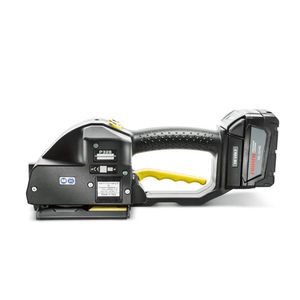

P324 / P325
Thanks to the battery operation the workig range is extended independently of any power supply, suitable for the application with light and heavy duty polyester strapping up to 1.35 mm (P325) of thickness with smooth and embossed surfaces. Tensioning, sealing and cutting off the strap are accomplished by pushing the respective, ergonomically arranged press levers. Interlocking of the sealing lever during the sealing and cut-off cycle enables single hand operation and substantial time savings. Easy strap threading - both straps are inserted together. Strap tensioning- and sealing-times are individually adjustable, resulting in perfectly secured packages. A high seal efficiency is also guaranteed. The ideal tool for a broad variety of strapping applications in all industrial sectors.
|
|
DIMENSIONS
Lenght 290 mm 11.4"
Width 140 mm 5.5"
Height 165 mm 6.5"
Weight 3.6 Kgs 7.9 lbs
FEEDING
Battery 14.8V-2 A/h LI-PO
PERFORMANCE
Max. tension force 2200N
Tensioning speed 9mt/m
Sealing Vibration sealing
Joint strength 80% of breaking strength
|
|
|
ZP201X: Electricity (plug) type. Manual tension and Auto sealing. For 10-16mm PP strap. It's designed and ideal for use in commercial environment and small warehouse & manufacturing site , SOHO and office mail room for light duty packing purpose
|
|

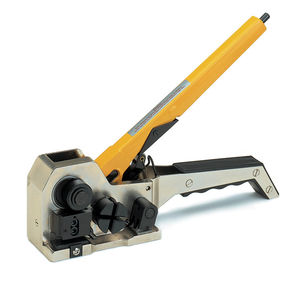

Single-lever combination tool - sealing with metal seals
• For occasional use with PP and PET strap
• Lightweight, portable, robust
• High tensioning capacity due to windlass tensioning system
• Additional hand tools: see „More information...“
• Hand tool, strap and after-sales service as a total package
• Brochure available under “More information…”
|
|
|
ZP21: Battery ( powered ) type. Sealing tool. No tension. No Cutting. For 10-19mm PP & PET. Can work with one or multiple manual tensioners and perform multiple sealing to enhance the strength of Strap itself . It's an ideal tool to strengthen strapping power against crash during transportation.
|
|
* Strapping tool with plastic type KO, for both horizontal and vertical strapping.
Seals must be used to close. Due to the dual handles only minimal effort is needed to place a strap.

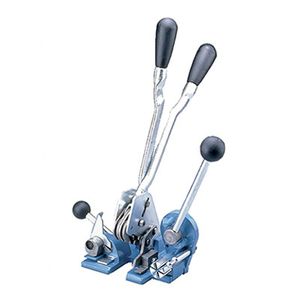

* Strapping tool type TR 13-16, suitable to strap with polypropylene and polyester strap.
Seals must be used to close. Due to the triple handles only minimal effort is needed to place a strap.
* Strapping tool for plastic strap with battery propulsion for both tension application and welding, type P 324
Suitable to strap with polypropylene and polyester strap.
User-friendly, not dependant on electricity grid, thus usable everywhere.
Assured and easy use on the condition that there are no hindering cables or air pipes.
|
|

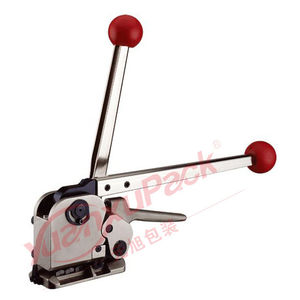

P403 / P404
Both models are handy light weight tensioning and sealing tools to strap flat packages (i.e. pallets, bales, crates and various packages) using plastic-strapping and metal seals. Reliable, robust and service-friendly tool also suitable for non-stationary applications. Thanks to the windless tensioning system very high strap tension can be achieved. Special serrated seals and the patented sealing force balance system guarantee a very high seal joint efficiency. The seal joint is made in no time by operating the sealing handle until it hits the stop. A separate handle, consisting of a grip ball and a bolt are available as option for horizontal applications.
|
|
Combination strapping tools
Combination tools function as tensioners, sealers and cutters. They save time by eliminating the handling of separate tools. But because they weigh more than such tools, they should be placed as close as possible to the position where they will be used. Seal-feed combination tools carry a stack of seals in a magazine for fast, easy loading.
Manual
The AST manual seal-feed combination tool uses Dylastic, Dymax and Tenax strapping. The AMT-58 is the ideal tool for High-Strength Tenax strapping.
|
|
Manual, sealless tool for mobile applications
• The economical manual solution
• Easy, leightweight (only 3.5 kg), fast
• Flexible use: Medium to heavy packages
• Additional hand tools: see „More information...“
• Hand tool, strap and after-sales service as a total package
• Brochure available under “More information…”
|
|
Low-cost maintenance.
Service-friendly design.
Wearing parts are easy to replace (by operator).
Easy handling.
One of the lightest tools in its performance class.
Fast, secure strap insertion.
Minimal effort required for tensioning and closing.
|
|
Combination Tools
Combination tools function as tensioners, sealers, and often cutters as well. They save time by eliminating the handling of separate tools. But weighing more than such tools, they should be placed as close as possible to the position where they will be used. Seal-feed combination tools carry a stack of seals in a magazine for fast, easy loading.
|
|
DIMENSIONS
Lenght 300 mm- 11"
Width 150 mm - 6"
Height 175 mm - 6.9"
Weight 5.2 Kgs 11.4 lbs
FEEDING
Pressure range 4.5 -7 bar / 64-99 psi
Air consumption 14 L/s - 29 cuft/min
PERFORMANCE
Max. tension force 5000 N - 6.5 bar - 92 psi
Tensioning speed 6 mt/m
Sealing Vibration sealing
Joint strength 80% of breaking strength
|
|
DIMENSIONS
Lenght 280 mm- 11"
Width 150 mm - 6"
Height 175 mm - 6.9"
Weight 4.9 Kgs - 10.8 lbs
FEEDING
Pressure range 4.5 -7 bar / 64-99 psi
Air consumption 14 L/s - 29 cuft/min
PERFORMANCE
Max. tension force 2500 N - 6.5 bar - 92 psi (variable with friction)
Tensioning speed 11 mt/m
Sealing Vibration sealing
Joint strength 80% of breaking strength
|
|
DIMENSIONS
Lenght 300 mm- 11"
Width 150 mm - 6"
Height 175 mm - 6.9"
Weight 5.1 Kgs 11.2 lbs
FEEDING
Pressure range 4.5 -7 bar / 64-99 psi
Air consumption 14 L/s - 29 cuft/min
PERFORMANCE
Max. tension force 5000 N - 6.5 bar - 92 psi
Tensioning speed 6 mt/m
Sealing Vibration sealing
Joint strength 80% of breaking strength
|
|

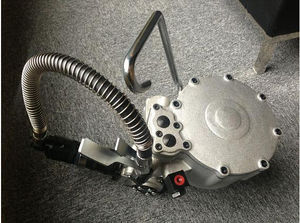

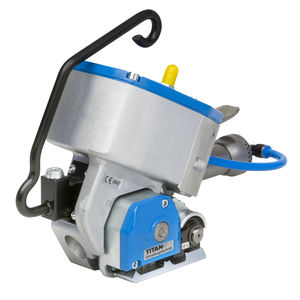

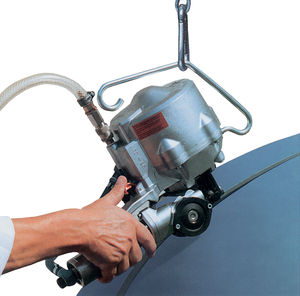

Powerful Pneumatic Combination Plastic Strapping Tool. Powerful tension, Maxi.350Kgs (3500N) for heavy duty plastic strapping jobs.
Automatic friction-weld and cut, no metal seals required.
Air pressure manometer to monitor sufficient air supply.
Adjustable tension force & sealing time for various strap specifications.
Much smaller air hose at 1/4” I.D. for flexible operation without hose tangling.
|
|
Combination Tools
The AMPT-58 is the ideal hand tool for High-Strength Tenax strapping.
Pneumatic Tension-Weld®
The model VT-10 and VT-13 combination tools apply Contrax, Dymax and Tenax strapping. Strap ends are joined with Signode's patented Tension-weld® process, eliminating the need for metal seals.
The lightweight VT-16/19, VT-16HD, VT-19HD and VT-25HD tools apply High-Strength Tenax strapping at higher tension levels. Ideal for use in both horizontal and vertical applications.
|
|
A3H
With its short base plate the A3H is able to strap smaller packages. Thanks to its small dimensions and low weight it is suitable for a wide range of applications. Also supplied with a restrictor valve to permit the stepless regulation of the air supply, and in different tensioning levels (2500 N and 4500 N).
Strap qualities:
Regular duty (Uniflex)
up to 850 N/mm²
Strap dimensions:
9.5 - 20.0 x 0.38 - 0.60 mm
3/8 - ¾ x .015 - .024"
Tension versions:
2500 N, 4500 N
Sealing type:
Sealless
Weight:
8.5 kg / 18.7 lbs
|
|
Combination Tools
Pneumatic seal-feed
Using applied air pressure as a power source, pneumatic seal-feed combination tools quickly and effortlessly tension, seal, and cut the strapping. These tools include the AHP and the AMP.
Pneumatic sealless
Pneumatic sealless combination tools include the SLP and the SPC.
Pneumatic push-type
Pneumatic push-type combination tools, including the PNSC and PRH-Series models, are used with push-type seals on irregular-shaped packages. Air power tensions, seals and cuts the strapping.
|
|
DIMENSIONS
Lenght 350mm - 13.8"
Width 140 mm - 5.5"
Height 170 mm - 6.7"
Weight 4 Kgs - 8.8 lbs
FEEDING
Pressure Range 5.5 -7 bar / 78 -99 psi
Air Consumption 12 L/s - 25 cuft/min
PERFORMANCE
Max Tension Force 3000N - 4500N -6.5bar-92psi
Tensioning Speed 5mt/m 4500N - 7mt/m 3000N
Sealing seal single notch
Joint strength 80% of the breaking strength
|
|
DIMENSIONS
Lenght 430mm - 16.9"
Width 260mm - 10.2"
Height 310mm - 12.2"
Weight 10.3 kgs - 22.6lbs
FEEDING
Pressure Range 5.5 -7 bar / 78 -99 psi
Air Consumption 12 L/s - 25 cuft/min
PERFORMANCE
Max Tension Force 9000N -6.5bar-92psi
Tensioning Speed 6mt/m
Sealing seal double notches
Joint strength 80% of the breaking strength
|
|
DIMENSIONS
Lenght 350 mm - 13.8"
Width 140 mm - 5.5"
Height 260 mm - 10.2"
Weight 4.4 Kgs - 9.7 lbs
PERFORMANCE
Max Tension Force 5500 N
Sealing sealless
Joint strength 80% of the breaking strength
Gear ratio 1:18
|
|
|
|
|
|

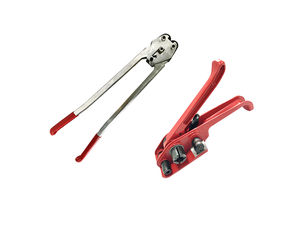

Manual Hand Tools
Manual hand tools are the most basic form of strap application equipment. They are perfect for operations that either do not have access to power sources or do not require the speed of powered hand tools. Signode manual tensioners provide strap operators with a simple method for tightening strapping around a load. A manual sealer is then used to positively join the tensioned strap ends together, ensuring that loads remain secure during transit, handling and storage. To make strap application more convenient and efficient, we also manufacture seal and sealless combination tools which combine the tasks of tensioning, sealing and cutting in a single tool.
Pneumatic and Battery-Operated Hand Tools
Pneumatic and battery-operated hand tools take most of the effort out of tensioning and sealing by performing those operations at the push of a button or lever. Powered hand tools are typically used to reduce operator fatigue, improve strapping efficiency and provide uniform tensioning. Signode pneumatic combination tools utilise air or battery power to tension, seal and cut off plastic strapping. These tools are available in seal-feed and sealless Tension-Weld® models.
|
|
|
compact and easy to use battery strapping tool for PP and PET straps of 10 to 16 mm strap widths. Utilizing a powerful motor is capable of applying tensions up to 2300 N. The Nickel-Cadmium and Nickel-Metalldydride batteries of the DIGIT SMART LT are made by Makita and enable flexible use of the tool. With the fast charger the battery can be charged within 14 (Ni-Cd) and 23 (Ni-MH) minutes respectively. The ergonomic handle and the balanced weigth distribution enable a "one-hand" use of the tool. The tension and sealing time are adjusted via a simple digital panel.
|
|
|
|
