BEUMER's packaging products for palletized loads include various types of shrink wrap and stretch wrapping systems as well as advanced technologies for stretch hood systems. Numerous process engineering and design patents testify to BEUMER's continuous development of innovative technologies.
|
|
SW2L-16PW4CF
Platform diameter 1.650 mm (Height from the ground 75mm)
Max pallet height 2.100 mm
Max loading weight 2.000Kg
Turntable with front and rear opening to load & move with fork lift
Carriage belt driven with PW Pre-Stretch Carriage 150-200-250%
Manual and automatic working cycle with 4 wrapping programmes
- Carriage only up
- Carriage up + down
- Both above with stop for manual insertion of top sheet
Wrapping cycle with reinforcement
Inverter for Turntable Control:
Adjustable speed - Soft Start - Fix Stop
Photoelectric cell to read the pallet height
Possibility to memorize up to 9 wrapping programmes & retrofit automatic film cut at the end of the cycle
Hinged column to facilitate machine installation
Hot painting with epoxy system
Standard power supply 400 Volt – 50 Hz – 3Phases
|
|
KEOPS
AUTOMATIC TURNTABLE STRETCH WRAPPER.
Main Modules:
Turntable: roller conveyor placed onto this. It incorporates cutting and sealing group.
Vertical column: support and guide for roll of film. Control cabinet and touch-screen interface for user are integrated within.
Characteristics:
- Electronic pre-stretch intelligent system.
- No tails of film. Continuous control for film tension.
- Sealing system integrated on the turning table.
- Compact size, easy placing on reduced spaces.
- Separate column which allows 4 different possible configurations.
- Counter plate heat sealing device.
- Fully equipped with frequency inverters to ensure accurate and smooth operations.
- Double roping once wrapping cycle is over Wrapping of base pallet.
- Full colour touch-screen interface for main adjustment.
- Control cabinet within main column.
|
|
Atis 50
Automatic orbital wrapping machine
Designed to wrap mouldings, aluminium profiles, tubs, blinds, shelves, … Automatic wrapping machine ready to set up in automatic production lines or high productions.
|
|
Artemis 50 automatic
Automatic machine for horizontal packaging round products with stretchfilm.
APPLICATIONS:
Packaging and protection of round products such as hose rolls, wire rolls, wheels and rings.
ADVANTAGES:
It wraps the product by its thickness and in its entire perimeter instead of wrapping by width leaving the inner space of the product free to put other products inside.
It saves stretchfilm because it uses less quantity of consumable for wrapping the thickness instead of the width.
|
|
|
|
|
|
NEW pallet-wrapper that functions electrically (compressed air is not required) and is equipped with an exclusive cut and clamp device PAT so that it works fully automatic.
The wrapping cycle starts and ends at the top of the pallet; this uniquely different approach to attaching and cutting the stretch-film provides the following advantages:
- Selectable top banding capability
- the load is stabilized early in the wrap cycle
- the ending film tail is placedat the top of the load
- Easier, faster and safer positioning of the load on the turntable
MAIN FEATURES:
- Working functions and operations controlled by a PLC, with touch-screen Operator Interface
- Selection among three (3) different types of wrapping : automatic / semi-automatic / top banding
- Photo-eye for the automatic load height detection
- Separate setting of the top and bottom wraps, from 1 to 12 revolutions;
- Variable turntable speed control with a soft start acceleration and a final revolution deceleration with positive stop alignment
- Film tension control
- Brooken film/run-out of film detection with automatic machine reset
- Film carriage with an adjustable speed motor and driving through a belt/pulley with Anti-Fall Device.
Pre-stretch film carriage (max film width of 500 mm) with a 200% fixe ratio (1 mt = 3 mt), powered by a variable speed motor, with a fully electronic dynamic dancer corner compensation
Visit our website for all the pallet-wrappers of the ECOSPIR LINE.
Machines manufactured according to CE rules
|
|
|
Stretch cold extension machine with extensible film as far as a tubular coil, a model with one or more coils. The cover fitting is suitable for every type of product because there are not flames or warm air. This plant links the thermoretractiles qualities concerning the pallets seal, the protection against some atmospheric agents (water and dust) and the practical use of the extensible film. This machine is available in four models, according to the customers needs.
|
|
As an addition to the wide range of semiautomatic machines for wrapping pallets, Comarme has produced RONDA 100, a fully automatic machine which wraps and stabilises palletised loads with stretch film. RONDA 100 can be placed at the exit of a palletiser or installed in an existing pallets conveyor line.
It spaces, binds and cuts the film and sends the pallet onto a motor-driven roller assembly. It is especially suitable for medium/high production loads.
|
|
WM4
is a wrapping machine with double rotating arm , equipped with 2 film distribution heads and one single seaming device which comes above the palett .During the wrapping cycle , only the film is in contact with the load .
The capacity of this machine can reach 150 P/H for standard load and 100 P/H in 5 sides wrapping process.
This 5 sides process , different from the top-sheet process save around 20% to 30% of film.
INTERNATIONAL PATENT
|
|
WRAPPING MACHINE TOSA 120
AUTOMATIC PALLET STRETCH WRAPPING MACHINE WITH ROTATING ARM
While the pallet lies on the conveyor, the wrapping cycle is carried out by a rotating arm holding a film-roll. A steady and compact packing is guaranteed for all sorts ot palletized products by a multilayer wrapping made with stretch film. It is particularly suitable for light and unsteady charges. This machine can be installed on any existing packing line and it perfectly meets high production needs.
|
|
Fully Automatic Stretch Wrapper
Special customer benefit:
• Very little space required due to modular construction
• Variable speeds guarantee that all types of product will be optimally
wrapped
• Machine signals and malfunctions are shown on the clear text display
• The Cyklop Power-Eco-Stretch system ensures an optimal film
pre-stretch of 0-360% - precise and reproducible
• Diverse product sizes represent no problem in the product flow. Due
to the option moveable film takeover the permanently changing
product sizes also represent no problems.
|
|
1525CN Automatic :
- Wraps up to 40 loads per hour
- Heavy duty construction
- Pre-stretches fi lm up to 300%
- Installs over existing conveyor or can beprovided with conveyor
- Positive, non-slip V-belt rotation driveFavori
- Allen-Bradley PLC with operator interface
- Octo-Thread carriage allows easy fi lm threading
- Strain gauge fi lm delivery control
- 3-1/2" dia. conveyor rollers on 3-3/4" centers (1500CN model)
|
|
|
|
|
|

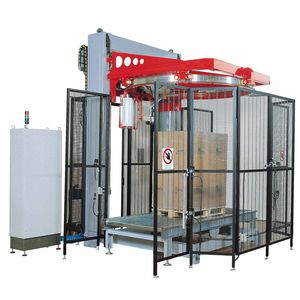

WRAPPING MACHINE TOSA 125E
AUTOMATIC PALLET STRETCH WRAPPING MACHINE WITH ROTATING RING
EQUIPPED WITH WATERTIGHT TOP SHEET DISPENSER
This machine, with rotating film-roll, allows to obtain a steady and compact packing of all sorts of palletized load by a differentiated wrapping on products of sundry nature. An overall packing (five sides) is guaranteed for all sorts of palletized products by the waterproof top sheet dispenser integrated in the machine. Such a wrapping provides an excellent protection against the action of the weather. The possibility of carrying out different wrapping cycles is the main feature of this machine. The wrapping program, in addition to the complete cycle, allows to carry out a downward cycle only, an upward cycle only, a wrapping of the top or the bottom of the pallet only and a waterproof cycle. This machine can be installed on any existing packing line and it perfectly meets high production needs. It is complete with top pneumatic presser, powered pre-stretch assembly, film hooking and cutting unit, film sealing unit, boundary safety-guards, control board with PLC and different adjusting and control units.
|
|

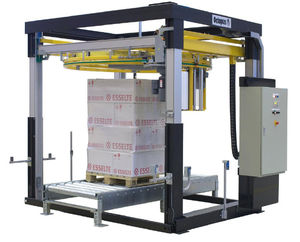

Octopus 303 Automatic :
- Wraps up to 60 loads per hour
- Heavy duty construction
- Pre-stretches film up to 300%
- Rotary ring design increases film savings
- Installs over existing conveyor or can beprovided with conveyor
- Allen-Bradley PLC control
- Octo-Thread carriage allowseasy film threading
|
|
Octopus 808 Automatic
- Wraps up to 120 loads per hour
- Heavy duty construction
- Pre-stretches film up to 300%
- Cut and heat seal design increases film savings
- Installs over existing conveyor or can be provided with conveyor
- Allen-Bradley PLC
- Banding and split wrap capabilities
- Optional Pak-Air carriage for load ventilation requirements
- Octo-Thread carriage allows easy film threading
- Strain gauge film delivery control
- Optional integral top sheet dispenser
|
|
|
THE TOPSHEET DISPENSER IS ADAPTED FOR ALL THE PWM MACHINES AS ARM OR TURNTABLE FOR SPLASHPROOF WRAPPING.
|
|
WRAPPING MACHINE "TOSA 095"
AUTOMATIC PALLET STRETCH WRAPPING MACHINE - TURN-TABLE WITH POWER ROLLERS CONVEYOR.
A steady and compact packing is guaranteed for all sorts of palletized products with a multilayer wrapping made with stretch film. This machine can be installed on any existing packing line and it perfectly meets low production needs.
|
|
ECOSPIRLINE: wide range of fully-automatic pallet-wrapping lines, from the simplest (infeed conveyor - pallet-wrapper - outfeed conveyor) up to the most complete and accessorized ones, both standardarized or customized.
Machines manufactured according to CE rules
|
|
Artemis 50
Semiautomatic machine for horizontal packaging with stretchfilm.square and round products
APPLICATIONS:
Packaging and protection of square products such as frames, structures and windows without glass.
Also for round products such as hose rolls, wire rolls, wheels and rings.
ADVANTAGES:
It wraps the product by its thickness and in its entire perimeter instead of wrapping by width leaving the inner space of the product free to put other products inside.
It saves stretchfilm because it uses less quantity of consumable for wrapping the thickness instead of the width.
|
|
Neleo 50
Semiautomatic orbital wrapping machine
Designed to warp (mouldings, aluminium profiles, tubs, blinds, shelves, kit furniture...etc.)
|
|
|
|
|
|
FV205 31.1115 Product Information
Semi-automatic vertical stretch wrapping systems with mechanical brake system.
Vertikal system because the film is applied in an vertical way. The product movement is made horizontal.
The FROMM FV series stretch wrapping machines are particularly suitable for customers who need to wrap a range of long products, like profiles, wood, alimunium, steel, stainless steel etc.
FROMM offers you a wide range of Semi Automatic machines starting with diameter Ø400 folowed by Ø600 - Ø1.000 and Ø1.400mm
Our machines have been proven to be reliable and multifunctional.
With a mechanical film brake
Film brake adjustment, by means of a hand wheel.
A brief list of the benefits FV205
- Attractive and competitive price level
- Minimum of maintenance required
- Inside ring diagonal 390mm
- Easy to operate control panel
- Automatic cutting device for the film
- Automatic stop in zero position
- Adjustable vertical guide unit
- Acceleration and the deceleration speeds are controlled by inverter
- Working height 870-960 mm
- Supply complete with CE-declaration of conformity.
Options
- Conveyors in various lengths
Standard technical specifications
Maximum diameter goods Ø390mm
Min dimensions:
30 x 30mm (WxH)
Max dimensions:
250 x 200mm (WxH)
Max weight 25kg per meter
Power supply 230V - 50/60 Hz
automatic program
|
|
- MECATENS brake
- Turntable start/stop
- Without soft start nor exact stop
- Variable turntable speed and fixed carriage speed
- Carriage film control by joystick.
- Pallet height detection microrruptor ( manually adjustable)
- 1.650 mm diam. turntable
- Max. weight to handle 2.000 kgs
- Standard erlectrics in 220 or 380 V TRIPHASE
|
|
525 Semiautomatic :
- Wraps up to 35 loads per hour
- No weight limits-loads are wrapped on the floor
- Freestanding or column mounted designs
- Heavy duty construction
- Pre-stretches fi lm up to 300%
- Positive, non-slip V-belt rotation drive
- PLC control
- Octo-Thread carriage allows easy film threading
- Strain gauge fi lm delivery control
|
|
Machine with turntable system for compact loads
- Low cost machine
- Easy operation
- Up to 30 pallets per hour
- Machine, strap and after-sales service as a total package
|
|
In order to meet the most different demands of this specific market,Comarme offers a wide range of palletwrappers. Built according to heavy-duty construction concepts ,which distinguish Comarme from its competitors, the performance of the new Ronda machines are extremely reliable, functional and adaptable to any need. This specific series of Ronda pallet wrappers is characterized by an open turntable, which allows to load and unload the pallets by forklift very easily. The forklift access in the open turntable may be requested at 90°, 180° or 270° according to the specific need.
The effective protection of the product against dust and humidity, the
reduced quantity of film used, as well as the quick cycle times are
just a few advantages of the Ronda System pallet wrappers.
|
|
FP 15/ES stretch-wrapping machine with electronic board, photocell for automatic reading of the pallet height, inverter to control the progressive start and turntable rotation speed, manual film hook up / cutting, and automatic wrapping cycle (CE-regulation machine).
Technical data:
- Max load weight: 1500 Kg
- Turntable diameter: mm. 1500
- Max load size: mm. 1200 x 1200 x 2100 h
- Film roll size: ext. diam. 300 mm . - height 500 mm - int. diam. 75 mm
- Mechanical clutch for film tension adjustement
- Photocell for automatic reading of the pallet height
- Turntable rotating speed: 7-15 rpm
- Turntable height: mm. 75
- Electrical supply: 380 V 50 Hz. + T + N
- Installed power: 0.6 kW
- Machine size: mm. 1500 x 2500 x 2560
- Weight: 500 Kg
|
|
FS210 and FS230
FROMM stretch wrappers are extremely user-friendly and can be used in every situation. The FS210 and FS 230, in particular, are highly suited to use by smaller-scale film users. Extra emphasis was placed during the design stage on safety and reliability. All the machines are designed to cope with a high workload. The use of carefully selected components keeps maintenance to a minimum.
|
|
* 525 Semiautomatic :
- Wraps up to 35 loads per hour
- 4,000 pound capacity
- Lift truck portable from front and rear
- Heavy duty construction
- Pre-stretches fi lm up to 300%
- Positive, non-slip chain drive
- PLC control
- Octo-Thread carriage allows easy film threading
- Strain gauge fi lm delivery control
|
|
|
|
