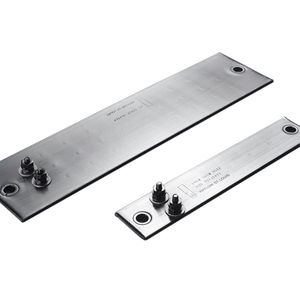

Watlow's mica and 375 strip heaters are the versatile solution for a number of applications. They can be bolted or clamped to a solid surface for freeze and moisture protection, food warming and other applications. The 375 finned strip heaters are commonly used for air heating, drying ovens and space heaters.
Applications
Dies and molds
Tank and platen heating
Thermoforming
Packaging and sealing equipment
Ovens
Food warming equipment
Vulcanizing presses
Duct, space and air heaters
Incubators
Autoclaves
Freeze and moisture protection |
|
| As the leader in electric heating elements and sensors, Fast Heat offers a variety of quality strip heaters. Strip heaters can be used in a variety of applications from food warming to packaging machinery. Fast Heat strip heaters are also available in a variety of configurations from finned strip heaters, to dissipate heat to high temperatures heaters capable of 1400 degrees Fahrenheit. |
|
Applications:
Air Heating, Air Ovens, Load Banks
U.L. Recognized - E56973 C.S.A. Certified - 016386-0-000
Construction:
-Seamless stainless steel sheath
-Post terminals
-Ceramic element support
-Element wire is situated in close proximity to outside surface for maximum heat transfer and minimum internal temperature while preserving good dielectric qualities.
-Magnesium oxide packing
-Aluminum fins offering maximum radiating surface and providing for rapid heat transfer to the surrounding medium. Stainless steel fins are available for corrosive environments.
Aluminum fins are standard. |
|
U.L. Recognized - E56973 C.S.A. Certified - LR-16386
Features:
-The Hotwatt Stainless Steel Strip Heater provides clean, dependable heat with sheath temperatures up to 1200°F and watt densities up to 40 watts per square inch.
-Because of the seamless stainless steel sheath, Hotwatt Ceramic Insulated Strip Heaters are dimensionally stable in milled slots.
Applications:Dies, Molds, Plastic Forming and Sealing, Tank and Kettle Heating. For specific applications, correctly rated elements should be used to prevent overheating and to ensure long life. A guide to correct watt densities for specific applications is shown below.
|
|
HEATER FOR SHEAR-BAR - heating lines with hot cutting shear :
* FCB15-600-2,4. Heater mod. FCB15, 600 Kw,2,4 Khz, output 1600 kg/h.
* FCB 36-1500-1. Heater mod. FCB 36, 1500 Kw, 1 Khz, output 4000kg/h. |
|
The induction coil is the heart of the bar heater. At Newelco coil design benefits from many years of practical experience gained as world leader in induction heating, together with utilisation of the most up to date materials and technology. This combination enables designers to provide the most efficient use of energy while heating bars to optimum forming temperatures.
Efficiency:
-Bar heaters from Newelco provide:
-High energy efficiency
-Enhanced productivity
-Optimum forming temperature
-Environmental acceptability
-Shorter start up time |
|
UNIFORGE®
Unitized Solid State Induction Billet/Bar Heating System
Features / Benefits
Unitized workcell design for low installation time and cost.
Infeed and outfeed mechanics, integrated coil line and power supply for minimum use of floor space.
Voltage fed, high efficiency series inverter with 0.95 input power factor over full operating range.
Series capacitors to match connected induction coil/load.
Built-in annunciator panel for simplified status/fault diagnostics.
Single control board, field replaceable for easy maintenance.
Backed by the world's largest designer and manufacturer of induction heating equipment.
Self-Contained Design With Built-in Power Supply
The UNIFORGE® heating system is a compact, unitized induction billet/bar heating system incorporating a solid state power supply, induction heating coil(s), operator control panel and material handling system. The unitized construction of the UNIFORGE® eliminates the need for interconnections between separate components typical of conventional heating systems, saving floor space and installation time.
Job Matched Induction Heating Systems
UNIFORGE® is designed for forging, mass heating, annealing, extruding and many other induction heating applications. Its concept easily adapts for continuous bar and tube heating or for partial heating of billets and tube. Power and frequency combinations are available from 100 kW to 1000 kW and 500 Hz to 30 kHz. Full power draw over a wide range of billet sizes.
|
|
