Characteristics
- Vertical arrangement.
- Sump.
- Single Suction.
- Single Stage.
Operation Limits
- Capacity 3 to 650 m3/h (10 to 2800 U.S. gpm).
- Head 3 to 120 m (10 to 400 ft).
- Max. Pressure 12 kg/cm2 (175 psi).
- Temperature 200°C (400°F).
Applications
- Water.
- Hydrocarbons.
- Process Water.
- River Water.
- Chemical Solutions.
|
|
|
|
|
|

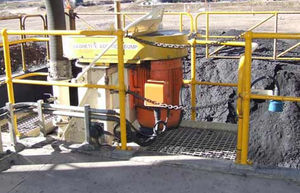

Introduction of Vertical Slurry Pump —— EVM(R) Series
The EVM(R) series pumps are centrifugal, vertical slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and high density slurries. The sump pumps are suited for handling abrasive or corrosive, dense slurry with large particle size.
The features of this kind of Vertical slurry pump
This sump pump casing of type EVM pumps are made of wear-resistant metal. The wear parts are made of high chromium for the EVM series and are rubber lined for the EVMR series. According to liquid surface of the slurry pool, the vertical slurry pump transmission shaft and suction pipe could be chosen. The sump pump could operate under the best condition with different speed.
Main application of this kind of Vertical slurry pump
The vertical slurry pumps are designed for delivering abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, coal, power, building materials, and environmental protection
|
|
520 Series; Single Stage Sump pump
Pump Features:
- bronze Sleeve Bearing is extra length for long life
- Relief Holes prevent liquid under pressure from rising above normal sump liquid levels
- Capacities to 110 G.P.M (25 M3/HR)
- Heads to 40 feet (12 Meters)
- Temperatures to 180°F (82°C)
Applications:
- Condensate Service
- Light Duty Sump Service
- Dirty Liquid Service
|
|
|
|
|
|
Sump Pump Series 5200
Series 5200 and 5240 sump are available in simplex and duplex column-type arrangements. They are designed to meet a wide range of medium and heavy duty industrial and commercial applications such as: waste water removal, unscreened sewage, condensate transfer, bilge water, and drainage runoff. Cast iron volutes, iron or bronze impellers, steel and stainless steel shafts provide reliable and efficient operation. A variety of accessories and options are available.Armstrong sump pump designs address the specific requirements for light-duty or heavy-duty commercial applications such as: elevator pits, electrical tunnels, loading docks, drain tiles, laundry facilities, floor drains and condensate returns.
Standard Features:
- 304 Centerless Ground Stainless Steel Shaft
- Enclosed-Type Bronze Impeller, Keyed to Shaft
- Cast Iron Inlet Strainer
- Flexible Coupling
- Plate-Mounted Alemue Grease Fittings Intermediate Grease-Lubricated Bronze
- Bearings (Pit Depths over 4 ft./l .2 m)
|
|
The Model 3171 is the Veteran vertical sump and process pump. Thousands of installations in industrial process, sump drainage, corrosive liquids, pollution control, molten salts attest to the 3171's remarkable performance. Simple mounting.
Specifications:
Capacities to 3180 GPM (722 m3/h)
Heads to 344 Feet (105 m)
Temperatures to 450° F (232° C)
Pit Depths to 20 Feet (6 m)
|
|
EPG’s SurePump Vertical Sump Drainer (VSD) pumps contaminated liquids for recovery, leachate collection, gas condensate removal, and sampling applications. It can be used in aggressive environments. Other designs may fail while EPG Vertical Sump Drainers are still going strong. EPG backs the vertical sump drainers with a one year warranty effective the date of installation.
- Stainless steel construction
- Corrosion resistant
- E-Glide bearings for extra durability
- Teflon seal rings
- Franklin Electric motor
- Sealed unit with liquid flow drawn past motor for cooling
- Facilitates drawdown to the very bottom of the vessel
- Chemical resistant jacketed CP motor lead
- Vent valve system purges air from the sump drainer preventing pump air lock
- Flow rates available from 2 - 1,200 gpm
|
|
The U 3 K (S) is an extremely versatile submersible pump for stationary and portable use. EIP technology for safer operation, integrated flushing device for reducing deposits and integrated low level pumping for preventing flooding are only a few of the innovative features that set this pump apart.
- 10 mm free passage
- discharge branch 1¼"
- Hmax = 7 m
- Qmax = 6,5 m3/h
|
|
|
Sethco sump pumps are used for corrosive services; chemical processing, waste treatment, acids and alkalies, chromic acid wastes, salt water, and fume scrubbers.
|
|
|
|
|
|
SCHMITT-Centrifugal Pumps
T and TE range: Vertical sump pumps
The impeller in this range of pumps is driven by extended, free-moving shafts. This method of construction eliminates the need for bearing and shaft sealing.
The temperature threshold of the materials used in the pumps´construction are as follows: 95°C max. for PVDF
- 80°C max. for PP
- 150°C max. for stainless steel
These models are available with a choice of electric drive motors: three-phase or single-phase and three-phase explosion protection or flameproof enclosure drives. All drives can be adapted to work off any voltage or frequency. The characteristic curves of these models have been measured using three-phase double pole 50 Hz motors, with water as a test medium, at a temperature of 20 °C.
Advantages:
- No risk of damage from fluid depletion
- The pumps in this range come equipped with a flange that allows them to be easily mounted on tanks, containers etc.
Some uses and applications:
- Exhaust filtering, gas purification in laboratories
- Sump draining
- Galvanic baths
- Large-scale bakeries
|
|
|
All Vanton vertical centrifugal sump pumps are specifically designed to handle corrosive, abrasive and hazardous process fluids, wastewater liquids and slurries of various pH values, and for use in those applications where no metallic or other contaminants can be tolerated. The cantilevered large diameter shaft design of SGK pumps eliminates the necessity for any immersed bearings and permits dependable operation under dry running conditions. These pumps are available in lengths to 5 feet but can accommodate deeper sumps through the use of tail pipes. Models are available with standard semi-open or closed impellers, or with recessed impellers that provide unrestricted flow so that fluids with solids or stringy materials can be pumped without impeller clogging.
|
|
Features
WIDE RANGE OF
APPLICATIONS:
- Chemical Slurries
- Fragile Food Processing Solids
- Paper & Pulpy Solids
- Petroleum
- Oils
- Sewage & Waste treatment
- Textiles
CAPABILITIES:
- Capacities to 1600 GPM
- Heads to 170 Feet TDH
- Temerature to 350 d. F
- Pit Depths to 26 feet
CONSTRUCTION:
- Cast Iron
- 316 Stainless Steel Fitted
- All 316 Stainless Steel
- Alloy 20
- CD4MCu
|
|
