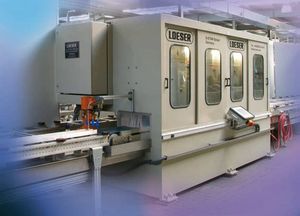

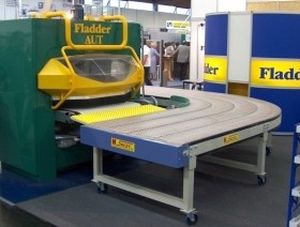

LOESER 7-Stations special flat grinding machine type FS 384/150
Grinding and btrushes of building profiles
The automatic intake roller table
Adjustable guide rollers for different profile types
Satin finishing via brushing stations
Belt grinding and belt satin finishing

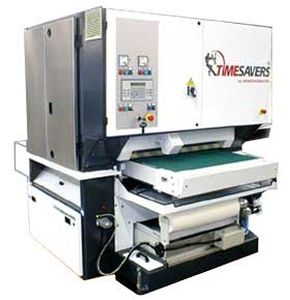

LOESER offers a wide range of flat bed grinding machines for
the finishing of square tubes, strappings, sheets, punched parts, flat material, sealing surfaces and others.
with working width up to 150, 200 und 300 mm,
single and multi stations are available,
equipped with belt grinding heads, deburring heads, polishing heads or planetary heads,
for wet and dry grinding,
with grinding belts, superfinishing belts, wheels and buffs all kinds of materials can be finished.
contact pressure control for bent and curved parts handle difficult parts and achieve high consistant quality.
|
|
|
|
|
|
Peter Wolters is the leading manufacturer of high precision machine tools and systems for Fine Grinding, lapping, honing and polishing applications for flat workpieces. Since 50 years our mission is to supply the market with highest quality products, prime service and production solutions. The product range is completed by combined grinding and brush deburring systems which have been developed for the final surface optimisation of fine ground and stamped workpieces. Decades of experience enable us to supply you with tailor-made setups for high productivity precision systems.
Peter Wolters fulfils your requirement of workpiece processing in respect of surface quality, parallelism, flatness and thickness variation. We offer solutions that will give you competitive advantages in your markets.
The philosophy of Peter Wolters as innovation leader is to break through process limits, working together with our customers on a regular basis. Therefore, Peter Wolters is equipped with process laboratories including specific engineering and equipment resources and state-of-the-art measurement technology. Today’s innovations are tomorrow’s progress.
|
|
Based on the proven design principles of the STARLINE series A this machine offers a large variety of functions due to the NC-Superplus-D control and covers many more applications.
Grinding area 500 x 250 mm or 800 x 400 mm
Spindle drive 7.5/11/13/22 kW
Distance table to spindle centerline:
600 bmm to 700 mm
|
|
DOUBLE COLUMN SPECIAL GRINDING MACHINES SGD / SGU
Double column slide ways grinding machines With fix or mobile cross rail and tangential and/or universal wheel heads.
Machine tool beds.
Very high precision heavy components
SGD / SGU
Table length (mm) 3000 - 12000
Distance between columns (mm) 1200 - 2500
Wheel size (mm) 750 x 200
Grinding height (mm) 2000
|
|
TWINMASTER
with Siemens 840D control, Fanuc* control
or NC-Superplus-D control
(*USA and Far East only)
The TWINMASTER surface and profile grinding machine in double-column design guarantees high precision and stock-removing capacity for large workpiece dimensions.
Grinding area 1200 x 800 to 6000 x 2000 mm
Spindle drive 11 kW to 50 kW
Distance table to spindle centerline 850 mm
|
|
|
|
|
|
The new DDG450:
Double-Disk-Grinding in Perfection
Highly competitive, space saving, very precise and extremely cost effective: the double-disk surface grinding machines in the new DDG product range from Peter Wolters offer economic effectiveness at its best.
Everywhere where it concerns the simultaneous grinding of surfaces lying parallel to one another in the most varied kinds of work pieces. Latest Technology as Standard –
for outstanding Performance and Versatility.
Cost effective drive technology and the fundamentally stable mechanical construction of the DDG 450 offers the user the highest possible degree of operational flexibility.
A vast range of handling systems and system components guarantee cost effective work piece transfer according to work piece shape and operating conditions. Loading and unloading may be carried out manually or automatically according to specific requirements.
A further highlight ensures high operating convenience: the tiltable operating panel having colour display and process oriented visual display.
|
|
|
|
|
|

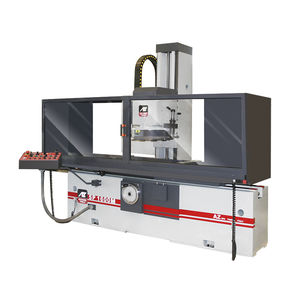

Gantry surface grinding machines with large capacities - R160 90
TRAVEL
Longitudinal travel 1730 mm
Cross travel 930 mm
Vertical travel 550 mm
Distance between bridge 980 mm
Distance between table and grinding wheel 600 mm
Distance between table and grinding wheelaxis 800 mm
Distance between electo-permanent chuck and grinding wheel 520 mm
Distance between ground and magnetic chuck top part 900 mm
SPINDEL & GRINDING WHEEL
Spindle power with electronic starter 11/15 kW/hp
Standard dimensions of the grinding wheel 400 x 60 x 127 mm
Rotation speed of the grinding wheel 1350 rpm
Wheel-dressing system on spindel : Z'=52mm Y'=85 mm
MOVEMENT
Automatique longitudinal travel with 3 phase motor and frequency converter : variable
speed
1 à 30 m/mn
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
40 à 6000 mm/mn
Ball screw with electronic vernier 0,001 mm
Rapid vertical feedrate 0,3 à 650 mm/mn
Slow vertical movement speed 0,3 à 10 mm/mn
Vertical ball screw with electronic vernier to 0,001 mm
ELECTRO-PERMANENT CHUCK
Ajustable attraction power, complete automatic demagnetization EPL 1500 x 700
OVER-ALL MEASURMENTS AND SUPPLIES
Machine dimensions 4160 x 2215 x 2175 mm
Running dimensions 4160 x 2215 x 2480 mm
Total machine power 21 kW
Load capacity in addition to the chuck 2000 kg
Machine net weight 6500 kg
MODEL SM
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
4 à 6000 mm/mn
Rapid vertical feedrate 0,1 à 650 mm/mn
Slow vertical movement speed 0,1 à 2 mm/mn
Electro-permanent chuck : ajustable attraction power, complete automatic
demagnetization
EPT 1600 x 800
|
|
|
|
|
|

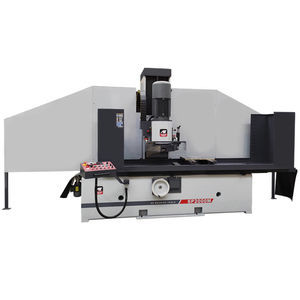

Gantry surface grinding machines with large capacities - R300 150
TRAVEL
Longitudinal travel 3200 mm
Cross travel 1580 mm
Vertical travel 630 mm
Distance between bridge 1660 mm
Distance between table and grinding wheel 655 mm
Distance between table and grinding wheel 905 mm
Distance between electo-permanent chuck and grinding wheel 555 mm
Distance between ground and magnetic chuck top part 900 mm
SPINDEL & GRINDING WHEEL
Spindle power with electronic starter 22/30 kW/hp
Standard dimensions of the grinding wheel 500 x 60/80 x 127 mm
Rotation speed of the grinding wheel 1100 rpm
Wheel-dressing system on spindel : Z'=52mm Y'=85 mm
MOVEMENT
Automatique longitudinal travel with 3 phase motor and frequency converter : variable
speed
1 à 30 m/mn
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
40 à 6000 mm/mn
Ball screw with electronic vernier 0,01 mm
Rapid vertical feedrate 0,3 à 650 mm/mn
Slow vertical movement speed 0,3 à 10 mm/mn
Vertical ball screw with electronic vernier to 0,001 mm
ELECTRO-PERMANENT CHUCK
Ajustable attraction power, complete automatic demagnetization EPL 2800 x 1100
OVER-ALL MEASURMENTS AND SUPPLIES
Machine dimensions 7200 x2950 X 2400 mm
Running dimensions 7200 x2950 X 2760 mm
Total machine power 36 kW
Load capacity in addition to the chuck 8000 kg
Machine net weight 14500 kg
MODEL SM
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
4 à 6000 mm/mn
Ball screw with electronic vernier 0,001 mm
Rapid vertical feedrate 0,1 à 650 mm/mn
Slow vertical movement speed 0,1 à 2 mm/mn
|
|
|
|
|
|
Gantry surface grinding machines with large capacities - SLR200 150
TRAVEL
Longitudinal travel 2200 mm
Cross travel 1580 mm
Vertical travel 630 mm
Distance between bridge 1660 mm
Distance between table and grinding wheel 655 mm
Distance between table and grinding wheelaxis 905 mm
Distance between electo-permanent chuck and grinding wheel 555 mm
Distance between ground and magnetic chuck top part 900 mm
SPINDEL & GRINDING WHEEL
Spindle power with electronic starter 22/30 kW/hp
Standard dimensions of the grinding wheel 500 x 60/80 x 127 mm
Rotation speed of the grinding wheel 1100 rpm
Wheel-dressing system on spindel : Z'=52mm Y'=85 mm
MOVEMENT
Automatique longitudinal travel with 3 phase motor and frequency converter : variable
speed
1 à 40 m/mn
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
40 à 6000 mm/mn
Ball screw with electronic vernier 0,01 mm
Rapid vertical feedrate 0,3 à 650 mm/mn
Slow vertical movement speed 0,3 à 10 mm/mn
Vertical ball screw with electronic vernier to 0,001 mm
ELECTRO-PERMANENT CHUCK
Ajustable attraction power, complete automatic demagnetization EPL 1800 x 1100
OVER-ALL MEASURMENTS AND SUPPLIES
Machine dimensions 5200 x2950 X 2400 mm
Running dimensions 5200 x2950 X 2760 mm
Total machine power 36 kW
Load capacity in addition to the chuck 8000 kg
Machine net weight 13200 kg
MODEL SM
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
4 à 6000 mm/mn
Ball screw with electronic vernier 0,001 mm
Rapid vertical feedrate 0,1 à 650 mm/mn
Slow vertical movement speed 0,1 à 2 mm/mn
|
|

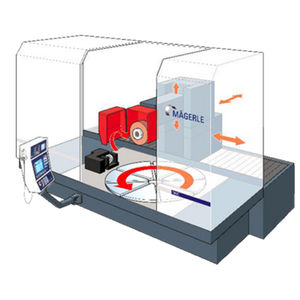

MRV
with NC-Superplus-D control
or Siemens 840D control or Fanuc* control
(*USA and Far East only)
The advantage offered by the compact, rotary grinding machines of the MR family over longitudinal table machines, particularly when it comes to grinding small and mass-produced parts or round parts, is that there is no need for reversing the worktable.
Grinding area 500 to 2000 mm table diameter
Spindle drive 11 kW to 26 kW (horizontal/vertical)
Distance table to spindle centerline 700/900/1100 mm
|
|
|
|
|
|
Grinding machines with sliding - R70 40
TRAVELS
Longitudinal travel 810 mm
Cross travel 420 mm
Vertical travel 420 mm
Distance between table and grinding wheel 470 mm
Distance between electo-permanent chuck and grinding wheel 400 mm
Distance between ground and magnetic chuck top part 1020 mm
SPINDEL & GRINDING WHEEL
Spindle power with electronic starter 5,5/7,5 kW/hp
Standard dimensions of the grinding wheel 350 x 50 x 127 mm
Rotation speed of the grinding wheel 1500 rpm
Wheel-dressing system on spindel : Z'=52mm Y'=55/65 mm
MOVEMENT
Automatique longitudinal travel with 3 phase motor and frequency converter : variable
speed
1 à 30 m/mn
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
40 à 1000 mm/mn
Ball screw with electronic vernier 0,001 mm
Rapid vertical feedrate 0,3 à 650 mm/mn
Slow vertical movement speed 0,3 à 10 mm/mn
Vertical ball screw with electronic vernier to 0,001 mm
ELECTRO-PERMANENT CHUCK
Ajustable attraction power, complete automatic demagnetization EPL 700 x 400
OVER-ALL MEASURMENTS AND SUPPLIES
Machine dimensions 1820 x 1885 x 2050 mm
Running dimensions 2670 x 1885 x 2050 mm
Total machine power 10 kW
Load capacity in addition to the chuck 600 kg
Machine net weight 2800 kg
VERSION SM
Rapid vertical feedrate 0,1 à 650 mm/mn
Slow vertical movement speed 0,1 à 2 mm/mn
|
|
|
|
|
|
Grinding machines with sliding - R160 40
TRAVELS
Longitudinal travel 1720 mm
Cross travel 450 mm
Vertical travel 420 mm
Distance between table and grinding wheel 470 mm
Distance between electo-permanent chuck and grinding wheel 400 mm
Distance between ground and magnetic chuck top part 1020 mm
SPINDEL & GRINDING WHEEL
Spindle power with electronic starter 5,5/7,5 kW/hp
Standard dimensions of the grinding wheel 350 x 50 x 127 mm
Rotation speed of the grinding wheel 1500 rpm
Wheel-dressing system on spindel : Z'=52mm Y'=55/65 mm
MOVEMENT
Automatique longitudinal travel with 3 phase motor and frequency converter : variable
speed
1 à 30 m/mn
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
40 à 1000 mm/mn
Ball screw with electronic vernier 0,001 mm
Rapid vertical feedrate 0,3 à 650 mm/mn
Slow vertical movement speed 0,3 à 10 mm/mn
Vertical ball screw with electronic vernier to 0,001 mm
ELECTRO-PERMANENT CHUCK
Ajustable attraction power, complete automatic demagnetization EPL 1600 x 400
OVER-ALL MEASURMENTS AND SUPPLIES
Machine dimensions 4270 x 1885 x 2050 mm
Running dimensions 4270 x 1885 x 2050 mm
Total machine power 10 kW
Load capacity in addition to the chuck 1200 kg
Machine net weight 3900 kg
VERSION SM
Rapid vertical feedrate 0,1 à 650 mm/mn
Slow vertical movement speed 0,1 à 2 mm/mn
|
|
|
|
|
|

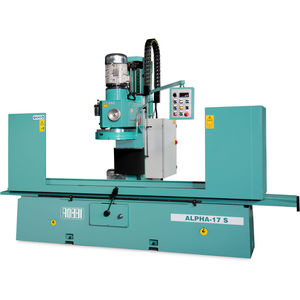

SYNTHESIS
Horizontal spindle grinding machines with 4 automation levels:
Auto / Diastep / CN compact plus / CNC diatronic
Models:
650/400 - Max. grindable surface 650x400 mm
800/500 - Max. grindable surface 800x500 mm
The constructive characteristics of this horizontal spindle
grinding machine are remarkable.
The structure of the machine, verified with the finit elements
method is completely made of Meehanite cast iron, is
oversized and properly ribbed, in order to give the maximum
stiffness to the system.
The hydrostatic lubrication , used on all machine axes,
allows to utilize in the best well way the whole power
installed, eliminating completely sliding friction and securing,
at the same time, regular movements without wear and
stick-slip. Ground ball screws (ISO 3) with preloade nut assure
great precisions in movements.
The spindle is supported on the front side by an hydrodinamic
bearing of the Mackensen type without wear which
secures, in the time, the maximum geometric and working
precision.
Standard equipment:
• proportional system for the movement of the longitudinal table
• hydraulic linear profiling device of the wheel
• quick vertical and transversal feed devices
• heat exchanger air/oil
• lexan and alluminium safety guard with interlocking switch.
|
|
The Thru-Feed Grinder TFG150
The Thru-Feed Grinder is a production flat machining process that does most everything a conventional double disc or vertical spindle grinder can do and a great deal more.
The Thru-feed grinder is the most efficient method known for high production surface grinding of small to mid size parts because it practically eliminates non-productive time. With the Thru-Feed Grinder, all machine time is grinding time, little is lost on fixturing and preparation such as set-up, and loading and unloading of parts. Parts of almost any material and shape are fed into the Thru-Feed Grinder via a conveyor belt passing beneath a grinding wheel and finished parts are discharged continuously. It’s truly a high production grinding system.
|
|
STARLINE series A
Starline 500A, Starline 600A, Starline 800A
with Siemens LC control
STARLINE series E
Starline 500E, Starline 600E, Starline 800E
with NC-Superplus-D control
ECOLINE
with NC-Superplus-D control
or with ABAMATIC 1 control
MULTILINE
with Siemens 840D control, Fanuc* control, ABAMATIC 1 control or NC-Superplus-D control
|
|
|
|
|
|
Grinding machines with sliding - R50 30
TRAVELS
Longitudinal travel 630 mm
Cross travel 310 mm
Vertical travel 400 mm
Distance between table and grinding wheel 460 mm
Distance between electo-permanent chuck and grinding wheel 390 mm
Distance between ground and magnetic chuck top part 1020 mm
SPINDEL & GRINDING WHEEL
Spindle power with electronic starter 2,2 / 3 kW/hp
Standard dimensions of the grinding wheel 225 x 25 x 76 mm
Rotation speed of the grinding wheel 2850 rpm
Wheel-dressing system on spindel : Z'=52mm Y'=35 mm
MOVEMENT
Automatique longitudinal travel with 3 phase motor and frequency converter : variable speed 1 à 30 m/mn
Automatic cross travel : incremental movement, continuous scanning and quick
movement with variable speed
40 à 1000 mm/mn
Ball screw with electronic vernier 0,001 mm
Rapid vertical feedrate 300 mm/mn
Slow vertical movement speed 0,3 à 10 mm/mn
Vertical ball screw with electronic vernier to 0,001 mm
ELECTRO-PERMANENT CHUCK
Ajustable attraction power, complete automatic demagnetization NEOMICRO 500 x 300
OVER-ALL MEASURMENTS AND SUPPLIES
Machine dimensions 1930 x 1690 x 1800 mm
Running dimensions 2590 x 1690 x 1800 mm
Total machine power 6 kW
Load capacity in addition to the chuck 300 kg
Machine net weight 1700 kg
VERSION SM
Rapid vertical feedrate 0,1 à 650 mm/mn
Slow vertical movement speed 0,1 à 2 mm/mn
|
|
|
|
|
|

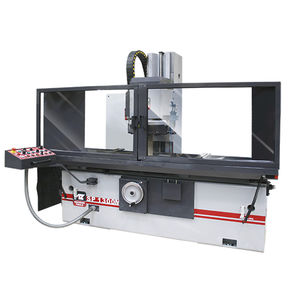

MINI
Traveling column surface grinding machines with 3 automation level:
Diastep / CN compact plus / CNC diatronic
Models: MINI 12 - Max. grindable surface 1300x650 mm
MINI 15 - Max. grindable surface 1500x650 mm
The traveling column plane surface grinders of the MINI line are advanced technology machines designed and built to assure high production capacity, precision and reliability.
The T-structure of the highest rigidità is made from stress-relieved Meehanite cast iron.
All machine axis slideways (table, column and wheelhead) are hydrostatic.
The hydrostatic lubrication, eliminating sliding friction, allows to use all the power installed and to achieve extremely regular and precise movements without wear and stickslip effects.
The spindle (original DELTA design) is the fruit of many years of study and experimentations, and is one of DELTA grinding machine strong points. The spindle, directly driven via coupling by a servoventilated motor, is supported on the wheel side by a no-wear hydrodynamic bearing of the Mackensen type providing for very smooth rotation and very quiet operation. A pair of preloaded precision ball bearings are mounted at the back. The attention paid to the ergonomy of the machine, provided with complete protection, allows the operator of a very good view and to work very easily under the best safety conditions, simplifying loading and unloading operations.
|
|
|
|
|
|
MAXI
Traveling column surface grinding machines with 2 automation level:
CN compact plus / CNC diatronic
9 models: 1200/750 - 1500/750 – 2000/750
2000/1000 – 2500/1000 – 3000/1000
2000/1100 – 2500/1100 – 3000/1100
Max. grindable surface: 1200x750(775) ÷ 3000x1100 mm
The traveling column plane surface grinding machine of the MAXI line are advanced technology machines designed and built to assure high production capacity, precision and reliability. The T-structure of the highest rigidità is made from stress-relieved Meehanite cast iron. All machine axis slideways (table, column and wheelhead) are hydrostatic. The hydrostatic lubrication, eliminating sliding friction, allows to use all the power installed and to achieve extremely regular and precise movements without wear and stickslip effects.
The spindle (original DELTA design) is the fruit of many years of study and experimentations, and is one of
DELTA grinding machine strong points. The spindle, directly driven via coupling by a servoventilated motor,
is supported on the wheel side by a no-wear hydrodynamic bearing of the Mackensen type providing for very
smooth rotation and very quiet operation. A pair of preloaded precision ball bearings are mounted at the back.
The attention paid to the ergonomy of the machine, provided with complete protection, allows the operator
of a very good view and to work very easily under the best safety conditions, simplifying loading and unloading
operations.
|
|

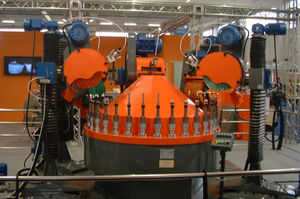

PLANE SURFACES VERTICAL AXIS GRINDING MACHINES
The vertical axis grinding machines DELTA are machines designed
and made with modern technologies and on the basis of a long and
consolidated experience in the sector (over 20.000 units sold all over
the world).
Quite easy to use and highly reliable, these grinding machines are
employed in many and different fields: from micromechanics to the
aircraft, shipbuilding and motor industry; from the tool industry to
material testing laboratories, technical institutes and vocational
schools; from the sheet metal industry (where they are used for the
sharpening of punches) to the wood industry; from the industry of
machine tools, household appliances, etc., to the food industry.
MODELS
LB300 AND LF350 WITH FIXED TABLE
Max. grindable surface 330x140 mm / 360x155 mm
LC400 AND LC500 WITH ROTATING TABLE
Max. grindable surface ø300 / ø400 / ø500
LP500/200 WITH OSCILLATING TABLE
Max. grindable surface 500x200 mm
|
|
ATD Microcomputer Type Series
The newest microcomputer controller & integrated types of varied grinding functions.
The motor control of the vertical shaft of elevating movements.
The speed adjustable system of vertical shaft.
The preset parameters of the lifting and space setting of varied grinding wheel.
The preset parameters of single in-put of varied feeding amount.
Automatic grinding system divides into three woring sections of initial step of grinding,the precision grinding,and the zero step of grinding.
Automated stop positioning selection function of the work head.
The hold-off grinding function for deep groove cutting
The complete feeding amount of automatic feeding:450mm.
Self detecting and alarm system.
Automatic stop function.
The detecting function of magnetic force.(selected item)
|
|
With SATURN double-disc surface grinding, two vertical grinding wheels simultaneously grind the workpiece on its parallel outer surfaces. The grinding wheels are set against each other at a slightly conical angle, so that as it passes from top to bottom, the workpiece retains its final dimension only in the bottom section of the grinding path. Because the workpieces are fed vertically between the grinding wheels, the bearing weight of the workpiece does not affect the grinding result. What’s more, the
coolant can simply drain downwards together with the removed material. The SATURN range comprises three
different machining processes:
- Rotation process
- Parallel grinding with linear through-feed
- Pendulum grinding
|
|

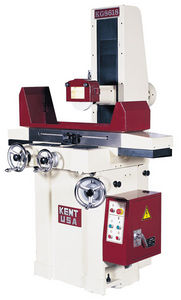

JL-618 Roller Guide Manual Precision surface Grinder
Specifications Model Descripion JL-614 JL-614 M
General capacity Working surface of table (mm) (inch) 150X365
(6"X14")
General capacity Max. table travel (mm) (inch) 175x382
(7"x15.2")
General capacity Max. surface ground (mm) (inch) 150x350
(6"x14")
General capacity Max. distance center of spindle to table 400(16")
|
|
JL-618SA /JL-818SA / JL-2A618 / JL-2A818
SA : Hydraulic Table
2A : Hydraulic table motoried crossfeed
3A : Hydraulic Table motoried crossfeed powered rapid vertical
feed
JL-3A618 / JL-3A818
All Joen Lih Precision Surface Grinders provide "as standard equipment " an electrically driven Automatic Lubrication System that delivers pressurized lubricating oil to all table ,saddle,and spindle slideways, as well as leadscrews and leadscrew nuts and beatings to maintain the precise accuracy of these performance grinders
|
|

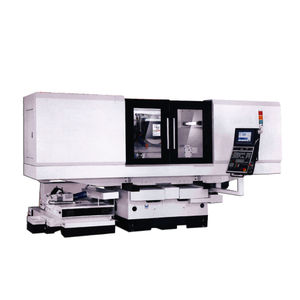

BLOHM’s production grinding machine line PROFIMAT is designed for medium to large batch sizes and for use in multi-shift operation. Its sheer robustness, reliability with highest availability and precision are decisive characteristics for profitable production in the automotive and sub-supplier industry, the hydraulic industry as well as the turbine industry.
The PROFIMAT MT is a flexible, high performance profile grinding machine with moving machine table
The PROFIMAT MC is a very compact and high heavy duty production machine in traveling column design.
The PROFIMAT RT allows%
|
|
|
|
|
|

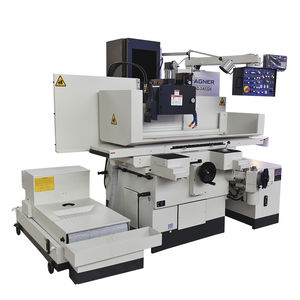

Features:
Three axes automatic grinder with small footprint.
Double V guide-ways are laminated with Turcite-B hand scraped to obtain smooth stick-slip free movements.
The traverse is guided by roller linear guides, with high precision ball-screws and driven by servo motor.
The Y-axis is also guided by roller linear guides, with high precision ball-screws and driven by servo motor.
The flanged cartridge type spindle is supported by 3 pairs of class 7 super precision angular contact ball bearings, preloaded and select-fitted into spindle cartridge.
The automatic re-circulating lubrication system supplies lubricant to all of the guide ways and lead screws as the machine operates.
The external independent hydraulic tank is located outside the machine to be easily accessible for maintenance. Driven by the proportional valve hydraulic system for easy speed adjustment in a range of 2~30meter/min for most surface grinding applications.
Standard oil cooler unit for hydraulic system. Prevents temperature rises and thermal deformation is reduced to a minimum.
An independent control box with an ergonomically designed panel offers a comfortable and convenient operation environment.
Control available in Fanuc, Siemens, Mitsubishi and Heidenhain.
|
|

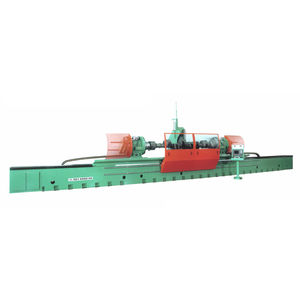

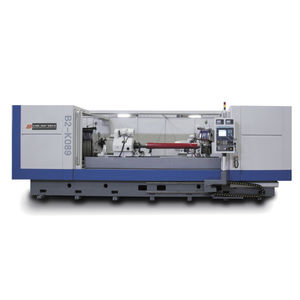

"Teach-in" external/internal grinding machine suitable for machining pieces of large dimensions.
It is complete with 2 electronic hand-wheels which can move the axes in manual cycle simultaneously and at different speeds and it is provided with two-axes digital numerical control.
|
|
|

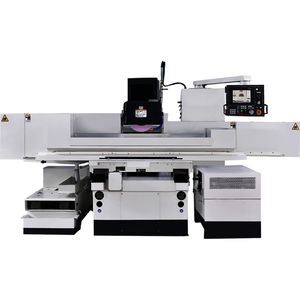

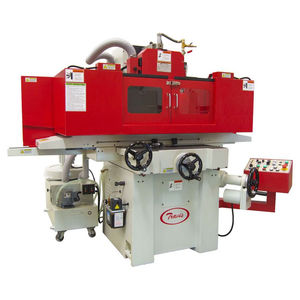

The highly advanced ADII series of automatic precision surface grinding machines are a result of the ongoing and extensive research and development program at CHEVALIER In addition to improved accuracies, quality, and machine life, the overall design of the machine incorporates ergonomics; all operating handwheels,levers,stroke setting devices, and the pendant control panel are arranged to allow ease of operation, therefore, working effi ciency is increased.
|
|
|
The more powerful PLANOMAT offers working areas of 400 x 800 mm (15,7 x 31,5”) up to 600 x 2000 mm (23,6 x 78,4”) and grinding spindle drives with 15 kW up to 24,5 kW.
|
|
|
|
|
|
Features:
The adjustable cross-rail with hydraulic lock offers maximum rigidity for different height parts, increases working flexibility.
Ideal surface grinder to grind the wide work such as large metal mold, large plate and ceramics plate.
Universal head equipped for grinding the slide-ways of machine tools or industrial machines, jigs and the component of general precision machines.
Large box design castings are made of high quality ribbed cast iron.
X-axis table with Turcite-B lining, Y &Z axes are box ways with AC servo drive.
The large spindle is support by angular contact ball bearings. 20HP motor ensures powerful accurate cutting.
The overhead dresser is integrated into an automatic wheel compensation system.
An independent control box with an ergonomically designed panel offers a comfortable and convenient operation environment.
Modern 10.4" color LCD touch screen panel, simply touch the screen to set the grinding variables.
Manual Pulse Generator (MPG) is also provided for user's convenience for both down feed and cross feed.
Sizes available from ( 1400~4200 )mm by ( 3000~16000)mm.
|
|
|
|
|
|
Features
- X axis designed with big"V"slide way.
- Compoumd two flat & one big V ( 一V一)longitudinal slide ways design for high straightness accuracy.
- Smooth table movement.
- Big V way design for minimizing heat deformation.
- Graphic conversational operation system for easy CNC operation, high performance for surface and form grinding. Elevation with counter weigh balance design.
- Concave/convex grinding function. (Workpiece with 0.06mm concave grinding)
- Superior NN type double row cylindrical roller bearing design for maximum grinding performance.
- Separated “BOX" type Double column and work table.
- Whole series Modularized design.
- Pro-E designed machine base, no S shape deformation.
- Machine and base accuracy will not affected by the grinding heads movement.
- Grinding vibration will not affect work table, thus, offer better surface finish and accuracy.
- Square type double column design, provides highest rigidity.
- Ground beam design, accuracy will not be affected by the moving heads
|
|
|
|
