Integer-N Phase Locked-Loop (PLL) Frequency Synthesizers
Get maximum signal clarity with our ultra-low phase noise PLL synthesizers: the Integer-N family for demanding LMDS, MMDS, WLL and other base station systems, and our Fractional-N family for handheld and mobile wireless devices. UltraCMOS technology allows monolithic integration for a variety of programming options including embedded field-programmable EEPROM capable of frequency synthesis up to 2.7 GHz and permanent store of control bits.

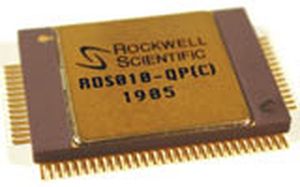

The RDS010 is a high performance direct digital frequency synthesizer (DDFS) with an operating frequency of 900 MHz. The RDS010 has been optimized for high-speed applications, achieving more than 60dB SFDR at 900 MHz reference clock. The integrated DAC outputs are internally terminated with 50Ohm resistors for better dynamic performance.
Integer-N Phase Locked-Loop (PLL) Frequency Synthesizers
Get maximum signal clarity with our ultra-low phase noise PLL synthesizers: the Integer-N family for demanding LMDS, MMDS, WLL and other base station systems, and our Fractional-N family for handheld and mobile wireless devices. UltraCMOS technology allows monolithic integration for a variety of programming options including embedded field-programmable EEPROM capable of frequency synthesis up to 2.7 GHz and permanent store of control bits.
The RDS010 is a high performance direct digital frequency synthesizer (DDFS) with an operating frequency of 900 MHz. The RDS010 has been optimized for high-speed applications, achieving more than 60dB SFDR at 900 MHz reference clock. The integrated DAC outputs are internally terminated with 50Ohm resistors for better dynamic performance.
Giga-tronics offers two series of standard synthesizer modules covering 2 to 24 GHz. These synthesizers are YIG oscillator based having low phase noise and spurious in compact modules.
The wideband, low noise synthesizer module series, SNY-510, covers the 2 to 10 GHz frequency range with modules having octave plus operating frequency bandwidths. This series is designed to provide reliable and cost effective performance where the key parameters are size, phase noise and bandwidth coverage. Mechanically this series was designed to fit into a single PXI or VXI chassis.

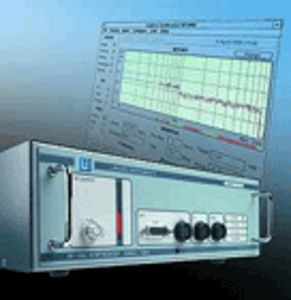

PC controlled RF synthesizers for immunity testing up to 2.4GHz matched to the requirements of IEC61000-4-3 and featuring automatic scanning to pre-programmed schedules
- Simple to use via PC 'windows' control software.
- USB port interface. No need for special interface cards.
- Field probe input for automatic level control.
- Suitable for use with any Power Amplifier and antenna / cell / chamber combination.
- Standard IEC61000-4-3 tests pre-programmed.
- EUT status input and prompt output.
