The PRONAL Flexible tanks provide the perfect answer to all liquid storage problems. The solution is simple and quick to implement and price attractive.
When empty, they are compact and can be easily moved.
Thanks to the design of the tanks, the liquids stored are never in contact with air.
The application field is very large :
- storage of sanitary or drinking water for Humanitarian care
- water treatment works
- water storage for fire protection
- water storage for potabilisation system
- industrial applications for liquid manure, stick, latex, various emulsions...
|
|
This storage tank for liquids or powdery products (water reserves, fish-breeding pools, safety sand vat, fertilizer, silo, effluent basin, storage of sludge cake) includes :
- A modular metal frame made out of galvanized steel assembled with bolts and nuts.
- A tight envelope made out of special polyester imputrescible cloth, coated with 1000 g/m2 PVC and reinforced by 2 welded belts.
The open vat is very light and no compact. It is very easy to clean in case of pollution of water by muds, leaves, sand, etc ...
|
|
Alltech Dosieranlagen GmbH is accredited for the production of tanks as officially defined by the relevant German design certifications. Our tanks receive certification according to the high standards and requirements of the German Water Protection Act (Wasserhaushaltsgesetz; WHG).
Moreover, we are accredited for the production of tanks according to the Technical Tank Specifications of Switzerland. Our service package comprises design, manufacture and documentation including the necessary certificates. In addition to our standard tanks, we produce specially designed process and storage tanks according to your wishes and needs
|
|

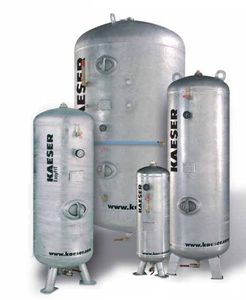

Compressed air receivers, operating pressure 11 bar
- Receiver horizontal from 18 to 5000 litres
- Receiver vertical from 270 to 5000 litres
Compressed air receivers, operating pressure 16 bar
- Receiver horizontal from 50 to 5000 litres
- Receiver vertical from 250 to 5000 litres
Compressed air receivers with higher operating pressures
are available upon request.
|
|
COMPRESSED AIR RECEIVER (vertical 2000 L)
PED performance
Complete with:
- ball valve
- pressure gauge
- high pressure conecting hose (1 m)
- safety valveReceiver (l) 2000
Working pressure (bar) 16
Height (cm) 278
Diameter (cm) 100
Weight (kg) 490
Ordernr: Code
36114 2000 l - 16 bar B
|
|
For use with compressors etc. These blue hammer-stroke sprayed receivers are built according to CE-Norm EN 286 and can be used in all EU countries.
The receivers have legs with mounting holes, handles, foundation and several connection points.
Horizontal model.
Specs Pressure (max., bar) 16
Ordernr: Cont. (l) Dim. (cm) Weight (kg)
36101 100 109.5 x 35 x 44.5 38
36102 200 137 x 45 x 54.5 68
36104 300 161 x 50 x 63.5 105
36105 500 186 x 60 x 78.2 145
|
|
The Skum bladder tank foam proportioning system is used to induce foam concentrates into water system with variable flows and/or pressure. A bladder tank has no moving parts and requires the minimum of maintenance.
The system is ideal for upgrading a water sprinkler system to a foam/water sprinkler system. Constant proportioning , irrespective of flow, is achieved by a pressure balance between the foam liquid in the bladder and the water in the system flowing over the proportioner.
|
|
Flexdrum®
Our Flexdrum® flexible tanks (sealdrum) are dedicated to be used by the Ministries of Defence as well as within the Industrial area.
The Flexdrum® tanks are designed for the transportation and storage of fuel, oil or water.
They are helitransportable, aerotransportable and towable and are efficient for both air and ground transportation.
|
|
Flexdrum®
Our Flexdrum® flexible tanks (sealdrum) are dedicated to be used by the Ministries of Defence as well as within the Industrial area.
The Flexdrum® tanks are designed for the transportation and storage of fuel, oil or water.
They are helitransportable, aerotransportable and towable and are efficient for both air and ground transportation.
|
|
Water Tanks
Extinguishing water, contaminated water, drainage water, rain water, ground water, industrial water or dirty water must be quickly and safely collected and temporarily stored in the case of fire, floods, stormy weather, pipe bursts or accidents. It is for these purposes that VETTER water tanks are now available.
In areas were there are catastrophes or were there are shortages of water, VETTER food-safe water tanks (GWT-L) can also be used for storing or transporting drinking water.
|
|
Flexcell®
Our Flexcell® range of racing fuel cells & components fully fulfills race & rally cars, off-road vehicles, boats and civilian & military armoured, aeronautical vehicles requirements.
All our fuel cells are custom designed to fit any vehicle. Our Engineering Department is able to design any kind of shape to suit your existing vehicle.
|
|
Petrol Tanks
the ideal above ground solution for storing your petrol safely and securely in a suitable bunded tank. The petrol tank is available in 3 capacities: 210 litres, 975 litres and 1950 litres and comes fully bunded, fire protected and is fully compliant to all relevant legislations.
975 Litre Petrol Tank
* Secure Padlock System * Easy fuel metering
* Fork lift ready * Hydraulic lid * Fire protected
Dimensions: 1500mm (L) x 1400mm (W) x 700mm (H)
Capacity: 975 litres
|
|
AdBlue Storage Tanks - Tuffa 1350SLB Adblue Fuel Station
Capacity: 1350 litres / 300 gallons
Dimensions: 2700mm (L) x 900mm (W) x 1700mm (H)
Tuffa have launched a new storage tank for AdBlue called the SkyBlue System. AdBlue is the new additive produced to reduce emissions from diesel engines. Tuffa SkyBlue Systems can be manufactured from 1350 litres up to a capacity of 15000 litres, plus. The SkyBlue Systems incoporate specialised equipment suitable for the AdBlue aqueous solution.
|
|
Petrol Tanks
210 Litre Caddy
Dimensions: 1330mm (L) x 710mm (W) x 880mm (H)
Capacity: 210 litres
Our petrol tanks are the ideal above ground solution for storing your petrol safely and securely in a suitable bunded tank. The petrol tank is available in 3 capacities: 210 litres, 975 litres and 1950 litres and comes fully bunded, fire protected and is fully compliant to all relevant legislations.
|
|
From a careful analysis of the problems linked to this liquid pouring, we have developed a reliable dispensing unit with compatible materials.
A precise meter allows to control the dispensing quantity. Pouring operations are easier thanks to the automatic dispensing nozzle and to the dispensing hose.
2500, 4500, 7500 and 10.000 lt TANK. TRIPLE THIKNESS HDPE MADE. HATCH DIAMETRE 400 WITH SFIATO
CHARACTERISTICS
Capacity : 40 l/min.
Maximum dispensing pression 5 Bar.
Self-priming capacity up to 2 metres.
Meter precision : +/- 1%
MANUFACTURING FEATURES:
Self-priming pump, stainless steel litre-counter, hose, (diam. 20 mm. / 4 mt lenght), hose holder with wrapper, automatic delivery nozzle.
SUCTION CONFIGURATION:
Suction hose (diam. 20 mm.) with bottom valve and filter
|
|
Oil Tank
Sunfab offers its own range of hydraulic oil tanks ST 250 with a number of functional improvements necessary for high performance hydraulic systems.
Sunfab ST 250 radically reduces the air mixture in the hydraulic oil with an oil pipe around the return filter and a tried and tested baffle plate design. Air mixture is the main reason behind noise and cavitation of the pump.
Sunfab ST 250 features an external breathing filter, which is fitted in a protected position to reduce the risk of clogging. The filter is connected to the tank via a hose.
Sunfab ST 250 is supplied complete with correctly dimensioned connections, filter and brackets.
The oil tank is available in two different materials:
- ST 250 A in aluminium
- ST 250 S in stainless steel
|
|
Bunded Heating Oil Tanks - Tuffa 10000 VB
Product description :
- A cabinet to house all appropriate equipment
- 2" BSP fill connection c/w cap and chain
- vent
- Watchman contents gauge
- 1" Bottom outlet (top outlet available on request)
- Battery bund / overfill alarm located within the cabinet
- Overfill prevention valve
Optional Extras
- Fire Protection
- Higher accuracy gauge
- Armco protection barrier
|
|
|
Pressure tanks made of galvanised steel or stainless steel are available in many sizes (1 litre - 250 litres). Due to uniform, pulsation-free material transfer from tank to gun, a first class spray pattern and a high working speed is achieved. If necessary, pressure tanks can be fitted with air-powered or electric agitators in order to achieve high hue accuracy and a homogeneous surface finish. WALTHER PILOT offers complete systems for all requirements. WALTHER PILOT manufactures pressure tanks in accordance with strict requirements of pressure equipment Directive 97/23/EC. In accordance with Directive 94/9/EC (ATEX), WALTHER PILOT has the approval for manufacturing equipment for appropriate application in areas exposed to explosion threats. Furthermore, we are certified to manufacture and approve tanks in accordance with the US-American ASME-code as well as the Chinese Safety Quality License. 10 years of delivery guarantee for spare parts.
|
|
|
|
|
|
The DDS Bomb vessel is unique in that it is the first of its kind and displays the following features:
The vessel is smaller than conventional vessels, which results in a smaller heat capacity. Special attention has been given to a thermally balanced vessel design which has been achieved using computer aided design (CAD) and computer simulation of heat transfer characteristics.
The vessel has an oxygen volume of 0.22 litres (220ml), which allows for a 0,5gr coal sample at approximately 30MJ/Kg. The temperature sensors are located cylindrically within the vessel walls at eight places.
The approximate temperature rise of the vessel after burning of 0,5gr benzoic acid is 9 degrees C. Practical tests have shown that up to 0.8gr of benzoic acid can be burnt without affectin g the accuracy. Oxygen starvation affects the results with higher charges.
The vessel is "smart" with an microprocessor built into the base of the unit. All the information pertinent to a vessel is stored permanently inside the vessel i.e. vessel number, calibration, number of firings, date of last reconditioning etc.
The vessel PCB is only powered up when it is placed in the calorimeter. The consequences of the vessel memory is that any vessel can run in any ...follow link for more info
|
|
|
Parr offers non-stirred pressure vessels in convenient style, sizes and pressure ranges for many laboratory uses. Applications for these vessels extend to all types of laboratory work wherever a chemical reaction or physical test must be performed under pressure at elevated temperature. Sizes range from 21 ml to 5 gallons.
|
|
Pressure feed containers are used to allow the coating material to be prepared, thinned and conditioned, constantly agitated (if required) and then supplied in bulk to consistently maintain the correct spraying viscosity and pressure. The Binks range is equipped with easy to operate air regulators (to set the desired fluid outlet pressure) safety pressure relief valves and Manual, Rotary or Oscillating agitation types are available to provide the best quality agitation.
Binks Pressure Feed Containers are constructed from the highest grade materials and fully comply with European and Global pressure regulations including PED, ATEX and ASME.
|
|
For all tasks requiring continuous application of substantial material / paint quantities at a steady pressure, SATA paint pressure tanks are the ideal solution. Different tank sizes, ranging from 2 to 100 iters, and variable pressure adjustment allow almost unlimited possibilities. Accessories dedicated to special tasks, such as manual, pneumatic or electric agitators are available.
Both low viscosity paints and high viscosity or abrasive materials can be applied swiftly and without problems with SATA paint pressure tanks. There are no moving parts and, therefore no wear and tear. All material-conveying parts can be supplied in stainless steel to special order. Work becomes especially profitable if the pressure tank size can be adapted to the original material container; reducing cleaning to a minimum as the original material container is simply inserted into the paint pressure tank.
|
|
Chemical storage tank
chemical storage and bunded chemical storage tanks includes pesticides and biocidal products such as:
- Fungicides
- Insecticides
- Herbicides
- Plant growth regulators
- Rodenticides (rat and mouse poisons)
- Animal and bird repellents
- Wood and masonry preservatives
- Disinfectants
- Anti-fouling products
|
|
Chemical storage tanks suitable for pesticides, biocidal products such as fungicides, insecticides, herbicides, plant growth regulators, animal and bird repellents, disinfectants.
Chemical storage tanks available in a range of 1350-100,000 litres capacity.
|
|
Flexible Tanks
Storing - Transporting - Protecting - Producing
Muststore is the Musthane range of product providing economic and fast moving solutions for the supply of liquids : potable water, fuel, industrial liquids…The flexible tanks designed and manufactured by Musthane are mobile, foldable and made of high duty elastomer or plastomer coated fabrics (PVC, Nitrile, PU, Alkryn…). These tanks can be opened or closed, helitransportabe or towable.
Muststore geo-membranes are made of PVC, PVC Elvaloy, PEHD, Hypalon or Butyl, and are used to protect the environment, to store alimentary or industrial liquids and to produce biogas.
Musthane also supplies the following equipments :
- Smell Filters,
- Heloportable fuel pumps including filtering systems,
- hoses,
- specific valves
|
|
The Trellchem® Super funnel is the ideal solution for leaks and emergency emptying of tanks etc. through manholes. It is made of the Trellchem® Super material, which has been used in Trellchem® suits for many years with excellent performance record. It combines ultimate chemical resistance with strength and flexibility.
MATERIAL
A strong and flexible polyamide fabric, coated on each side with butyl rubber. Additional layer of Viton® on the inside. Weight: 675 g/m2. Fulfils the material requirements according to EN 943-1 and -2.
ATTACHMENT
The funnel is quickly and easily attached to any manhole by means of Velcro® and a buckle. The acid proof steel hose connection fits most types of hoses. Its special construction prevents the funnel from being sucked into the hose when connected to a pump.
|
|
|
The new tank systems, such as WERIT safety tanks Techno K and E, offer numerous advantages in terms of safety and space savings: they are light-weight, clean and anti-corrosive and can be set up as battery, multi-block and angle systems. Thanks to their compact dimensions they are easy to handle, even in tight areas. A second exterior tank made entirely of plastics allows direct installation in the central heating room and makes the use of an oil pan, additional mason work and triple protective coating absolutely redun-dant. Anyone who installs a WERIT tank will be pleased with the additional space they now have available for other uses.
|
|
- For more than 35 years LINPAC Allibert Buckhorn has been manufacturing high quality plastic storage tanks using our unique process : Helix winding.
- Tanks wound by LINPAC Allibert already store more than 400 million litres of corrosive liquids. All industries, all types of chemicals, any conditions, standard or bespoke designs.
|
|
The following are standard features of all* WERIT products:
- RAL A14 stamp
- UV-stable
- Compliant with the standards for plastics required by the food industry, i.e. BGA, FDA und USDA.
- Lead and cadmium-free color pigments pursuant to the recommendations of BGA IX. Color Substances for Dying Plastics and Other Polymers for Objects of General Use
- 100% recyclable
- HDPE meets BGA III recommendations
- Resistant to virtually all standard acids and brine
- Traceability ensured thanks to production date stamp
|
|
In the oil reservoir all oil coming from oil separator is stored and cooled down. Any refrigerant trapped within the oil is boiled of.
The size of oil reservoirs required is determined by the number of compressors connected, compressor oil charge, system refrigeration charge and operating conditions.
|
|
|
|
