Sutton Tools recognises the relentless challenge facing metal working industries to produce faster and more efficiently than ever before and is pleased to provide the high performance market with the most cost efficient cutting solution with the release of it’s High Performance Range of Taps.
The comprehensive range of high performance taps now includes Cobalt and Vanadium based grades of high speed steel (HSS-Co, HSSE-V), as well as the latest developments in Powdered Metallurgy high speed steel (PM-HSS) and Carbide ranges, manufactured to DIN standards, which are complemented by TiN, TiCNite, AITiN (multi-layer) and CrN ceramic surface coatings and state of the art Vacuum Heat Treatment.
There are so many variables that affect the final outcome, and hence overall cost effectiveness of a job, that selecting the right tap can be somewhat of a challenge
However the Sutton High Performance Range has simplified this task, by colour coding the tools to the material group in which it is intended for, allowing you to quickly select the most suitable tool for your job.
For more information on the High Performance Taps, visit our website on http://suttontools/IndustrialHSGTTaps
|
|
A comprehensive programme of HSS and HSCo hand and machine taps available in a wide variety of thread forms, with a range of surface treatments
- Hand Tap
- Machine Tap
- Machine Tap, Interrupted Threads
- Machine Tap, Extra Long
- Machine Tap, Left Hand Spiral
- Machine Tap, Back Tapered
- Machine Taps, Oil Grooves
- Combi Taps
- Tap Wrenches
|
|
Sutton Tools high speed ground taps and surface coatings are manufactured in Australia meeting international standards.
Developed with unique geometrics and available in a variety of surface coatings, the all-new Application Tap range ensures you have the right tap for your specific material application.
|
|
A comprehensive programme of high performance HSCo and Solid Carbide material-specific and multi-application machine taps. All are available in a wide variety of thread forms with a range of surface treatments
- Machine Taps for low to medium strength steel
- Machine Taps for Alloy Steel
- Machine Taps for Stainless Steel
- Machine Taps for Aluminium
- Machine Taps for Cast Iron
- Machine Taps for High Strength Steel and Titanium
- Multi-Application Machine Tap
- Solid Carbide Machine Taps
- Solid Carbide Thread Milling Cutters
- Solid Carbide Orbital Thread Former
|
|
More than 3,000 screws are used in the production of a single automobile. Each hole drilled for a screw requires precise threading cut with a tap.
Noted accuracy and speed, OSG taps are used extensively by manufacturers, expecially of automobiles and aircraft, making OSG the No.1 taps producer globally.
Tapping is difficult? - No, it is easy!
- deep hole (up to 3XD) for stainless steels - CC-SFT
- tapping for heat resistant alloy steels - E series
- tapping Ti alloy steels - Ti Series
- tapping hardened steels up to 60 HRC - VX-OT
etc.....To request more information on this product, please visit our Literature Request Page
|
|
RESISTOR OPAL MACHINE TAPS These Powder Metallurgy Taps are designed for machining hard materials up to 1000 N/mm2 with excellent results
You can download the information sheet from our Catalogue Section.
We invite you to visit us at ITM MACH-TOOL exposition in POZNAN (POLAND) 9-12 June 2008
|
|
|
HTT offers a range of top quality solid carbide micrograin taps for tapping the most difficult materials. Size range from M4-M12
|
|
Landis Taps Program
Landis offers both collapsible and solid adjustable taps with replaceable chasers. These two systems offer a low-cost solution to internal threading operations.
|
|
Brubaker Tool has been manufacturing taps for over 125 years. Our company can trace its roots to specialized taps for the steam locomotive industry. This foundation in railroad taps led to the production of quality general purpose and special order taps. Over the past several years Brubaker has gained strength and expanded its presence in high performance, special application taps. Based upon these successes we are proud to introduce our Gold High Performance Tap Series. Our Gold Series will enable us to provide our valued customers with high performance taps as a catalog offering with off- the- shelf availability.
Our Brubaker Gold, High Performance Taps are yet another indication of our commitment to quality, growth and the support of American manufacturing. Whether your manufacturing needs call for a standard tap, high performance tap, special geometry, special or standard end mill, we can meet all of your round tool cutting needs.
|
|
Fastcut Tool was founded in 1957 as a manufacturer of quality end mills. Following its acquisition by Talbot Holdings, Fastcut began to offer general purpose and special order taps in 1991. Over the past several years Fastcut has gained strength and expanded its presence in high performance, special order taps. Based upon these successes we are
proud to introduce our Gold High Performance Tap Series. Our Gold Series will enable us to provide our valued customers with high performance taps as a catalog offering with off- the- shelf availability.
Our Fastcut Gold, High Performance Taps are yet another indication of our commitment to quality, growth and the support of American manufacturing.
Whether your manufacturing needs call for a standard tap, high performance tap, special geometry, special or standard end mill, we can meet all of your round tool cutting needs.
|
|
TARAUDS WITH COLOR RING
Special half-lenght tap - DIN371/376 - Metric
- ductile light alloy
- aluminium and hard silicon alloy
- stainless steel
- hard steel
- medium-hard steel
- special cast iron
|
|
Mill Thread Solid Carbide tools advantages:
Thread is generated in one pass.
Spiral flutes allow smooth cutting action.
Shorter machining time due to multi, 3 to 6, flutes.2.2 mm and up cutting diameter.
Threads up to shoulder in blind holes.
#
Longer tool life due to special multi-layer coating.
#
Same tool can be used for a variety of materials.
#
Excellent surface finish.
#
Low cutting pressure allows thin wall machining.
#
Same tool used for R.H. and L.H. threads.
|
|
MACHINE TAPS
3160V HSS machine tap - standard point
3152V HSS machine tap - spiral point
3158V HSS machine tap - spirale flute
|
|

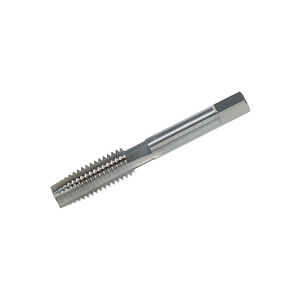

HAND TAPS
3150V Standards set of 3 CV hand taps - ISO 529
3155V Set of 3 HSS hand taps - ISO 529
|
|
Recoil taps differ from standard taps dimensionally, and only Recoil Screw Thread Insert (STI) taps are suitable for use with Recoil wire thread inserts.
Recoil Taps are manufactured to precise standards from either HSS or HSS-E, and available in Tpaer, Intermediate, bottoming leads, or Spiral point and Spiral Flute for machine taps.
|
|
These general purpose taps can be used by hand or under power, in through or blind holes and are suitable for tapping most materials. The chips are retained in the flutes during use.
Three-fluted taps have the greatest chip holding capacity and should be used, in the size range where available, for tapping holes deeper than 1-1/2 diameters. A variety of surface treatments are available to improve performance.
|
|
New taps from EMUGE solve special machining problems with even more economic efficiency
For the machining of Inconel and similar nickel alloys, we have developed the new tap types Rekord C-NI-TICN (through hole threads) and Rekord DF-NI-TICN (blind hole threads). The new cutting geometries and the raised tolerances (X-tolerance) will guarantee long tool life.
For the machining of MAGNESIUM, we have introduced the new tap type Rekord A-MG-GLT-1 into our catalogue programme. A special cutting geometry, in combination with the anti-friction coating GLT-1, will help to achieve enormous tool life.
The tool type Rekord A-HCUT-TICN of HSS-PM, also newly developed, will offer our customers an economically efficient alternative to solid carbide taps. These TIN-coated precision tools are intended for hard castings and hardened steels from 44 to 55 HRC.
|
|
These general purpose taps can be used by hand or under power, in through or blind holes and are suitable for tapping most materials. The chips are retained in the flutes during use.
Three-fluted taps have the greatest chip holding capacity and should be used, in the size range where available, for tapping holes deeper than 1-1/2 diameters. A variety of surface treatments are available to improve performance.
|
|
C007V3155 7 sets of 3 HSS Hand taps (metal case)
C007V3152 7 pc HSS machine tap kit (metal case)
X014V3152 14 pc drill bit and spiral-point tap kit (metal case)
X014V3152A 15pc drill bit and spiral-point tap kit (metal case) + adjustable tap wrench
X029V3155 29pc drill bit and 3pc HSS tap kit (metal case) + adjustable tap wrench
|
|
Thread cutting tools
HAND TAPS
3150V Standards set of 3 CV hand taps - ISO 529
3155V Set of 3 HSS hand taps - ISO 529
MACHINE TAPS
3160V HSS machine tap - standard point
3152V HSS machine tap - spiral point
3158V HSS machine tap - spirale flute
OUTILLAGE
3180V Adjustable tap wrench
9780V T-handle ratchet tap wrench
FILIERE
3170-3171V CV-steel adjustable round dies
3175V Metric HSS round dies
3172-73-74-78V NPT HSS round dies - briggs thread
3177-85-86V BSP HSS round dies - gas thread
3200V Die rock
|
|
The hole is drilled using a commercially available standard drill bit.
Then, insatallation is made with a manual or an automatic special tap for fitting wire thread insert.
|
|
in High Speed Steel and Carbide
Machine taps and fluteless taps
Oil feed taps and oil feed fluteless taps
Hand taps
Thread milling cutters
Dies
|
|

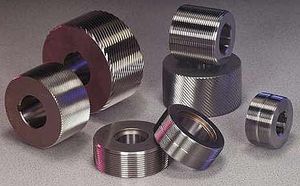

Rolling dies exploit the plasticity of metal to form screws and serrations by rolling rather than cutting. This process maintains the integrity of the material by preventing damage to it structurally. The absense of cutting also makes this a high-speed process.
Consequently, many forms, serrations, and splines used in the manufacture of automotive parts are now made using rolling dies.
OSG is the world leader in the production of rolling dies renowned for their high quality and level of technology.
To request more information on this product, please visit our Literature Request Page
|
|
|

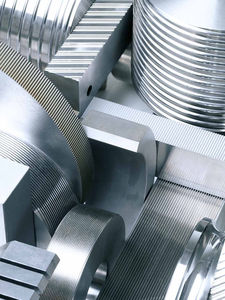

Our extensive experience and wide-ranging technological knowledge of thread, profile and cold ring rolling is the foundation for being a qualified die manufacturing source. Whether you require standard or special dies for high quality profiles, Profiroll has the ability to supply and support you with the innovative visions of the company. You will get solutions to complex technological problems, all from one source. From the design and manufacturing to testing in our facility and support at the customers facility ? by utilizing our complete die manufacturing process, we can respond to your needs quickly. Quality control and customer service are important to us.
|
|
Landis Replacement Dies Program
Now you can get that world-famous Landis quality in a replaceable machine die for practically every major cylindrical die competitive brand on the market today from “Plain Annular Threaded” dies to the most demanding "Specialty" dies…you name it…now you
can get it…from Landis.
Dies are available up to 9” nominal O.D. with bore sizes to 3”. Got a machine die you want us to quote on? Just use the handy "Quik-Quote" form or call us toll free at 1-888-565-0386. We want your business. Give us the chance to earn it. Call us with any inquiry! You won’t be disappointed!
|
|
|
|
