4 product ranges :
Telemag : telescopic columns for robust and safe guiding systems.
Telesmart : lifting columns for table height adjustment.
TMS : Strong telescopic column for the lift of heavy excentric loads.
Maggear: For integration into most table legs.
|
|
• X2 provides very stiff lifting columns for various applications in medical, ergonomical and industrial markets.
• The columns are available with single spindle( S-type), double spindles for low retracted height (D-type) and winch solution with extremely low retracted height (B-type, only pull force). All types are available in different versions for various offset load and extension needs.
• We are very good in CUSTOMIZED columns to OEM users and end user with projects from 5 pieces.
|
|
ELECTRIC TELESCOPIC ACTUATOR SERIES TES, TVS
> stable with side-loads
> elegant
> ergonomic design
> rugged
> silent
> self-locking
> long-life
> thrust up to 4500 N
|
|
• X2 provides very stiff lifting columns for various applications in medical, ergonomical and industrial markets.
• The columns are available with single spindle( S-type), double spindles for low retracted height (D-type) and winch solution with extremely low retracted height (B-type, only pull force). All types are available in different versions for various offset load and extension needs.
• We are very good in CUSTOMIZED columns to OEM users and end user with projects from 5 pieces.
|
|

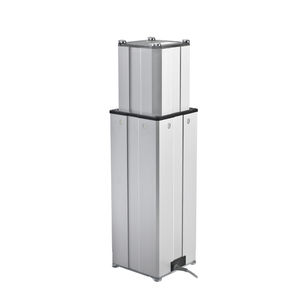

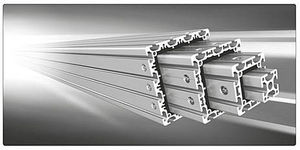

The "PHOENIX" telescopic lifting column is a compact lifting system with integrated guiding arrangements made of high-quality, anodized precision aluminium profiles, worm gear screw jacks from the MERKUR range and a directly mounted motor. They can be used independently or as a complete lifting system. Synchronization can be effected electric or via a mechanical connection by means of articulated shafts.
Operational features of our PHOENIX Telescopic Lifting Column
Bears heavy compression and tensile loads
Enclosed, low-maintenance design
Flexible modular system
Off-center load pick-up is admissible
Self-locking mechanism in the TGT trapezoidal version
Fast lifting speed in the version with the two-start trapezoid screw (TGT)
or ball screw (KGT)
Maximum duty ratio 20%/h or 15%/10min
Maximum ambient temperature 40° C
Short delivery times
|
|
|
|
