SENNEBOGEN telescopic cranes are extremely reliable and useful for assembly jobs on any building site, as well as in industry and wherever precise, safe load positioning is required. Low operating costs, compact construction and excellent mobility make our telescopic cranes on crawlers or wheels the ideal machinery for universal applications.
SENNEBOGEN - telescopic cranes are avaiable from 16t - 80 t service weight
|
|
SENNEBOGEN telescopic cranes are extremely reliable and useful for assembly jobs on any building site, as well as in industry and wherever precise, safe load positioning is required. Low operating costs, compact construction and excellent mobility make our telescopic cranes on crawlers or wheels the ideal machinery for universal applications.
SENNEBOGEN - telescopic cranes are avaiable from 16t - 80 t service weight
|
|
RT-300 Rough Terrain Crane
Rated Capacity Limiter Standard
Broderson RT-300 Rough Terrain Crane
Capacity on Outriggers 30,000 lbs. (15 Tons)
Pick and Carry Capacity up to 18,300 lbs. (9.15 Tons)
Height 11' 2"
Width 8' 2"
Boom Rotation Continuous 360 Degree
Sheave Height up to 88' 0"
Horizontal Reach up to 80' 0"
4-Wheel Steer Standard
4-Wheel Drive Standard
Powershift Transmission Standard
Diesel Engine Standard
Fully Hydraulic Controls for Smooth Precise Operations
Independent Outrigger Controls
Currently producing 'E' Model
|
|
Link-Belt
RTC-8075
75-ton (68.0 mt)
Rough Terrain Crane
- 41’ – 127’
(12.5 – 38.7 m)
4-section boom
- Optional 39’ 6” – 67’
(12.0 – 20.4 m)
two-piece offsettable fly
- 202’ (61.6 m)
maximum tip height
- Height: 12’ 10.75” (3.93 m);
Width: 10’ 10.5” (3.31 m);
Length: 48’ 9.5” (14.87 m)
- 19.5 mph (31.4 km/hr) travel speed
- 12’ 7” (3.84 m) wheel base
- 29.5x25 (28 pr) tires,
optional 29.5R25 XHA
- Caterpillar C6.6 6.6L 235 hp (175.2 kW) diesel engine
- Spicer 6 speed power shift transmission
- 23’ (7.01 m) outrigger spread, 23’ 3” (7.09 m) outrigger base
- 16,506 lbs (7 503 kg) maximum winch line pull
- 454 fpm (138.4 m/min) maximum winch line speed
|
|
|
Grove RT's feature rugged deep box section frames designed to handle the tough conditions found on job sites. Four steering modes allow easy maneuvering in tight quarters. Since pick and carry applications are typical for RT's, Grove units feature excellent on-rubber operation to enhance productivity.
|
|
|
National Crane’s full line of articulating cranes consists of 8 models ranging in capacity from 4 tons to 11 tons. Maximum vertical reach ranges from 46.5 ft to 70.4 ft.
|
|
IC-250 Industrial Crane
Rated Capacity Limiter Standard
Broderson IC-250 Industrial Crane
Capacity on Outriggers 36,000 lbs.
(18 Tons)
Pick and Carry Capacity up to 18,500 lbs.
(9.25 Tons)
Height 7' 11"
Width 7' 10"
Boom Rotation Continuous 360 Degree
Sheave Height up to 79' 6"
Horizontal Reach up to 70' 0"
4-Wheel Steer Standard
4-Wheel Drive Optional
Tight Turning Radius
Powershift Transmission Standard
Fully Hydraulic Controls for Smooth Precise Operations
Diesel or LPG Fueled Power Available
Independent Outrigger Controls
Currently producing 'C' Model
|
|
IC-80 Industrial Crane
Rated Capacity Limiter Standard
Broderson IC-80 Industrial Crane
Capacity on Outriggers 18,000 lbs.
(9 Tons)
Pick and Carry Capacity up to 11,700 lbs.
(5.85 Tons)
Height 7' 3"
Width 6' 6"
Boom Rotation Continuous 360 Degree
Sheave Height up to 46' 0"
Horizontal Reach up to 40' 0"
4-Wheel Steer Standard
4-Wheel Drive Optional
Powershift Transmission Standard
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Independent Outrigger Controls
Currently producing 'G' Model
|
|
IC-40 Industrial Crane
Rated Capacity Limiter Standard
Broderson IC-40 Industrial Crane
Capacity on Outriggers 9,000 lbs.
(4.5 Tons)
Pick and Carry Capacity up to 7,200 lbs.
(3.6 Tons)
Height 6' 9"
Width 5' 4"
Boom Rotation Continuous 360 Degree
Sheave Height up to 33' 6"
Horizontal Reach up to 27' 0"
4-Wheel Steer Standard
4-Wheel Drive Standard
Tight Turning Radius
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Independent Outrigger Controls
Currently producing 'B' Model
|
|
IC-20 Industrial Crane
Capacity 5,000 lbs. (2.5 Tons)
Broderson IC-20 Industrial Crane
Pick and Carry Capacity up to 2,500 lbs. (1.25 Tons)
Height 7' 6" with O.G.*
Height 5' 6" without O.G.*
Boom Rotation 90 Degrees
Width 4' 0"
Sheave Height up to 27' 9"
Horizontal Reach up to 22' 0"
Rear Wheel Steer Standard
Front Wheel Drive Standard
Tight Turning Radius
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Currently producing 'G' Model
*Operator Guard
|
|
|
National Crane offers 11 models of stand-up control telescoping cranes with capacities ranging from 8 tons to 33 tons. Controls are located on both the left and right side of the crane facilitating ease of operation on any job site.
|
|
|
In Brazil we produce cranes for the entire South American market. Click here for further information on MADAL-PALFINGER products.
|
|
Link-Belt
TCC-450
45-ton (40.8 mt)
Telescopic Crawler Crane
- 33’ – 105’ (10.06 – 32.00m)
4-section boom
- Height: 10’ 6” (3.2 m)
- Width: 11’ (3.35 m)
- Length: 40’ (12.20 m)
- 1.18 mph (1.90 kph)
maximum travel speed
- Isuzu 182 hp (135.72 kw)
Tier III engine
- Maximum line pull:
11,023# (5 000 kg)
- Maximum line speed:
328 fpm (99.97 mpm)
- Track gauge: 11’ (3.35 m)
- Track length: 18’ (5.47 m)
|
|
|
The LTR 1100 unites the advantages of a telescopic crane and those of a crawler crane. The crawler chassis has outstanding off-road capabilities and manoeuvrability. What is more, the cranes displaces its load with excellent precision. The advantages of telescopic cranes are short set-up times, easier transportation and the variability of the boom and jib system.
|
|
JLG combustion-powered booms get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.
600SC
Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
660SJC
Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
|
|
|

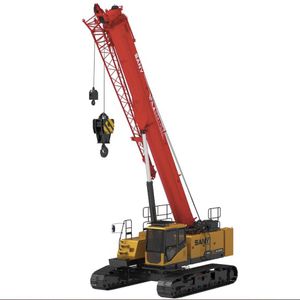

Crawler cranes deliver excellent mobility over soft surfaces. These multiple-purpose cranes can be used in a broad range of applications, ranging from construction to civil engineering and port cargo handling.
|
|
IC-35 Industrial Crane
Rated Capacity Limiter Standard
Broderson IC-35 Industrial Crane
Capacity on Outriggers 8,000 lbs. (4 Tons)
Pick and Carry Capacity up to 6,700 lbs. (3.35 Tons)
Height 6' 6"
Width 5' 0"
Boom Rotation Continuous 360 Degree
Sheave Height up to 33' 0"
Horizontal Reach up to 27' 0"
Rear Wheel Steer Standard
Front Wheel Drive Standard
Tight Turning Radius
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Independent Outrigger Controls
Currently producing 'E' Model
|
|
IC-25 Industrial Crane
Capacity 4,000 lbs.*
(2 Tons)
Pick and Carry Capacity up to 3,400 lbs. (1.7 Tons)
Height 7' 2" with O.G.**
Height 5' 9" without O.G.**
Boom Rotation Fixed
Horizontal Reach up to 17' 0" *
Width 4' 0"
Sheave Height up to 27' 0"
Rear Wheel Steer Standard
Front Wheel Drive Standard
Tight Turning Radius
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Water Cooled Engine
Currently producing 'A' Model
* Front Bumper
** Operator Guard
|
|
IC-80 Industrial Crane
Rated Capacity Limiter Standard
Broderson IC-80 Industrial Crane
Capacity on Outriggers 18,000 lbs.
(9 Tons)
Pick and Carry Capacity up to 11,700 lbs.
(5.85 Tons)
Height 7' 3"
Width 6' 6"
Boom Rotation Continuous 360 Degree
Sheave Height up to 46' 0"
Horizontal Reach up to 40' 0"
4-Wheel Steer Standard
4-Wheel Drive Optional
Powershift Transmission Standard
Fully Hydraulic Controls for Smooth Precise Operations
Dual Fuel or Diesel Power Available
Independent Outrigger Controls
Currently producing 'G' Model
|
|
|
Liebherr builds a wide range of mobile cranes with telescoping or lattice booms on wheeled or crawler-tracked undercarriages, to operate in the most diverse areas. These cranes are powerful, compact and manoeuvrable, and feature ultra-modern "made in Germany" mobile-crane technology that satisfies combined road and off-road operating requirements on construction sites of all kinds, worldwide.
|
|
The Favelle Favco crawler crane range is jointly developed with Caterpillar Industrial Products Inc and are a combination of Favelle Favco lifting technology and Caterpillar technology. The model lineup is divided into lattice boom and telescopic boom. The crane sizes range from 30 ton to 60 ton with a telescopic boom and 60 ton with a lattice boom. The innovative telescopic crawlers are ideal for remote jobs which require quick mobilization as they are able to get to work immediately off a truck without the aid of another crane. Their versatility is even more pronounced as it is able to "pick and carry"on rough terrain.
Applications:
- General Construction Worksites
- Pipe Laying Work
50PL
MAX LOAD 49t
MIN BOOM LENGTH MAX 15m
BOOM LENGTH 42m
TIP LOAD 0.8t at 42.7m
60L
MAX LOAD 55.1t
MIN BOOM LENGTH MAX 15m
BOOM LENGTH 54m
TIP LOAD 0.6t at 53.4m
|
|
