The bearings of industrial rotating equipment operate under arduous conditions - often for considerable periods of time. The most reliable indicator of bearing condition is the temperature of the metal beneath the shoe.
Recognition of rising temperature can provide a warning of the breakdown of the lubricating oil film; thus allowing machine shutdown and maintenance to take place - avoiding the probable catastrophic failure of the bearing and possible damage to its mounting. Conax Miniature Bearing Sensors provide a simple and cost-effective method to monitor bearing temperatures.
Features:
- For embedded applications in rotating machines
- RTDs - 100 ohm platinum, 0.00385 ohm/ohm/°C
- Thermocouples types J, K, T & E
- Single and duplex sensors
- Various styles and sizes
- Operating Temperature: to 250° F ( 120° C)
|
|
Install miniature sensors in or beneath the babbitt layer of bearing shoes. They monitor metal temperature — the most reliable indicator of bearing condition — to give early warning of oil film breakdown. Machines can then be shut down and the problem corrected before catastrophic failure occurs.
While no larger than many bare ceramic elements, these RTDs have metal cases and insulated leads to withstand rough handling and harsh environments. They’re easy to install in drilled holes for general purpose sensing.
|
|
Mainly based on the float switch design, these controllers help to monitor the liquid level (as combined units they monitor both liquid level and temperature) in oil reservoirs of fluid power and lubrication systems.
Attached to the tank top cover, they penetrate directly into the hydraulic fluid or the lubricant.
Each of the following series offers particular features and details culminating in the extreme density of functions offered by the Multiterminal.
Level switch Fluidcontrolterminal series
High number of functions reduces requirements for installation, space and cost
Adjustable level contacts
Connecting flange according to DIN 24 557 part 2
Directly attached electronic contact thermometers optional
The FC terminals offer the functions of tank breathing, level/temperature control, filling and topping up and oil sampling in a very compact design.
|
|
Fast- Response Temperature Sensor with pt1000 Resistor
The fast-response temperature sensor with pt1000 resistor is used for water temperature measurement in hot water supply, solar panels, boiler system etc.
It can be directly mounting in pipe or plate of vessel, the response time is about 1 second.
Technical Data:
1) reaction time: 2 second max
2) Temperature sensing element: pt1000
3) Cable length: 1000mm or client required
4) Mounting threads: 1/2” G connection threads or client required
5) Housing material: SUS304 or SUS316L
|
|
These RTDs cover the full temperature scale of the international standard EN60751. Precision sensing elements and nickel alloy sheaths are capable of measurements from -200 to 850°C (-328 to 1562°F) with typical ice point drift less than ±0.05°C.
600°C models have stainless steel sheaths for reduced cost. They use the same element structure as 850°C models for excellent accuracy and stability.
- Platinum elements to EN60751, Class A or B
- English and metric diameters
|
|
You can mount these probes directly in fluid streams for accurate, reliable sensing. Time constant is just 2 seconds, compared to 10 seconds for an ordinary stainless probe or up to 50 seconds for a thermowell. The result is more accurate monitoring of dynamic processes.
- Stainless steel probes for use to 260°C (500°F)
- Pressure rating 1500 psi (103 bar)
- Quick reaction to changing fluid and gas temperatures
- NPT (U.S.) or metric threads
|
|
The bearings of industrial rotating equipment operate under arduous conditions - often for considerable periods of time. The most reliable indicator of bearing condition is the temperature of the metal beneath the shoe.
Recognition of rising temperature can provide a warning of the breakdown of the lubricating oil film; thus allowing machine shutdown and maintenance to take place - avoiding the probable catastrophic failure of the bearing and possible damage to its mounting. Conax Miniature Bearing Sensors provide a simple and cost-effective method to monitor bearing temperatures.
Features:
- For embedded applications in rotating machines
- RTDs - 100 ohm platinum, 0.00385 ohm/ohm/°C
- Thermocouples types J, K, T & E
- Single and duplex sensors
- Various styles and sizes
- Operating Temperature: to 250° F ( 120° C)
|
|
- Small, rugged RTDs and thermocouples
- Install in bearings for early warning of overheating
- Bolt-on designs for easy installation
- Single or dual elements
- Wide variety of leadwire options
|
|
Customer Requirement:
An RTD assembly was needed to monitor product temperature by piercing a sealed bottle within a sterilization chamber. When not monitoring product temperature, the assembly was also used to monitor internal chamber temperatures. Process temperatures reached 134°C.
Conax Design Solution:

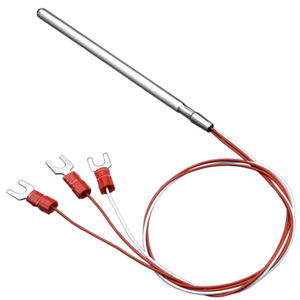

Conax provided a 3-wire, 100 ohm platinum RTD assembly with a 4" long chisel point tip. The assembly consists of a sealed T3 termination, with 10 foot of treated silicone insulated cable that prevents moisture penetration, and a 0.125" diameter 316SST sheath. The assembly offers ±0.12% ohms accuracy @ 0°C. A Conax PG2 sealing gland seals the cable exiting the chamber. This product, one of the available configuration options of the Conax "Sterisensor," provides superior quality at a very competitive price.
|
|
Example:
-Platinum-chip temperature sensors in SMD style on epoxy card to EN 60 751, PCSE style (90.6122)
for temperatures from -20 to +150°C
Reference values Pt100, Pt500 and Pt1000
standardized nominal values and tolerance
pre-assembled measuring insert
automated processing is possible
SMD temperature sensors offer a price advantage
|
|
The ifm temperature sensors are based on a PT 1000 which converts the measured quantity of temperature into a signal as a result of the change in resistance. A microprocessor controls the evaluation of the electrical signal. For the efector 600 the system temperature is directly indicated on the unit by an LED display.
The electronic circuitry is made in film technology, i.e. a flexible, temperature-stable and extremely resistant polyimide film is used as a carrier for the SMD components. In conjunction with a special potting compound this leads to a high shock and vibration resistance. The microprocessor and the display make the handling of the efector 600 very simple. By means of programming buttons the values for switch point, hysteresis, switching frequency and delay time can be set electronically without the system temperature being present. This enables the installation of the efector 600 in a few minutes. The values are saved in an EEPROM independently of the supply voltage.
|
|
Insert these thin, laminated RTDs in winding slots to detect high temperatures before insulation damage occurs. RTD temperature sensors continuously monitor conditions and provide the long term trend data that is necessary for making adjustments before unexpected alarms occur.
The sensing elements of stator RTDs extend through most of the body length to provide an average temperature reading. This eliminates the danger of a point-type sensor missing a localized hot spot. Six sensors are recommended for each motor, two per phase. Locate sensors near the hottest point of the windings for best performance.
Some models comply with European standards for electrical apparatus for potentially explosive atmospheres: ATEX Directive 94/9/EC EN 50 014: 1997, General requirements EN 50 019: 2000, Increased safety.
|
|
fluid-Check ® Temperature Sensor TS-1-A-120-3/8“
for measuring flow of oil in pipes.
Installation ONLY 3 Minutes, NO NEED TO CUT PIPES www.servclip.com
Examples:
Temperature of aggregates, overheating of pumps, control of heat exchangers, lubrication systems.
Description
The temperature sensor TS-1-A-120-3/8“ can be used for direct temperature measurements inside pipes such as hydraulic and lubricating oil pipes.
In addition to its robust and compact design, this sensor stands out by its high accuracy and its extensive measurement range. As a standard, the housing and all parts exposed to the liquid are made of stainless steel (Type 1.4571) Soft seals consist of Viton.
Can be combined with measuring connector serv Clip® type 2 (for mounting on non-pressurized pipes).
Technical data:
- Temperature sensor Type L thermocouple
- Temperature range -30 ... +120 °C
- Output 4 ... 20 mA / 2 wires
- Protection mode IP 65
- Right-angle plug connection DIN 43650 A
- Robust stainless steel housing
|
|
|
Conax Technologies designs, engineers and manufactures sensors in sizes starting at 0.040"/1mm diameter with probe configurations available in over 30,000 combinations of mounting styles suitable for applications from laboratory to large industrial environments. We offer a complete system approach, from sensor to transmitter, to provide a single source to satisfy your temperature sensing needs. It's one more way we give you exactly what you want and make it easier than ever.
|
|
|
From miniature detectors to 100 foot averaging thermometers, from flexible Thermal-Ribbons to heavy duty probe assemblies, our selection lets you choose the best model for your needs. We can supply platinum, nickel, nickel-iron, and copper RTDs with curves to match any instrumentation. Minco also offers thermocouples and thermistors mechanically interchangeable with RTD models to help you standardize installations.
|
|
- Monitor water or chemical solution temperature in cooling tower sumps and storage tanks
- True continuous averaging sensor eliminates errors due to temperature stratification
- Stainless steel case is rugged and impervious to most chemicals
- Bend or manipulate the probe to accommodate a variety of sump and tank designs
- You can specify the overall probe length and the length of the temperature sensitive zone to fully immerse the sensitive zone in liquid
- NEMA 4 weatherproof connection head
- Optional 4 to 20 mA temperature transmitter
|
|
Example of one Engine Temperature Sensor:
Media: Liquid media (e.g. water, oil, fuel), nominal resistance: 2.251Ù(25°C), temperature range: -40…+155°C, time of response: t90<15s (in water), thread: M12x1,5, connector: DIN Bayonet (DIN72585), protection range: IP 6K6K/6K7/6K8/ 6K9K.
|
|
Autoclave Chamber/Load Probe (SL160) Sensor :
The SL160 series of autoclave chamber/load probe sensors are similar to the SL150 series, but differ in having a 90° bend and a chisel point to allow penetration of the product bottle seal.
When mounting a load probe with a straight sheath into a product bottle/container in an autoclave it is often difficult to achieve the desirable orientation. This is often due to both the weight of the probe lead wire and its restrictive bending radius. The SL160 is designed to circumvent this by having a 90° bend in the probe sheath. The addition of a chisel point at the probe tip also allows it to be inserted with relative ease through the bottle seal it there is one.
The SL160 chamber/load probes are currently being fitted as original equipment by a major autoclave manufacturer.
|
|
WDB Series Bearing Sensors
PTC Thermistor with fixed pre-set trip points from 50°C to 120°C
NTC Thermistor for continuous measurement up to 110°C
Long term reliability
Easy installation - replaces existing grease nipple
Extensive range of PTC sensors available from 50°C to 120°
For use with T400, T400 Elite, T500 Elite or Watchdog Elite control modules
|
|
A critical indication of the status of bearings on large rotating plant is provided by their running temperature.
Monitoring bearings in this manner provides the ability to recognise any possible upward trend in bearing temperature. This in turn allows for a regime of planned preventative maintainance to be put in place, offsetting the possibility of catastrophic plant failure.
Due to its small physical size the miniature bearing sensor can be positioned close to the bearing surface allowing it to sense any early change in temperature.
These devices are available in both thermocouple and PT100 resistance thermometer format and can be supplied as either single or duplex sensors. The sensor lead wire insulation is in PTFE or glass fibre and lead wire jackets can be protected with stainless steel outer braid.
|
|
This can extend from a simple thermocouple in a benign environment to a complex multi sensor configuration with electronic transmission. It could also be located in an aggressive environment and in an area nominated as being hazardous.
To meet these varying needs we produce a full range of appropriate products. Through careful selection of materials, design and construction (based on the temperature and the environment) we are able to advise the most appropriate solution to your application. This could be from a standard arrangement or custom built.
With our commercial arrangements with other instrument manufacturers we are able to supply a complete instrumentation package when required, from the sensor itself to the indicator, recorder, data logger or other peripheral equipment.
Certificates of Conformity, material certificates and calibration certificates for all products are available at the time of placing an order.
|
|
Watlow can design and manufacture custom temperature sensors and wire and cable to meet specific application demands.
Capabilities include:
* Thermocouple sensors
* RTD and thermistor sensors
* Molding and packaging capabilities
* Agency standards
* ISO 9001 quality auditing procedures
To find out more about custom sensor capabilities, contact your nearest Watlow representative.
|
|
Temperature sensors, humidity sensors, pressure sensors, frost protection thermostats, pressostats, explosion proof
Passive, potential free binary and modulating sensors, series ExSens, for temperature, humidity and pressure, with manufacturer certificate, in acc. with ATEX 94/9/EC for use in hazardous areas zone 1, 2, 21 and 22 (in acc. to sensor type), for all kind of gas, mixtures, vapours and dust.
Sensors for room, duct or tube mounting (in acc. to type).
Modulating sensors series ExSens connectable to transducers series ExCos-A, RedCos-A or EXL-IMU-1.
Modulating sensors series ExPro-C… connectable to transducers series ExCos-D and RedCos-D.
Binary sensors series ExSens connectable to switching module series EXL-IRU-1.
|
|
TRH10 is an environment temperature and relative humidity sensor suitable for wall or ceiling mounting.
The electronic of TRH10 has been designed to resist to the harsh environment conditions and the use of a very sensitive and calibrated sensor make possible to obtain very reliable readings also in the worst conditions of use.
The value read by TRH10 are made available on a simple 2 wire digital bus wich makes the interface usable by every PLC or system of industrial or building automation.
* 2 wire digital communication interface
* Usable by any PLC or computer system for industrial or building automation
* Environment sensor for relative humidity in the range 0 ÷ 100%
* Environment sensor for temperature in the range -40.0 to 120.0 °C
* 2 analog inputs NTC, range -50.0 ÷ 110.0 °C (optional)
* ABS or inox steel case
|
|
Screw-in RTD thermometers ET521 and ET522 with replaceable measuring insert and terminal head are preferred for measuring temperatures in liquids and gases. Applications include HVAC and refrigeration, heating installations, ovens, furnaces and plant engineering, as well as process technology.
- For temperatures from -50..+500 °C
- As single or twin resistance thermometer
- Pt100, Pt500, Pt1000, PTC1000 or NTC sensor
- Selection of DIN B types and miniature terminal heads
- Integrated thermowell with AISI316 s/s thread-connection
- Transmitter options with outputs 4-20 mA and RS485 Modbus RTU
|
|
Miniature Bearing (MBS) Sensor
A critical indication of the status of bearings on large rotating plant is provided by their running temperature.
Due to its small physical size the miniature bearing sensor can be positioned close to the bearing surface allowing it to sense any early change in temperature.
These devices are available in both thermocouple and PT100 resistance thermometer format and can be supplied as either single or duplex sensors. The sensor lead wire insulation is in PTFE and if necessary lead wire jackets can be protected with stainless steel outer braid.
BSWS Bearing sensor wire seal assemblies are low temperature/low pressure glands for embedded sensors to prevent oil wicking along the sensor leads. They seal on the individual insulated leads exiting an oil-filled bearing housing.
Typical aplications are motors, turbines, pumps & journal bearing pedestals.
|
|
Freeze Dryer (FD100) Sensor :
The FD100 freeze dryer sensor was designed to measure very small volumes of liquid product, typically like those found in lyophilizers.
When attempting to accurately measure the temperature of small volumes of product such as that contained in a pharmaceutical vial, temperature conductance can affect the result. This is due to the relatively large mass of the sensor sheath compared to the volume of product being measured.
The FD100 sensor was designed to reduce this effect and is achieved by building a thermal break between the sensing tip and the main probe stem. Temperature conductance is kept to a minimum and the positioning of the face of the miniature detector ensures an optimum time response.
|
|
The SL100 Steriprobe® (Sterimaster® in the USA), load/chamber probe was developed specifically to meet the demanding conditions presented by the chamber environment found in modern autoclaves. The sensitivity and accuracy of the sensor meets the requirements of current European and USA legislation whilst being of robust mechanical design.
The 'Steriprobe' has been designed to withstand these conditions and offers a reliability factor surpassing that previously obtainable. During manufacture every weld undergoes NDT examination and each completed assembly is 100% tested.
These units are available as PT100 resistance thermometers to all tolerance classes and with 3 or 4 wire connection also as type 'T' thermocouples in Class 1 material. They can be supplied in single, duplex or triplex detector format with probe lengths to requirements.
The assembly materials of construction are 316L stainless steel, PTFE and silicone and all components have full traceability.
|
|
Series SL150 (Sterisensor® in the USA) autoclave chamber/load probe
The series SL150 offers increased flexibility with a tough, thick walled silicone rubber protected lead wire FDA listed (21CFR 177 2600). These units were designed for use in both steam and water cycle autoclaves and are used extensively in autoclaves manufactured by most of the major manufacturers, either as original equipment or as replacement parts.
|
|
|

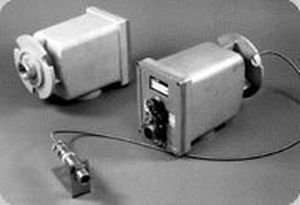

Temperature transmitters are fitted with either Pt100 or Pt1000 sensors. Their change in resistance relative to temperature is transformed into an electric output signal or used to control relay contacts.
|
|
|
|
