Temperature sensors Thermotronik TT-77
- electronic temperature switch
- up to 4 programmable set points
- alternative continuous temperature signal plus 1 programmable set point
- window and hysteresis function
- two outputs programmable 1-100 Hz
- max/min. memory
- direct or remote installation
- LED display with status indication 270° rotatable
- standardized manu structure
- dip tube length up to 1 meter
|
|
Bimetal temperature switch with fixed switching point (60.8301)
electromechanical temperature switch with a fixed switching temperature
IP67 protection (max.)
simple installation
contact rating up to 2.5 kVA
The bimetal temperature switch lends itself to universal use. Areas of application include temperature monitoring/control and signaling in cooling and heating systems, compressors and motors.
The temperature switch can, to a limited extent, also be used as a temperature controller.
The temperature change is transferred to a mechanism via the fitting. When the switching temperature is reached, the temperature switch is activated.
|
|
* TS-3.5-3H freeze protection Switches :
TS-3.5-3H temperature switches is used for freeze protection or a low-temperature process control solution. such as gas-fired boiler,central air-conditioner, water pipes and solar power system.
* TSB-16-4L temperature switches :
TSB-16-4L temperature switches is used for temperature compensating of lower ambient temperature of ice-box.
* Temp.Switches for Toilet Seat TSB-45-8L :
The TSB-45-8L Temperature Reed Switches are best for heated water bidet type toilet seat and water temp heating control. It is optimum products for this appliance, high precision temp, measurement or temp. control in liquid, long service life, the electrical parts is epoxy sealed, ensure safety in using, good quality and low cost.
* Temp. Switches for Fish Bowl TSB-31-4L :
TS-31-4L Temperature switches is specially idea for fish bowl temperature controlling. With high reliability and durability.
|
|
|

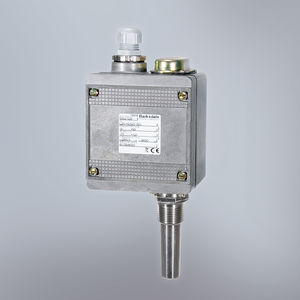

Barksdale temperature switches offer superb stability and are the ideal choice for accurate stable measurments in critical applications.
|
|
Digital Temperature Switch - Series TSX
Dual Probe Input, Single or Dual Relay Output
Digital Temperature Switch - Series TST
Dual Probe Input, Three 8 Amp Relay Output, Alarm
Digital Temperature Switch - Series TSS2
PTC Thermistor Input, Two Independent Relay Outputs
Temperature Switch - Series M-51
Bi-metal, Double Adjustable, Automatic Reset
Temperature Switch - Series FM
Adjustable Deadband, Immersion Type
Temperature Switch - Series DA-7035N
Adjustable Deadband, Bulb and Capillary Type
|
|
PDTF Series
Temperature Switch
70°F to 285°F (20°C to 140°C)
Withstands Acceleration to 8G
Small Capillary for harsh applications
Gems PDTF Series is a factory set temperature switch for the protection of all types of internal combustion engines, pumps, compressors, gear boxes, hydraulic reservoirs, marine and industrial power plants. Model PDTF will withstand acceleration to 8G. Its compact and rugged construction allows it to be mounted in the toughest OEM applications. The PDTF utilizes a liquid filled capillary to sense temperature changes. The liquid expands as the temperature increases causing the capillary pressure to increase.
|
|
ASCO pressure and temperature switches are a range of miniature to industrial size switches designed to signal when process media reaches a set point of pressure or temperature. The transducer will operate a mechanical snap switch when the set point has been reached, and will reset when the process media conditions drop below the dead band. Options include fixed or adjustable dead band and a a wide range of set points of vacuum to 8000 psi and temperatures of -60ºF to 640ºF (-51ºC to 337ºC).
All switches incorporate a diaphragm-piston type pressure sensor or vapor-filled temperature sensor transducer with a fully adjustable electrical switch unit. The modules are mix 'n match, and can be field or factory assembled into more than 20,000 pressure or temperature switch variations right off the shelf.
|
|

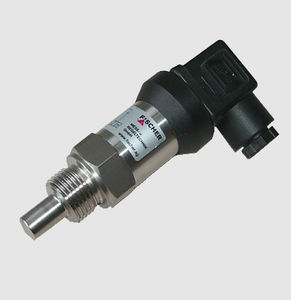

Temperature Switch TSP 01 in Stainless Steel
TSP 01
Characteristics
Electronic temperature switch in stainless steel
pnp output
Temperature sensor: Pt100
Max. temperature measuring range: -30°C up to +150°C
Max. 2 switch points: closer or opener
Electrical connection: plug M12 or cable
Protection: IP65
Process connection: BSP ½"
Reasonable prices
Areas of application
Hydraulics, Pneumatic, Plant construction, Machine tools, Process technology, Chemicals, Water treatment etc.
|
|
|
Model 8253 Temperature Switches are ruggedly constructed and have precise set point adjust-ments for use where reliable monitoring of critical temperature conditions such as high water or oil temperature is necessary in engine installations or other high or low temperatures in heavy duty industrial applications.
|
|
-Precision stainless steel mechanism for arduous
atmospheres and high humidity.
- Set point adjustable over whole range against calibrated
scale with tamperproof adjuster.
- Weatherproof and Flameproof models.
- Models for fixed switching differential,
adjustable differential and HI-LO operation.
- Hermetically sealed microswitch option
|
|
800 Series
Product Overview
No external power required
SPDT or dual switch outputs
Stainless steel bulb and capillary
NEMA 4 enclosure
Optional capillary lengths & materials
Adjustable ranges: -180 to 650ºF; -117 to 340ºC
Approvals: UL, CSA, CE
|
|
Dresser Instruments manufactures a full line of high quality Ashcroft® pressure switches for the shutdown and control of many types of processes. The array of Ashcroft® pressure switches offered, meets application needs for industries such as off-road equipment, generators, compressors, turbines, off-shore applications, panels, pipelines, filters, blowers, wastewater applications and more.
|
|

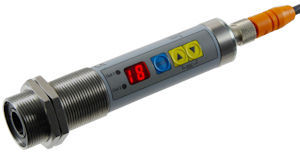

Infrared switches recognize without contact hot objects in its measuring beam, to trigger a switch process. They are e.g. used for recognizing, counting or positioning of hot objects. The IMPAC Infrared temperature switches cover a temperature range between -40°C and 1500°C.
For detailed information please see:
www.impacinfrared.com/EN/products/temperature-switches.html
|
|
Bulletin 837 Temperature Controls are heavy-duty control circuit devices used in industrial applications where the temperature must be maintained within preset limits. These devices use a vapor pressure technology to sense changes in temperature.
Bulletin 837 Temperature Controls:
Operating Ranges From -60%u2026570°F
Adjustable Range and Differential
Remote Bulb Sensing or Direct Immersion Types
Stainless Steel Bulb, Capillary and Armor Available
Variety of Contact Blocks Available
Open Type, Type 1, Type 4 & 13, Type 4X and Type 7 & 9 and 4 & 13 Combination Enclosures
|
|
Thermostats, automatic controller etc.
Taxes/rules/supervising
With a temperature and a humidity control system you create climate conditions, which make a perfect function possible of your components.
Thermostats and Hygrostate steer and regulate
* Heaters,
* Filter exhaust,
* Heat exchanger or
* Coolers,
if fixed temperature levels or dampness levels to be over and/or fallen below. For the protection of smooth operational sequence fans can be supervised by filter exhausts additionally. An air flow guard recognizes and signals, if an exhaust failed blocked or.
|
|
-Large setting range
-Small size
-Simple to mount
-High switching performance
KTO 011:
Thermostat (normally closed); contact breaker for regulating heaters.
Approvals: UL File Nr. E164102
|
|
On/off type signal, temperature range 35-110°C. Can pilot currents up to 10A
MOD 507 Bimetallic thermostats Sensore di temperatura - Termostato bimetallico MOD.507
Capacity contact: 5 (1) A / 250 Vac
Temperatures intervention: 35 / 80° C
Electrical connection: DIN connector 43650
Output signal: SPDT
|
|
Honeywell Sensing and Control offers a range of commercial and precision thermostat products.
Precision thermostats include both hermetic and non-hermetic devices for use in a wide array of applications including computers, copy machines, aircraft, radar equipment, medical equipment and electronic control systems. Honeywell offers custom-packaged thermostats designed to operate in extreme environmental conditions.
Commercial thermostats include products for use in a wide array of small and major appliances, automotive applications, office copy machines, heat and smoke detectors and HVAC (Heating, Ventilation, Air Conditioning) equipment. These snap-action thermostats include automatic or manual reset options, phenolic or ceramic housings and a variety of mounting brackets and terminals.
|
|
The Vigitherme M23 is a very thin model : 6,5 mm.
The two picot edges allow a direct mounting on a printing circuit with a pitch of 7,62 mm
TECHNICAL CHARACTERISTICS
- Range of temperature : - 40° to+ 180°C
- Current rating : 5 A
- Voltage rating : 250 V
- Type of contact : opening or closing
- Nature of contacts : massive silver
- Voltage proof between terminations and ground : 2000 V
- Contact resistance : 10 m Ohm
|
|
-NO and NC in one casing
-Separate adjustable temperatures
-High switching capacity
-Terminals easily accessible
-Clip fixing
Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters.
Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
Approvals: UL File Nr. E164102
|
|
Klixon® 1NT Series: Fixed Temperature Thermostats
The 1NT thermostat is used in a variety of applications throughout the world. They help ensure the correct and safe function of many appliances and HVAC products.
Sensata Technologies’ reputation is based on the proven quality and reliability of our products. Our cost effective solutions protect the consumer as well as the manufacturers of these products. Decades of experience and the committment to continuous improvement have resulted in the best thermal protection devices available.
Applications
• Coffee and tea makers • Gas furnaces
• Sandwich makers • Fan heaters
• Hair setters • Vacuum cleaners
• Microwave ovens • ...And more!
• Rice cookers
|
|
To ensure both perfect insulation and absolute tightness, the Vigitherme can be cased in a epoxied resin.
The epoxied resin moulding A 2 is destined to be immersed in the fluids. A diameter threading of 14 mm allows to fix the device through a wall.
|
|
The Airpax 5003 series is a RoHS compliant, thin, lightweight, wafer-type thermal switch that is ideal for applications when space is at a premium. Overall depth without projecting terminals is only 0.250 inches.
The basic switch assembly is operated by a bimetal disc with positive, reinforced snap-action, which is known for its reliable repeatability. The construction of the switch assembly offers excellent shock and vibration
resistance. Thermal response is fast due to low mass.
|
|
To ensure both perfect insulation and absolute tightness, the Vigitherme can be cased in a epoxied resin.
The standard A 1 moulding is a cylinder and its dimension are the following :
For the M 16 : Diameter 17 mm - high 23 mm
|
|
|
Hermetically sealed, high quality Snap–action switching Single pole, single throw (SPST) Normally open or normally closed Pre–set, non–adjustable calibration Max resistive load: 7 amp Operating temperature range: -65°F to 550°F (-54°C to 288°C) Ambient temperature range: -80°F to 550°F (-62°C to 288°C) Plating: standard is copper–nickel plated with silver contacts (other platings available) Many options available including switch packaged into probe, strap mount, or immersion thermostat
|
|
-NO and NC in one casing
-Default temperature settings
-High switching accuracy
-Clip fixing
Two factory-set thermostats in one casing:
Fix-Thermostat/Contact breaker (NC) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value.
The contact opens when temperature is rising.
Fix-Thermostat/Contact maker (NO) for regulating filter fans, heat exchangers or for switching signal devices when temperature limit has been exceeded.
The contact closes when temperaure is rising.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
Approvals: UL File Nr. E164102
|
|
|
|
|
|
Thermtrol Corporation is a leading provider of precision-made protective thermal devices. We design and manufacture a wide variety of thermal controls ranging from manual reset protectors, to fixed-temperature disc thermostats and thermal cutoffs. Our engineers can recommend one of our standard thermal devices to best meet your needs, or custom design a control for your specific application. All Thermtrol products are made to exacting quality standards to ensure they meet the heat protection requirements of the most demanding commercial and industrial applications.
With sales offices located in North Canton, Ohio and Hong Kong plus manufacturing facilities in both Ohio and Vietnam, Thermtrol Corporation serves a diverse cross-section of business and industry throughout North America, Asia, and around the world. Our valued customers include companies in the appliance, electronics and lighting industries, as well as a host of other industrial manufacturers. Our thermal devices protect everything from vacuum cleaners and microwave ovens to battery packs and motors.
|
|

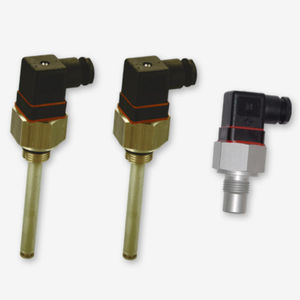

- Bimetal sensing element type
- Liquids and gas application
- Brass or St. Steel materials
- 1/2" male thread, other on request
- Fixed switch points from 30°C to 130°C
- N.O. or N.C. contact
- 360° revolving connector on request
- Pmax = 100 bar
- Protection class IP65
|
|
Designed with brass or anodized aluminium body, G3/8" - G1/2" - G1/4" and M22x1.5 standard thread connections, push-on 6.3x0.8 and screw terminals or DIN Plug. Available with N/O or N/C contacts.
Temperature range: +25°C...+130°C
IP54 and IP65 standard protection. On request special thermostats with IP67 protection can be supplied.
Models available with an optional magnet to attract possible fluid impurities.
Suitable for application with speed reducers, compressors, pumps, heat exchangers, explosion engines.
All the models suit the UE standards.
|
|
Thermtrol offers Texas Instruments' line of 1NT Klixon® fixed temperature thermostats. Approved by numerous testing agencies, all 1NT thermostats pass a series of rigorous quality control checks including continuity, function, contact resistance and dielectric strength. A wide range of operating temperatures, as well as a small size and a variety of physical configurations, pen-nit the flexibility to meet specific customer needs. In addition, a 1/2 disc thermostat can be packaged within a probe thermostat assembly to accommodate an even greater array of industrial and commercial applications.
|
|
|
|
