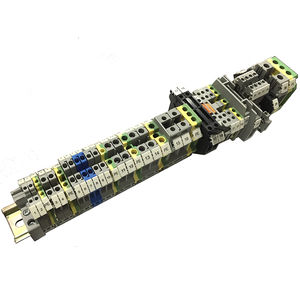

SCREW TYPE TERMINAL BLOCKS ( AVK )
AVK type screw terminals are manufactured from thermoplastic raw material.Grey as being the main colour , 6 different colours give users chance for grouping.
DIFFERENT TYPES OF SCREW TERMINAL BLOCKS ARE AS BELOW;
Standard Feed Through Terminals
Multi Level Terminals
Fuse Terminals
Fuse and Disconnect Terminals
Test and Disconnect Terminals
One-input-two-output Terminals

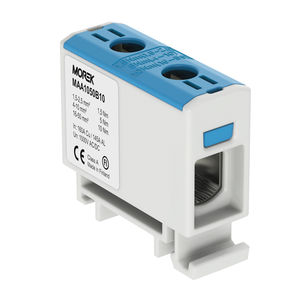

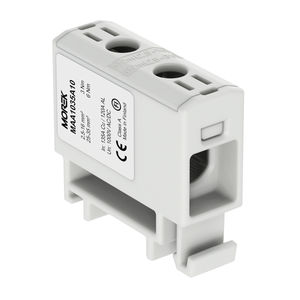

High Current Terminals

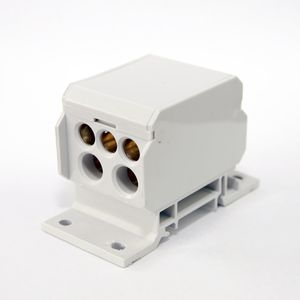

Distribution Terminals
Sensor Terminals
|
|

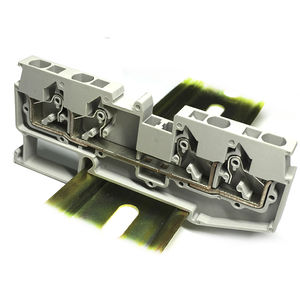

SPRING TYPE TERMINAL BLOCK
Spring clamp terminals provide a realistic alternative to terminal blocks with screw clamp connection in many fields of application.The spring clamp is operated by using a screw driver to provide an access to wire through the opening in the spring clamp.The wire end gets clamped on to the current bar on removal of screw driver.
YBK type spring clamp terminals decrease the mounting and revision costs relative to screw type terminals.
Interlocking mechanism on the plastic housing prevents terminal blocks to be separated from each other when the cables are connected.
TYPES OF DIFFERENT SPRING TERMINAL BLOCKS AVAILABLE ARE AS BELOW:
Standard feed-through terminals
Multi-Layer Terminals
Fuse terminals
Mini terminals
Terminals for sensors
Terminals for PCB Connection
One-in-Two-out
Two-in-two-out
|
|

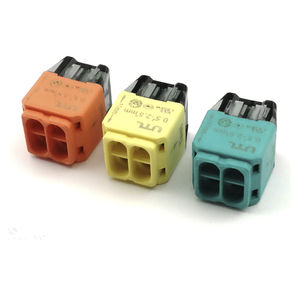

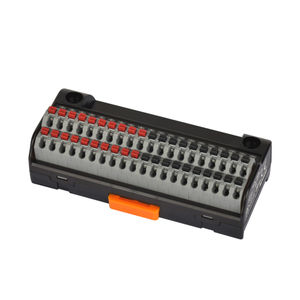

PRACTICAL SPRING TYPE TERMINAL BLOCKS
Practicle Spring Type Terminal Blocks.

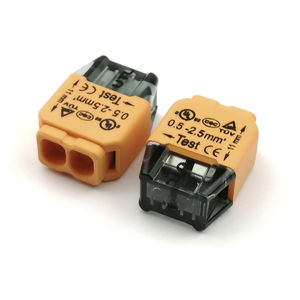

New technology push-in terminal blocks.
Cable pushed-in without using a screwdriver.
Very high cable resistance against pull-out.
Standard feed-through terminals.
Multi-Layer Terminals.
Fuse terminals.
|
|
TEST/DISCONNECT TERMINALS( WGO 3)
Test/Terminal blocks are used to perform required test without switching off the power in the system.These products are installed at the secondry side of current transformers,and thus, electrical ratings can be observed by testing equipment connected to the product.In addition, it is possible to perform all required test without disconnecting the ammeter.In order to change a defected ammeter, secondary side of the transformer is short-circuited, and afterwards,the ammeter is disconnected securly.In the new generation test/disconnect terminal blocks named WGO 3 the connection surface area of the sliding bridge has been increased by 10 times.Thanks to sliding bridge and insulated test socket, the component is safe and functional, and short circuiting is easy.Another advantage of these new products is that the sliding bridge remains concrete due to bridge holder pins.Comb connectors can also be used with WGO 3.
|
|

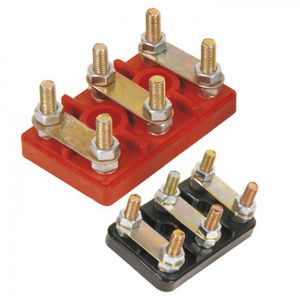

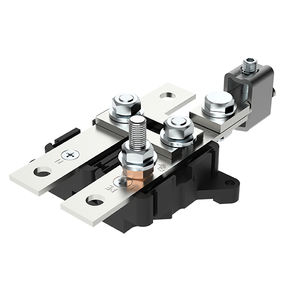

TRANSFORMERS TERMINAL BLOCKS
TRV series enables users to make electrical connections to LV transformers.While transformers.While TRV 4 provides the connection with fast-on type terminals, TRV 4M realizes double terminal collection possible.Other members of this series give the oppurtunity of setting double connection to cables with 10 mm2 cross connection fuse usage.
|
|
Available in various methods of wire connection, these terminal blocks are ideal for using in applications where high operating temperatures are involved.
|
|
|

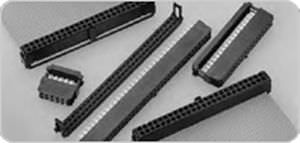

RIA CONNECT manufactures high quality, competitively priced terminal blocks and terminal block connectors for the Global market. We offer pc mount screw based RIACON European style terminal blocks, spring clamp based SPRINGCON terminal blocks, tool-less insulation displacement IDCON connectors, PLUGCON headers and pin strips for pluggable terminal blocks and TUBECON tubular screw electrical terminal blocks.
|
|

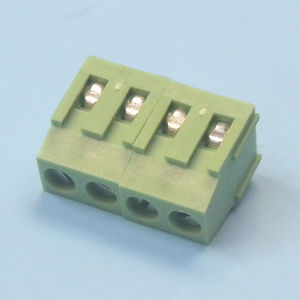

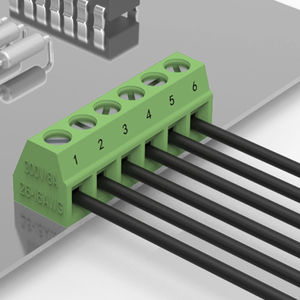

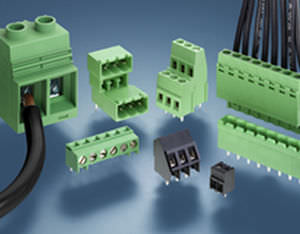

Printed Circuit Board Terminal Blocks are designed for use in industrial electronics.
Solder Connection to Printed Circuit Board:
- Screw Clamp wire connection method.
- Direct soldering of pins to the PCB.

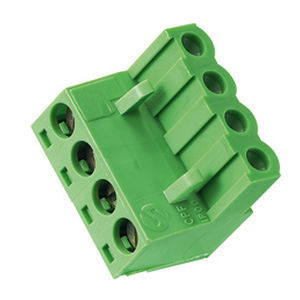

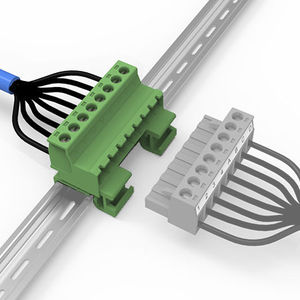

Plug In Male - Female Connection:
- Screw Clamp wire connection method.
- Pre wired female terminal block plugged.
- Soldering of Male Terminal Block pins to the PCB.
|
|
Screw-clamp feed-through terminal blocks, CBC Series, polyamide insulating body, UL94V-0 flame behaviour, reduced overall dimension, cross-connections (PTC) by ?Easy bridge? patented system, with no need of additional protection.
To be mounted onto TH35 - 7.5; TH35 ? 15 type rail, according to IEC 60715.
|
|

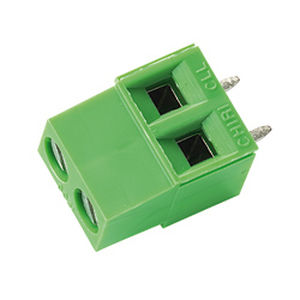

RIA CONNECT’s RIACON product series consists of pluggable and solderable screw type terminal blocks.The terminal bodies are made of copper alloy - RIA does not use wrapped terminal bodies. The surface is electro-nickel plated. Versions with soldering pins are initially electro-nickel-plated, and then hot-dip galvanized to achieve high resistance to corrosion and outstanding soldering properties.
All terminal bodies are captive in their moldings.
Terminal screws sizes M2, M3 and M3.5 are made of different materials, varied upon needs. The bottom surfaces are rounded off, permitting leads to be connected without wire protectors.
All screws are hot-dip galvanized, 4 µm nickel plating over 8 µm copper to provide a better protection against corrosion. The screws are usually secured in a fashion as to prevent them from working loose during shipment.
|
|
Differents kinds and possibles uses:
- Single Level
- Multiple Connection
- Double Level
- Triple Level
- Distribution Blocks
- Micro
- Modular Panel Mount
- Single Level Fuse
- Double Level Fuse
- Disconnect & Test
- Thermocouple
- Earthing
- Neutral/Earth Clamp
- Corrosive/Explosive Env.
|
|
|
For all cable-to-board connections relevant to maintainance, large variety of types. Lead sections up to 4.0 mm². For signal and load currents up to 15 A, pitch 3.5 mm, 3.81 mm, 5.0 mm, 5.08 mm, 7.5 mm and 10.0 mm (.138", .150", .197", .200", .295" and .394").
|
|
Spring-clamp feed-through terminal blocks, polyamide insulating body, UL94V-0 flame behaviour.
To be mounted onto TH35 - 7.5; TH35 ? 15 type rail, according to IEC 60715.
Double possibility to insert the multi-pole ?easy bridge? system PTC type jumpers.
Available for (Ex)i ?intrinsic safety? circuits
(RAL 5015 blue colour).
|
|
|
|
|
|
RIA CONNECT’s SPRINGCON product series consists of terminal blocks using spring clamp technology.
Spring clamp technology is defined as an electrical connection produced by terminating an individual, stripped conductor with a spring.
It is valid for solid, stranded and fine stranded copper conductors having a nominal cross section from
0.08 - 2.5 mm² .
SPRINGCON terminal block features:
Tool-less operation - Insert conductor and snap the lever down to connect
Ship wire ready for your application
Tool-less operation - Insert conductor and snap the lever down to connect
Gas tight connection - A correct contact force ensures a gastight connection
Broad range of centerlines in one piece & pluggable versions - 3.5mm, 3.81mm, 5.0mm, 5.08mm, 7.62mm & 10.0mm centerlines
Fast field terminations - Cut installation time in half using SPRINGCON
Mates with industry standard PC headers already in your application
Meets or exceeds UL1059 terminal block requirements
Modular design allows for color coded sections to be easily integrated
|
|
Differents kinds and possibles uses:
- 1-in 1-Out
- Multiple Connection
- Grounding
- Panel Mount
- Angular feed through
- Anguler Earthing
- Double Level
|
|
Screw-clamp feed-through terminal blocks, polyamide insulating body, UL94V-0 flame behaviour, to be mounted onto PR/DIN and PR/3 type rails according to IEC 60715.
Available in standard beige (RAL 1001)
colour or version suited to be used in (Ex)i
?intrinsic safety? circuits (RAL 5015 blue
colour).
Available for conductors? rated cross sections between 2,5 sq mm to 70 sq mm, current from 24A up to 192A.
|
|
Terminal Block
RIA CONNECT manufactures high quality, competitively priced terminal blocks and terminal block connectors for the Global market. We offer pc mount screw based RIACON European style terminal blocks, spring clamp based SPRINGCON terminal blocks, tool-less insulation displacement IDCON connectors, PLUGCON headers and pin strips for pluggable terminal blocks and TUBECON tubular screw electrical terminal blocks.
|
|
|
|
|
|
Terminal Blocks

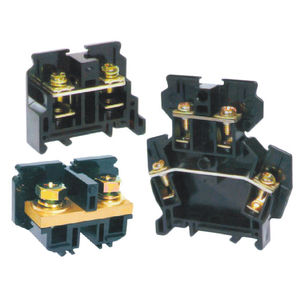

Schlegel terminal blocks are standard terminals for industrial application, particularly for electrical machine controls, for switchgear, distribution and measuring systems as well as for the lift and apparatus construction. They are suitable for both heavy and low current at DC and AC.
The Schlegel product portfolio includes terminal blocks with different connection types - screw connections, spring cage connections and IDC technology (Insulation Displacement Connection - no stripping required!) - and all common nominal cross sections. Schlegel supplies the most advantageous 4mm² screw-type terminal which is most frequently demanded in this size range. Moreover, Schlegel screw-type terminal blocks are the smallest terminals on the market (for the respective connection diameter), referred to their height, their length (at right-angles to the rail) as well as their width (along to the rail). Compared to the competitors' products they ado have a relatively large clamping space.
The Schlegel screw-type terminal blocks (ref.: IK...) are equipped with a wire protecting contact bracket which is pressing the conductor onto the ground of the conductive clamping body by means of the clamping screw.
This system calls the "OSK" - Original SCHLEGEL Clamping System, because it is unique on the terminal block market. The wire protection ensures the so-called "six securities":
- Direct clamping force transmission onto the wire at full bearing of the clamping screw
- Protection of the wire (no piercing or damaging by the screw)
- Secure wire insertion
- No tilting of the connection
- Reliable prevention of wire loosening by the resilience of the clamping bracket and elestic deformation of the clamping body
- Reliable prevention of screw loosening caused by the vibrating clamping bracket that touches the screw head (this makes the screws captive).
|
|

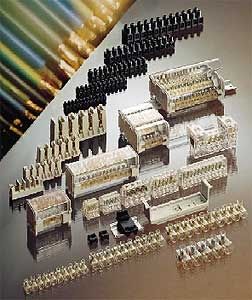

Junction boxes are intended for a special - typically swiss - installation technique. It consists in establishing branchings from laid through conductors. The involved material are a baseplate fitted with branching terminals and a cover.
Further junction boxes of thermoplastic, polyester or thermosetting material are available for the same type of application.
|
|
Differents kinds and possibles uses:
- Polyamide Series
- High Temperature
- Very High Temperature
- PCB Terminal Blocks
|
|
Clips from C.S.
Clips mammoth
Clips with portafusibile
Clips for transformers
LOGON:
_ screw-screw
_ screw motivating force
|
|
The largest range from the industrial leader

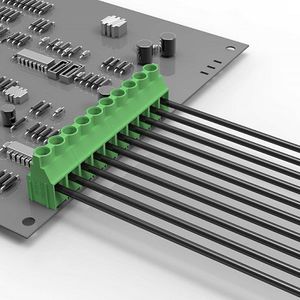

For the connection of PCBs into their device environment, WAGO offers a large range of PCB terminals. For conductor diameters between 0.08 mm² and 16 mm², in metric or imperial pitches of 2.5 - 20 mm, or from 2.54 - 10.16 mm respectively, a suitable solution is found for everyone - of course in screw-free connection technology with CAGE CLAMP®, plug-in clamp or the versatile CAGE CLAMP® S connector.
|
|
Weidmüller offers an extensive range of PCB components. Please choose the relevant section to learn more about PCB connectors and PCB terminals.
|
|
|
The WAGO X-COM®-SYSTEM, a fusion of connectors and rail-mounted terminal blocks, has grown to become a building block for universal system wiring since being introduced onto the market in 1997. This system makes all current rail-mounted terminal block functionalities suitable for plug and play applications. Even components that are not mounted on a TS 35 carrier rail can be easily incorporated into existing system wiring using the X-COM-SYSTEM®.
|
|
POWER CAGE CLAMP® - The Full Range of High Current Terminal Blocks
The Range of Rail Mounted Terminal Blocks for Wire Sizes Ranging from 6 mm² to 95 mm²
Connecting conductors up to 95 mm² with a turn of the hand
They are precise and safe. They are fast and convenient. They accept all types of wires from 6 mm² to 95 mm² (AWG 4 to 4/0) - which is superior to any other comparable terminal block on the market. The three versions of the 285 Series rail-mounted terminal blocks are suitable for applications with rated currents up to 232 A. Based on a unique patented technology, the largest version has been holding its ground in the market for many years.
|
|
Winchester Electronics offers a comprehensive line of press-fit Power Terminals for backplane applications that features Winchester's proven, reliable, and industry leading C-Press compliant pin technology.
Winchester Electronics press-fit power terminals, used in wire-to-board power applications, provide a cost-effective and reliable method to connect lead wires terminated with ring or fork tongue terminals to backplanes. Power terminals have a DIP (Dual In-line Package) footprint and are available in 6 or 10 positions, with or without protective insulation, and with or without 6/32, 4/40, M3, or M4 mating screws. A 10-position power terminal with two .250 inch Quick Disconnect tabs is also available.
- 121 Series .100 x .300 inch grid 10-position power terminals
- 121 Series .125 x .250 inch grid 6-position power terminals
|
|

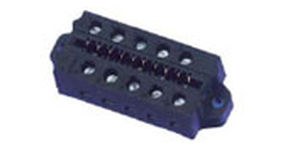

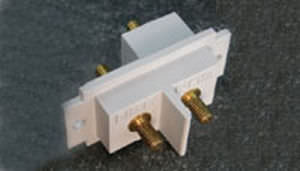

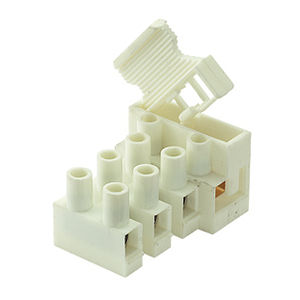

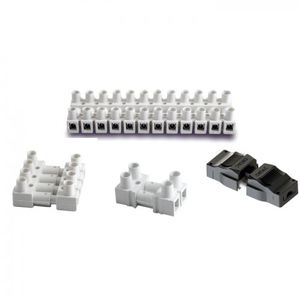

Heyco® Standard Appliance
Terminal Blocks
Screw to Screw
Features
Allows standardization of the SOLID WIRE Cordset. Input and output wires are always secured with a screw.
Modern low profile design occupies less "real estate" inside the appliance.
No exposed metal parts. "Dead front" designed safety.
Pressure clamp connectors are supplied in the open position, ready to accept single or multiple solid conductors.
To meet European requirements, your application may need a terminal block between the power supply cord and internal electricals.
All sizes are rated at 300 volts (450 volts in Europe).
Metal parts feature galvanized steel screws and Ni or tin plated brass inserts.
Available in 94V-0 flame retardant (FR), glass-filled 6/6 Nylon material.
Material Temperature Index: 284°F (140°C), except TB 3B- 338°F (170°C).
Consult Heyco for other pole configurations.
|
|
Optimum contact ensured through the patented and renowned clamping yoke system which is based on the classical increase of force of the screw. Requring only small effort, the screw thread produces high contact power.
A high contact force is only effective when continuously excerted on the conductor. The Weidmüller clamping yoke system works as follows: When the clamping screw is tightened, the resultant force causes the upper thread overlap to spring open, thus causing a locking action to be exerted on the screw. Movement of the connected conductor is compensated by the elastic behaviour of the clamping yoke.
Result:
The connection is vibration-resistant and makes retightening of the clamping screw unnecessary.
|
|
Z-series tension clamp terminal blocks with a cross-section between 0.13 and 35 mm2 enable optimized and application proof solutions.
Terminals with tension clamp technology, the Z sereis, are made to suit a wide range of customer applications. They are:
small structural dimensions
large marking surface
integrated test point
cross-connestion ability within the Z series and to other Weidmüller families
The terminals in the Z series have a wide clamping range and up to two cross-connection channels.
The potential can be distributed across any number of channels using the pluggable cross-connections system.
|
|

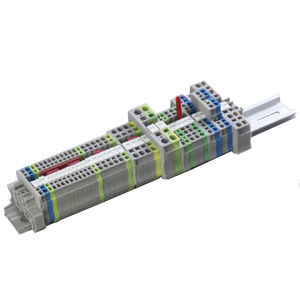

TOPJOB® S - The range of rail-mounted terminal blocks
For all industrial and Exe applications as well as building installation. The reduction of panel space, smaller enclosures and junction boxes are just some of the cost and space savings that are possible using the smallest range of rail-mounted terminal blocks with spring clamp connection on the market.
|
|
|
|
