These standard systems are made of stainless steel and have a working pressure up to 2400 bar and a flow capacity from 0 to 37 ltr/min. They are compact, easy to handle and ready for use. These systems are often used for pressurising vessles, tubes, fittings, fire extinguishers, hoses and valves.
|
|
Resato has designed a robust power pack, containing a build in pump with 320 mm air drive section.
Thie biggest benefit of this unit is the high flow combined with high pressureoutput, by use of only one pump. Simple construction leads to easy and low maintenace.
This mult-purpose unit is suitable for:
- Pressure testing of large objects.
- Chemical Injection.
- Generating hydraulic power.
|
|
|
|
|
|

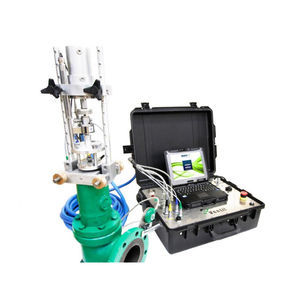

Online safety valve test system, PreVenTest
Pressure safety valves are installed on process equipment to release excess pressure due to upset process operations, external fires and other hazards. Or simply said; the safety valve serves to protect life and property. Failure of pressure safety valves to function properly when needed could result in the over pressure of vessels, exchangers, boilers, or other equipment they where installed to protect. It is essential to maintain your pressure safety valves and relief valves in good condition.
Periodically testing is one of the most important elements to proof that the safety valves will provide the so important protection. Obviously, the most desirable type of test is one that subjects the pressure relief valve to the full operating conditions that it is to endure in practice.
The Ventil PreVenTest system is a robust, but ingenious build system for testing all types and sizes of spring operated safety valves on-line, in process and under the normal operating conditions. The portable system enables you to proof the correct working and performance or identify safety valves in need of repair without plant shut-down.
Capabilities
- Unlimited range.
- Robust portable system.
- Universal and equipped for all brands.
Optional features
- ATEX Intrinsically safe version.
- 50 kN set for testing with no or a limited process pressure.
|
|
|
Flo-tech portable testers are the leaders in state-of the-art hydraulic testing equipment. Offered in three models in a variety of sizes, the compact testers are designed for fast, diagnostic troubleshooting of both mobile and stationary hydraulic systems and components. The PFM6 measures flow, pressure, and temperature simultaneously from one point, while the PFM8 series provides an additional dynamometer for power calculation (HP and kW). In addition to portable testers, Flo-tech manufactures a wide variety of in-line turbine flow meters for hydraulic fluids.
|
|
|
The Flo-Check USB represents the next generation of hydraulic test equipment. The device simultaneously measures flow, pressure, temperature and power within a hydraulic system. This data is displayed and logged through a custom Windows-based software application; data is received from the Analyzer through a standard USB cable (both software and cable are included with the unit). The Flo-Check USB is ideal for testing, troubleshooting and diagnosis in mobile and industrial hydraulic applications, and for setting hydraulic components such as pumps, valves and motors. The unit is bi-directional and includes a low-resistance load valve and internal pressure relief discs.
|
|
|
The purpose of THP1 device is identical to that of the TB1 unit, that is to say testing pieces in a low or medium production with the only difference that this device is indicated for testing pieces under high pressure conditions. To this purpose it features a shielded screen which shuts itself automatically before starting the test. When the piece being tested is under high pressure it is not possible to open the screen until the safety conditions have been totally restored.
|
|
|
|
|
|
The G500 PEM test station is specially designed to meet the needs of customers testing fuel cell stacks in the 12 to 30kW range. The FCATS G500 is the most stable and accurate fuel cell stack test station available. We have supplied approximately 100 FCATS test stations of this size to customers around the world; the majority to automotive OEMs and key stack developers. Compare that to our competition.
The G500 comes standard with HyWARE II, our proprietary control and automation software, the most stable, flexible and user-friendly testing control software available.
BENEFITS
Outstanding performance:
- Dew point control: +/-1C
- Gas temperature control: +/-1C
- Backpressure control: +/-2kPa
- Data acquisition rate: 10Hz
Superior reliability and maintainability: We have achieved superior reliability and maintainability through selection of the most dependable components, reduction in the number of parts, process flow simplification, and improved access to components.
- Only the highest quality components have been selected
- All electrical components are positioned for easy access via the front doors
- Reliability of the I/O has been improved by adopting an industrial I/O system
- Motors and pumps have electrical quick-connectors allowing easy removal for serviceability
- Use of sanitary and zero-clearance fittings allows easy removal of key components for serviceability
- Industrial door design includes mechanical hinge pins for easy removal of doors
- Robust welded steel frame, with powder-coated finish
|
|
|
|
|
|
The G700 PEM test station is specially designed to meet the needs of customers testing large stacks, generally for transportation and stationary applications. The G700 is the most sophisticated large stack tester in the world. It includes precise gas flow control using mass flow controllers, accurate gas humidification using contact humidifiers, stack coolant proprietary pressure control using a patented process, and expandable cell voltage monitoring capability. Reformate simulation and steam humidification are available as options. Several types of load banks including water-cooled as well as regenerative, are also available.
The G700 comes standard with HyWARE II, our control and automation software.
BENEFITS
Outstanding performance: After surveying our customers, we have developed the highest performing test stations available:
- Dew point control: +/-2C
- Gas temperature control: +/-2C
- Backpressure control: +/-2kPa
- Data acquisition rate: 10Hz
Superior reliability and maintainability: We have achieved superior reliability and maintainability through selection of the most dependable components, reduction in the number of parts, process flow simplification, and improved access to components
- Only the highest quality components have been selected
- All electrical components are positioned for easy access via the front doors
- Reliability of the I/O has been improved by adopting an industrial I/O system
- Motors and pumps have electrical connectors allowing easy removal for serviceability
|
|
|
|
|
|
SOLID OXIDE FUEL CELL TEST STATIONS
Our SOFC test stations are integrated measurement, testing and analysis systems, designed for the unique needs of the SOFC market. These test systems include gas mixing, humidification, pre-heating, furnace, heat recovery and water balance modules. Systems can operate on gaseous or liquid fuels. Operating temperatures range up to 1000C and operating pressures may be controlled within 2 kPa even in low pressure / high flow applications. Systems come complete with a load bank and cell voltage monitoring.
Systems can be tailored to meet your specific requirements.
FEATURES
- Conditioning of reformed gas at precise temperatures and pressures to simulate SOFC reaction products
- MFCs can be bypassed and removed for calibration while the test station is operating
- Up to 9 inlet gases available
- Manual and fully automated testing capability
- Reliable and stable PLC control
- Programmable electronic load control with reactant-sensitive ramp rates
- Built-in protection from carbonization
- User-controlled alarm settings
APPLICATIONS
- R&D testing: Extremely flexible control system perfectly suited for R&D testing
- Durability: Reliable unattended operation, automated scripting capability facilitates long-term testing
|
|
Pump unit with D.C. motor, mounted on a trolley, applied for the testing of pipe lines, vessels etc.
- Test Pressure: 2 - 350 bar
- Capacity: 5 l/min
- Motor Power: 3 kW
- Voltage / Frequency: 400 V / 50 Hz
- Operating Temperature: max. 40 C
|
|
|
|
|
|
The G100 and G200 complement our test product line and expands our capability in PEM single cell and short stack R&D testing. They have been designed to offer an accurate test station for the low power test market at a very attractive price.
HyWARE II: Our control and automation software offers exceptional functionality with a user-friendly graphical interface. HyWARE II, enhanced with our proprietary HyAL automation language and load following technology, comprehensively manages the full range of FCATS system parameters, including test station control, data acquisition, diagnostics, and safety subsystems. HyWARE II enables safe and reliable unattended operation.
BENEFITS
The G100 and G200 test stations have a number of distinct advantages, including:
- Optional workspace enclosure
- Automatic Nitrogen purge on safety shutdown
- Hydrogen sensor
- 2 separate PID loops for cell endplate heaters
- 17" LCD monitor and PC
- Generous workspace for the test article with Dri-Dek work surface
- Extensive 19" rack space available
- Optional liquid cooling capability
- Optional dry gas by-pass
- Optional water balance capability
- DMFC, and high-temperature PEM capability also available
- Performance Commitment: Review test data from our library of results or put your own fuel cell on one of our machines to try before you buy. Unlike others, our performance commitments are backed by extensive R&D using actual stacks, correct gases and by test engineers using traceable metrology.
|
|
The G20 is an economical complement to our PEM test product line with expanded capability in low power fuel cell characterization. The G20 has been designed for small active area, single cell R&D testing, with all the capability and sophistication of our larger test stations. The G20 comes equipped with the standard FCATS control software HyWareII, including HyAL automation language for dynamic 24-hour operation.
BENEFITS:
- Small footprint, convenient benchtop design
- Mass flow controllers for hydrogen and air with 100:1 turndown
- Humidifier bypass included
- Automatic nitrogen safety purge on shutdown
- Automated humidifier refill capability
- Zero-volt capable load bank
- 2 software controlled PID loops for cell endplate heaters
- Optional automated backpressure control
- 17" LCD monitor and desktop PC included
- Hydrogen sensor
|
|
500W PEM Fuel Cell Test Station:
The G40 and G60 test stations have a number of distinct advantages, including:
- Small footprint
- Optional fuel cell enclosure for operator safety
- Automatic nitrogen purge safety shutdown
- Hydrogen sensor
- 2 separate PID loops for cell endplate heaters
- 17" LCD monitor and PC
- Available 19" rack space
- Optional liquid cooling capability
- Optional water balance capability
- Optional dry gas bypass
- Optional software-integrated AC Impedance capability
- DMFC and High-temperature PEM capability also available
- Generous workspace for the test article, with Dri-Dek work surface
|
|
|
For over 20 years and produces Elabo develops testing facilities. Whether safety and functional test, permanent run and endurance test or the examination of load limits: By the experience of many years and the know-how within the ranges measuring and inspection technique, mechanics, control, data adminstration and documentation can be realized properly matching engineering solutions. As one of the few manufacturers the connection diagrams do not only develop with us, but we manufacture the test act ions or test plants in Crailsheim themselves, for example the complete adaptation and contacting technology. Within the range of electrical security we guarantee the adherence to of valid standards and regulations, for example after VDE or UL.
|
|
Pressure range up to 1250 bar / 18,000 psi
Suitable for Air, Nitrogen, Argon, Helium and a wide range of other gases
Provided with Resato air-driven single acting, double acting or two-stage gas booster
Water-cooled Oxygen boosters available
All stainless steel construction
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
Pressure range up to 3650 bar / 50,000 psi
Flow up to 50 L/min
Suitable for water, oil, and a wide range of chemicals
Provided with reliable Resato air-driven pump
Low noise level even at high cycling speed
All stainless steel construction
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
|
The MEDUSA Series Fuel Cell Test Stations are designed, engineered, and built by engineers and technicians that have been designing and manufacturing reliable electrochemical hydrogen systems for over 35 years. Teledyne's experience is unsurpassed resulting in the most precise, user friendly, and reliable Fuel Cell Test Stations available. Test stations are available in 3 model series -- the MEDUSA RD Series Stations for applications up to 3 kW, the MEDUSA RD Elite Series for applications up to 4 kW and the LS Series Stations for multiple kilowatt fuel cell stack testing applications up to 12 kW.
|
|
Pressure range up to 5700 bar / 80,000 psi
Flow up to 50 L/min per pump
Suitable for water, oil and a wide range of chemicals
Provided with one or more Resato air-driven pump(s)
Low noise level even at high cycling speed
All stainless steel construction
Proven reliability under severe conditions
Suitable for direct water feed or provided with stainless steel reservoir
Numerous options available such as forklift pockets, wheels, reservoir, lid and engraved panel
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
Pressure range up to 5700 bar / 80,000 psi
Flow up to 50 L/min per pump
Provided with one or more Resato air driven pump(s) or booster(s)
Direct water feed or with built-in reservoir
Manually operated or computer controlled
Ergonomic, safe and user-friendly design
Low noise level
Suitable for various test mediums such as tap water, oil, an emulsion of both and many other liquids and gases
Modular and flexible design makes it possible to build a unit to your specific requirements
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
FCATS PEM fuel cell test systems offer full flexibility to test, control, and monitor the performance of fuel cells and stacks
FCATS (Fuel Cell Automated Test Systems), are designed to meet the wide-ranging needs of PEM fuel cell stack manufacturers, material developers, system integrators and research organizations. They offer full flexibility to test, control, and monitor the performance and durability of individual cells and stacks under a wide range of operating conditions.
|
|
Our high temperature systems are tailored to meet your specific requirements while providing certain consistent standards:
High precision instrumentation for reliability and repeatability
Rapid transient response capability
State-of-the-art HyWARE II software and diagnostics
Dynamic control of humidification
Reliable unattended operation
Advanced safety features
Worldwide service and support
Designed for serviceability with easy access and removal of components
Upgradeable with the ability to easily add new hardware
|
|
Testing Machine, setting a new world standard
for CNC-controlled roll testing of spiral
and hypoid bevel gear sets. In addition
to basic pattern checking, this
production-oriented machine provides
SFT (single flank encoder-based motion
transmission error) testing and SBN
(structure-borne noise) testing
capabilities for soft and hard parts.
|
|
The TB400 unit is based on the idea of utilizing a standard test bench, dedicated to the medium production check up. Its incredible flexibility suits any need for testing; its main application is the verification of tightness and flow for taps and valves or for pairs and corners for electric or pneumatic actuators.
Applications
- Gas taps
- Gas regulators
- Ball valves
- Globe valves
- Pneumatic actuators
- Electric actuators
- Die-casting
- Power steering
- Brake pumps
- Water meters
- Pressure stabilizers
- Gas filters
- Diesel filters
- Water taps
- Hydraulic check valves
|
|
|
|
|
|
Its not only in the aerospace industry that test cylinder and servo cylinder made by Hnchen are successfully used in highly demanding, decisive situations. Test and inspection facilities are nowadays an integral part of the industrial production process. The typical applications of Hnchen test cylinders include establishing the mobile safety of vehicles, the operational reliability of machines or the functional integrity of individual products and much more.
Synchronous cylinder for applications up to 25 Hz, 1 mm stroke steps. With integrated magnetostrictive or inductive position transducer system. Max. piston speed up to 1 m/s.
Synchronous cylinder for applications even above 25 Hz up to 800 Hz. Test forces from 4 to 600 kN, pressure range up to 320 bar. Fixed strokes 100, 150, 200 and 250 mm. With integrated inductive position transducer system. Max. piston speed 6 m/s in process.
Other products of the range of services:
- Clamping devices for piston rods (Ratio-Clamp)
- Hydraulic cylinders
- Complete system solutions (Ratio-Drive)
- Pressure intensifiers
- Industrial shock absorbers
- Special cylinders of all kinds
- Mounting parts
|
|
Who calibrated? What? When? What were the results? Plan, manage and document all your calibrations efficiently and safely by using Beamex's calibration software. In a Beamex calibration system the calibrator communicates seamlessly with calibration software.
Benefit from using Beamex calibration software:
* Easy-to-use, modern software
* Traceable and auditable calibration documents
* Paperless documentation
* Seamless communication with documenting calibrators
* Wide customization possibilities
* Extensive installation, training and after-sales services
|
|
Recently Scandura has widened its range of products, developing a solution that enables the customer to develop its customised calibration & test bench: SMCS, Scandura Modular Calibration Solution, its a bundle of solutions for the calibration of pneumatic, electro-pneumatic and electronic process instrumentation.
Customers can build up their solutions according to their requirements, choosing among more than forty modules developed to:
measure and generate pressure, vacuum, temperature and electrical signals,
provide power supplies and auxiliary services.
Build up your customised calibration & test bench directly on our website!
|
|
|
|
|
|
The analysis of mechanical and electrical features, of the thermal evaluation, overload capacity and technical data of electrical machines, which the most important are efficiency and performance factor, today makes heavy demands on operability and flexibility of a test system.
The scope of services comprises mechanical components such as drive-test set ups with torque sensors, small test stands with torque-speed measurement and manual or external control, as well as computer controlled complete solutions for the analysis and documentation of electrical machines.
Computer-controlled test stands can be realized with up to 6-channel current-/voltage measurement, so that a separate efficiency specification of motor and converter can be effected even for converter-fed drive systems.
Special features:
Modular conception
Most modern techniques
Use of active brakes (4-Q-operation)
Rotating torque transducer 0,1 % accuracy and speeds up to 50000 rpm
Extremely precise power analyser
Standard- and customer-specific software
Optimal project handling
Worldwide after-sales service
|
|
|
|
|
|
Magtrols Customized Motor Test Systems (CMTS) are complete, customized turn-key test benches for any electric, hydraulic or pneumatic motors, gas engines in a power range from 4 W to 140 kW.
Each system is custom designed and built to meet specific user requirements and can be tailor-made for almost any motor test application.
Application fields are wide : Automotive sector, power tools, home appliances, medical equipment.
A typical CMTS may include one or more dynamometers as loading device along with custom fixtures, a high performance dynamometer controller; a single or three-phase power analyzer; an AC and/or DC motor power supply; GPIB cards and cables and a computer, printer and customized LabVIEW based motor testing software; all conveniently integrated into a heavy duty equipment rack or custom cabinet.
Specialized features have included relays and devices for alternate power, temperature and resistance measurement applications. On-site services with commissioning and technical training are also provided.
|
|
Hydratron has many years of experience designing and manufacturing hose test rigs to suit many applications.
We can supply proof, burst and impulse test rigs / benches for testing with either gas or liquid at pressures up to 45,000 PSI ( 3,000 Bar )
Single or multi station test manifolds can be fitted mounted within robust safety cabinets. These cabinets are fitted with fully interlocked doors to ensure that pressure cannot be applied to the hoses under test until the doors are fully closed and locked in position.
While simple manually controlled test rigs are readily available for proof testing hoses at local hose distributors, fully PLC controlled machines can also be designed to suit production lines.
Standard instrumentation includes analogue pressure gauges but full data logging facilities can be supplied as an option.
|
|
STATIC PRESSURE: 2000 bar
IMPULSE PRESSURE: 2000 bar
PRESSURE CONTROL: semi-autom.
TEST: semi-autom.
GRAPHIC PRINTER: OPTIONAL
TYPE OF DRIVE: pneumo-hydraulic pump
TEST MEDIUM: oil
N MANIFOLDS: 2
N MANIFOLD CONNECTIONS: 15x1/4" BSP
SLIDING MANIFOLDS: included
PRE-FILLING: semi-autom.
SAE CONNECTIONS: OPTIONAL
PRE-FILLING FLOW: 25 L/min
HOSE EMPTYING SYSTEM: semi-autom.
PRESSURE DISCHARGE: autom.
PRESSURE GAUGE: digit.
PEAK PRESSURE MEMORY: included
CYCLES/MINUTE: 2 ( 3/16" L=2000 mm P=2000 bar)
...
|
|
|
|
