ETA™ physical test systems
Quality assurance with high precision
High productivity requires appropriate process equipment combined with efficient inline and offline quality assurance systems. In order to optimize the production process, which means balancing highest throughput and defined quality, precise measurements are of key importance.
AudioDev offers a complete family of ETA inline and offline measurement systems. Based on the core competences in Spectrometry and Laser Technology, the measurement systems generate the most precise measurements. Most systems are turn-key solutions equipped with state-of-the-art hardware and software modules, designed for easy operation.
ETA-systems belong to the most efficient and reliable process control systems installed at manufacturing facilities worldwide.
|
|
|
|
|
|
ForeSightTM Vision Inspection Station from Delkor Systems visually scans and evaluates up to 500 individual product containers per minute. The ForeSight’s vision sensor technology scans the surface features of each package to identify missing, misaligned or damaged closure components, as well as tipped, double-stacked or wrong-size containers.
The ForeSight system evaluates each product’s visual image against a quality-standard algorithm in software to determine which items have to be diverted from normal product flow. For defective parts, the software activates a nondestructive reject mechanism to safely direct the non-conforming package onto a sidetrack conveyor where it can be manually inspected and, possibly, re-introduced into the product stream, thereby reducing waste. Initial applications include the inspection of lid and overcap closures for cultured dairy products in tapered cup containers.
The ForeSight Vision Inspection Station is engineered and constructed to provide a NEMA 4 level of protection to withstand the washdown environment common to the food and beverage industries
|
|
! Efficient inspection of medium & heavy quality fabric.
! Efficient inspection through top & bottom illumination.
! Tensionless movement of fabric on inspection table.
! Full forward & reverse run of fabric.
! Speed variable from 0 – 50 mtrs/ min.
! Compact & crease free rolling on winding tubes.
! Max. Roll dia. Up to 400 mm.
! Length measurement by reputed counter meter.
! Straight & uniform roll winding through efficient selvedge guider.
! Operator friendly, improves productivity, reduces labour.
|
|
|
|
|
|
We have perfected the design & manufacturing of wide range of Fabric Inspection Machines available in various working widths which are easy to operate, technically advanced and programmable machines in the field of fabric quality control. Being developed by highly qualified engineers having vast experience of this field, our machines are equipped with all necessary features like tensionless handling, accurate length measuring, appropriate illumination, Straight roll selvedge, variable roll hardness, auto cutting etc.
! Efficient inspection of medium & heavy quality fabric.
! Efficient inspection through top & bottom illumination.
! Tensionless movement of fabric on inspection table.
! Full forward & reverse run of fabric.
! Speed variable from 0 – 50 mtrs/ min.
! Compact & crease free rolling on winding tubes.
! Max. Roll dia. Up to 1000 mm.
! Machine with any input & output of Roll/ Pile/ Big Batch can be manufactured.
! Length measurement by reputed counter meter.
! Straight & uniform roll winding through efficient selvedge guider.
! Operator friendly, improves productivity, reduces labour.
|
|
MASTER MEND:-
! Unique design for comfortable & efficient mending operation.
! Top & bottom illumination for efficient mending.
! Hands free foot operated with fixed speed drive.
! Machine with any input & output of Roll/ Pile can be manufactured.
! High production efficiency with minimal operator fatigue.
! Available in various working widths.
|
|
|
|
|
|
YXLON unipolar constant potential X-ray systems include 2.25 kW and 4.5 kW versions. The 2.25 kW X-ray systems have been designed and configured primarily for use in manual, semi-automated and fully automated radioscopic applications. The high energy and high dose rates of the unipolar 4.5 kW X-ray systems make them excellent candidates not only for radiographic and radioscopic applications but also for dosimetry and scanning methods like computertomography.
The typical application of each X-ray system is tailored towards specific target areas like low density applications, biological specimens (pathology), plastics and rubber compounds (MG103) and aluminum and steel applications like casting X-ray inspection (MG165 and MG226).
The unipolar 40kHz X-ray systems feature a very high output stability, a precise energy setting and an extremely fast change over to any selected new value. Any fluctuation or deviation of set values is controlled and corrected within microseconds. In addition these features reduce inspection times considerably and highly qualify the X-ray systems for inline inspection in fast, completely automated production lines.
|
|
RAYCON is a product inspection system consisting of X-ray system and conveyor.
Typical applications:
• accurate and consistent detection of magnetic and non-magnetic metals, glass, ceramic, stone, bone, PVC, Teflon, rubber, reinforced plastics etc in foods
• identification of defects such as agglomerated, broken or misshapen product
• checks for low fill even in sealed packs (eg missing components)
• identification of air inclusions in sealed packs (eg tubes and cans)
• checks weight of entire product or individual areas/components and integral evaluation of over/underweight
|
|
|
YXLON tire inspection systems can be used for a variety of applications: whether testing prototypes under load or quality ensuring inline mass production, whether investigating passenger cars, truck bus or off the road tires – the high resolution of images produces by YXLON´s non destructive testing systems, enables you to take fast and fact based decisions.
|
|
GE Inspection Technologies designs, manufactures and supports stationary testing machines based on ultrasonic and X-ray technology for online and offline applications in the manufacturing processes as well as mobile systems for field applications. In addition, we offer systems based on Eddy Current technology and special systems in the field of metrology.

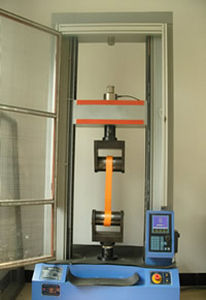

Our testing machines and systems are designed to perform individual manufacturing tests and / or to fulfill international Nondestructive Testing (NDT) standards for final acceptance test.
We offer a wide range of standard systems for numerous applications – including all former Krautkramer, Seifert and Nutronik products – to suit all specifications. Additionally, we can provide a customized solution for your specific need.
|
|
Food product processing requires a variety of operations, such as sorting based on dimensions, shape and colour, on processing lines that run at very high speeds.
LMI's non-contact sensor vision technologies are ideal for such applications. Integrated into a single rugged and lightweight housing, our sensors dramatically reduce the costs and calibration challenges associated with machine vision component implementation. This measurably increases the quality of the final product by supplying our customers with synchronized real-time data for 100% inspection via smart sensors.
Our Food applications division works closely with System Integrators & Original Equipment Machine Suppliers to deliver the most effective solutions for their particular sensor vision needs.
|
|
FQA - Film Quality Analyzer
Extrusion line for Determination of Film Quality
Stand-alone extruder KE 30 with Film quality analyzer and FSR
The Film Quality Analyzer measures the transparency and optically checks the quality of blown or flat films on a laboratory or production scale. The instrument detects in-line and differentiates between
- black specks
- gels
- fisheyes
- holes
These faults are classified acc. to their type and allocated to size classes.
The film is assessed on the basis of the number of faults and their size distribution.
Evaluation is done automatically through a comfortable Windows® 9x or NT software.
All data are stored in a database and can be imported by commercial programs.
|
|
|
|
|
|
Plastic Container Inspection System - The TapTone 4000-PBI is designed to detect leaks in plastic containers, stand-up pouches and tubes at production line speeds. Utilizing advanced DSP technology and fail-saife control logic, the TapTone 4000-PBI inspects 100% of production for micro leaks. When combined with optional sensors, the TapTone 4000-PBI can also detect low fills, over fills, and closure defects.
Dual Sensor Compression Technology - detects and rejects leaking and demaaged flexible containers at production line speeds up to 200 feet per minute. The system is designed with dual parallel chains suspended over the customer's existing conveying system. As the container passes through the system, the dual parallel chains apply force to the sidewall of the container. This action compresses the headspace of the container, which allows a comparative measurement to be taken at both the infeed and the discharge of the system. Comparing the container to itself at the infeed and the discharge of the systems eliminates the effects of typical variations seen in the production environment (fill level, product temperature, and container desity). Utilizing advanced DSP technology the TapTone 4000 controller analyzes the comparative measurement and assigns a merit value to each container. If the merit value is outside of the acceptable range, a reject signal activates a remote reject system.
|
|
Allows mending, examination or inspection. All types of material successfully processed. Choice of input-roll, pile, 'A' frame, bale. Sloping or flat table with or without illumination.
Precision measurement by 'Birch' AutoMeasure. Guided roll up or plait. Optional cross cut. Doff out, with or without taping. Fault recording. Made to your specification.
|
|
|
|
|
|
Features:
- Inspection table is laminated with adequate number of tubes provided underneath and overhead the glass with variable lighting arrangement.
- Push button controls are given on the drive box on the right hand side.
- Cloth can run in FORWARD as well as in REVERSE direction instantaneously.
- Fabric runs face in/face out
- Special jogging or inching device is provided to stop the machine at the right location of the defect.
- Soft start and instantaneous stoppage of fabric.
- Automatic stop arrangement to stop the machine at the end of the fabric piece.
- Robust and attractive design.
- Bow bar has been provided in the batching device to open out the creases in the fabric.
- Perfectly aligned straight edges in tunes of +/- 1 to 2mm in our model with automatic edge guiding system. The device comes with an electronically operated motorized screw type arrangement, thus doing away with requirements such as compressed air etc.
- Perfect tension during the flow of the fabric is provided using guide roll assembly, thus no hassles of nip rolls.
- Meter Counter is installed in front on platform top for easy reading.
- Specially designed Thyristor based DC drive with MCB's for auto tripping of the machine.
- World renown AC drives with companies such as DELTA, ALLEN BRADLY, SEIMENS, TELEMECHANIQUE, etc. can be provided on our machines
|
|
|
|
|
|
INSPECTION MACHINE
FOR FABRICS WITH PLATFORM
Mod. ISP 220
The inspection, winding and plaiting machine with platform Mod. ISP 180 PLAIT / ROLLS,
Allows a check of the fabric quality.
Tanks at the linear geometry of the drawing, to the sensitive system of synchronization and the motorization of all the rolls of delay fabric, the machine is excellently for the verification of elastic fabrics to sweater and shuttle.
Besides, thanks to the management from PLC interfaced to inverter, the operator can modify in real time tension fabric and hardness roll.
With the addition of a platform to allow the operator a qualitative control more near at the fabric. The winding or PLAITING process happens behind the operator.
The machine can be inserted in an automatic layout of more inspection machine with an automatic packing
Technical characteristics:
• Inlet fabric from J-BOX with synchronization / Small rolls / Plait / Big rolls
• Inclined inspection table with rear light
• Up light
• Platform
• Auto-centring winding unit
• Winding of the roll
• Adjustable compactness of the rolls
• Adjustable fabric tension
• ø500 mm diameter knitted fabric rolls
• 3÷60 m/min. speed control without step.
Optional:
• Digital weight measuring system
• Automatic linear cut
• Wood or special light
• Comatex software for store all the faults
• Barcode labelling for more type of error
• Mark-fault one or more fault
• Doubling system in 2 or 4
• Packing system
|
|
|
|
|
|
Features
- Inspection table is laminated with adequate number of tubes provided underneath and overhead the glass with variable lighting arrangement.
- Push button controls are given on the drive box on the right hand side.
- Cloth can run in FORWARD as well as in REVERSE direction instantaneously.
- Fabric runs face in/face out
- Special jogging or inching device is provided to stop the machine at the right location of the defect.
- Extremely sensitive soft start and instantaneous stoppage of fabric.
- Automatic stop arrangement to stop the machine at the end of the fabric piece.
- Robust and attractive design.
- Bow bar has been provided in the batching device to open out the creases in the fabric.
- Perfectly aligned straight edges in tunes of +/- 1 to 2mm in our model with automatic edge guiding system. The device comes with an electronically operated motorized screw type arrangement, thus doing away with requirements such as compressed air etc.
- Meter Counter is installed in front on platform top for easy reading.
- Specially designed Thyristor based DC drive with MCB's for auto tripping of the machine.
- World renown AC drives with companies such as DELTA, ALLEN BRADLY, SEIMENS, TELEMECHANIQUE, etc. can be provided on our machines.
|
|
|
|
|
|
- MS Side frames pointed with hardwearing stipple finish stowing enamel . This makes the finish permanent..
- A cradle with tow M.S. side brackets and 6 rollers running on ball bearing to place the fabric roll. This arrangement allows tensionless unwinding of the fabric.
- Inspection table is laminated black/white, which enhances the defect identification procedure by making defects more easily visible to the operator.
- The angle of the table is changeable in order to allow the operator to select the right viewing angle. Also, mending of the fabric is easily possible due to this arrangement.
- Two overhead and two underneath tube lights are provided to optimize the lighting.
- Positive driven batch winding mounted on M.S. fabricated frames having two rubber strip coated rollers and batching roll guides. The fabric is wound on the batch roll by surface contact.
- A scroll rolls right after the inspection table opens the fabric roll.
- A bow bar is also provided to open the fabric right before the winding, which gives perfectly wound tight rolls.
- This winding arrangements winds rolls by 25% tighter than the traditional winding mechanisms.
- Measuring Counter is provided in front on the inspection table for easy viewing
- FORWARD/REVERSE/STOP push button controls mounted on inspection table on both sides.
- A special jogging (Inching) device is also provided.
- Soft start and instantaneous stoppage of fabric.
- MCB's to automatically stop the machine at the time overloading.
|
|
|
|
|
|
INSPECTION MACHINE
FRONT-REAR FOR TUBOLAR FABRICS
Mod. ISD 220
The inspection, winding machine, ISN NO STOP,
allows a check the quality of the front and the rear side of the fabric.
Thanks to the linear geometry and to a new system of drew-in of the fabric, the machine is able to check both the fabrics tubular that the fabrics in open, the new system of wrapping allows besides to wind the roll in hourly sense or ant-clockwise.
The machine is excellently for the verification of elastic fabrics to sweater and shuttle.
Besides, thanks to the management from PLC managed to inverter, and to the sensitive system of synchronization and the motorization of all the cylinders of transport fabric, the operator can modify in time real tension plotted and compactness roll.
Technical characteristics:
• Inlet fabric from Roll of plait
• Special draw-in of the fabric
• Double inclined inspection table with rear light
• Up light
• Auto-centring winding unit
• Winding of the roll in clockwise sense or ant-clockwise sense
• Adjustable compactness of the rolls
• Adjustable fabric tension
• ø500 mm diameter knitted fabric rolls
• 3÷60 m/min. speed control without step.
Optional:
• Digital weight measuring system
• Automatic linear cut
• Wood or special light
• Comatex software for store all the faults
• Barcode labelling for more type of error
• Mark-fault one or more fault
• Doubling system in 2 or 4
• Packing system
|
|
|
|
|
|
- MS Side frames pointed with hardwearing stipple finish stowing enamel . This makes the finish permanent..
- -A cradle with tow M.S. side brackets and 6 rollers running on ball bearing to place the fabric roll. This arrangement allows tensionless unwinding of the fabric.
- Inspection table is laminated black/white, which enhances the defect identification procedure by making defects more easily visible to the operator.
- The angle of the table is changeable in order to allow the operator to select the right viewing angle. Also, mending of the fabric is easily possible due to this arrangement.
- Two overhead and two underneath tube lights are provided to optimize the lighting.
- Positive driven batch winding mounted on M.S. fabricated frames having two rubber strip coated rollers and batching roll guides. The fabric is wound on the batch roll by surface contact.
- A scroll rolls right after the inspection table opens the fabric roll.
- A bow bar is also provided to open the fabric right before the winding, which gives perfectly wound tight rolls.
- This winding arrangements winds rolls by 25% tighter than the traditional winding mechanisms.
- Measuring Counter is provided in front on the inspection table for easy viewing
- FORWARD/REVERSE/STOP push button controls mounted on inspection table on both sides.
- A special jogging (Inching) device is also provided.
- Soft start and instantaneous stoppage of fabric.
- MCB's to automatically stop the machine at the time overloading.
|
|
|
|
|
|
Next Dimension - ND300
Designed to maximize uptime and throughput, the ND300 gear measurement system includes:
- Intuitive, user-friendly navigation based on the Microsoft Windows® software platform, making it easy to use, reliable, customizable and easily upgraded
- The ability to measure a gear or related features in relation to functional datums and/or compare measurements to manufacturing datums thus eliminating the need for expensive tooling or fixtures
- A modular design approach to the hardware and software allowing for easy system upgrades and expansions
- The ability to compare output results in multiple gear standards simultaneously
- Complete user control over the format of the analysis reports generated - the user can choose to plot profile, helix, index, pitch, and tooth thickness along with standard analyzed parameters and accuracy class all on one page!
- True 3D measurements in an error-compensated work envelope produced by PECo’s proprietary data acquisition algorithms and Renishaw® 3D probe technology
- A 3-year warranty and world-class service and support
|
|
|
|
|
|
INSPECTION MACHINE
FOR FABRICS DIRECTLY FROM THE RAMEUSE
Mod. ISN 220 NO STOP
The inspection, winding machine,
ISN NO STOP, allows a check of the fabric quality;this machine can be interfaced with the exit of Rameuse, or other machine kind calendar, without stop it. Tanks at the linear geometry of the drawing, to the sensitive system of synchronization and the motorization of all the rolls of delay fabric, the machine is excellently for the verification of elastic fabrics to sweater and shuttle.
Besides, thanks to the management from PLC interfaced to inverter, the operator can modify in real time tension fabric and hardness roll.
Technical characteristics:
• Inlet fabric from J-BOX with synchronization
• Inclined inspection table with rear light
• Up light
• Auto-centring winding unit
• Winding of the roll
• Adjustable compactness of the rolls
• Adjustable fabric tension
• ø500 mm diameter knitted fabric rolls
• 3÷60 m/min. speed control without step.
Optional:
• Digital weight measuring system
• Automatic linear cut
• Wood or special light
• Comatex software for store all the faults
• Barcode labelling for more type of error
• Mark-fault one or more fault
• Doubling system in 2 or 4
• Packing system
|
|
|
|
|
|
TENSIONLESS INSPECTION MACHINE
FOR ELASTOMER FABRICS WITH RELAX BELT
Mod. ISR 220
The inspection, winding tensionless machine
ISR 07’ TENSIONLESS,
provided of axial or tangential unwinding for big rolls, it’, an excellent machine for the elastomer fabrics.
The fabric gently comes situated, in the form of small folding, on a conveyor belt, that allows it to relax and particularly as it regards the elastic materials to resume its own elasticity. An additional conveyor belt incline ® (Exclusive Patent COMATEX) accompanies the fabric, without altering its acquired stability, to the summit of the table of inspection illuminated, where possible to view and mark the defects eventually found.
Before the end phase of winding, a special software Comatex combined to the electronic sensor of tension, it allows to maintain results of relaxation and to get rolls without residual tension.
Technical characteristics:
•Inlet fabric from J-BOX with synchronization / Small rolls / Plait / Big rolls
•Relax conveyor belt
•Patent conveyor belt
•Inclined inspection table with rear light
•Up light
•Auto-centring winding unit
•Reading fabric tension with adjustment of the bad tensions
•Winding of the roll
•Adjustable compactness of the rolls
•ø500 mm diameter knitted fabric rolls
•3÷60 m/min. speed control without step.
Optional:
•Digital weight measuring system
•Automatic linear cut
•Wood or special light
•Comatex software for store all the faults
•Barcode labelling for more type of error
•Mark-fault one or more fault
•Doubling system in 2 or 4
•Packing system
|
|
|
|
|
|
TENSIONLESS INSPECTION MACHINE
FOR ELASTOMER FABRICS WITH RELAX BELT WITH PLATFORM
Mod. ISRP 220
The inspection, winding tensionless machine
ISR 07’ TENSIONLESS,
provided of axial or tangential unwinding for big rolls, it’, an excellent machine for the elastomer fabrics.
The fabric gently comes situated, in the form of small folding, on a conveyor belt, that allows it to relax and particularly as it regards the elastic materials to resume its own elasticity. An additional conveyor belt incline ® (Exclusive Patent COMATEX) accompanies the fabric, without altering its acquired stability, to the summit of the table of inspection illuminated, where possible to view and mark the defects eventually found.
Before the end phase of winding, a special software Comatex combined to the electronic sensor of tension, it allows to maintain results of relaxation and to get rolls without residual tension.
Technical characteristics:
•Inlet fabric from J-BOX with synchronization / Small rolls / Plait / Big rolls
•Relax conveyor belt
•Patent conveyor belt
•Inclined inspection table with rear light
•Up light
•Platform
•Auto-centring winding unit
•Reading fabric tension with adjustment of the bad tensions
•Winding of the roll
•Adjustable compactness of the rolls
•ø500 mm diameter knitted fabric rolls
•3÷60 m/min. speed control without step.
Optional:
•Digital weight measuring system
•Automatic linear cut
•Wood or special light
•Comatex software for store all the faults
•Barcode labelling for more type of error
•Mark-fault one or more fault
•Doubling system in 2 or 4
•Packing system
|
|
Today, more than 3000 LMI/Selcom™ laser triangulation sensors are used throughout the tire manufacturing process worldwide. Sensors monitor thickness, profile and ply overlap, to name just a few applications. In-process sensing provides immediate feedback at critical stages in the production process. In this manner, faults may be found immediately and corrective action quickly applied.
Providing reliable data from surfaces with rapidly changing colour and surface properties, LMI systems integrate high frequency response 2D and 3D profiles from surfaces, monitoring items such as radial run-out, side wall profiles and tread extrusion contours.
Our Rubber & Tire applications division works closely with System Integrators & Original Equipment Machine Suppliers and Tire Manufacturers to deliver the most effective solutions for their particular sensor vision needs.
|
|
DYXIM X-ray inspection systems from Sartorius check packed and unpacked bulk products for the widest variety of contamination including glass, metal, stones and other particles within the production process and safely lock out contaminated products.
There are 3 different versions: DYXIM - S (Single Shooter) - D (Double Shooter) and - FB (Conveyor Machine).
– Detection of metal, glass, stones, bones, ceramic and certain plastic components (PVC)
– Completeness control
– Dyxim D series for glass in glass applications
– Control of shape, volume and dimensions
– Weight control and detection of voids within the product
|
|
Dynamic Systems Testing
Zwick provides test rigs and portal frames for the dynamic testing of systems components, which are designed in conjunction with your needs.
|
|
Sprint CNC™ fits on a workbench and provides stage travels as large as 12" x 12". Use the handy joystick to move the part and optics. Precise autofocus speeds throughput and improves repeatability. Run programs for all your parts to keep your quality in control.
Sprint CNC Features:
- 0.5-micron XYZ axis scales
- LED back light
- VectorLight™ ring light
- Optional LED on-axis illumination
|
|
SmartScope® MVP is the cost-effective way to get the benefits of video-based inspection and measurement from the leading name in the industry - Optical Gaging Products (OGP®).
Motorized benchtop SmartScope MVPs have a granite base and column, quality 6.5:1 zoom lens, and mechanical bearing translation stages for accurate positioning in every axis.
Measure-X® software makes it easy to create part routines using video and multisensor metrology. The touch probe option adds multisensor functionality, extending the versatility of SmartScope measurement systems.
|
|
Rewinding, inspection and cutting machine for rolls of all kinds of fabrics (decorating textiles, fabrics for clothing industry, knitted fabrics).
Used by wholesalers for rewinding decorating textiles, upholstery, clothing and other technical fabrics.
* Maximum roll diameter 40 cm (other dimensions on request)
* Flexible and modular concept.
* One person operation
* Tilted 45° Inspection table with back lighting
* Accurate length measurement system
* Winding up station with adjustable speed control
* Power supply 230V, 50/60Hz, 1 kW
|
|
|
|
